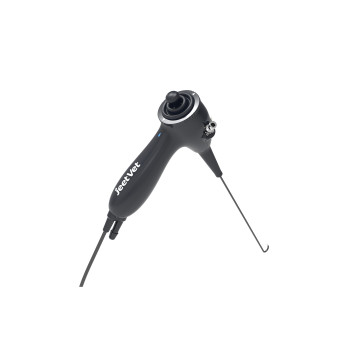

DZT-200 Portable Veterinary Flexible Otoscope
group nameVeterinary Rigid Endoscope
-
Min Order1 piece
brand nameJeetVet
modelDZT-200
payment methodT/T, L/C
-
update timeTue, 21 Apr 2026 04:20:54 GMT
Paramtents
Purpose Examination of mouse stomach and rectum
Working Length 200 mm
Outer Diameter of the Tube 1.8 mm
Inner Diameter of the Channel 0.4 mm
Bending Angle two way 180
Steering Direction up & down
Depth of Field 5mm ~ 50mm
Field Angle 120°
Pixels 160,000
Packging & Delivery
Min Order1 piece
Briefing
The DZT-200 Portable Veterinary Flexible Otoscope support connection to smart device and veterinary imaging systems for data transmission and real-time monitoring. Its design ensures stable imaging during mouse diagnostics and minimally invasive surgery, like mouse stomach and rectum, etc.
Detailed

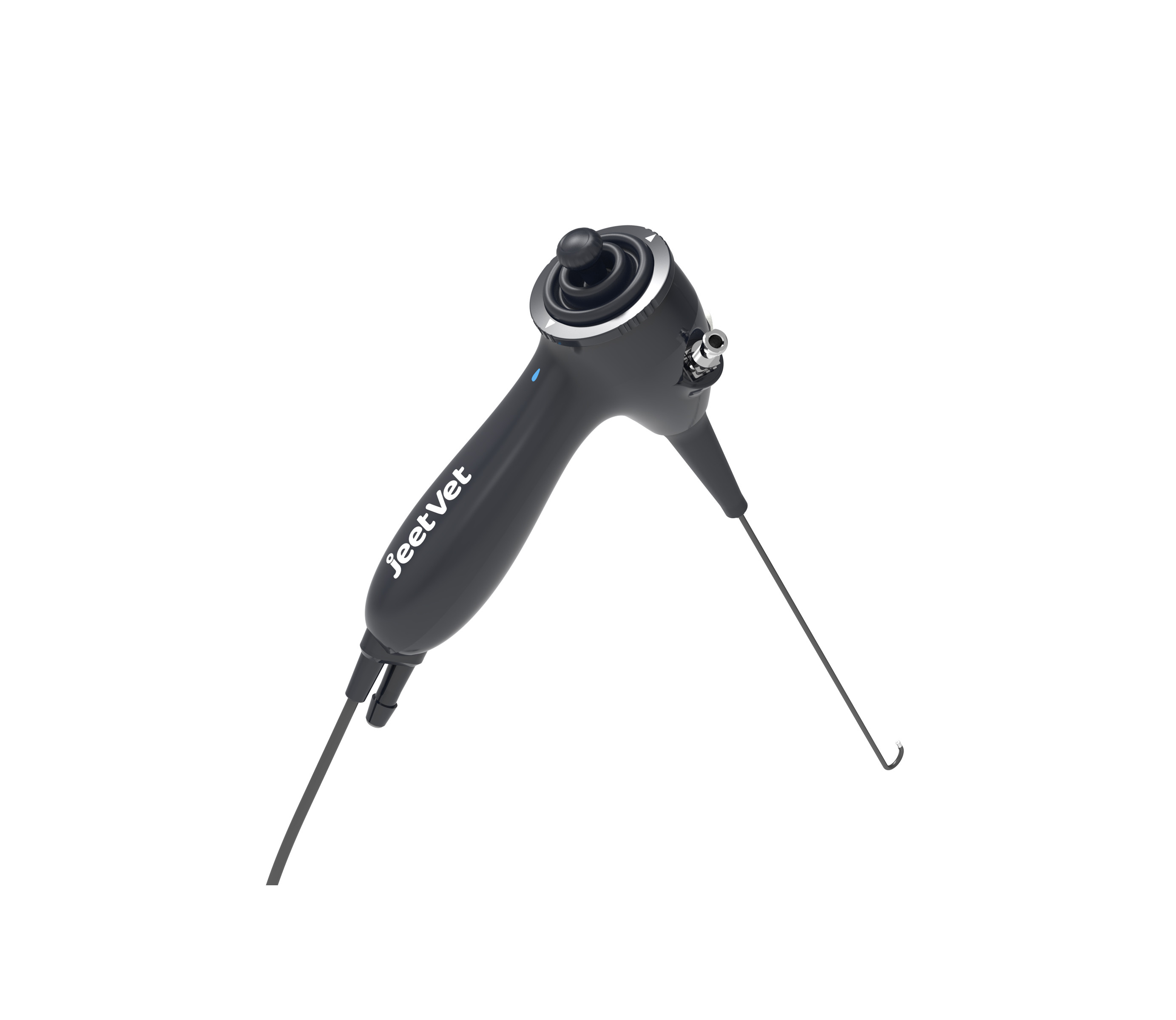

Introduction to DZT-200 Portable Veterinary Flexible Otoscope
The DZT-200 Portable Veterinary Flexible Otoscope is a cutting-edge veterinary ENT equipment, which can be used for ear and nasal examinations, Examination of mouse stomach and rectum.
Ultra-short bending section
Small diameter, large channel
Four-layer medical grade tube
Main Features
High-quality optical system
Provides high quanlity endoscopic images. 120° wider observation range. The depth of field from 5 mm to 50 mm makes it adaptable to different inspection depths.
OD1.8mm mechanical design
The insertion tube is 200 mm long and OD1.8mm is easy pass through narrow passage
Convenient operation
Ergonomic handheld controller. Less than 1kg. Ensures maneuverability and ease of use, reducing operator fatigue during prolonged procedures.
Portability and Efficiency
Quick and smooth diagnosis and treatment. Reduce operational difficulty and surgical time.
Inner Channel
ID:0.4mm, Support water injection and air supply
DZT-200 Portable Veterinary Flexible Otoscope Technical Parameters
General Parameters |
Brand
|
JeetVet
|
|
|
Model
|
DZT-200
|
||
|
Purpose
|
Veterinary Flexible Otoscope, mainly used for ear and nasal examination of small animals and exotic animals
|
||
Optical Parameters |
Viewing angle
|
120°
|
|
Depth of field | 5 mm - 50 mm | ||
Pixels | 160,000 | ||
Mechanical Parameters | Working length | 200 mm | |
Outer diameter of the tube | 1.8 mm | ||
Inner diameter of the channel | 0.4 mm | ||
Independent water & air supply channel | None | ||
Insertion tube material | Four-layer Medical grade flexible material, corrosion-resistant and antibacterial | ||
Bending angle | 180° | ||
Operation and Control | Control method | Handheld controller with joystick for up & down control | |
Display | Displayed by user's smart phone, tablet or computer | ||
Lighting System | Light source type | Endoscope operates without internal electric power, drawing power from the user's mobile phone. | |
Illumination | LED light | ||
Connection and Compatibility | Connection interface | Use USB cable to connect with smart phones, tablet or computer | |
Compatible devices | Support connection to smart phone, tablet, computer for data transmission and real-time monitoring | ||
Other Functions | Disinfection method | Alcohol wiping，enzymatic cleaning solution or 2% glutaraldehyde disinfection | |
Portability | Lightweight design, equipped with a portable case, convenient for carrying and use | ||
Memory | Internal memory of mobile phone | ||
User interface | Friendly operation interface | ||
Accessories | Biopsy forceps, Y-shape valve, Luer connector syringe, Packing case, Cleaning brush and etc. | ||
Real-time Visualization of Mouse Gastric Cavity with DZT-200 Portable Veterinary Flexible Otoscope
This real-shot demonstration showcases the DZT-200 Portable Veterinary Flexible Otoscope smoothly entering the gastric cavity of a laboratory mouse. The system delivers clear, high-resolution imaging, enabling precise observation of the stomach mucosa, vascular structures, and potential lesions. Thanks to its ultra-slim probe and flexible maneuverability, the DZT-200 is particularly well-suited for small animal applications, supporting accurate diagnosis and research procedures in laboratory settings.
The veterinary flexible otoscope offers unparalleled versatility and precision in the diagnosis and treatment of various ear, nasal, and oral conditions in animals. Its flexibility allows for comprehensive examination, making it particularly valuable in assessing complex cases that involve anatomical challenges or smaller species.
1. Otic Examinations and Procedures:
Veterinarians use the flexible otoscope to conduct detailed examinations of the ear canal, facilitating the diagnosis of conditions such as otitis externa, otitis media, and the presence of foreign bodies.
2. Nasal Cavity and Pharyngeal Assessment:
This device is also highly effective for nasal cavity and pharyngeal assessments, enabling veterinarians to visualize and treat conditions such as nasal polyps, tumors, or foreign objects. The flexibility of the otoscope is particularly advantageous in reaching and evaluating areas that are otherwise difficult to access with rigid scopes.
3. Dental and Oral Examinations:
In addition to otic and nasal applications, the flexible otoscope is utilized in dental and oral examinations, especially in small mammals and exotic species. It provides a non-invasive method to inspect the oral cavity for dental disease, oral masses, or other abnormalities, thus contributing to comprehensive patient care.
4. Minimally Invasive Procedures:
Beyond diagnostics, the flexible otoscope can be employed for minimally invasive procedures such as biopsies, foreign body removals, and flushing of the ear canal. Its precision and maneuverability reduce patient discomfort and improve the overall efficacy of treatment.
5. Exotic and Small Animal Care:
This tool is especially beneficial in the care of exotic pets and small animals, where its slim and flexible design allows for safe and thorough examinations without the need for extensive restraint or sedation. For species with delicate or intricate anatomy, the flexible otoscope is often the preferred choice to ensure detailed visualization and accurate diagnostics.
After-Sales Service Guarantee
- Warranty: Comprehensive warranty and support.
- Customer service: Get technical support and training from the manufacturer.
- We are committed to ensuring your complete satisfaction with our products. Our After-Sales Service Guarantee provides you with comprehensive support, including prompt responses to inquiries, technical assistance. Should you encounter any issues, our dedicated customer service team is available to resolve them efficiently and effectively. We stand by the quality of our products and are here to ensure that your experience with us is nothing short of excellent.
