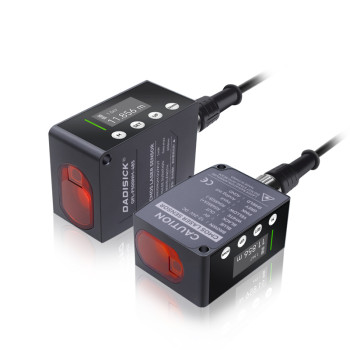

For Wenglor PNBC Series 250 to 650 mm and 200 to 1000 mm Detection Range Laser Distance Sensor Triangulation Replacement
group nameWenglor Laser Distance Sensors Replacement
-
Min Order1 piece
brand nameDADISICK
modelPNBC Series | PNBC107, PNBC108
payment methodT/T
-
update timeFri, 05 Dec 2025 21:10:15 GMT
Paramtents
Series: PNBC Series
Detection range: 250 to 650 mm, 200 to 1,000 mm
Repeatability: 80 µm, 100 µm
Sensing beam: Laser (red) 658nm
Output: NPN/PNP NO/NC Analog Output: 4...20 mA/0...10 V
Material Aluminum anodised
Connector: M12
Packging & Delivery
Min Order1 piece
Briefing
DADISICK is a professional manufacturer of laser displacement sensors with solid product manufacturing capabilities.
Detailed
For Wenglor PNBC Series 250 to 650 mm and 200 to 1000 mm Detection Range Laser Distance Sensor Triangulation Replacement Parameter
Brand | From network | DADISICK |
|
Models | PNBC107 |
GFL-F100NM-485 | |
PNBC108 | |||
Technical parameters | Detection range | 250 to 650 mm, 200 to 1000 mm | 100 to 1000 mm |
Repeatability | 80 µm, 100 µm | 1 mm | |
Sensing beam | Laser (red) 658nm | Red semiconductor laser Class II laser 655+10nm<1mW | |
Output | NPN/PNP NO/NC
Analog Output:
4...20 mA/0...10 V | NPN/analog/RS485 | |
Power source | 15 to 30 V DC | 12V-24VDC+10% pulsation P-P10% | |
Material | Aluminum, anodised | Aluminum | |
Connector | M12 | With 8-core composite cable 2m | |
Enclosure rating | IP67 | IP67 | |
Ambient operating temperature | -10 to 40 °C | -10C to +45℃ | |
We are able to reproduce the specific connection configuration of each brand with high level of accuracy. | |||
Product model display instructions
The brands and specifications shown on this page are for product selection only. Our safety light curtain is a safety part made by DADISICK, not official brand Wenglor's products. DAIDSICK offer replacement for official brand products. We are not the owner of the brands. If you need to buy official brand products, please contact the brand official representative.
Product recommendations
FAQ
1. What are the installation requirements for laser displacement sensors?
Laser displacement sensors should be installed in a stable, vibration-free location, ensuring the laser beam is unobstructed. The installation position and angle should be adjusted according to specific measurement needs, following the manufacturer's installation guidelines.
2. Do laser displacement sensors get affected by ambient light during measurements?
Laser displacement sensors can be affected by strong ambient light. However, modern sensors usually have excellent anti-interference capabilities, using filtering and signal processing techniques to effectively reduce the impact of ambient light on measurement results.
3. What are the maintenance requirements for laser displacement sensors?
Keep the sensor's optical components clean to prevent dust and dirt from affecting measurement accuracy. Regularly inspect and replace any worn parts, and follow the manufacturer's maintenance manual to ensure long-term stable operation.
4. How are laser displacement sensors calibrated?
Laser displacement sensors typically require regular calibration to maintain measurement accuracy. Calibration methods include using standard measurement tools or calibration plates for comparative measurements, following the manufacturer's calibration procedures.
5. What is the measurement range of laser displacement sensors?
The measurement range of laser displacement sensors varies by model, typically spanning from a few millimeters to several hundred meters. Selecting the appropriate range depends on specific application requirements.
