For Leuze AMS 300i Optical Distance Sensor Replacement | 300 m Measuring Range
group nameLeuze Optical Distance Sensor Replacement
-
Min Order1 piece
brand nameDADISICK
modelAMS 300i Series | AMS 348i 300 H SSI, AMS 348i 300 SSI, AMS 384i 300 H, AMS 384i 300, AMS 358i 300 H, AMS 358i 300, AMS 355i 300 H, AMS 355i 300, AMS 348i 300 H, AMS 348i 300, AMS 338i 300 H, AMS 338i 300, AMS 335i 300 H, AMS 335i 300, AMS 308i 300 H, AMS 308i 300, AMS 304i 300 H, AMS 304i 300, AMS 301i 300 H, AMS 301i 300, AMS 300i 300 H, AMS 300i 300
payment methodT/T
-
update timeFri, 05 Dec 2025 23:01:06 GMT
Paramtents
Series: AMS 300i Series
Measuring range: 0.2 - 300 m
Light spot size: 150 mm
Measurement accuracy: 2 mm
Resolution: 0.001 ... 10 mm
Packging & Delivery
Min Order1 piece
Briefing

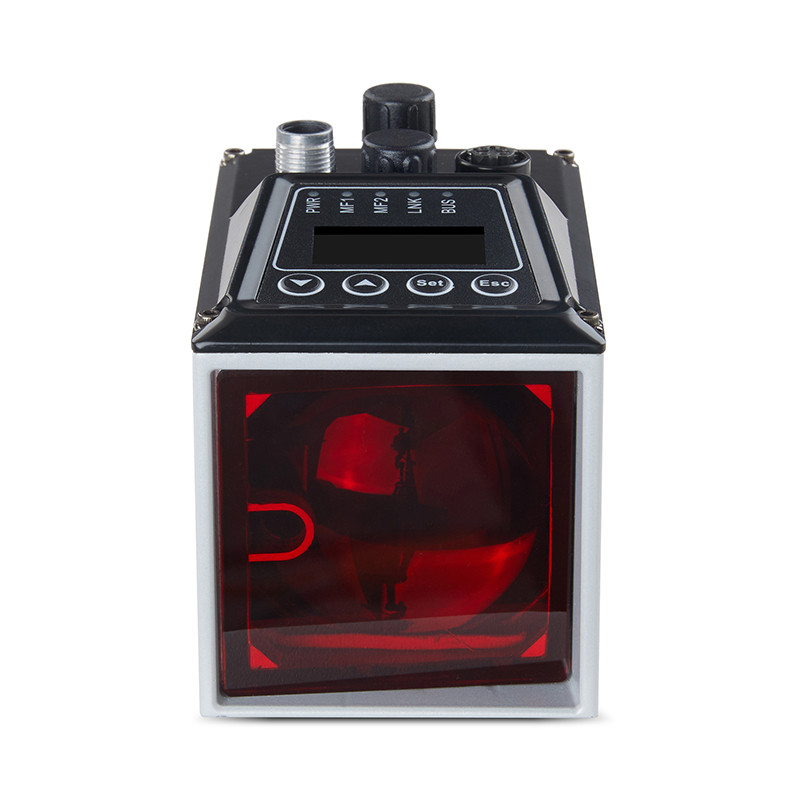

DADISICK's DS Series Long-Distance Laser Rangefinder can serve as a replacement for AMS 300i Optical distance sensor.
Detailed
For Leuze AMS 300i Optical Distance Sensor Replacement | 300 m Measuring Range
| Brand | From network | DADISICK | ||
| Models | AMS 348i 300 H SSI | AMS 338i 300 | DS-200 | |
AMS 348i 300 SSI | AMS 335i 300 H | |||
AMS 384i 300 H | AMS 335i 300 | |||
AMS 384i 300 | AMS 308i 300 H | |||
AMS 358i 300 H | AMS 308i 300 | |||
AMS 358i 300 | AMS 304i 300 H | |||
AMS 355i 300 H | AMS 304i 300 | |||
AMS 355i 300 | AMS 301i 300 H | |||
AMS 348i 300 H | AMS 301i 300 | |||
AMS 348i 300 | AMS 300i 300 H | |||
AMS 338i 300 H | AMS 300i 300 | |||
Measuring range | 0.2 - 300 m | MAX. 200 m | ||
Light spot size | 225 mm | 245 mm (@200 m) | ||
Measurement accuracy | 2 mm | ±2 mm | ||
Repeatability | 1.5 mm (3 sigma) | 1 mm | ||
Measurement frequency | — | 1000 Hz | ||
Resolution | 0.001 ... 10 mm | 0.1 mm | ||
Max. movement speed | 10 m/s | 15 m/s | ||
Supply voltage | 18 ... 30 V, DC | DC 9 V ... 30 V | ||
Current consumption | 250 mA without heating / 500 mA with heating | 0.2 A at 12 V DC | ||
Laser class | Laser class 2 acc. to EN 60825-1; CDRH | Class 2 | ||
Light source | Laser diode, red light, wavelength 650 – 690 nm | Red laser (visible light) | ||
Interface | CANopen
DeviceNet
EtherCAT
Ethernet
EtherNet IP
Interbus-S
PROFIBUS DP, SSI
PROFINET
PROFINET, SSI
RS 232, RS 422
RS 485 | SSI, Ethernet 100BASE-TX (Data Transmission) | ||
Connection | M12 | M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI) | ||
Dimensions | 84 mm x 166.5 mm x 159 mm | 123 × 69.5 × 90 mm | ||
IP rating | IP 65 | IP65 | ||
Operating temperature | -5 – 50 °C without heating / -30 – 50 °C with heating | -10℃~+55℃ | ||
We are able to reproduce the specific connection configuration of each brand with high level of accuracy. | ||||
Product Model Display Instructions
The brands and specifications displayed on this page are for reference and product selection purposes only. The Optical Distance Sensors we provide are manufactured by DADISICK and are not official products of Leuze or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine Leuze products, please contact the brand's authorized representative directly.
Product Recommendations
DS Series Long-Distance Laser Rangefinder
FAQ
1. Is a sample device available for testing?
Yes, customers can request a sample device for testing to confirm whether it meets their specific needs.
2. What should I do in case of a fault?
Refer to the troubleshooting guide in the user manual. If the issue persists, please contact the DADISICK technical support team.
