For HOKUYO PGL Series Laser Distance Sensor Replacement | 180 m Measuring Range on Orange (Reflective) Foil
group nameHOKUYO Logistics Automation Sensors Replacement
-
Min Order1 piece
brand nameDADISICK
modelPGL Series | PGL-180W3
payment methodT/T
-
update timeFri, 05 Dec 2025 19:24:37 GMT
Paramtents
Series: PGL Series
Measuring range: 0.5～180 m
Light spot size: @ 5 m：4 mm / 2 mm; @ 10 m ：7 mm / 3 mm ...
Measurement accuracy: ±3.0 mm@ 2σ(95.4% confidence level) ...
Resolution: 0.1 mm
Packging & Delivery
Min Order1 piece
Briefing
DADISICK's DS Series Long-Distance Laser Rangefinder can serve as a replacement for PGL Series Laser Distance Sensor.
Detailed
For HOKUYO PGL Series Laser Distance Sensor Replacement | 180 m Measuring Range on Orange (Reflective) Foil
| Brand | From network | DADISICK | ||
| Models | PGL-180W3 | DS-200 | ||
Measuring range | 0.5～180 m (on Orange (Reflective) Foil) | MAX. 200 m | ||
Light spot size | @ 5 m：4 mm / 2 mm
@ 10 m ：7 mm / 3 mm
@ 30 m ：17 mm / 9 mm
@ 50 m ：28 mm / 13 mm
@ 100 m ：55 mm / 30 mm | 245 mm (@200 m) | ||
Measurement accuracy | ±3.0 mm@ 2σ(95.4% confidence level)
±1.5 mm@ 1σ(68.3% confidence level) | ±2 mm | ||
Repeatability | ±0.7 mm@ 2σ(95.4% confidence level)
±0.35 mm @ 1σ(68.3% confidence level) | 1 mm | ||
Measurement frequency | 100 Hz | 1000 Hz | ||
Resolution | 0.1 mm | 0.1 mm | ||
Max. movement speed | Typical time for a measurement: 0.05～4 s (Single measurement)
0.004～4 s (Tracking) | 15 m/s | ||
Supply voltage | 12～30 VDC | DC 9 V ... 30 V | ||
Current consumption | 0.5 A@ 24 VDC
0.8 A@ 12 VDC | 0.2 A at 12 V DC | ||
Laser class | IEC/EN 60825-1:2014; Class 2 | Class 2 | ||
Light source | Laser diode 620-690 nm (red, typical 650 nm) | Red laser (visible light) | ||
Interface | RS-232, RS-422 / RS-485, SSI, USB interface | SSI, Ethernet 100BASE-TX (Data Transmission) | ||
Connection | M16 x 1.5 mm | M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI) | ||
Dimensions | 140×78×48 mm | 123 × 69.5 × 90 mm | ||
IP rating | IP65 | IP65 | ||
Operating temperature | -10～+50°C | -10℃~+55℃ | ||
We are able to reproduce the specific connection configuration of each brand with high level of accuracy. | ||||
Product Model Display Instructions
The brands and specifications displayed on this page are for reference and product selection purposes only. The Laser Distance Sensors we provide are manufactured by DADISICK and are not official products of HOKUYO or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine HOKUYO products, please contact the brand's authorized representative directly.
Product Recommendations

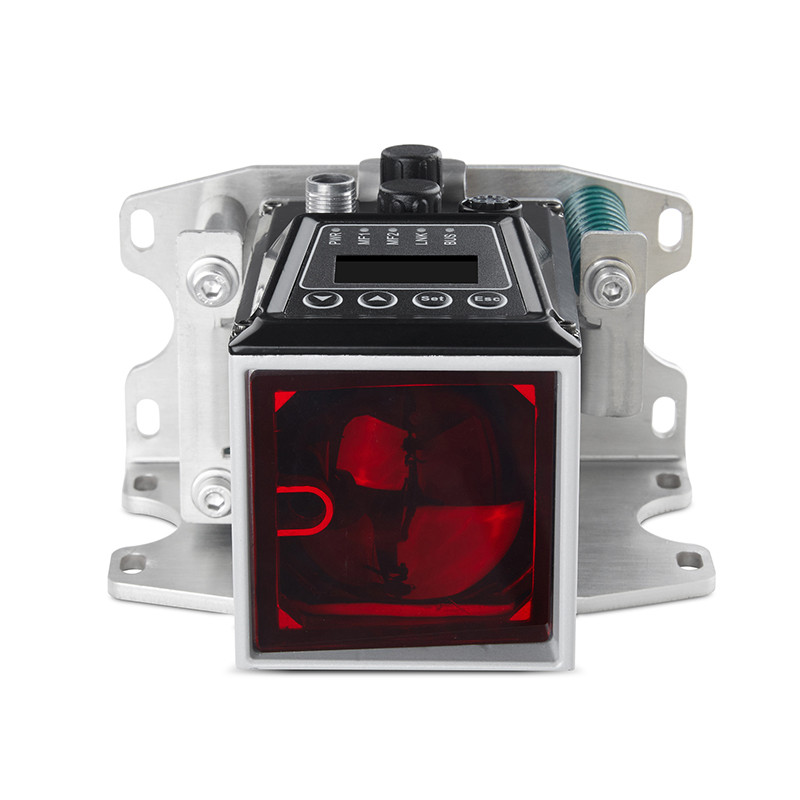

DS Series Long-Distance Laser Rangefinder
FAQ
1. What is the measurement range of the DS Series laser distance sensor?
The measurement range is 0.2 to 200 meters, though the exact range may vary depending on the
type of reflector and surface characteristics.
2. Does the DS Series support dynamic measurements?
Yes, the DS Series supports dynamic measurements, allowing real-time positioning of high-speed moving objects with a measurement frequency of up to 1000 Hz.
3. Does the product feature environmental compensation?
Yes, the DS Series is equipped with an environmental light interference compensation algorithm, ensuring high-accuracy measurements under complex lighting conditions.
4. What are the size and shape of the laser beam?
The beam starts as a small-diameter dot and gradually spreads over distance. The exact dimensions depend on the measurement range.
5. Does the DS Series support multi-target measurement?
No, this series is designed for single-point measurement. Multi-target measurement can be achieved by using multiple devices.
