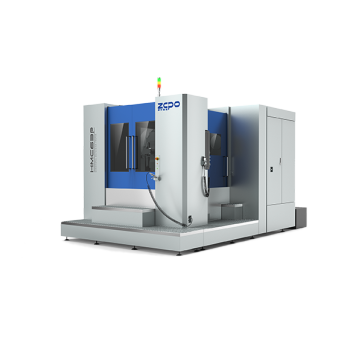

HMC63P Positive T type double worktables
group namePositive T Type
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelHMC63P
-
update timeSat, 06 Dec 2025 04:31:18 GMT
Paramtents
BRAND ZOPO CNC
CNC FANUC/SIEMENS/MITSUBISHI
SPINDLE BELT SPINDLE
CONTROL SEMI-CLOSED LOOP CONTROL
Packging & Delivery
Min Order1 piece
Briefing
Positive T type double worktables machining center, ideal choice for big batch automation processing lines
Detailed
HMC63P
POSITIVE T TYPE
DOUBLE WORKTABLS
Ideal choice for big batch automation processing lines
1050/750/900mm
X/Y/Z axis travel
630x630mm
Worktable size
5300rpm
Spindle speed
32/32/32m/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us
Appearance
Characteristics
Positive T type machine body
Better igidity than inverted T type
The accuracy of the whole machine is significantly improved
Less movement inertia of 3 axis moving component
Easy to achieve high speed and high precision processing
X-axis stepped layout
Effectively lower the center of gravity of the column
Strengthen the force support behind the column during machining
Improve spindle boring quality
High precision double nut ball screw
Guaranteed heavy cutting
Ensure machining accuracy
Extend the service life of the lead screw
3 axes rapid feed speed：32/32/32m/min
High rigidity, high precision
Low noise roller type linear guideway
Ensure high stability
Application industry
Suitable for parts with complex shapes and
mass production of products requiring high precision
Especially the processing of box and complex structural parts
Industries such as automotive, aerospace, Marine and power generation
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1050/750/900mm
- Distance from spindle center to table surface
- 50-800mm
- Distance from spindle center to table surface
- 130-1030mm
Worktable
Unit
- Worktable size
- 630x630mm
- Workpiece clamping type
- 5-18x125mm
- Rotary diameter of workpiece
- Φ1000
- Max. load bearing of worktable
- 1200kg
Spindle
Unit
- Spindle hole taper
- BT50
- Spindle power
- 15/18.5KW
- Max. spindle speed
- 5300(belt)rpm
Feed
Unit
- Max. feed speed
- 6000mm/min
- Rapid feed speed
- 32/32/32m/min
Tool magzine
Unit
- Tool magzine capacity
- 24T
- Tool changing time
- 5.5S
Machine
Unit
- Machine dimension
- 5850*3760*3100mm
- Machine weight
- 14000kg
