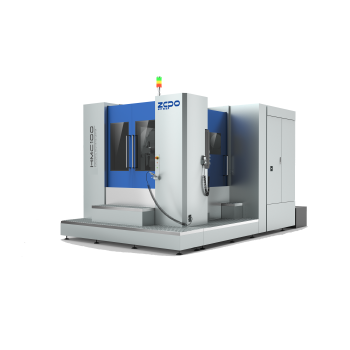

HMC100 Positive T type single worktable
group namePositive T Type
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelHMC100
-
update timeFri, 05 Dec 2025 22:41:43 GMT
Paramtents
BRAND ZOPO CNC
CNC FANUC/SIEMENS/MITSUBISHI
SPINDLE BELT SPINDLE
CONTROL SEMI-CLOSED LOOP CONTROL
Packging & Delivery
Min Order1 piece
Briefing
T type horizontal machining center, ideal choice for big batch automation processing lines
Detailed
HMC100
POSITIVE T TYLE SINGLE WORKTABLE
Ideal choice for big batch automation processing lines
1600/1000/1200mm
X/Y/Z axis travel
1000x1000mm
Worktable size
5300rpm
Spindle speed
24/24/24m/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us
Appearance
Characteristics
Positive T type machine body
Better igidity than inverted T type
The accuracy of the whole machine is significantly improved
Less movement inertia of 3 axis moving component
Easy to achieve high speed and high precision processing
X-axis stepped layout
Effectively lower the center of gravity of the column
Strengthen the force support behind the column during machining
Improve spindle boring quality
High precision double nut ball screw
Guaranteed heavy cutting
Ensure machining accuracy
Extend the service life of the lead screw
3 axes rapid feed speed:24/24/24m/min
High rigidity, high precision
Low noise roller type linear guideway
Ensure high stability
Application industry
Suitable for parts with complex shapes and
mass production of products requiring high precision
Especially the processing of box and complex structural parts
Industries such as automotive, aerospace, Marine and power generation
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1600/1000/1200mm
- Distance from spindle center to table surface
- 20-1020mm
- Distance from spinlde nose to table surface
- 300-1500mm
Worktable
Unit
- Worktable size
- 1000x1000mm
- Workpiece clamping type
- 7-22x125mm
- Rotary diameter of workpiece
- Φ2000
- Max. load bearing of worktable
- 2500kg
Spindle
Unit
- Spindle hole taper
- BT50
- Spindle power
- 15/18.5KW
- Max. spindle speed
- 5300(belt)rpm
Feed
Unit
- Max. feed speed
- 6000mm/min
- Rapid feed speed
- 24/24/24m/min
Tool magzine
Unit
- Tool magzine capacity
- 24T
- Tool changing time
- 5.5S
Machine
Unit
- Machine dimension
- 5700*4600*3370mm
- Machine weight
- 18000kg
