Vertical Machining Center|V8P Direct spindle|Versatile Applications for Metal Processing
group nameVMC Series - Classic Models
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelV8P
-
update timeSat, 06 Dec 2025 08:50:56 GMT
Paramtents
BRAND ZOPOCNC
CNC FANUC/SIEMENS/MITSUBISHI
SPINDLE DIRECT SPINDLE
CONTROL SEMI-CLOSED LOOP CONTROL
Packging & Delivery
Min Order1 piece
Briefing
Detailed

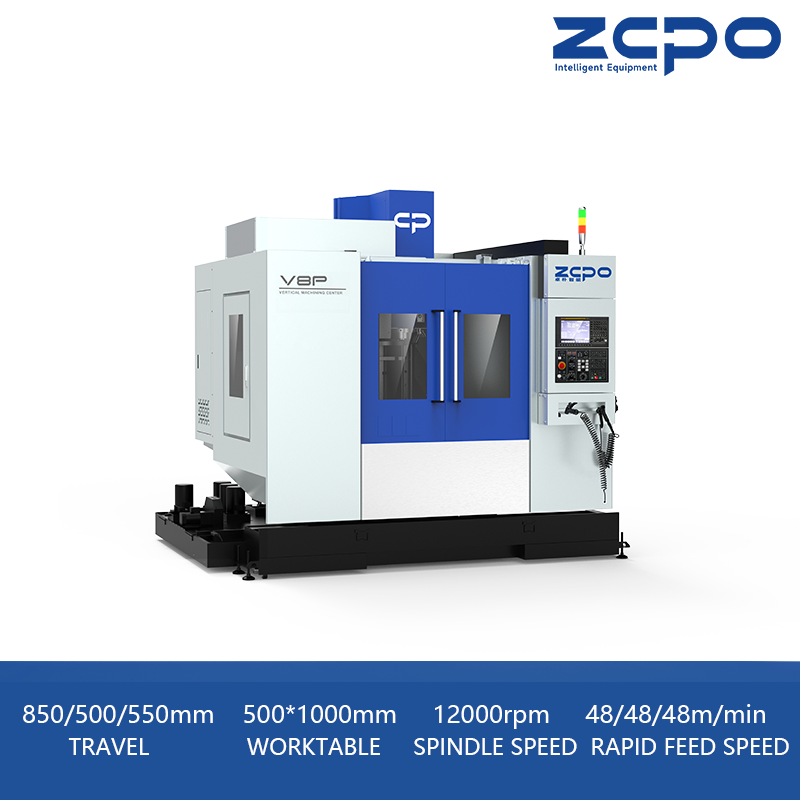

Vertical Machining Center
V8P
High rigidity for heavy cutting
Heavy stock removal, tough materials, highrigidity/torque, precision for mold/engineeringmachinery.
850/500/550mm
X/Y/Z axis travel
500×1000mm
Worktable size
12000rpm
Spindle speed
48/48/48m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
High rigidity, high efficiency and high stability structural design
Hot sale 10000+ units
Excellent overall performance, high cost performance
- The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machine tools of the same size.
- The base adopts a large-span structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.
Direct spindle
- The integrated structure of the spindle box and motor seat reduces the cumulative error of the motor seat assembly
- Greatly improve processing efficiency and quality
- Extend tool life and reduce processing costs
Superior processing capabilities
The V series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
Working range
Unit
- X/Y/Z axis travel
- 850/500/550mm
- Distance from column to spindle center
- 582mm
- Distance from table surface to spindle nose
- 120-670mm
Worktable
Unit
- Worktable size
- 500x1000mm
- T-slot size
- 5-18*100mm
- Max. load bearing of worktable
- 500kg
Spindle
Unit
- Spindle hole taper
- BT40
- Main motor power
- 7.5/11KW
- Spindle speed
- 12000(direct)rpm
Feed
Unit
- Max. feed speed
- 12000mm/min
- Rapid feed speed
- 48/48/48m/min
Tool magazine
Unit
- Tool magazine capacity
- 24T
- Tool change time
- 2.5S
Machine
Unit
- Machine dimension
- 2978*2490*2885mm
- Machine weight
- 5500kg
