Vertical Machining Center|V11B Direct spindle|Ideal for Cost-Effective Production
group nameVMC Series - Classic Models
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelV11B
-
update timeSat, 06 Dec 2025 00:17:28 GMT
Paramtents
BRAND ZOPOCNC
CNC FANUC/SIEMENS/MITSUBISH
SPINDLE DIRECT SPINDLE
CONTROL SEMI-CLOSED LOOP CONTROL
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Vertical Machining Center
V11B
High rigicyty for heavy cutting
Heavy stock removal, tough materials, highrigidity/torque, precision for mold/engineeringmachinery.
1100/610/630mm
X/Y/Z axis travel
610×1300mm
Worktable size
12000rpm
Spindle speed
36/36/32m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us

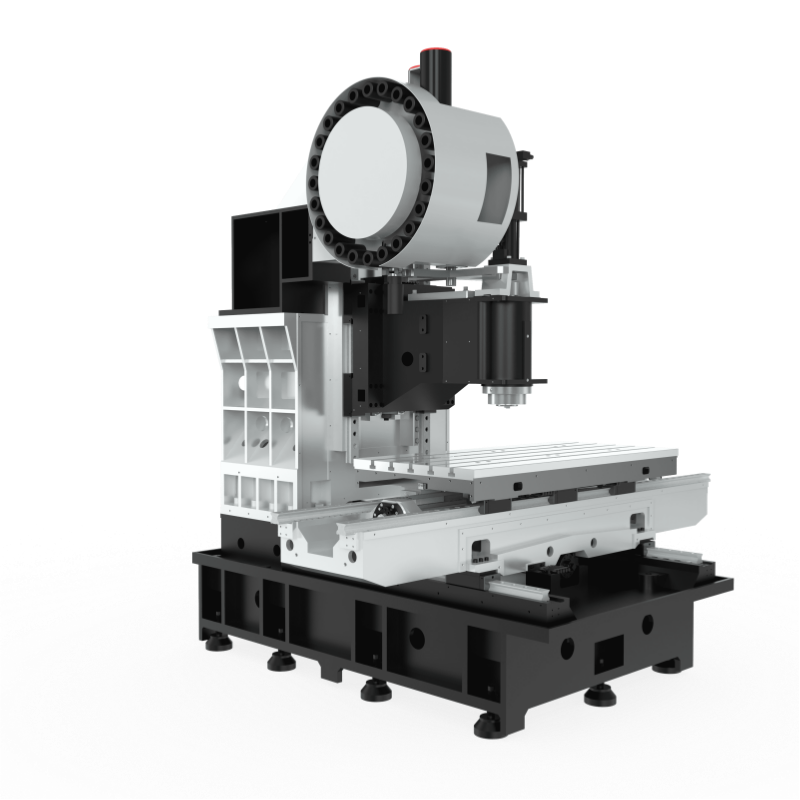

High rigidity, high efficiency and high stability structural design
Hot sale 10000+ units
Excellent overall performance, high cost performance
- The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machine tools of the same size.
- The base adopts a large-span structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.
Direct spindle
- The integrated structure of the spindle box and motor seat reduces the cumulative error of the motor seat assembly
- Greatly improve processing efficiency and quality
- Extend tool life and reduce processing costs
Superior processing capabilities
The V series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
Working range
Unit
- X/Y/Z axis travel
- 1100/610/630mm
- Distance from column to spindle center
- 667mm
- Distance from table surface to spindle nose
- 120-750mm
Worktable
Unit
- Worktable size
- 610x1300mm
- T-slot size
- 5-18*100mm
- Max. load bearing of worktable
- 900kg
Spindle
Unit
- Spindle hole taper
- BT40
- Main motor power
- 11/15KW
- Spindle speed
- 12000(direct)rpm
Feed
Unit
- Max. feed speed
- 12000mm/min
- Rapid feed speed
- 36/36/32m/min
Tool magazine
Unit
- Tool magazine capacity
- 24T
- Tool change time
- 2.5S
Machine
Unit
- Machine dimension
- 3404*2679*2850mm
- Machine weight
- 7000kg
