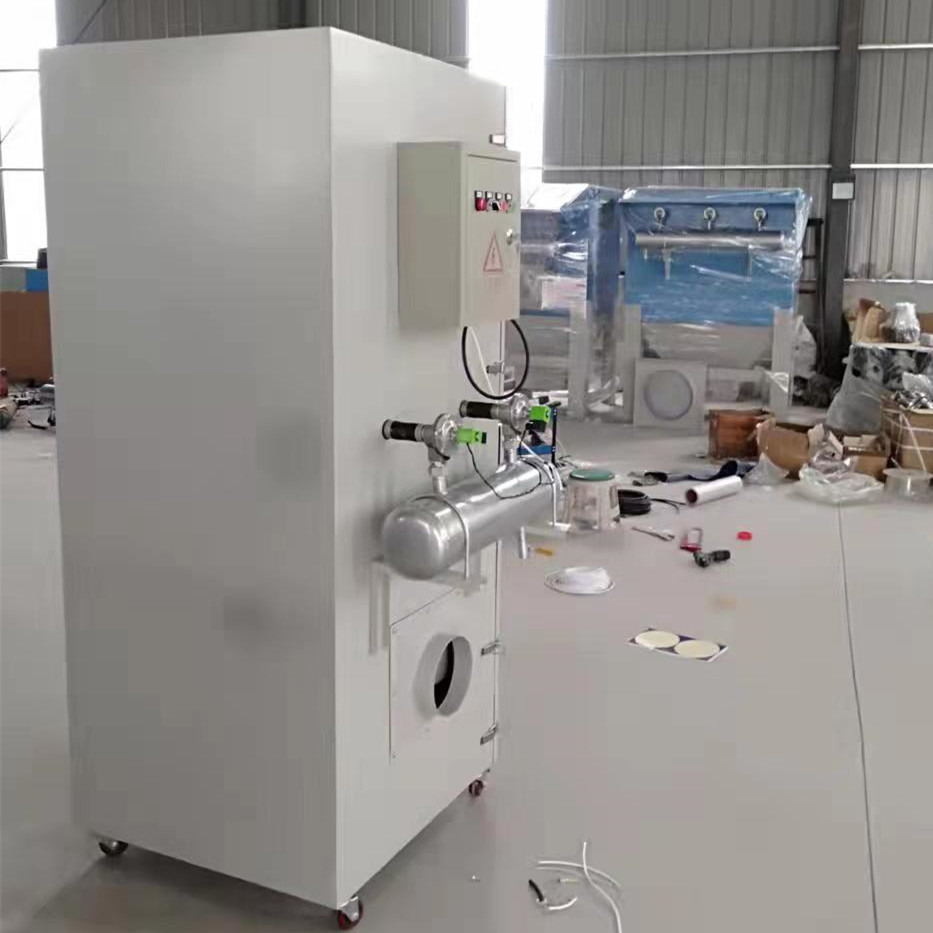

Small Portable Cartridge Dust Collector and Filter
group nameCartridge Dust Collector
-
Min Order1 piece
brand nameChity
modelPulse Jet Cartridge Filter
payment methodT/T, L/C
-
update timeSat, 06 Dec 2025 03:31:57 GMT
Paramtents
Material of Shell Carbon Steel/304 or 316L Stainless Steel
Thickness of Shell 1.2mm/2mm/3mm
Pulse Jet Valves SBFEC/ASCO/GOYEN/Nomal
Certification of Motor CE/CSA/UL/ATEX
Control Panel Touch Screen/Button/PLC Remote
Dust Container Drawer
Packging & Delivery
Min Order1 piece
Briefing
Small portable cartridge filter is a cost-effective and convenient solution for localized dust and fume control, offering flexibility and high filtration efficiency.
Detailed
Introduction of Small Cartridge Filter
Small portable cartridge filter is a compact and mobile dust collection system designed for localized air filtration. It is ideal for capturing fine dust, fumes, and airborne particulates in workshops, welding stations, laboratories, and other industrial or commercial settings where mobility and flexibility are required. Featuring a pleated cartridge filter, this system provides high-efficiency filtration while maintaining a small footprint. Small portable cartridge filter is a cost-effective and convenient solution for localized dust and fume control, offering flexibility, high filtration efficiency, and ease of use in various industrial and commercial applications.
Key Features
>Compact & Portable Design – Small and lightweight, often equipped with caster wheels for easy mobility.
>High-Efficiency Cartridge Filter – Pleated filter media increases filtration surface area, improving dust capture efficiency.
>Built-in Fan/Blower – Generates airflow to draw in dust and particulates, ensuring effective air purification.
>Pulse Jet Cleaning – Include a compressed air pulse cleaning system for extended filter life.
>Versatile Applications – Suitable for welding fume extraction, grinding dust collection, pharmaceutical processing, and small-scale industrial operations.
>Low Maintenance – Easy filter replacement and minimal upkeep requirements.
Components of Small Portable Cartridge Dust Collector
1. Filtration System
>Cartridge Filter – A pleated, high-efficiency filter that captures fine dust and particulates.
>Filter Housing – The enclosed casing that holds and protects the filter.
>Filter Access Door – Allows for easy filter maintenance and replacement.
2. Airflow System
>Inlet Hood or Flexible Extraction Arm – Directs dust-laden air into the system, often adjustable for better coverage.
>Fan/Blower Unit – Creates airflow to draw in contaminated air.
>Exhaust Outlet – Releases filtered air back into the environment or duct system.
3. Cleaning & Dust Collection System
>Dust Collection Tray or Bin – A removable container for collecting captured dust.
>Pulse Jet Cleaning Mechanism – Helps remove dust buildup from the filter, maintaining efficiency.
4. Mobility & Control
>Caster Wheels – Provide easy portability for flexible operation.
>Control Panel – Includes power switches, fan speed control, and optional filter status indicators.
>Handle or Frame – A sturdy structure for easy transport and maneuverability.
Small Portable Cartridge Dust Collector Catalogue
| Model | Filter Area/㎡ | Air Volume/m³/h | Fan Model | Fan Power/kw | Overall Dimension/mm |
| CCD-II-220 | 33 | 2400 | 4-72 3.2A | 2.2 | 1025×1025×1900 |
CCD-II-300 | 50 | 3500 | 4-72 3.6A | 3 | 1500×1025×1950 |
CCD-II-400 | 75 | 5000 | 4-68 4A | 4 | 1500×1500×2060 |
CCD-II-550 | 100 | 6000 | 4-72 4A | 5.5 | 1960×1500×2060 |
CCD-II-750 | 133 | 8000 | 4-72 4.5A | 7.5 | 1960×1960×2110 |
CCD-II-1100 | 166 | 10050 | 4-72 5A | 11 | 2450×1960×2200 |
CCD-II-1500 | 200 | 12000 | 4-72 5A | 15 | 2900×2450×2200 |
