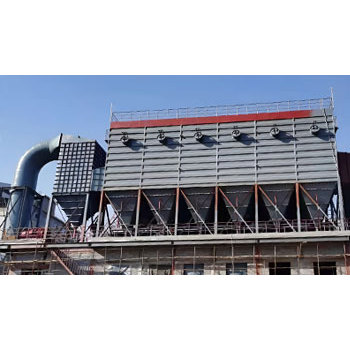

Large Capacity Industrial Baghouse Dust Collector - LCM Series | Chity

  • group nameBaghouse Dust Collector

  • Min Order1 piece

  • brand nameChity

  • modelPulse Jet Baghouse

  • payment methodT/T, L/C

  • update timeSat, 06 Dec 2025 17:46:23 GMT

Paramtents

  • Material of Shell Carbon Steel

  • Thickness of Shell 3mm/4mm/5mm

  • Material of Filter Bag PE/PP/PPS/PTFE/Fiberglass/Nomex

  • Material of Filter Cage Carbon Steel/304 or 316L Stainless Steel

  • Default Pulse Valve SBFEC DMF-Y-50/80

  • Certification of Motor CE/CSA/UL/ATEX

  • Discharge Valve Rotary Airlock

  • Control Panel Touch Screen/PLC Remote

Packging & Delivery

  • Min Order1 piece

Briefing

Multiple sets of baghouse dust collectors can be combined to form a large-scale industrial dust collector, ideal for handling high-volume industrial flue gas.

Detailed

Large Baghouse Dust Collector Introduction

A large pulse jet baghouse dust collector is a highly efficient industrial dust control system designed for continuous operation in demanding environments. It uses compressed air pulses to clean the filter bags, ensuring low pressure drop and consistent filtration performance. This type of dust collector is ideal for industries such as cement, steel, biomass, and power generation, where high dust loads and large airflow volumes are common. The system can handle thousands of cubic meters of air per hour and effectively captures fine and heavy dust particles. Its modular structure allows for customized configurations, easy maintenance, and scalability. With features like automatic cleaning, durable filter media, and robust construction, the large pulse jet baghouse dust collector offers long-term reliability, energy efficiency, and compliance with strict environmental regulations. It is a key component in modern industrial dust collector systems, supporting cleaner production and improved workplace safety.

Key Features of LCM Baghouse Dust Collector

>High Filtration Efficiency
Capable of capturing fine particles as small as 1 micron, ensuring clean air discharge and meeting strict environmental standards.
>Pulse Jet Cleaning System
Uses high-pressure compressed air pulses to clean filter bags without interrupting operation, maintaining stable airflow and low pressure drop.
>Modular and Scalable Design
Flexible modular structure allows for easy customization and future expansion, suitable for large-scale production facilities.
>Durable Construction
Built with heavy-duty steel and corrosion-resistant coatings, ideal for harsh operating conditions and long service life.
>Advanced Control System
Equipped with automatic PLC system or differential pressure control for intelligent cleaning cycles and optimized energy use.
>Easy Maintenance Access
Designed with walk-in plenums or top-entry access for quick filter replacement and routine inspections.

Main Components of LCM Baghouse

>Support Frame
· Provides structural stability
· Designed to withstand the weight and vibration of the system
>Filtration System
· Filter bags and cages
· Bag compartments or chambers
· Ensures effective dust separation from the airflow
>Pulsing Jet System
· Pulse jet valves and compressed air tank
· Blowpipes and control solenoids
· Removes dust buildup on filter bags to maintain performance
>Ash Discharge System
· Hoppers, rotary valves, and screw conveyors
· Collects and transports dust to storage or disposal
>Control System
· Electrical cabinet and PLC system
· Controls cleaning cycles, monitors pressure, and system status
Each component plays a critical role in ensuring the efficiency, safety, and reliability of the industrial dust collector during continuous operation.
