Pin for X348 X458 X678 Chain | Overhead Conveyor Components

Pin for X348 X458 X678 Chain | Overhead Conveyor Components

group nameDrop Forged Rivetless Chain
Min Order50 meter
brand nameCamelConvey Conveyor Chain Manufacturer
modelPin for Chain
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
update timeFri, 05 Dec 2025 21:24:34 GMT

contact supplier

Paramtents

Material 40Cr
Sample Available

Packging & Delivery

Min Order50 meter

Briefing

CamelConvey pin is a vital component that contributes to the overall performance and reliability of conveyor systems.

Detailed

Pin for X348 X458 X678 chain | Conveyor components Description：

All CamelConvey drop forged rivetless chains are commonly used in overhead conveyor systems and automated material handing systems, it consists of outer link, inner link and pin.Especially the pin plays an important role.

Why CamelConvey conveyor chain is also called dorp forged rivetless chain?

Because it is extremely easy to disassemble and assemble and it does not require any tool to do it.It’s the notches on the top and bottom of the pin that enable the oil to flow quickly down the pin to accurately reach critical lubrication points. Different chains with different pin diameters.X348 chain with dia.4/8", X458 chain with dia.5/8",X678 chain with dia.7/8", so X458 conveyor chain has a 4" pitch and pin size of 5/8", that is why we named them X348 chain, X458 chain and X678 chain. Besides, for the same diameter, CamelConvey also can provide oil groove pin, smooth pin and standard pin for cusomers' choices as I beam conveyor chain manufacturer.

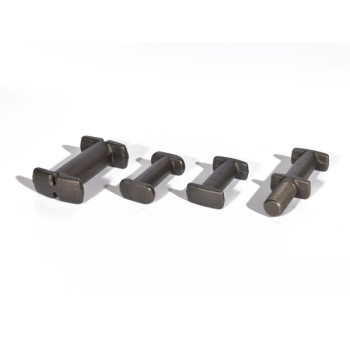

Pin for X348 X458 X678 chain | Conveyor components Pictures：

PIN

PIN

Pin for X348 X458 X678 chain | Conveyor components Schematic Diagram：

PIN

PIN

PIN

Pin for X348 X458 X678 chain | Conveyor components Specification:

Chain No.	Pitch	Pin Diameter	Pin Length	Other Dimensions
Chain No.	P	D	L	A	B	C	M	L1	L2
X678	6"	0.874"	3.03"	1.89"	2.26"	1.14"	0.63"	3.86''	5.35''
X678	152.4mm	22.2mm	77mm	48mm	57.5mm	29mm	16mm	98mm	136mm
X458	4''	0.625''	2.24''	1.26''	1.635''	0.98''	0.47''	3.19''	4.41''
X458	101.6mm	15.88mm	57mm	32mm	41.5mm	25mm	12mm	81mm	112mm
X348	3''	0.5''	1.81''	0.98''	1.3''	-	-	-	-
X348	76.2mm	12.7mm	46mm	25mm	33mm	-	-	-	-

Custom dimensions are also available.

Pin for X348 X458 X678 chain | Conveyor components Overview:

Trustworthy CamelConvey

In I-beam conveyors, drop-forged pins play a critical role in maintaining smooth and reliable operations. Over time, these components undergo significant stress and wear, and proper inspection is essential to avoid costly downtime or accidents. From the video, by following these best practices and maintaining thorough records, companies can significantly reduce the likelihood of unexpected pin failure, ensuring safe and efficient conveyor operation. Regular, proactive inspections not only extend the lifetime of the pins but also contribute to the overall safety and reliability of the conveyor system.
