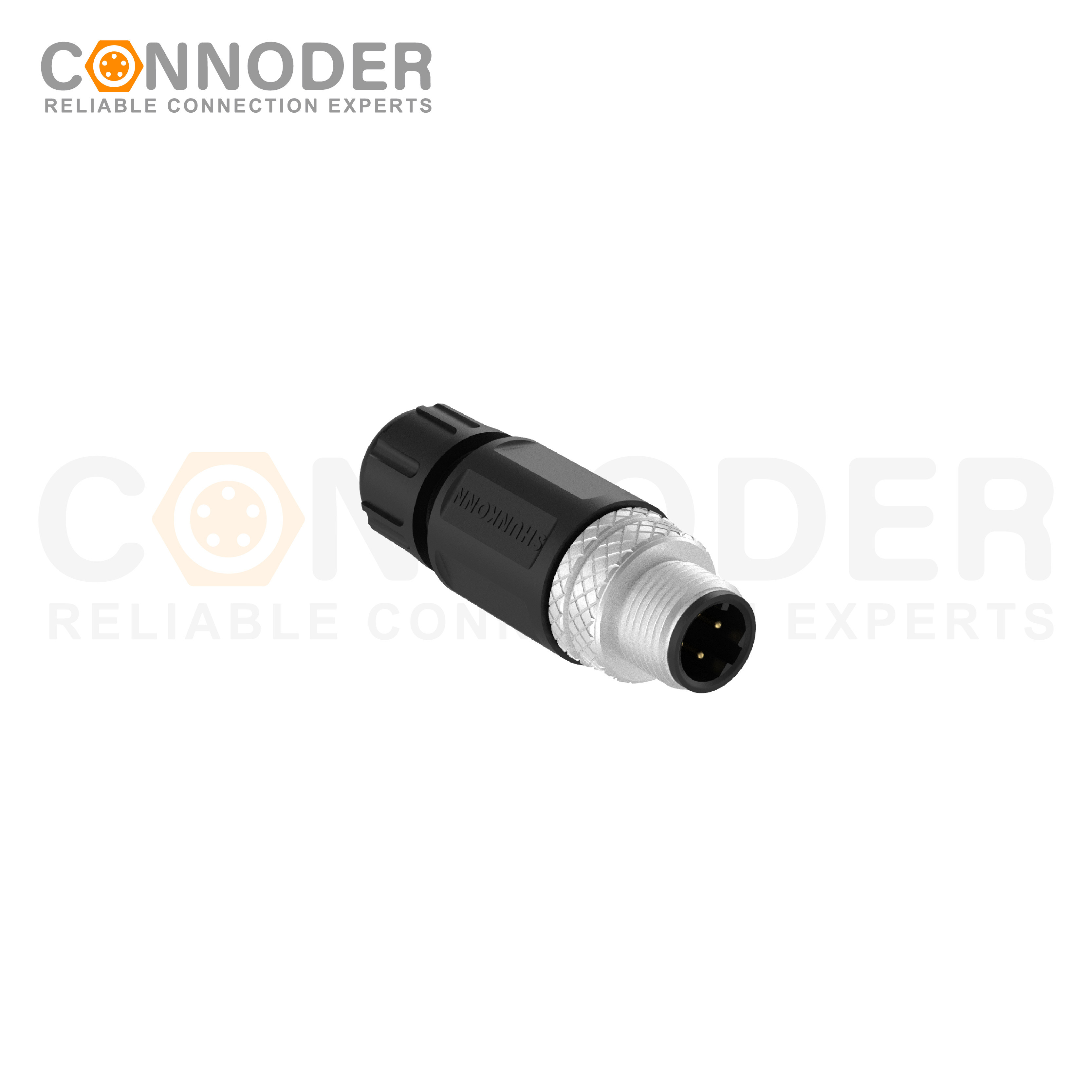

Wholesale M12 D Coded 4 Pin Circular Connector l Field Wireable,Straight Plastic Assembled,Solder Connection
group nameM12 D Coded Connector
-
Min Order1 piece
brand nameConnoder Circular Connector Manufacturer
modelMC12DM-04N1LSMNS601
payment methodL/C, D/A, D/P
-
update timeSat, 06 Dec 2025 02:33:37 GMT
Paramtents
Type M12 Circular Connector
Contact Connection Type Male Connector
Number OF Positions 4 Pin
Coding D
Termination Solder
Mounting Type Straight Plastic Assembled
Shielded Option Unshielded
Approval UL
Pollution III
Flame Retardant IEC61076-2-111
Packging & Delivery
Min Order1 piece
Briefing
M12 D Coded 4 Pin Circular Connector is a flexible and highly customizable connector suitable for a variety of industrial applications.
Detailed
Wholesale M12 D Coded 4 Pin Circular Connector characteristic
Description
- Wholesale M12 D Coded 4 Pin Circular Connector offers a variety of polarity and coding options, including A-coding, B-coding, D-coding, and X-coding, to meet different connection requirements. For instance, A-coding is typically used for sensors, actuators, and power connections, B-coding for fieldbus connections, and D-coding and X-coding are often used for Ethernet and high-speed data transmission.
- Pure copper gold-plated contacts with excellent electrical conductivity Fixed key position, multi-key position to prevent blindness, MIS insertion, skew insertion Strong waterproof performance, in line with IP67/IP68 waterproof requirements.
- Thickened pins/long life Copper-zinc material, high resistance, wear resistance Threaded cable, easy to remove and plug, tightly combined, and not easy to fall off.
- Wholesale M12 D Coded 4 Pin Circular Connector are available in a wide range of straight and Right angle, male and female, and plastic and metal versions.
Wholesale M12 D Coded 4 Pin Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
Wholesale M12 D Coded 4 Pin Circular Connector Size diagram
Wholesale M12 D Coded 4 Pin Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12DM-04N1LSMNS601 | 4 | 4A | 250V | 250V | 22 | 0.34 | |
Wholesale M12 D Coded 4 Pin Circular Connector Coding Parameter:
| Pins | 4D | Pins | 4D |
| Male |  |
Female |  |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
Wholesale M12 D Coded 4 Pin Circular Connector Wire Definition:
| Pins | 4 Pin Core Color | |
| 1 | YE |  |
| 2 | WH |  |
| 3 | OG |  |
| 4 | BU |  |
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
Wholesale M12 D Coded 4 Pin Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
