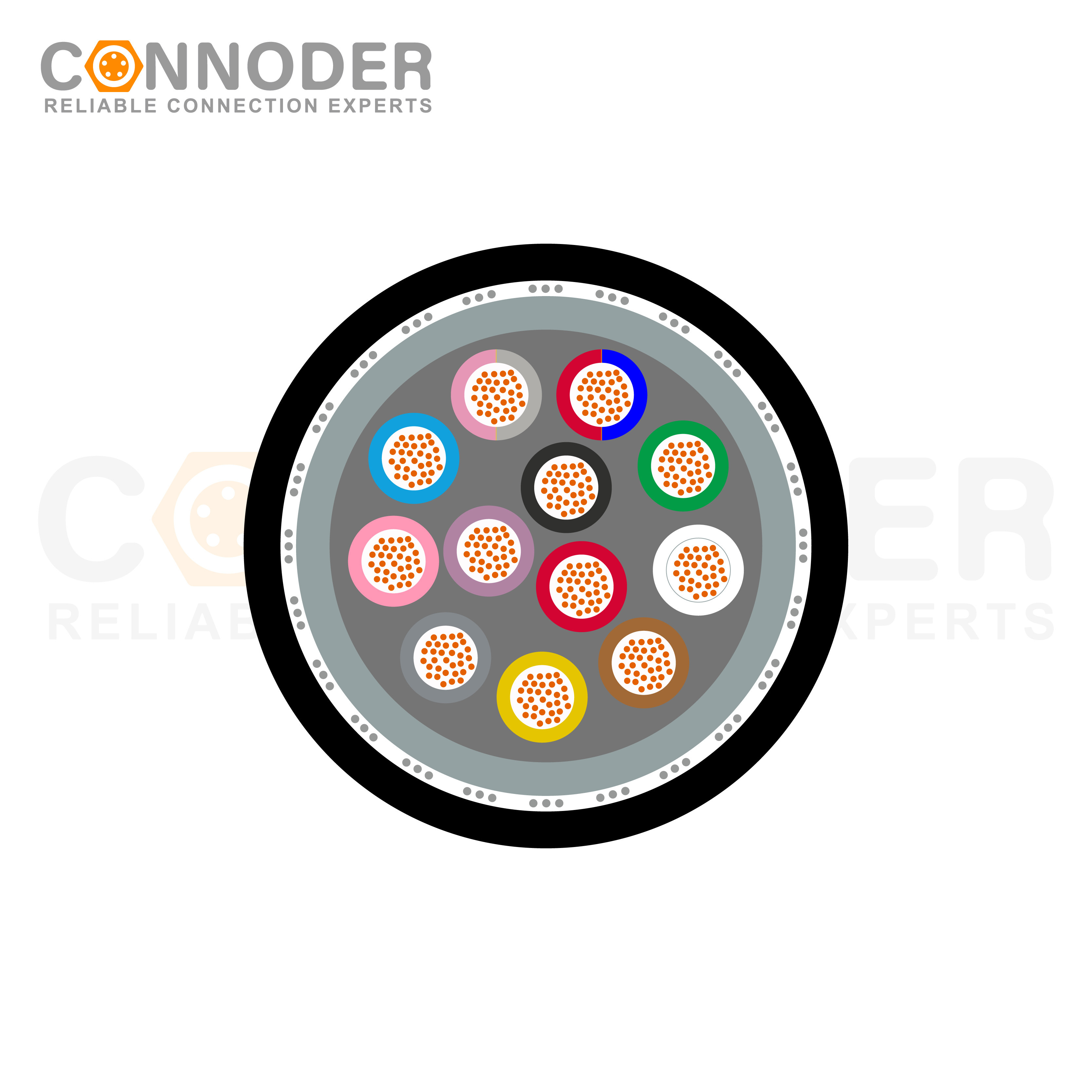

Signal Cables, Universal, 12-position, PVC/PVC, black RAL 9005, shielded, PVC black

Categories

Machinery / Mechanical Parts

Machinery
|Cleaning Equipment
|Construction Machinery Parts
|Electronic Products Machinery
|Packaging Forming Machine
|Packaging Machinery
|Printing Machinery
Mining Machinery
|Crusher
|Mine Drilling Rig
|Mining Machinery Parts
|Vibrating Screen
Food & Beverage Machinery
|Food Processing Machinery Parts
|Fruit & Vegetable Processing Machines
|Meat Product Making Machines
|Snack Machines
Packaging Machine
|Filling Machines
|Multi-Function Packaging Machines
|Packaging Line
|Sealing Machines
|Wrapping Machines
Printing Machine
|Digital Printers
|Inkjet Printers
|Printing Machinery Parts
|Screen Printers
Mechanical Parts & Fabrication Services
|Butterfly Valves
|Flanges
|Gaskets
|General Mechanical Components Design Services
|General Mechanical Components Stock
|Moulds
|Pipe Fittings
|Seals
|Shafts
|Solenoid Valves
|Valves
Chemicals / Minerals & Metallurgy

Chemicals
|Adhesives & Sealants
|Chemical Reagents
|Daily Chemicals
|Flavour & Fragrance
|Pharmaceutical
|Polymer
Basic Organic Chemicals
|Alcohol & Hydroxybenzene & Ether
|Amine
|Hydrocarbon & Derivatives
|Organic Acid
Chemical Auxiliary Agent
|Coating Auxiliary Agents
|Plastic Auxiliary Agents
|Rubber Auxiliary Agents
|Surfactants
|Water Treatment Chemicals
Minerals & Metallurgy
|Carbon
|Cast & Forged
|Cemented Carbide
|Ceramics
|Glass
|Magnetic Materials
|Refractory
Ceramic Fiber Products
|Ceramic Fiber Blankets
|Ceramic Fiber Boards
|Ceramic Fiber Cloth
|Ceramic Fiber Paper
|Ceramic Fiber Rope
Graphite Products
|Graphite Crucible
|Graphite Electrodes
|Graphite Powder
|Graphite Sheets
Steel
|Steel Coils
|Steel Pipes
|Steel Plates
|Steel Rebars
|Steel Round Bars
|Steel Sheets
|Steel Strips
|Steel Structures
|Steel Wire
Steel Profiles
|Flat Steel
|Steel Angles
|Steel Channels
|Steel H-Beams
|Steel I-Beams
Construction / Home & Garden

Construction & Real Estate
|Aluminum Composite Panels
|Balustrades & Handrails
|Building Glass
|Countertops,Vanity Tops & Table Tops
|Floor Heating Systems & Parts
|HVAC Systems & Parts
|Metal Building Materials
|Mouldings
|Multifunctional Materials
Bathroom
|Bathroom Sinks
|Bathroom Vanities
|Bathtubs & Whirlpools
|Toilets
Bathroom Accessories
|Bathroom Shelves
|Paper Holders
|Towel Bars
|Towel Racks
Bathroom Products
|Bath Brushes, Sponges & Scrubbers
|Bath Mats
|Bathroom Sets
|Shower Curtains
Cooking Tools
|Coffee & Tea Tools
|Colanders & Strainers
|Cooking Tool Sets
|Egg Tools
|Fruit & Vegetable Tools
|Ice Cream Tools
|Openers
|Utensils
Home Storage & Organization
|Hooks & Rails
|Storage Bags
|Storage Baskets
|Storage Bottles & Jars
|Storage Boxes & Bins
|Storage Holders & Racks
|Storage Trays
Household Cleaning Tools & Accessories
|Cleaning Brushes
|Cleaning Cloths
|Sponges & Scouring Pads
|Waste Bins
Pet Products
|Pet Apparel & Accessories
|Pet Bowls & Feeders
|Pet Cages, Carriers & Houses
|Pet Cleaning & Grooming Products
|Pet Collars & Leashes
Drinkware
|Coffee & Tea Sets
|Cups & Saucers
|Mugs
|Water Bottles
Automobiles / Consumer Electronics

Automobiles & Motorcycles
|ATV
|Brake System
|Exhaust System
|Fuel System
|Motorcycles
|Suspension System
|Tricycles
Accessories & Parts
|Adapters
|Charger
|Earphone & Headphone
|Power Banks
Mobile Phone Accessories
|Mobile Phone Holders
|Mobile Phone Housings
|Mobile Phone LCDs
|Mobile Phone Straps
Packaging & Printing / Electrical Equipment

Packaging & Printing
|Adhesive Tape
|Bottles
|Cans
|Handles
|Lids, Bottle Caps, Closures
|Packaging Bags
|Packaging Boxes
|Packaging Labels
|Plastic Film
Electrical Equipment & Supplies
|Circuit Breakers
|Contactors
|Electrical Plugs & Sockets
|Electronic & Instrument Enclosures
|Power Distribution Equipment
|Professional Audio, Video & Lighting
|Relays
|Transformers
Wires, Cables & Cable Assemblies
|Electrical Wires
|Power Cables
|Power Cords & Extension Cords
|Wiring Harness
Health & Medical / Rubber & Plastics

Medical Devices
|Clinical Analytical Instruments
|Equipments of Traditional Chinese Medicine
|Medical Consumables
|Physical Therapy Equipments
|Ward Nursing Equipments
Plastic Products
|Automotive Plastic Products
|Plastic Nets
|Plastic Rods
|Plastic Sheets
|Plastic Tubes
Rubber Products
|Automotive Rubber
|Household Rubber
|Rubber Belts
|Rubber Hoses
|Rubber Sheets
Lights / Electronic Components

LED Residential Lighting
|LED Bulb Lights
|LED Ceiling Lights
|LED Downlights
|LED High Bay Lights
|LED Panel Lights
|LED Spotlights
|LED Track Lights
|LED Tube Lights
Hardware / Gifts & Crafts

Hardware
|Abrasive Tools
|Abrasives
|Brackets
|Chains
|Clamps
|Hardware Stock
|Hooks
|Mould Design & Processing Services
|Springs
Fasteners
|Bolts
|Nails
|Nuts
|Screws
Gifts & Crafts
|Antique Imitation Crafts
|Art & Collectible
|Artificial Crafts
|Flags, Banners & Accessories
|Folk Crafts
|Gift Sets
|Glass Crafts
|Key Chains
|Lanyard
|Metal Crafts
|Money Boxes
|Paper Crafts
|Plastic Crafts
|Resin Crafts
|Souvenirs
|Stickers
|Wood Crafts
Festive & Party Supplies
|Event & Party Decorations
|Christmas Decoration Supplies
|Decorative Flowers & Wreaths
|Event & Party Supplies
Security & Protection / Beauty

Beauty Equipment
|Derma Rolling System
|IPL Machine
|Laser Beauty Equipment
|Multi-Functional Beauty Equipment
|RF Equipment
Hair Salon Equipment
|Comb
|Hair Curler
|Hair Dryer
|Hair Straightener
Measurement / Apparel

Measurement & Analysis Instruments
|Counters
|Instrument Parts & Accessories
|Level Measuring Instruments
|Temperature Instruments
|Testing Equipment
|Weighing Scales
Apparel
|Coats
|Hoodies & Sweatshirts
|Jackets
|Ladies' Blouses & Tops
|Pants & Trousers
|Sweaters
|Tank Tops
|Vests & Waistcoats
|Workwear
Textiles & Leather Products / Furniture

Home Textile
|Blanket
|Cushion
|Mat
|Pillow
|Table Cloth
|Towel
Living Room Furniture
|Coffee Tables
|Living Room Cabinets
|Living Room Chairs
|Living Room Sofas
Outdoor Furniture
|Garden Chairs
|Garden Sets
|Garden Sofas
|Hammocks
|Patio Swings
|Patio Umbrellas & Bases
View more

Products

Product type	Signal Cables
Application	Signal
Number of positions	12
Shielded	yes

Rated surge voltage	0.8 kV
Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage UN	30 V
Nominal current IN	1.5 A
Max. conductor resistance	142 Ω/km

Cable type	PVC black
Short symbol	PVC
Signal type/category	Universal
External cable diameter	7.00 mm ±0.03 mm
Outer sheath, material	PVC
External sheath, color	black RAL 9005
Wire diameter incl. insulation	1 mm ±0.05 mm
Single wire, color	white-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue
Cable cross section	6x 2x 0.14 mm²
Material, inner sheath	PVC
Conductor material	Tin-plated Cu litz wires
Conductor structure signal line	18x 0.10 mm
AWG signal line	26
Material wire insulation	PVC
Thickness, insulation	0.21 mm
Overall twist	Six pairs around the filler to the core
Shielding	Tinned copper braided shield
Optical shield covering	85 %
Nominal voltage, cable	300 V
Test voltage, cable	1500 V AC
Cable resistance	142 Ω/km (at 20 °C)
Smallest bending radius, fixed installation	42 mm
Smallest bending radius, movable installation	105 mm
Resistance to oil	in accordance with DIN EN 60811-404
Flame resistance	IEC 60332-1-2, IEC 60332-1, FT1, VW-1
Other resistance	Hydrolysis and microbe resistant as per VDE 0282 section 10
Ambient temperature (operation)	-40 °C ... 85 °C (cable, fixed installation)
Ambient temperature (operation)	-25 °C ... 85 °C (Cable, flexible installation)
