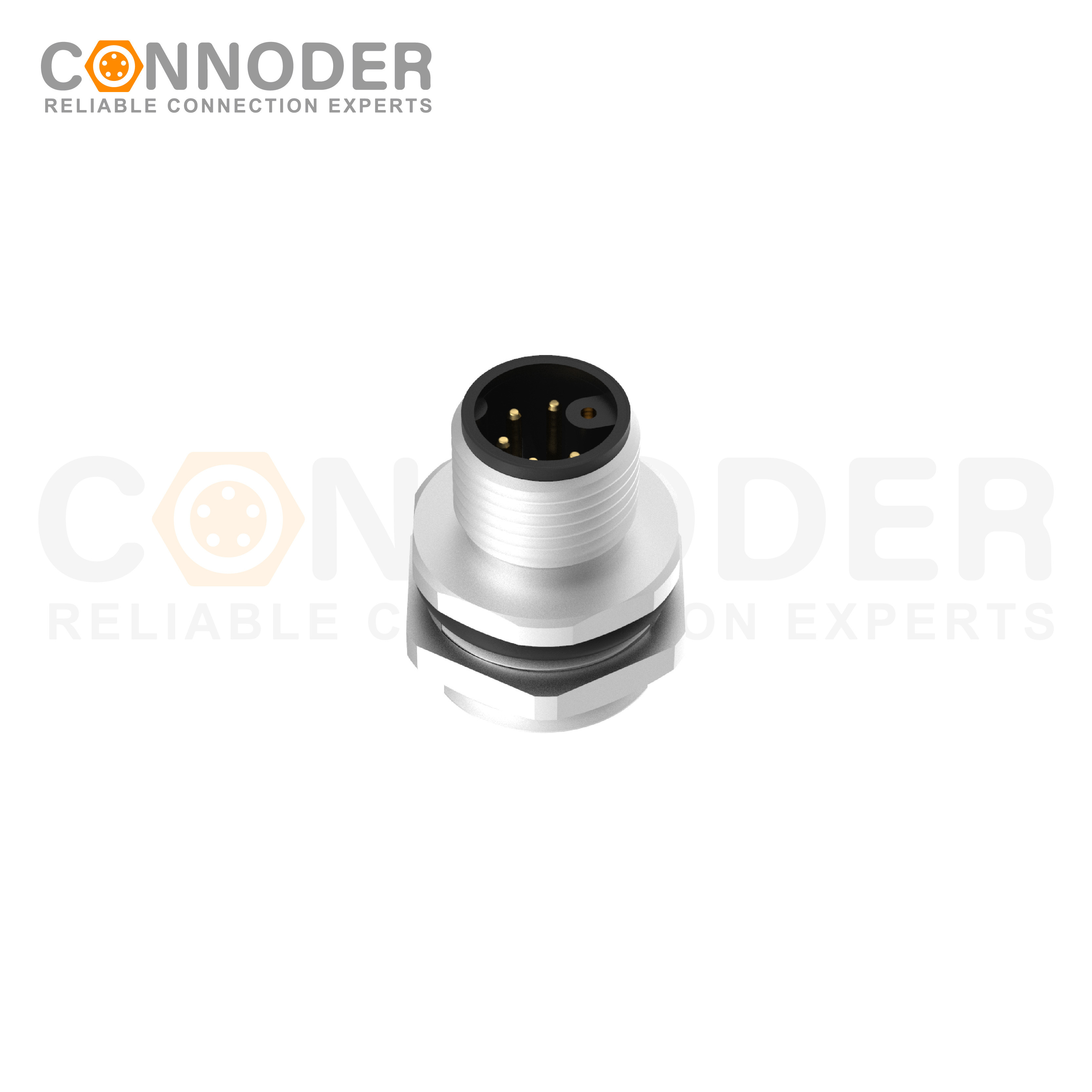

Wholesale M12 M Coded Female 4+PE Circular Connector | Panel Mount,Solder Connection,M16x1.5, Rear Fastened
Wholesale M12 M Coded Female 4+PE Circular Connector | Panel Mount,Solder Connection,M16x1.5, Rear FastenedWholesale M12 M Coded Female 4+PE Circular Connector | Panel Mount,Solder Connection,M16x1.5, Rear FastenedWholesale M12 M Coded Female 4+PE Circular Connector | Panel Mount,Solder Connection,M16x1.5, Rear FastenedWholesale M12 M Coded Female 4+PE Circular Connector | Panel Mount,Solder Connection,M16x1.5, Rear FastenedWholesale M12 M Coded Female 4+PE Circular Connector | Panel Mount,Solder Connection,M16x1.5, Rear Fastened

Wholesale M12 M Coded Female 4+PE Circular Connector | Panel Mount,Solder Connection,M16x1.5, Rear Fastened

  • group nameM12 M Coded Connector

  • Min Order1 piece

  • brand nameConnoder Circular Connector Manufacturer

  • modelMC12MM-05F2LSLNS301

  • payment methodL/C, D/A, D/P

  • update timeSat, 06 Dec 2025 07:30:44 GMT

contact supplier

Paramtents

  • Type M12 Circular Connector

  • Contact Connection Type Male Connector

  • Number OF Positions 2 Pin/2 Pin+PE/3 Pin+PE/4 Pin+PE

  • Coding M

  • Termination Solder

  • Mounting Type Rear Fastened

  • Shielded Option Unshielded

  • Approval UL

  • Pollution III

  • Flame Retardant IEC61076-2-111

Packging & Delivery

  • Min Order1 piece

Briefing

M12 M Coded 4+PE Circular Connector is a metric circular connector used in industrial automation and other harsh environments.

Detailed

M12 M Coded 4+PE Circular Connector characteristic
M12 Circular Connector
Description
  • The M12 M Coded 4+PE Circular Connector is a professional-grade connector designed to meet the needs of efficient and reliable power transmission in industrial environments. The connectors are IEC 61066-2-111 compliant and have rated voltages up to 630V and rated currents of 8A, making them ideal for three-phase motors and other automation equipment.
  • High power carrying capacity: Support up to 630V AC and 8A current for applications requiring efficient power transmission.
  • Multiple pin configurations: Available in a variety of pin number configurations including 2-pin, 2+PE, 3+PE, 4+PE and 5+PE to suit different electrical requirements.
  • Rugged design: At least IP67 protection to ensure reliable performance in harsh environments.
  • Flexible mounting options: Panel mount versions are available in front - and rear-mount options, with a variety of termination options, including welded, pre-laid and PCB types.
M12 M Coded 4+PE Circular Connector Specification
Shell Material
Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material
Epoxy Resin/Rubber
Contact Material
Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material
PA+PA+GF/TPU
Molding Material
TPU/PVC
Contact Resistance
≤5mΩ
Durability
≥ 500 Cycles
Insulation Resistance
100 MΩ
Applicable Temperature
-40℃ Tо +80℃
Waterproof Grade
IP67/IP68
M12 M Coded 4+PE Circular Connector Size diagram
M12 M Coded 4+PE Circular Connector Size diagram
M12 M Coded 4+PE Circular Connector Electrical parameter:
Product model
Pins
Rated current
Rated voltage
Wire Gauge/Size
A/C
D/C
AWG
mm²
MC12MM-02F2LSLNS301
2
8A
630V
630V
16
1.5
MC12MM-03F2LSLNS301
2+PE
8A
630V
630V
16
1.5
MC12MM-04F2LSLNS301
3+PE
8A
630V
630V
16
1.5
MC12MM-05F2LSLNS301
4+PE
8A
630V
630V
16
1.5
MC12MM-06F2LSLNS301
5+PE
8A
630V
630V
16
1.5
M12 M Coded 4+PE Circular Connector Coding Parameter:
Code Type Pins Male Female
S Code 2 M12 S Male 2Pin M12 S Female 2Pin
2+PE M12 S Male 2+PE M12 S Female 2+PE
3+PE M12 S Male 3+PE M12 S Female 3+PE
T Code 2 M12 T Male 2Pin M12 T Female 2Pin
2+PE M12 T Male 2+PE M12 T Female 2+PE
3+PE M12 T Female 3+PE
K Code 2 M12 K Male 2Pin M12 K Female 2Pin
2+PE M12 K Male 2+PE M12 K Female 2+PE
3+PE M12 K Male 3+PE M12 K Female 3+PE
4+PE M12 K Male 4+PE M12 K Female 4+PE
L Code 2 M12 L Male 2Pin M12 L Female 2
2+FE M12 L Male 2+PE M12 L Female 2+PE
3 M12 L Male 3Pin M12 L Female 3Pin
3+FE M12 L Male 3+PE M12 L Female 3+PE
4 M12 L Male 4Pin M12 L Female 4Pin
4+FE M12 L Male 4+PE M12 L Female 4+PE
M Code 2 M12 M Male 2Pin M12 M Female 2Pin
2+PE M12 M Male 2+PE M12 M Female 2+PE
3+PE M12 M Male 3+PE M12 M Female 3+PE
4+PE M12 M Male 4+PE M12 M Female 4+PE
5+PE M12 M Male 5+PE M12 M Female 5+PE
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 M Coded 4+PE Circular Connector Wire Definition:
Pins 2+PE S Core Color Pins 4+PE S Core Color Pins 4Pin T Core Color
1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BN 4 Pin Core Color
2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color 2 WH 6 Pin Core Color
PE GNYE Image 3 BK3 4 Pin Core Color 3 BU 4 Pin Core Color
PE GNYE Image 4 BK 4 Pin Core Color
-
Pins 4/4+PE L Core Color Pins 4+PE K Core Color Pins 5+PE M Core Color
1 BN 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color
2 WH 6 Pin Core Color 2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color
3 BU 4 Pin Core Color 3 BK3 4 Pin Core Color 3 BK3 4 Pin Core Color
4 BK 4 Pin Core Color 4 BK4 4 Pin Core Color 4 BK4 4 Pin Core Color
PE GY 6 Pin Core Color PE GNYE Image 5 BK5 4 Pin Core Color
PE GNYE Image
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 M Coded 4+PE Circular Connector Application:
Industrial Automation
Industrial Automation

Food Packaging
Food Packaging

Warehousing Logistics
Warehousing Logistics

Automated Production
Automated Production
