Wholesale M5 Female 4 Pin Circular Connector | Panel Mount,Solder Connection, Rear Fastened
group nameM5 Circular Connector
-
Min Order1 piece
brand nameConnoder Circular Connector Manufacturer
modelMC05NF-03F2LSLNS1101
payment methodL/C, D/A, D/P
-
update timeSat, 06 Dec 2025 07:13:25 GMT
Paramtents
Type M5Circular Connector
Contact Connection Type Female Connector
Number OF Positions 3 Pin、4 Pin
Coding A
Termination Solder type
Mounting Type Rear Fastened
Shielded Option Unshielded
Approval UL
Pollution III
Flame Retardant IEC 61076-2-105
Packging & Delivery
Min Order1 piece
Briefing

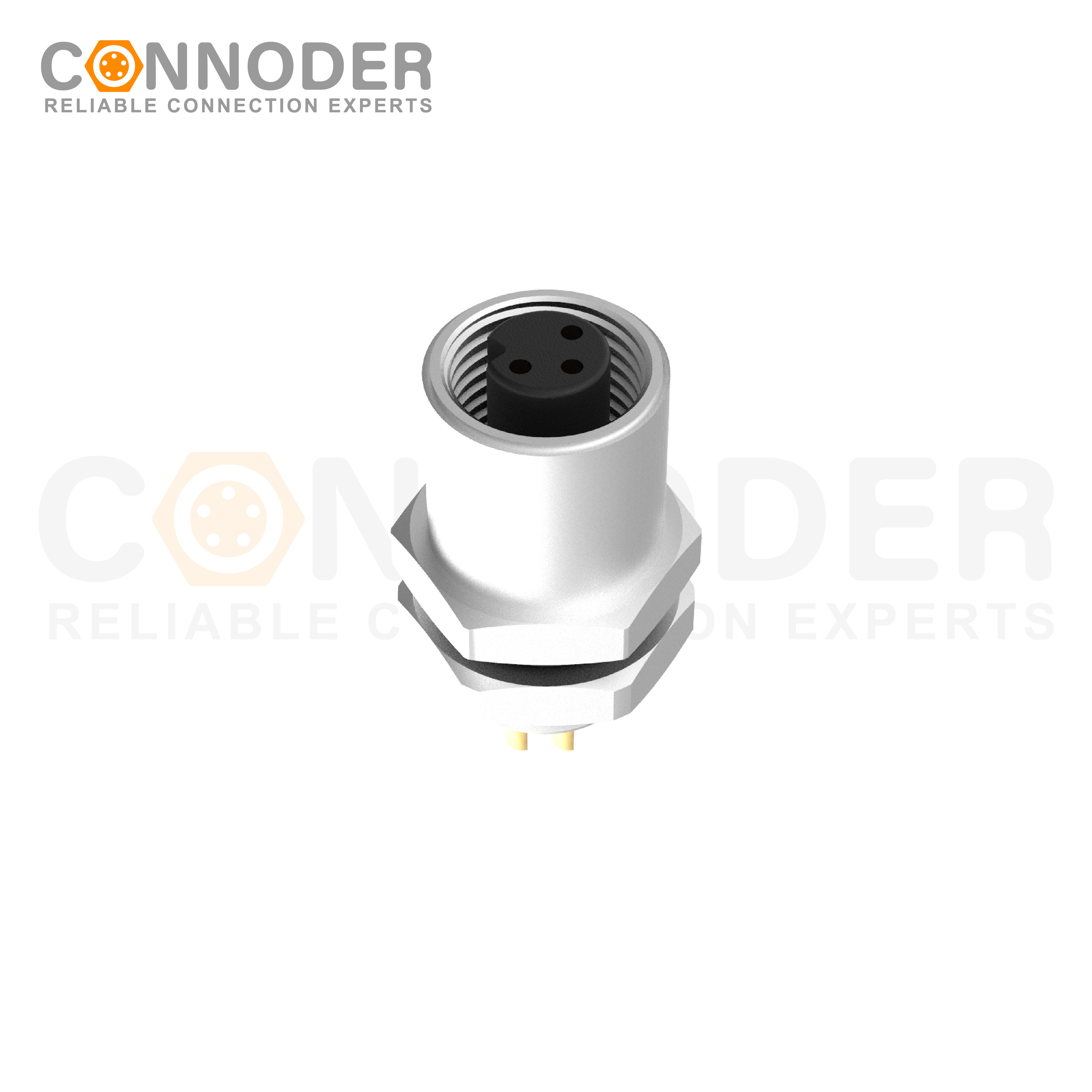

M5 Female 4 Pin Circular Connector are connection solutions designed for applications that require compact size and high reliability.
Detailed
M5 Female 4 Pin Circular Connector characteristic
Description
- Compact Design: M5 Female 4 Pin Circular Connector are known for their small form factor (approximately 5mm OD), making them ideal for space-constrained application scenarios. The miniaturized design helps save valuable space while maintaining good electrical performance.
- Rugged: Provide excellent mechanical strength and durability. They are typically equipped with metal housings and can achieve IP67 levels of protection for use in harsh environments, including resistance to dust ingress and short-term water submersion.
- Easy to install: M5 Female 4 Pin Circular Connector offer a variety of mounting options, including front panel mounting and rear panel mounting options.
- Cable assemblies: In addition to individual connectors, pre-assembled M5 cable assemblies are available, which can be customized in length and configuration to meet specific customer needs.
- Wide range of application scenarios: M5 Female 4 Pin Circular Connector are used in a wide range of industries, including but not limited to industrial automation, robotics, automotive manufacturing, and medical devices.
M5 Female 4 Pin Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M5 Female 4 Pin Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC05NF-03F2LSLNS1101 | 3 | 1A | 60V | 60V | 26 | 0.14 | |
MC05NF-04F2LSLNS1101 | 4 | 1A | 60V | 60V | 26 | 0.14 | |
M5 Female 4 Pin Circular Connector Coding Parameter:
| Pins | 3 | 4 | Pins | 3 | 4 |
| Male |  |
 |
Female |  |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M5 Female 4 Pin Circular Connector Wire Definition:
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | ||
| 1 | BN |  |
1 | BN | |
| 2 | - |  |
2 | WH |  |
| 3 | BU |  |
3 | BU | |
| 4 | BK |  |
4 | BK | |
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
