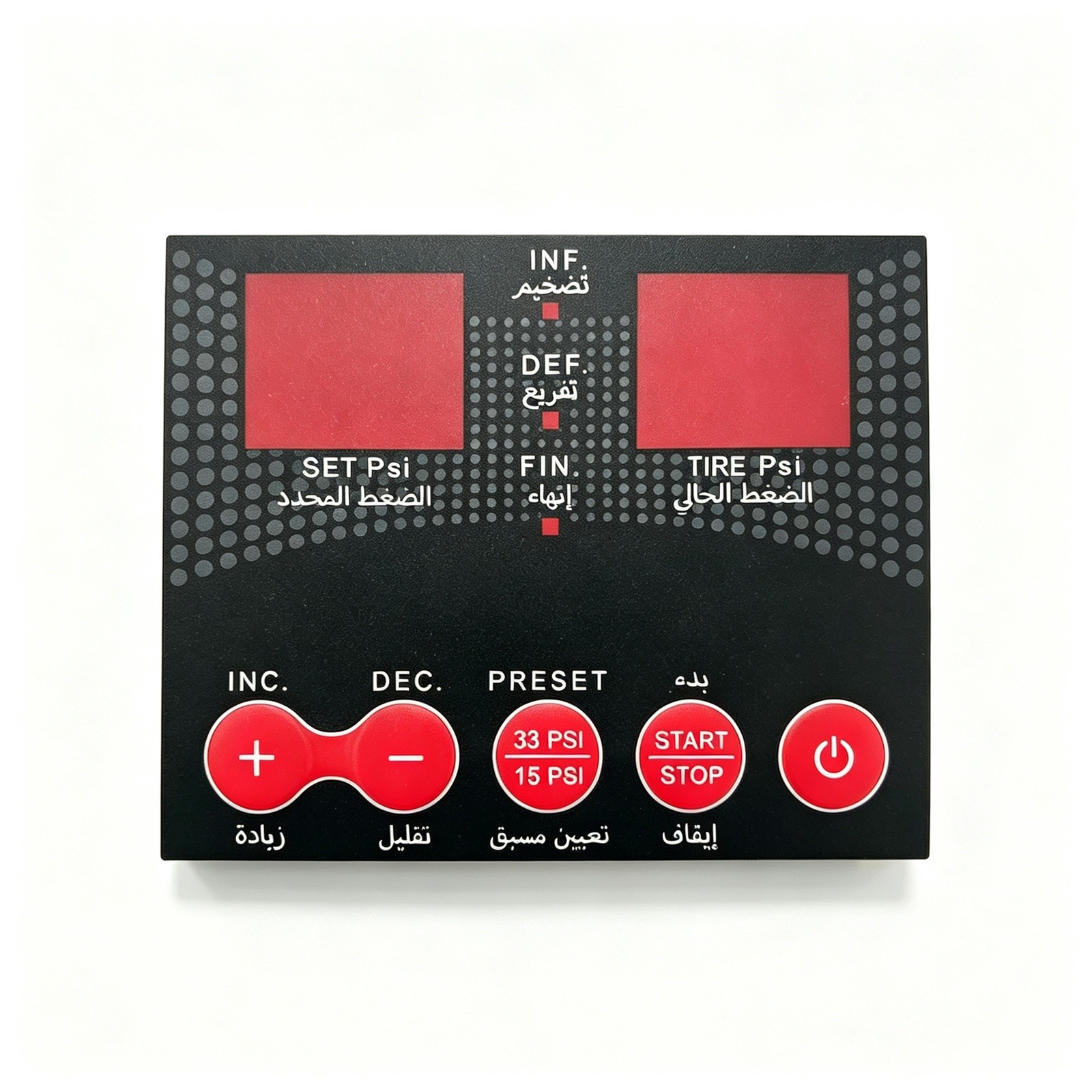

Custom Bilingual Membrane Switch Manufacturer | Red Tactile Metal Dome Keys · Multi-Language Overlay · OEM/ODM for Tire Inflators
group nameTactile Membrane Switches
-
Min Order1 piece
brand nameZonja
payment methodT/T, Credit Card, Cash
-
update timeFri, 25 Sep 2026 14:23:19 GMT
Paramtents
Product type Custom bilingual membrane switch HMI panel
Key style Red embossed tactile keys with metal domes
Languages English and Arabic multi-language graphic overlay
Display windows Dual LED windows with red diffusion lenses
Circuit High-conductivity silver-ink circuit with FPC tail
Adhesive 3M VHB high-strength double-sided mounting tape
Protection IP65 splash-resistant build with nano coating
Applications Tire inflators, air compressors, workshop equipment
Customization Size, layout, language, colors, connectors, windows
Compliance RoHS 10 and REACH SVHC compliant, reports available
Packging & Delivery
Min Order1 piece
Briefing
Detailed

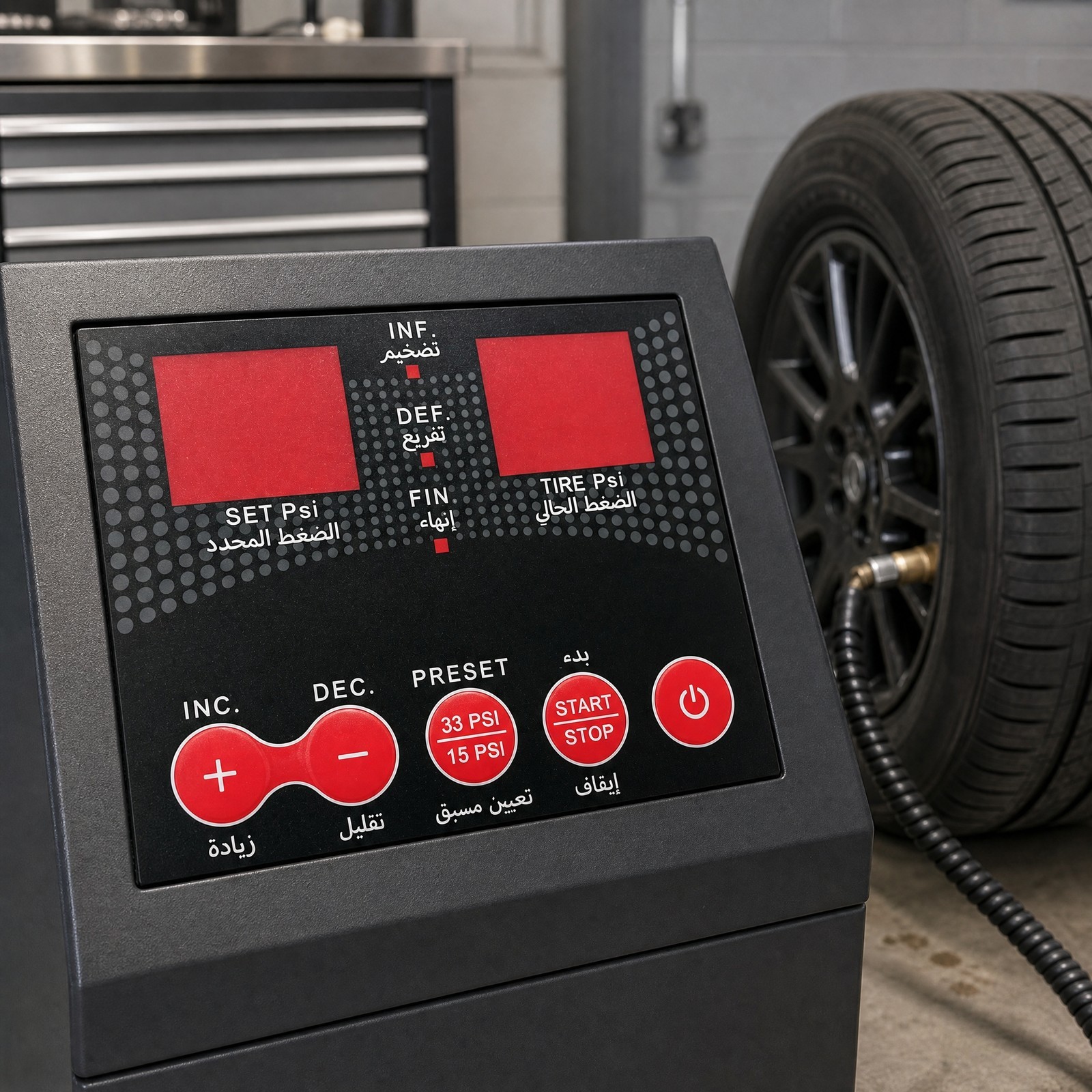

Custom Bilingual Membrane Switches for Tire Inflators and Workshop Equipment
This custom membrane switch series is engineered for tire inflators, air compressors and other workshop equipment that needs a rugged, easy-to-read control interface. The bilingual graphic overlay pairs English legends with a second language, dual LED display windows use red diffusion lenses for high-contrast readouts, and embossed red keys sit over metal domes for crisp, repeatable tactile feedback.
As a source membrane switch manufacturer, we support full OEM/ODM customization: overlay graphics, key layout, overall size, silver-ink circuits, FPC tails, connectors and 3M adhesive options are all built to your drawings. Every panel is RoHS 10 and REACH SVHC compliant, and a nano-coated splash-resistant construction keeps the interface reliable in dusty, humid workshop environments.
Product Highlights
Tactile feedback, bilingual graphics and workshop-grade durability in one custom HMI panel.
Multi-Language Graphic Design
Bilingual and multi-language overlay printing with flexible layouts for text, symbols and display cutouts to match regional markets.
Rugged Tactile Keypad
Custom metal dome keys deliver crisp feedback and long cycle life, optimized for heavy-use automotive and workshop equipment.
Full HMI Custom Integration
Display windows, silver-ink circuits, FPC connectors and 3M adhesive backing tailored to your drawings and mechanical structure.
Harsh Environment Compliance
Matte scratch-resistant overlays withstand dust, moisture and frequent operation, with RoHS and REACH compliance as standard.
Built Around Your Drawing
Send a concept sketch or a fully dimensioned drawing. We adapt every layer of the switch to your equipment.
Graphics and text - single or multi-language silk-screen printing, custom symbols, logos and color matching.
Mechanical structure - custom outline shape, display window size and position, cutout layout.
Keypad design - tactile metal dome or non-tactile keys with adjustable actuation force.
Circuit and connection - silver-ink circuit design, FPC tail length and pin count customization.
Overlay and adhesive - PET / PI overlay selection with various 3M adhesive options for different mounting surfaces.
Optional upgrades - LED backlighting, ESD shielding and enhanced waterproof construction.

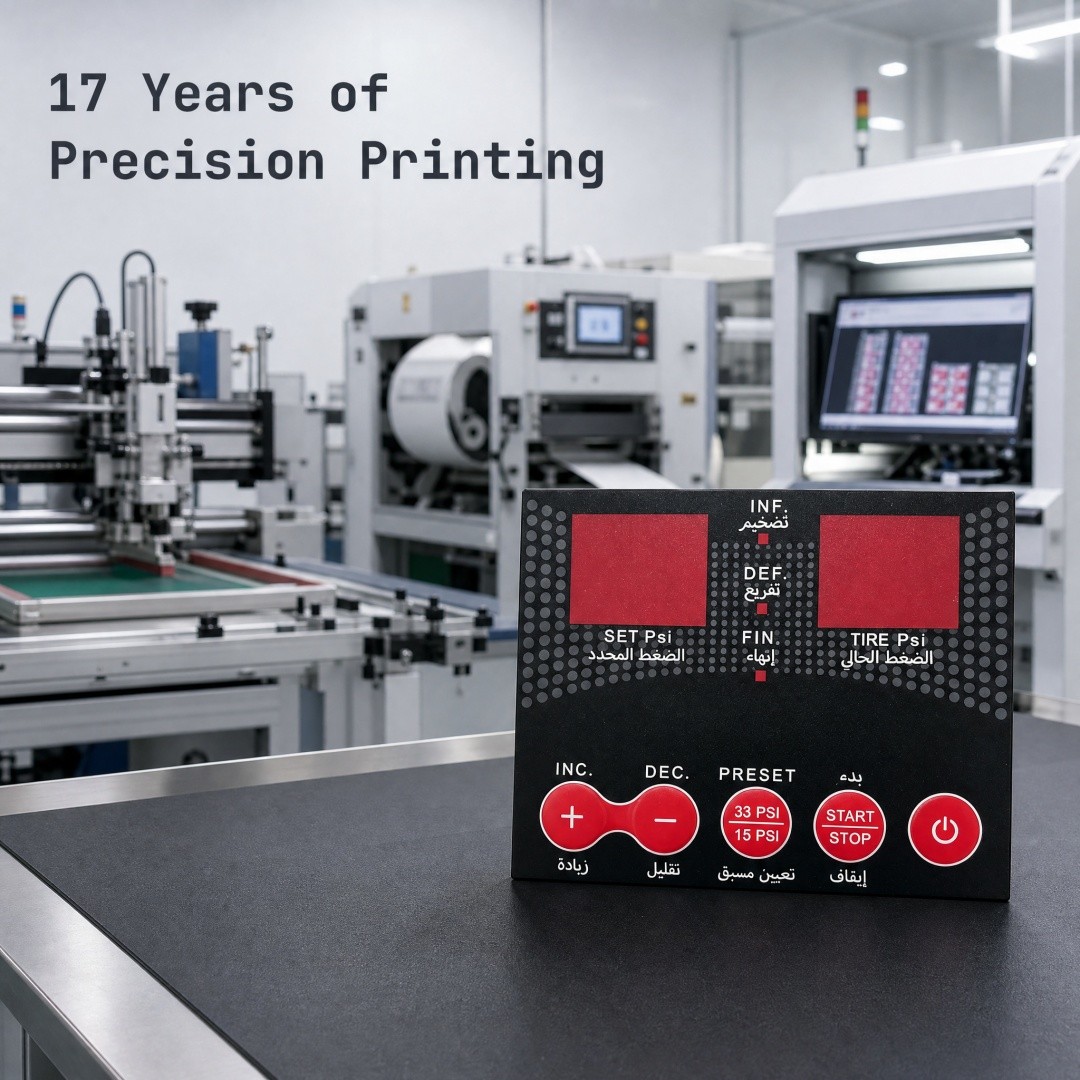

Precision Printing Backed by a 17-Year Factory
Every panel is produced in our 20,000 m2 printing plant in Dongguan by a team of 400+ staff, including a 30-person R&D team and a 90-person QC team working to ISO 9001-certified processes. From first-article samples to repeat mass production orders, graphic overlays, die-cut layers and circuits stay consistent across every batch.
- 17 years of precision printing experience
- Prototype samples in 7-12 working days
- Engineering DFM review before production approval
- 90 QC staff checking batch-to-batch consistency
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Custom tactile membrane switch / HMI keypad |
| Overlay Material | Matte PET / PI film, scratch-resistant, anti-glare |
| Printing Option | Single or multi-language custom printing, custom symbols and logos |
| Key Type | Metal dome tactile keys, non-tactile optional |
| Circuit Material | High-conductivity silver-ink printed circuit |
| Display Window | Custom transparent cutout for LCD / LED digital displays |
| Connector | Custom FPC flexible cable with customized length |
| Adhesive | 3M high-strength pressure-sensitive adhesive, stable mounting |
| Operating Life | Up to 1,000,000 keystrokes |
| Environmental Performance | Dustproof, moisture-proof, oil-resistant for workshop equipment |
| Compliance | RoHS 10 and REACH SVHC compliant, full test reports available |
| Customization | Size, shape, graphics, circuit, backlight and structure customizable |
Frequently Asked Questions
What files do you need to quote?
2D drawings, dimension information, overlay requirements, circuit and connector specifications. Concept sketches are also acceptable for early design evaluation.
What is your sample lead time?
Prototype samples take 7-12 working days. Mass production lead time depends on order quantity.
Can you provide multi-language printing?
Yes. We support English, Arabic and many other languages for graphic overlay custom printing.
Are your products environmentally compliant?
All products comply with RoHS 10 and REACH SVHC. Test reports can be provided upon request.
Ready to Build Your Custom Membrane Switch?
Send us your overlay artwork or front-panel drawing with overall dimensions, display window openings, circuit and connector requirements. Our engineers will reply with DFM feedback and a quotation.
