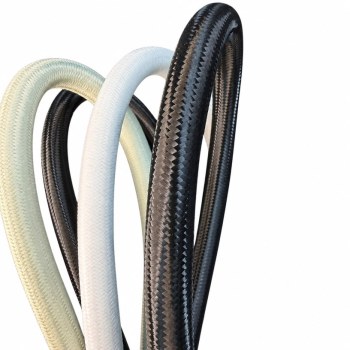

NBR Braided Rubber Hose - High Pressure Oil Resistant Flexible Tubing OEM/ODM
group nameNBR Hose
-
Min Order1 piece
brand nameRESRUB rubber and plastic products manufacturer
modelRESRUB-NBR-BRAID
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash
-
update timeFri, 28 Aug 2026 21:27:03 GMT
Paramtents
Material NBR + Polyester/Nylon Fiber Braid + NBR
Inner Diameter 3 mm – 50 mm (custom)
Wall Thickness 2 mm – 8 mm
Working Pressure 10 – 20 bar (standard)
Burst Pressure ≥ 3× working pressure
Working Temperature -30°C to +120°C
Hardness (Shore A) 65 – 85
Color Black / White / Red / Blue / Custom
Reinforcement Polyester / Nylon fiber braid
Standard Length 20 – 100 m roll
Certifications RoHS / REACH / ISO 9001
OEM/ODM Accepted
Sample Free 5–10 m sample available
Lead Time 7–15 days standard / 15–30 days custom
HS Code 4009 31 00 00
Packging & Delivery
Min Order1 piece
Briefing
Detailed
NBR Braided Rubber Hose - High Pressure Oil Resistant Flexible Tubing OEM/ODM | NBR Braided Rubber Hose | OEM/ODM Custom
High-pressure NBR braided rubber hose / fuel & oil-resistant flexible tubing. OEM/ODM factory, -30°C~+120°C, custom ID/wall/length.
Product Overview
Our NBR braided rubber hose is engineered with a high-tensile polyester/nylon fiber braid embedded between inner NBR tube and outer NBR cover, delivering excellent pressure resistance, kink recovery, and oil/fuel resistance. It is the industry-standard solution for hydraulic lines, fuel delivery, lubricant transfer, oil cooling, and air brake systems. As a direct factory with extrusion + braiding + vulcanization under one roof, we offer full OEM/ODM service: custom inner diameter (3 mm – 50 mm), wall thickness, working pressure rating, color, and private-label packaging.
Product Gallery
Key Features & Advantages
- High-pressure resistance up to 20 bar (290 psi) for standard series, 30+ bar for high-pressure series
- Excellent oil, fuel, diesel, kerosene, and lubricant resistance — NBR core resists swelling and degradation
- Wide working temperature range: -30°C to +120°C (custom high-temp up to 150°C available)
- Kink-resistant and flexible — fiber braid keeps inner lumen open under tight bend radius
- Aging, ozone, and abrasion-resistant outer cover for long service life
- Low permeation, low odor, RoHS/REACH compliant compounds available
- Custom colors: black, white, red, blue, green, yellow, silver, beige, and bespoke pantone
- Direct factory pricing with full OEM/ODM: custom ID/OD, length, printing, packaging
Technical Specifications
| Inner Diameter (ID) | 3 mm – 50 mm (custom 1 mm – 100 mm available) |
|---|---|
| Wall Thickness | 2 mm – 8 mm (single braid) / up to 12 mm (double braid) |
| Working Pressure | 10 – 20 bar (standard) / 20 – 30 bar (high-pressure) |
| Burst Pressure | ≥ 3× working pressure |
| Working Temperature | -30°C to +120°C (high-temp compound up to +150°C) |
| Reinforcement | Polyester / nylon / aramid fiber single or double braid |
| Hardness (Shore A) | 65 – 85 (custom 55 – 90 available) |
| Standard Length | 20 m, 30 m, 50 m, 100 m roll (custom length available) |
| Color Options | Black, white, red, blue, green, yellow, silver, beige, custom |
| Certifications | RoHS, REACH, ISO 9001 (factory), custom compound testing |
| OEM/ODM | Custom ID/OD, private label, custom packaging, sample available |
| Lead Time | 7–15 days for standard / 15–30 days for custom |
Material & Color Options
Standard material: NBR (Nitrile Butadiene Rubber) inner tube + polyester/nylon fiber braid reinforcement + NBR cover. Custom colors and hardness available on request.
Typical Applications
- Automotive fuel lines (petrol / diesel / E85) and oil return lines
- Hydraulic fluid transfer in low-medium pressure systems
- Lubricant / grease delivery in machinery and automation
- Air brake and pneumatic control lines in trucks and buses
- Oil cooling lines for engines, gearboxes, and power steering
- Industrial coolant / cutting fluid transfer
- Marine fuel systems and bilge pump discharge
Packaging & Delivery
Standard export packaging: PP/PE film wrapping + woven bag + carton. Custom packaging with private label, barcodes, and retail-ready boxes available on request. Inner diameter 3 mm–50 mm supplied in 20–100 m rolls; bulk reels and pre-cut lengths also available.
FAQ
What is the minimum order quantity (MOQ)?
Standard sizes MOQ 500 m; custom specifications MOQ 1,000–2,000 m. Sample rolls of 5–10 m available for testing.
Can you match a specific working pressure rating?
Yes. We can engineer single-braid, double-braid, or aramid-reinforced constructions to meet 5–30 bar working pressure and custom burst pressure targets.
Do you offer private label and custom packaging?
Yes. We provide OEM/ODM with custom printing on the hose, custom reel/box/carton, your brand labels and barcodes.
What about certifications and material compliance?
Our factory is ISO 9001 certified. Material can be supplied RoHS, REACH, FDA-grade, or per your local market requirements. COA and MSDS available.
Request a Quote
Send us your drawing, sample, or specification (ID / OD / pressure / temperature / color) — our engineering team will reply with a tailored quote and free samples within 24 hours.
