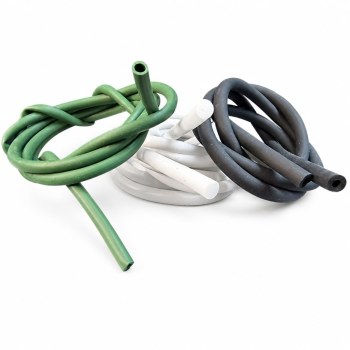

TPV Color Rubber Hose - Black White Green Flexible Tubing OEM/ODM
group nameTPV Hose
-
Min Order1 piece
brand nameRESRUB rubber and plastic products manufacturer
modelRESRUB-TPV-COLOR
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash
-
update timeFri, 28 Aug 2026 18:25:00 GMT
Paramtents
Material TPV (Thermoplastic Vulcanizate, EPDM/PP)
Inner Diameter 3 mm – 50 mm (custom)
Wall Thickness 1.5 mm – 6 mm
Working Pressure 4 – 10 bar
Burst Pressure ≥ 3× working pressure
Working Temperature -40°C to +135°C
Hardness (Shore A) 60 – 90
Color Black / White / Green / Custom Pantone
Density 0.90 – 1.10 g/cm³
Standard Length 30 – 200 m roll
Certifications RoHS / REACH / FDA / NSF (optional)
Recyclability Yes (thermoplastic)
OEM/ODM Custom ID/OD, color, hardness, packaging
Sample Free 5–10 m sample available
HS Code 3917 32 00 00
Packging & Delivery
Min Order1 piece
Briefing
Detailed
TPV Color Rubber Hose - Black White Green Flexible Tubing OEM/ODM | TPV Color Rubber Hose | OEM/ODM Custom
Color TPV rubber hose / flexible thermoplastic vulcanizate tubing. Black/white/green, custom ID/OD, -40°C~+135°C, OEM/ODM factory direct.
Product Overview
Our color TPV (Thermoplastic Vulcanizate) rubber hose combines the elastic performance of EPDM with the processing efficiency of thermoplastics — recyclable, lightweight, and available in vivid colors that traditional EPDM cannot easily match. It is widely used in appliance drainage, food/beverage contact lines, low-pressure chemical transfer, agricultural irrigation, and general industrial fluid handling where color-coding matters. TPV offers excellent weather, UV, and ozone resistance, good flexibility at low temperature, and is RoHS / REACH / FDA compliant on request. As a direct factory, we offer full OEM/ODM: custom inner diameter 3–50 mm, wall thickness, color matching (black / white / green / custom Pantone), hardness 60–90 Shore A, and private-label packaging.
Product Gallery
Key Features & Advantages
- Multiple color options: black, white, green, red, blue, yellow, custom Pantone
- Recyclable thermoplastic — eco-friendly vs. thermoset rubber
- Excellent weather, UV, ozone, and aging resistance (EPDM-like)
- Good flexibility at low temperature: -40°C (TPV stays soft)
- Working temperature range: -40°C to +135°C (peak +150°C)
- Food-grade / FDA / NSF compounds available on request
- RoHS / REACH compliant; low odor, low extractables
- Custom ID/OD, hardness, color, and printing — OEM/ODM factory direct
Technical Specifications
| Inner Diameter (ID) | 3 mm – 50 mm (custom 1 mm – 100 mm available) |
|---|---|
| Wall Thickness | 1.5 mm – 6 mm |
| Working Pressure | 4 – 10 bar (low-pressure series) |
| Burst Pressure | ≥ 3× working pressure |
| Working Temperature | -40°C to +135°C (peak +150°C) |
| Hardness (Shore A) | 60 – 90 (custom 50 – 95 available) |
| Density | 0.90 – 1.10 g/cm³ |
| Color Options | Black, white, green, red, blue, yellow, custom Pantone |
| Standard Length | 30 m, 50 m, 100 m, 200 m roll |
| Certifications | RoHS / REACH / FDA-grade / NSF (compound-dependent) |
| Recyclability | Yes (thermoplastic — can be re-melted and reused) |
| OEM/ODM | Custom ID/OD, color, hardness, printing, packaging |
Material & Color Options
Standard material: TPV (Thermoplastic Vulcanizate, EPDM/PP blend) - black, white, green, or custom color. Custom colors and hardness available on request.
Typical Applications
- Appliance drainage and water lines (washing machine, dishwasher, ice maker)
- Food and beverage contact tubing (food-grade compound)
- Agricultural drip irrigation and low-pressure spray lines
- Color-coded pneumatic control lines (black = air, green = water, etc.)
- Chemical transfer (low concentration acids / alkalis) and coolant lines
- Solar thermal system circulation and heat pump loops
- General industrial fluid handling where color coding is required
Packaging & Delivery
Standard export packaging: continuous coil wrapped in PE film + woven bag + carton. Inner diameter 3–50 mm in 30–200 m rolls; pre-cut lengths and private-label retail boxes available on request.
FAQ
What is the difference between TPV and EPDM hose?
TPV is a thermoplastic — recyclable, easy to color, and can be heat-welded. EPDM is thermoset rubber — better heat/oil resistance but not recyclable. TPV is preferred for color coding, food contact, and eco-friendly applications.
Can you produce food-grade TPV hose?
Yes. We offer FDA-grade and NSF-grade TPV compounds for food/beverage contact. COA and migration test reports available.
What is the minimum order quantity?
Standard sizes MOQ 500 m; custom colors/specifications MOQ 1,000–2,000 m. Free 5–10 m samples available for testing.
Do you support Pantone color matching?
Yes. Provide Pantone/RAL color code or sample, our lab will formulate the compound and send a color chip for approval before production.
Request a Quote
Tell us your color, size, and application — we will recommend the right TPV compound, ship a free sample, and quote within 24 hours.
