Custom Auto Display Glass
Tempered glass made to the specified cockpit screen size, outline, holes, edge profile, and printed border.
Custom Auto Display Cover Glass | AR/AF Coated Vehicle Touch Glass
FOB Price
- US $5.99
5 - 99 piece
- US $4.85
100 - 999 piece
- US $3.89
1000 - 4999 piece
- US $2.88
5000 - 9999 piece
group nameDisplay Cover Glass
-
Min Order5 piece
brand nameFELIX GLASS optical glass Manufacturing base
modelM98
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 14 Jul 2026 16:51:16 GMT
Paramtents
Product Type Custom 1.1mm Tempered Glass Panel for Car DVR
Raw Materials Crystal White / Soda Lime / Low-Iron Glass
Size Customizable Size
Thickness 0.33mm – 12mm
Tempering Heat Tempering / Chemical Tempering
Edge Processing Flat Surface (Flat / Pencil / Beveled / Chamfered
Holes Round / Square (Irregular Holes Available)
Color Black / White / Silver (Up to 7 Layers of Color)
Coatings Anti-Glare (AG) / Anti-Reflection (AR) / Anti-Fing
Production Process Cutting → Edge Polishing → CNC → Cleaning → Printi
Features Scratch Resistant / Waterproof / Anti-Fingerprint
Packging & Delivery
Size50cm x50cm x30cm
Weight0.5kg / piece
Min Order5 piece
Briefing
High-performance automotive display glass for infotainment systems, car DVR, and in-vehicle displays. OEM/ODM support
Detailed
Model M98 · Custom Automotive Display Cover Glass
Custom Auto Display Cover Glass for Vehicle Touch Displays
Felix Glass Co., Limited manufactures custom display cover glass for automotive infotainment systems, dashboards, rear-seat displays, and car DVR equipment. Available processes include precision CNC machining, silk-screen printing, heat or chemical tempering, and AG, AR, AF, or combined functional coatings. Prototype quantities and production-volume programs are supported according to the drawing and qualification requirements.
ISO 9001 certified19+ years in optical glass manufacturingCustom size, printing, and coatingsPrototype MOQ: 1 piece
Automotive Display Glass Options
The product range follows the original application sequence and can be configured to suit the display, assembly, and optical requirements of each vehicle program.
AR/AF Coated Vehicle Glass
Anti-reflection and anti-fingerprint surfaces can reduce reflected light and make touch surfaces easier to clean.

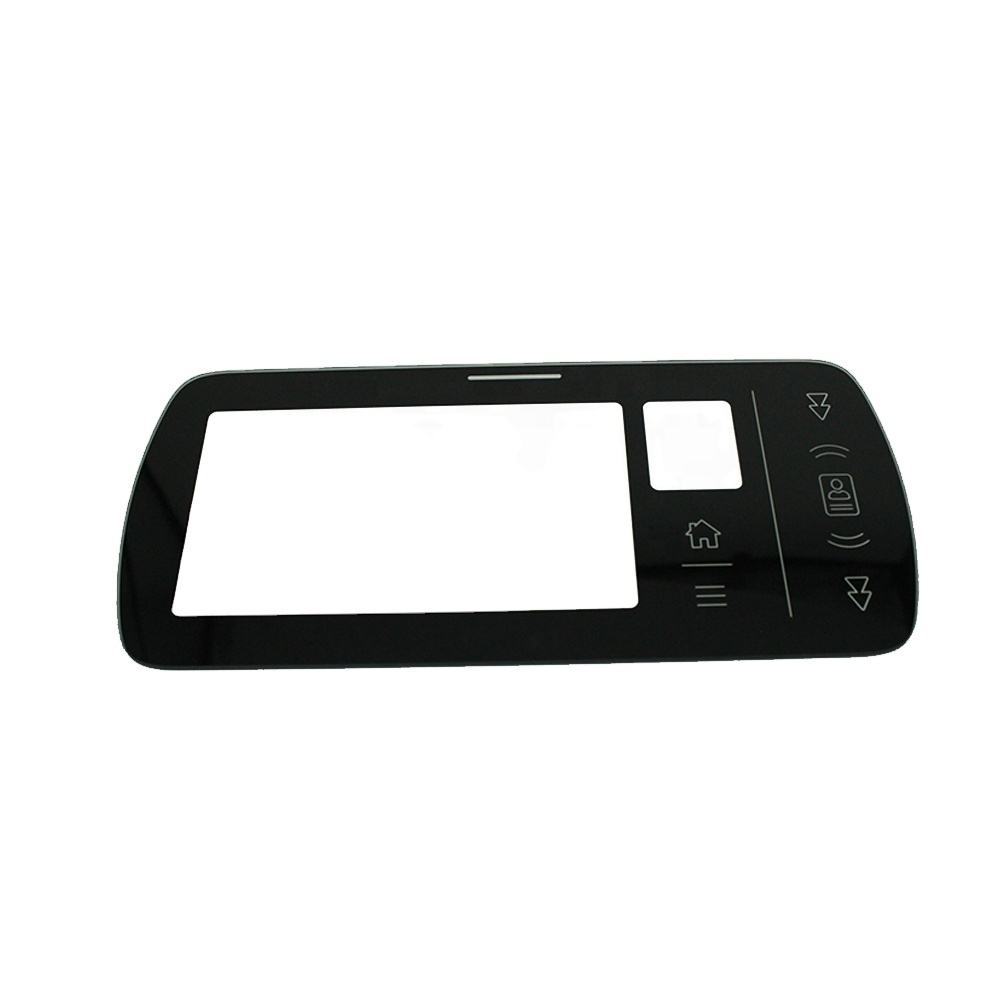

Infotainment Touch Cover
Protective cover glass for central control and infotainment touch modules.

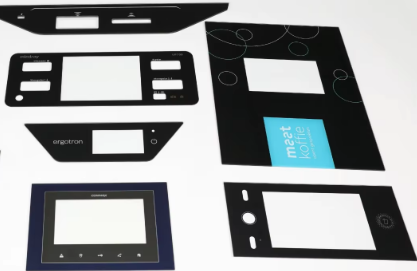

Precision-Cut Auto Glass
CNC cutting, hole machining, polishing, and chamfering for assembly-ready geometry.

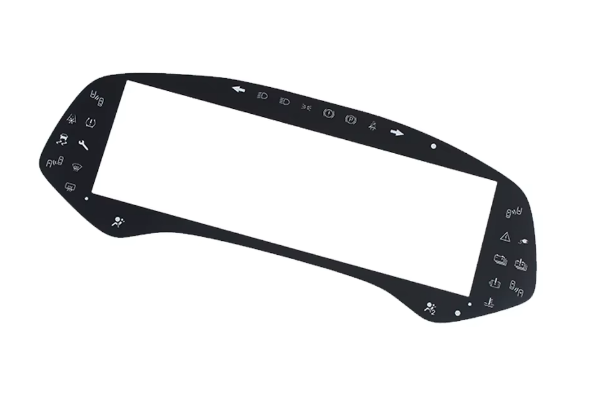

Auto Display Cover Glass
Tempered protective glass for dashboards and rear entertainment displays.
Car DVR Glass Panel
Thin, scratch-resistant cover glass for vehicle driving recorders and monitoring devices.
Technical Specifications
| Base materials | Crystal white, soda-lime, low-iron, or automotive-grade aluminosilicate glass |
|---|---|
| Thickness | 0.33–12 mm; common display options include 0.55, 0.7, 1.1, 1.8, and 2.0 mm |
| Tempering | Heat tempering or chemical tempering; project values may include DOL 30–90 μm and CS 600–900 MPa |
| Edge processing | Flat, pencil, beveled, chamfered, C/J chamfer, or 2.5D rounded edge |
| Holes and shapes | Round, square, and irregular openings; custom outline sizes |
| Printing | Black, white, silver, logos, and multilayer color printing; stated precision up to ±0.03 mm |
| Functional coatings | AG, AR, AF, single coating, or AR+AF composite coating |
| Inspection | AOI inspection for surface, printing, and coating defects |
Values are configuration options, not universal guarantees. Final specifications are confirmed against the customer drawing, test method, and qualification plan.
Material Selection for Automotive Programs
Automotive-grade aluminosilicate glass is commonly selected when a project needs a thin cover, chemical strengthening, thermal-shock resistance, and stable coating adhesion. Soda-lime and low-iron glass remain available where the optical, mechanical, and cost targets favor those materials.
Felix Glass can review thickness, edge geometry, printed masking, coating stack, and assembly conditions before sampling.
In-House Manufacturing Process
1. Raw glass cutting2. Precision CNC machining3. Edge polishing4. Silk-screen printing5. Heat or chemical tempering6. AG, AR, or AF coating7. AOI inspection8. Protective film and packing
This sequence supports control of geometry, printed areas, mechanical strength, and optical surface requirements from prototype sampling through repeat production.
Application Problems and Practical Glass Solutions
Car Infotainment Touch Screen
Problem: Sunlight reflection and fingerprint residue can reduce screen visibility.
Option: AR/AF coated glass can combine lower reflection with a surface that is easier to wipe.
Vehicle Dashboard Display
Problem: Poor edge quality or insufficient strength can raise the risk of assembly damage.
Option: CNC-finished geometry and project-specific tempering can support the required fit and mechanical performance.
Car DVR Recorder
Problem: Surface scratches may affect the viewing or recording area.
Option: A thin tempered glass panel can provide a harder protective surface.
Representative Automotive Project Types
New-Energy Vehicle Infotainment
Custom AR/AF coated infotainment touch cover glass with a C-chamfer for a vehicle display supply program.
Commercial Vehicle DVR
Precision-cut, thin tempered DVR glass designed for outdoor fleet-monitoring equipment and repeat production.
Project references indicate manufacturing experience; the specification and acceptance criteria for a new order are confirmed separately.
Quality Control and Test Equipment
AOI Visual Inspection
Used to check scratches, printing pinholes, and visible coating defects.
Glass Stress Testing
Used to verify chemical-tempering depth of layer and surface compressive stress.
Haze and Reflectance Testing
Used to evaluate optical coating performance against the agreed test method.
Third-party test reports can be discussed for OEM qualification projects. Learn more about Felix Glass Co., Limited or review the broader product catalog.
Why Work With Felix Glass
- More than 19 years of optical glass manufacturing experience
- CNC, printing, tempering, and coating capabilities under one supplier
- AR/AF coating options for vehicle cockpit screens
- Mechanical and optical parameters defined to the project specification
- Prototype sampling from one piece and repeat production support
- ISO 9001 quality-management certification
For technical articles and selection guidance, visit the Felix Glass Blog.
Frequently Asked Questions
What is AR/AF coated vehicle glass used for?
AR coating is used to reduce reflected light, while AF coating helps limit fingerprint adhesion and makes the surface easier to clean. They may be applied separately or together.
Can the glass be cut for a special screen shape?
Yes. CNC processing can support custom outlines, holes, chamfers, rounded edges, and irregular display geometries based on a reviewed drawing.
Is the infotainment touch cover tempered?
Heat or chemical tempering can be selected according to thickness, strength targets, and the validation method. Final hardness and impact requirements should be stated in the project specification.
Where is car DVR cover glass used?
Typical uses include vehicle driving recorders, mirror-integrated camera systems, and fleet-monitoring equipment.
Can I order prototype samples?
Prototype sampling is available from one piece for drawing checks, assembly trials, and project qualification.
Related Resources
Request a Custom Auto Display Glass Review
Send the glass drawing, dimensions, thickness, edge details, printing artwork, coating requirements, quantity, and test criteria. The engineering team can review manufacturability and prepare a project quotation.
