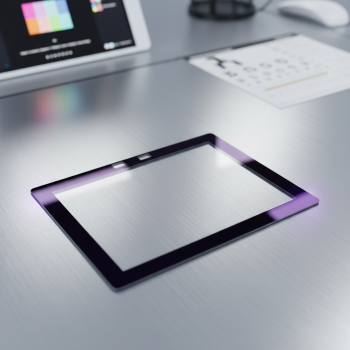

Custom industrial display cover glass AG AR AF Silk Print Touch Screen Cover Lens

Custom industrial display cover glass AG AR AF Silk Print Touch Screen Cover Lens

group nameDisplay Cover Glass
Min Order5 piece
brand nameFELIX GLASS optical glass Manufacturing base
modelDCG-002
payment methodL/C, D/A, D/P, Western Union
update timeSat, 18 Jul 2026 16:24:57 GMT

contact supplier

Paramtents

Glass Hardness 6H / 7H / 9H Optional
Surface Coating AG Anti-Glare / AR Anti-Reflection / AF Anti-Fingerprint
Light Transmittance ≥92% (97% for AR coated)
AG Haze Range 5%–15% adjustable
AF Water Contact Angle ≥110°
Glass Thickness 0.7mm / 1.1mm / 1.6mm / 2.0mm Customized
Working Temp -40℃ ~ 180℃
Custom Process CNC Cutout, Silk Screen Printing, 3M Adhesive Backing
Compliance Standard ISO 9001, RoHS, automotive high-low temperature aging test certified
Item Touch Points | Value：10~40 Points
Glass Hardness | Value 6H Tempered Explosion-proof

Packging & Delivery

Size50cm x50cm x30cm
Weight0.5kg / piece
Min Order5 piece

Briefing

Custom tempered display cover glass from 2 to 32 inch, 6H~9H hardness, optional AG/AR/AF coating, support silk print

Detailed

Custom Display Cover Glass · Model DCG-002

Industrial Display Cover Glass Built Around Your Drawing

Felix Glass Co., Limited manufactures custom cover lenses for industrial HMI panels, medical displays, kiosks, control terminals, and other touch-enabled equipment. Specify the glass size, thickness, edge profile, cutouts, printing, optical treatment, and adhesive requirements for evaluation against your assembly drawing.

Send Your Drawing Contact Us

Industrial engineer working with factory control equipment — Cover glass options can be matched to industrial operating conditions and enclosure geometry.

Why the Front Glass Specification Matters

The front lens affects display readability, touch interaction, cleaning, scratch resistance, enclosure appearance, and assembly fit. Defining these requirements together helps reduce late-stage changes between prototyping and production.

Optical Readability

Choose AG, AR, or a combined optical approach based on ambient light, display brightness, and viewing angle.

Touch Integration

Coordinate glass thickness, printing windows, adhesive zones, and sensor stack-up with the touch-panel design.

Surface Protection

Tempering and optional AF treatment support everyday scratch resistance, cleaning, and handling requirements.

Mechanical Fit

CNC profiles, holes, notches, edge finishing, and dimensional tolerances are reviewed against the supplied drawing.

Close view of electronic components for display system integration — Glass, printing, touch sensor, display, and enclosure requirements should be considered as one stack.

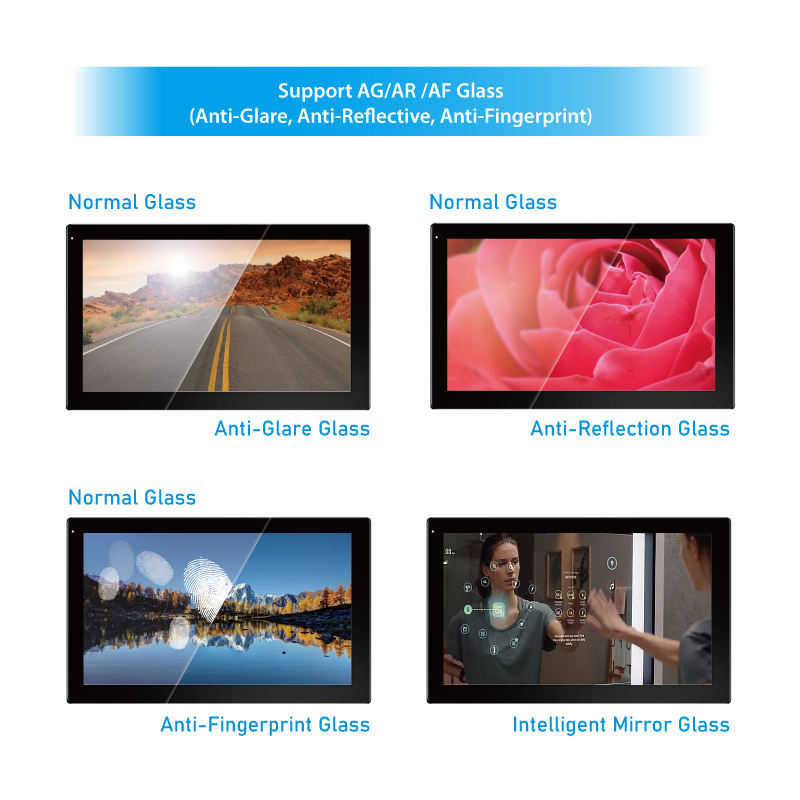

AG, AR, and AF Surface Options

AG anti-glare: diffuses reflected light to improve viewing comfort in bright environments; haze can be discussed for the target display.
AR anti-reflection: reduces surface reflection and can support higher apparent clarity where transmission is a priority.
AF anti-fingerprint: improves surface cleanability and helps reduce visible oils and smudges on frequently touched equipment.

Available treatments depend on substrate, size, process route, and target performance. Felix Glass can review the intended environment before recommending a sample configuration.

Customization for the Complete Cover Lens

Glass and Geometry

Custom thickness, outline, corner radius, holes, slots, windows, notches, and polished edges based on 2D drawings.

Printing and Appearance

Silk-screen borders, icons, logos, transparent windows, color matching, and multi-pass printing can be evaluated.

Assembly Preparation

Optional adhesive backing, protective film, cleaning, inspection, and packaging can be defined for the assembly workflow.

Applications Across Industrial and Medical Equipment

This cover glass is designed for projects that require a purpose-built front lens rather than a standard off-the-shelf panel.

Industrial HMI and PLC terminalsMedical and laboratory displaysSelf-service kiosks and payment terminalsAutomation control panelsTest and measurement equipmentOutdoor or high-ambient-light displays

Medical equipment and display environment — Material and surface choices should reflect cleaning, lighting, touch, and operating-temperature needs.

Typical Configurable Parameters

Parameter	Available project options
Glass hardness	6H, 7H, or 9H options, subject to substrate and process review
Surface treatment	AG anti-glare, AR anti-reflection, AF anti-fingerprint
Light transmission	Project target up to the stated 92% range; AR configurations may target higher transmission
AG haze	Typical adjustable range of 5%–15%, selected for the display and lighting environment
AF contact angle	Project target of 110° or higher where the selected process supports it
Thickness	0.7, 1.1, 1.6, or 2.0 mm, with other dimensions reviewed by drawing
Secondary processing	CNC profiling, silk-screen printing, holes and cutouts, optional adhesive backing

Values are configuration targets rather than a universal specification for every part. Final tolerances and performance should be confirmed on the approved drawing or sample.

From Drawing Review to Production

01
Requirement Review
Share the drawing, annual volume, application, optical target, printing files, and assembly conditions.
02
Process Confirmation
Felix Glass reviews material, tolerances, coating, printing, edge work, and inspection criteria.
03
Sample Evaluation
Prototype parts support fit, appearance, optical, and touch-stack verification before production approval.
04
Controlled Production
Production follows the confirmed drawing, process route, inspection plan, and agreed packaging requirements.

What to Send for an Efficient Quotation

Drawing Data

2D drawing, dimensions, tolerances, hole and cutout details, edge requirements, and printing artwork.

Performance Targets

AG haze, AR transmission or reflection target, AF requirement, hardness, environment, and cleaning method.

Project Details

Prototype quantity, forecast volume, target schedule, adhesive needs, packaging, and inspection expectations.

Learn more about Felix Glass Co., Limited or review the broader product catalog.

Frequently Asked Questions

Can AG, AR, and AF be combined on one cover lens?

Some combinations are feasible, but the stack must be reviewed for substrate, process compatibility, optical targets, touch behavior, and cost. Provide the priority requirement so the most suitable route can be evaluated.

What information is needed for a custom sample?

A dimensioned drawing, printing artwork, glass thickness, surface-treatment targets, quantity, and application conditions provide the best starting point.

Can the glass include holes, windows, and irregular outlines?

Yes, CNC machining can support many custom profiles. Minimum feature sizes, edge distances, and tolerances depend on glass thickness and geometry.

How should I choose between AG and AR?

AG is often selected to diffuse glare, while AR is used when reducing reflection and retaining clarity are priorities. Display brightness, ambient lighting, viewing angle, and surface-cleaning needs should guide the choice.

Related Resources and Next Step

Use these site resources to evaluate the supplier, related glass options, and the inquiry process.

Home Technical Blog Coated Optical Glass

Ready for a Drawing Review?

Send the target dimensions, treatment requirements, printing artwork, and expected quantity. Felix Glass will review manufacturability and prepare a project-specific response.

Request a Project Review
