Achromatic cemented doublet lens,High Precision Achromatic Cemented Φ12.7mm FL75mm Optical Glass

group nameAspheric Lenses
Min Order1 piece
brand nameFELIX GLASS optical glass Manufacturing base
modelFG-ACH-DOUB-12.7-FL75
payment methodL/C, D/A, D/P, Western Union
update timeSat, 18 Jul 2026 22:34:45 GMT

contact supplier

Paramtents

Material Optical crown glass + flint glass cemented doublet
Core Parameter Diameter 12.7mm, Focal Length 75mm, Achromatic design for visible & near-infrared band
Lens Structure Achromatic Cemented Doublet Lens
Core Optical Feature Full Chromatic Aberration Elimination
Standard Size Φ12.7mm, Focal Length 75mm
Core Application Field Satellite, Airborne Recon, UAV & Aerospace Detection

Packging & Delivery

Size10cm x15cm x15cm
Min Order1 piece

Briefing

High precision achromatic cemented doublet optical lens for aerospace precision optical detection equipment.

Detailed

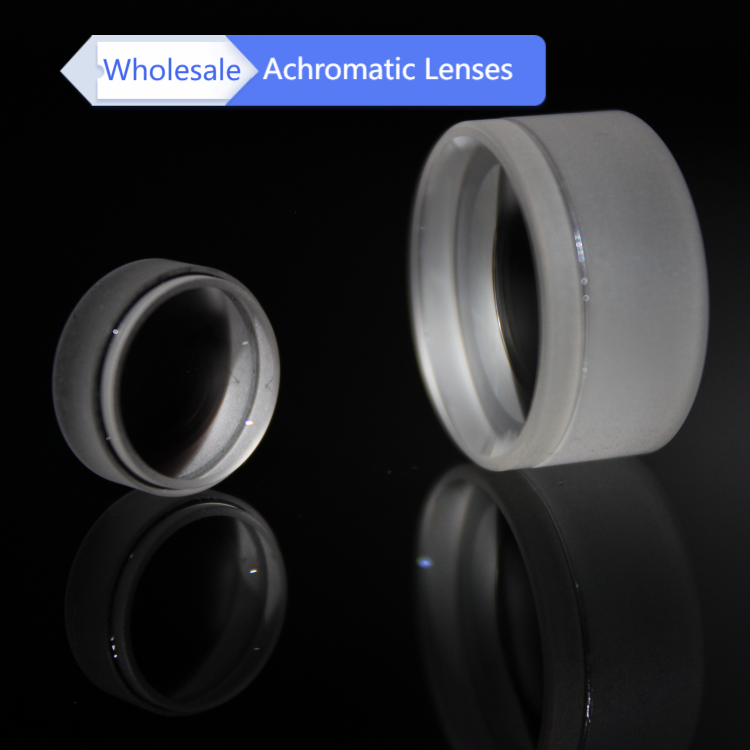

Aerospace High Precision Achromatic Cemented Optical Glass Doublet Lens (Φ12.7mm FL75mm)

Felix Glass aerospace-grade achromatic cemented doublet lens is composed of crown optical glass and flint optical glass via high-precision optical cementing process. The matched optical dispersion coefficient of two glass types effectively eliminates axial chromatic aberration within visible to near-infrared working band, avoiding image color fringe and distortion which affects aerospace detection precision.

Ultra-precision grinding and polishing technology ensures high surface figure accuracy, low surface roughness, and stable focal length consistency. The optical cement layer features high temperature resistance and low thermal expansion, adapting to drastic temperature change environment in aerospace flight equipment. Custom broadband AR anti-reflection coating can be deposited on both outer surfaces to reduce stray light reflection and improve light transmittance for long-distance aerospace optical detection.

Core Optical Specifications

All items are fully customized based on your optical drawings, including shape, dimension, surface figure, coating, tolerance and substrate. Send your detailed optical specs for a formal quotation within 24 hours.

Core Product Advantages

1. Achromatic double-glass cemented structure completely eliminates chromatic aberration, guaranteeing high-fidelity imaging for aerospace precision detection

2. Aerospace ultra-precision polishing standard, ultra-flat optical surface, consistent focal length batch stability

3. Low thermal expansion optical glass & high-temperature resistant cement, stable optical performance under aerospace extreme temperature fluctuation

4. Optional broadband AR coating + black edge treatment, effectively restrain stray light interference and improve signal-to-noise ratio of aerospace optical systems

5. Strict raw material impurity control, no bubble/striation inside glass substrate, meet aerospace A-level optical component standards

6. Fully customizable aperture, focal length, coating spectrum and edge shape to match satellite, airborne detection optical modules

Typical Application Scenarios

- Satellite remote sensing optical detection modules

- Airborne aerospace reconnaissance imaging equipment

- Aerospace star tracker positioning optical systems

- Aerospace laser ranging & guidance optical assemblies

- High-precision aerospace spectral analysis instruments

- Unmanned aerial vehicle (UAV) aerospace grade imaging optical lenses

OEM Manufacturing Capability

We provide full one-stop aerospace optical processing including optical glass blank cutting, ultra-precision CNC grinding, high-precision polishing, vacuum optical cementing, broadband AR coating, black edge treatment, strict chromatic aberration testing and surface figure inspection.

Prototype sampling, small-batch trial production and mass manufacturing are supported. Every aerospace achromatic cemented lens is fully tested to meet aerospace grade dimensional, spectral and stability requirements before delivery.

FAQ

1. What is the core advantage of achromatic cemented doublet lens for aerospace equipment?

The matched crown & flint glass eliminates chromatic aberration, removing color fringe distortion during long-distance aerospace imaging; low thermal expansion material ensures stable focal length under extreme high-low temperature flight environment.

2. What temperature environment can this 12.7mm FL75mm achromatic lens adapt to?

The high-temperature resistant optical cement and low-expansion glass maintain stable optical performance from -60℃ to +150℃, matching aerospace high altitude flight temperature variation demand.

3. Can I customize coating and lens parameters for aerospace optical systems?

Yes, we support custom aperture, focal length, AR coating spectrum, black edge coating and edge chamfer to fit satellite, airborne and UAV aerospace optical modules.

4. What aerospace equipment is this achromatic cemented lens suitable for?

It applies to satellite remote sensing cameras, airborne reconnaissance imagers, aerospace star trackers, laser ranging guidance assemblies and aerospace spectral analysis instruments.

5. Do you provide aerospace-grade inspection reports for mass production?

We supply full aerospace optical test data including chromatic aberration, surface flatness, transmittance and thermal stability inspection reports for every batch of cemented lenses.
