One-Axis Beam Shaping
Cylindrical plano-convex or plano-concave forms support line beam shaping and single-axis focusing.

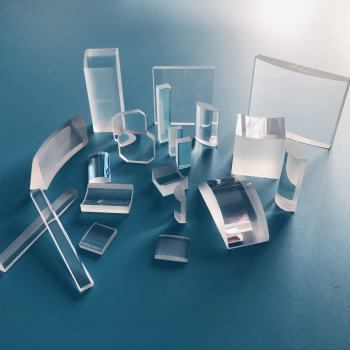

Multi-Material Square and Cylindrical Optical Lens BK7 K9 Fused Silica Sapphire CaF2
group nameOptical Prisms
-
Min Order1 piece
brand nameFELIX GLASS optical glass Manufacturing base
modelFG-MAT-CYL-SQ-LENS
payment methodL/C, D/A, D/P, Western Union, T/T, Paypal
-
update timeWed, 15 Jul 2026 15:05:27 GMT
Paramtents
Optional Substrate BK7/K9 optical glass, fused silica, sapphire and calcium fluoride (CaF2)
Lens Shape Square flat optical lens, cylindrical rod plano-convex and plano-concave lens
Size Custom square, rectangular or cylindrical rod lens length, aperture and focal length
Transmission Range Material-dependent UV, visible, NIR and selected mid-infrared coverage
Surface Quality Standard 60-40 scratch-dig with project-based upgrade review
Surface Flatness Precision polishing, project review around lambda/10 at 632.8 nm when specified
Coating Option Custom AR coating optimized for UV, visible, NIR or MIR wavelength
Main Application Laser diode collimation, line beam shaping, spectroscopy and optical detection
Packging & Delivery
Size11cm x12cm x10cm
Weight0.5kg / piece
Min Order1 piece
Briefing
BK7/K9, fused silica, sapphire and CaF2 square or cylindrical optical lenses for spectroscopy and laser diode beam shaping.
Detailed
Attention stage
Multi-Material Square and Cylindrical Optical Lens for Spectroscopy and Laser Diode Systems
Felix Glass Co., Limited supplies custom square optical lenses and cylindrical rod lenses for laser diode beam collimation, one-dimensional beam shaping, spectral detection modules, laboratory instruments and optical assemblies. The original product focus is retained: BK7/K9, fused silica, sapphire and calcium fluoride material options, custom square or cylindrical lens shapes, UV-to-IR transmission choices and wavelength-matched AR coating.
For buyers comparing lens and prism-category components, this page organizes the same technical information into a clearer engineering review path: material selection, lens form, transmission range, surface quality, coating, applications, manufacturing and RFQ details.
Model FG-MAT-CYL-SQ-LENSBK7/K9, fused silica, sapphire, CaF2Square and cylindrical forms
Direct answer
What Is This Multi-Material Square and Cylindrical Optical Lens?
It is a custom optical lens family made in square flat and cylindrical rod forms. Square flat lenses are used as compact focusing, collimating or protective optical elements in spectral modules. Cylindrical lenses focus or spread light in one axis, helping convert a laser diode beam into a line profile for scanning, metrology or inspection systems.
Compact Square Optics
Square and rectangular formats fit compact spectroscopy, laser diode and multi-channel detection layouts.
Drawing-Based Customization
Length, aperture, focal length, edge finish and coating can be reviewed from the buyer's drawing.
Interest stage
Core Optical Specifications Kept in the Original Content Order
The original specification content is preserved and organized for faster review by US purchasing, engineering and optical design teams.
| Product Category | Optical Prisms category listing with square and cylindrical optical lens content. |
|---|---|
| Brand | Felix Glass Co., Limited. |
| Model | FG-MAT-CYL-SQ-LENS. |
| Optional Substrate | BK7/K9 optical glass, fused silica, sapphire and calcium fluoride (CaF2). |
| Lens Shape | Square flat optical lens and cylindrical rod plano-convex or plano-concave lens. |
| Size | Custom square, rectangular or cylindrical rod lens with customizable length, aperture and focal length. |
| Surface Quality | Standard 60-40 scratch-dig, with project-based review for finer inspection levels. |
| Surface Flatness | Precision polishing can be reviewed around lambda/10 at 632.8 nm when required by the drawing. |
| Coating Option | Custom AR anti-reflection coating optimized for UV, visible, NIR or MIR wavelengths. |
Material selection
BK7/K9, Fused Silica, Sapphire and CaF2 Transmission Choices
Material choice should follow wavelength range, laser power, environment, durability and budget target. Felix Glass can help review the practical substrate based on the operating band and mechanical conditions.
BK7/K9 Optical Glass
Often selected for visible and near-infrared applications where cost, clarity and availability matter.
Fused Silica
Reviewed for UV laser compatibility, low thermal expansion and stable optical performance.
Sapphire and CaF2
Sapphire supports hard-use environments, while CaF2 is considered for deep UV to mid-infrared spectroscopy.
Lens form
Square Flat Lens and Cylindrical Rod Lens Design Options
Square flat lenses can serve compact spectral detection modules as a collimating, focusing or optical interface element. Cylindrical rod lenses provide one-dimensional focusing or divergence, helping form a uniform laser line from a diode source.
- Square lens: useful for compact UV-Vis-NIR modules, multi-channel spectrometers and sensor assemblies.
- Cylindrical plano-convex lens: supports line beam forming, scanning and metrology layouts.
- Cylindrical plano-concave lens: can expand one axis of the beam when the optical path requires controlled divergence.
Desire stage
01
02
03
04
Core Product Advantages for Laser and Spectroscopy Assemblies
Broad Material Coverage
BK7/K9, fused silica, sapphire and CaF2 cover visible, UV, near-infrared and selected mid-infrared use cases.
Two Practical Shapes
Square flat and cylindrical rod forms help fit compact instruments and line-beam laser modules.
Precision Polishing
Surface quality, flatness and beam uniformity can be controlled to match the assembly requirement.
Custom Coating
AR coating can be reviewed for laser diode wavelengths and spectral throughput goals.
Application match
Typical Applications in Laser Diode, Spectroscopy and Optical Detection Equipment
The original application scope is retained and grouped by how buyers usually evaluate the part inside an optical system.
Laser Diode Modules
Used for beam collimation, line forming and controlled one-axis focusing.
Laboratory Spectrometers
Material choice can support UV-Vis-NIR and FTIR-related instrument designs.
Industrial Spectrum Analysis
Custom apertures and coatings help fit measuring instruments and detection assemblies.
Medical Optical Diagnosis
Square and cylindrical formats can be reviewed for compact spectral imaging equipment.
Manufacturing capability
OEM Manufacturing from Blank Cutting to AR Coating and Inspection
Felix Glass supports multi-material blank cutting, cylindrical CNC grinding, square flat polishing, wavelength-matched AR coating, edge chamfering, black edge treatment, spectral transmittance testing and beam uniformity inspection. Prototype samples, small batches and repeat production can be reviewed from drawing and quantity requirements.
1. Material Review
Select BK7/K9, fused silica, sapphire or CaF2 by wavelength and environment.
2. Shape Processing
Cut, grind and polish square, rectangular or cylindrical lens geometry.
3. Coating and Inspection
Apply AR coating as required, then inspect dimensions, surface and optical performance.
Selection support
How to Choose the Right Lens Material Without Over-Specifying
Start With Wavelength
Choose BK7/K9 for many visible-NIR tasks, fused silica for UV stability, sapphire for durability and CaF2 for infrared spectroscopy.
Confirm Beam Function
Use square forms for compact modules and cylindrical forms when one-axis line shaping or focusing is needed.
Define Coating Target
Specify laser wavelength, angle of incidence and throughput goal before coating selection.
Buyer FAQ
FAQ About Multi-Material Square and Cylindrical Optical Lenses
How should I choose between BK7, fused silica, sapphire and CaF2?
BK7/K9 is practical for many visible and NIR systems, fused silica is often reviewed for UV lasers, sapphire is chosen for hard-use environments, and CaF2 is reviewed for deep UV or mid-infrared spectroscopy.
What is the difference between square and cylindrical lenses?
A square lens works as a compact flat optical element, while a cylindrical lens focuses or expands light in one axis to form or control a laser line.
Can AR coating be matched to laser diode wavelengths?
Yes. Coating can be reviewed for common diode wavelengths such as 405 nm, 450 nm, 520 nm, 635 nm, 808 nm and 905 nm, along with other project-specific bands.
Do you support mixed-material samples?
Single-material samples and mixed-substrate batches can be reviewed, with inspection matched to the drawing and operating wavelength.
Cross-link guide
Related Optical Component Pages
These internal pages help buyers compare adjacent optical prism, lens, filter, infrared and dome options on the Felix Glass site.
Action stage
Send Inquiry
Send Lens Drawings and Wavelength Requirements for RFQ Review
For a focused quotation, send material preference, shape, length, aperture, focal length, coating wavelength, quantity and application notes. Felix Glass can review manufacturability and prepare a practical custom optical lens quotation.
