Material Optical-grade single-crystal sapphire (Al₂O₃)
Spectral Fit Project-defined; evaluate UV/VIS, SWIR or MWIR band against detector requirements
AR Coating Custom single- or double-side AR/BBAR by wavelength, angle, polarization and environment
Geometry Round, square, rectangular, stepped, drilled or CNC custom profile
Optical Finish Double-side polished with project-defined flatness and cosmetic quality
Edge Finish Fine ground, polished, chamfered, beveled or housing-specific profile
Applications MWIR process monitoring, furnace observation, rugged EO/IR cameras and industrial sensor viewports
Inspection Dimensions, cosmetics, flatness, spectral transmission and coating performance as agreed
Packging & Delivery
Size50cm x50cm x30cm
Weight0.5kg / piece
Min Order5 piece
Briefing
Custom AR-coated sapphire window for MWIR thermal cameras, with CNC sizes, optical polishing, and band-matched coating.
Detailed
Band-matched protection for industrial EO/IR systems
AR Coated Sapphire Protection Window for Thermal Monitoring Cameras
An AR coated sapphire window protects a thermal camera's front optic while maintaining transmission in the specified operating band. It combines a Mohs 9 single-crystal sapphire substrate with application-matched anti-reflection coating for abrasive, hot, chemically demanding industrial environments.
Felix Glass manufactures optical viewports to customer drawings, including round, rectangular, stepped, drilled and custom CNC geometries. Coating design is reviewed against wavelength, angle of incidence, polarization, temperature, cleaning method and allowable reflectance.
Mohs 9 scratch resistance Custom AR or BBAR band CNC geometry to drawing
Custom sapphire protective viewport with project-defined dimensions, edge finish and AR coating.
Interest · Direct answer
What Does the Sapphire Window Do in a Thermal Monitoring Camera?
The window is the exposed optical barrier between the thermal imaging assembly and the process environment. Sapphire helps resist scratching, airborne particles, cleaning chemicals and elevated temperature, while an AR coating reduces reflection at the interfaces within the camera's selected spectral band.
It is commonly evaluated for MWIR process monitoring, furnace observation, high-temperature equipment inspection and rugged EO/IR enclosures. The correct material and coating must be confirmed from the detector band—not from the term “thermal camera” alone.
High-temperature process monitoring is a typical use case for a rugged optical viewport.
Interest · Engineering fit
Confirm the Spectral Band Before Specifying Sapphire
Good Fit to Evaluate
UV, visible, SWIR and many MWIR designs can benefit from sapphire's strength and broad short-wave transmission when the coating is optimized for the actual band.
LWIR Requires Review
Many uncooled thermal cameras operate around 8–14 μm, outside sapphire's practical transmission range. Germanium, ZnSe or another IR material may be more appropriate.
Data Needed
Share the working wavelength, angle of incidence, polarization, clear aperture, temperature, pressure, atmosphere and target transmission.
Engineering checkpoint: the coating band, substrate thickness, mounting stress and environmental sealing should be evaluated as one optical-mechanical system.
Interest · Specification framework
Custom AR Coated Sapphire Window Specifications
Substrate
Optical-grade single-crystal sapphire (Al2O3)
Crystal orientation
C-plane, A-plane or project-defined orientation
Geometry
Round, square, rectangular, stepped, drilled or CNC custom profile
Optical finish
Double-side polished with project-defined flatness and cosmetic quality
AR coating
Single- or double-side AR/BBAR matched to wavelength, incidence angle and environment
Edge finish
Fine ground, polished, chamfered, beveled or housing-specific profile
Inspection
Dimensions, cosmetics, flatness, spectral transmission and coating performance as agreed
Size, thickness, clear aperture and edge geometry are manufactured from the customer's drawing.
Desire · Application value
Why Engineers Choose Sapphire for Rugged Thermal Viewports
Abrasion Resistance
Mohs 9 hardness helps the window withstand dust, handling and repeated cleaning in industrial service.
High-Temperature Substrate
Sapphire retains mechanical stability at elevated temperature; coating and mounting materials determine the practical assembly limit.
Chemical Durability
The substrate resists many corrosive process and cleaning environments, subject to coating and seal compatibility.
Optical Band Optimization
AR coating is tailored to the selected band to reduce reflection loss and support the camera's signal budget.
Thermal monitoring systems depend on stable optical transmission and a protected front aperture.
Desire · System integration
Designed Around the Camera, Housing and Process
Optical path
Detector band, focal system, incidence angle and allowable reflection define the coating target.
Mechanical interface
Clear aperture, seal land, pressure differential, edge profile and mounting load guide the geometry.
Service environment
Temperature cycling, dust, splash, corrosive gas and cleaning practice influence coating and inspection choices.
Desire · Custom manufacturing
From Drawing Review to Coated Sapphire Window
01
Define the Band
Confirm wavelength, angle, polarization, target transmission and operating environment.
Prepare the sapphire blank, CNC shape, edge, polish and clean to the agreed process.
04
Coat and Inspect
Apply the specified AR stack and verify dimensional, cosmetic and spectral requirements.
Desire · Quality evidence
Inspection Matched to the EO/IR Requirement
Grade-A project review means the measurable acceptance criteria are defined before production. Available inspection can cover material and orientation, dimensions, surface condition, flatness, parallelism, spectral transmission and coating response.
Inspection scope is agreed from the drawing and optical performance requirements.
Desire · Product details
Sapphire Window Formats and Optical Finishes

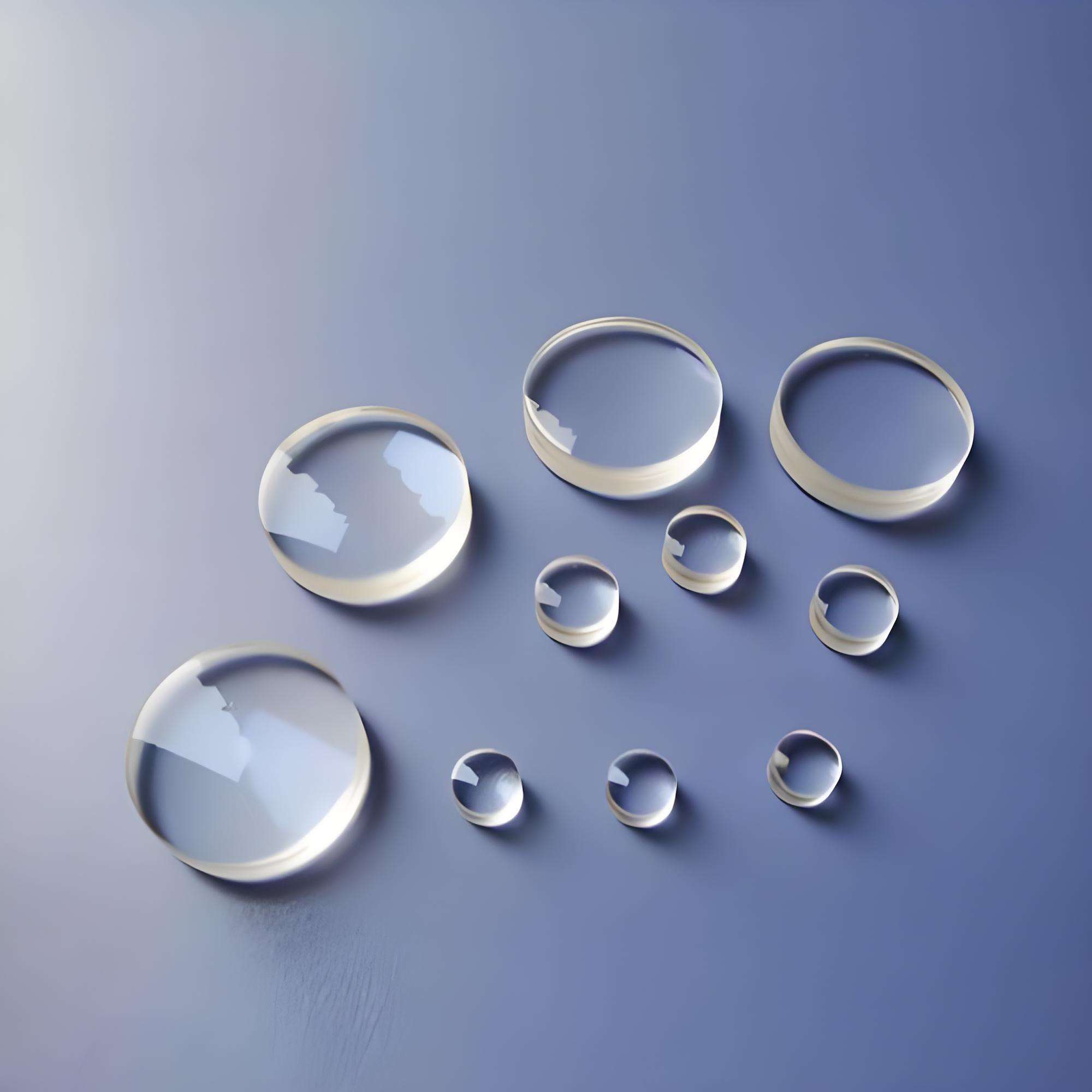

AR-coated sapphire optical viewport.Custom profiles and edge treatments.Optical polishing and coating to project requirements.
Action · Engineering FAQ
AR Coated Sapphire Thermal Camera Window FAQ
Can sapphire be used with every thermal camera?
No. Sapphire is a strong candidate for UV through SWIR and many MWIR systems, but it is generally not the right substrate for common 8–14 μm LWIR cameras. Send the detector band for a material review.
What information is required for an AR coating quotation?
Provide wavelength band, target transmission or reflectance, angle of incidence, polarization, substrate orientation, operating temperature, atmosphere, cleaning method and quantity.
Can Felix Glass machine non-round or mounted-window geometries?
Custom rectangular, stepped, drilled, chamfered and other drawing-defined profiles can be reviewed for CNC manufacturability and sealing requirements.
How should the window be mounted near a high-temperature process?
The design should allow for thermal expansion, edge stress, seal compatibility and temperature gradients. Share the housing drawing and thermal conditions for review.
Include the spectral band, dimensions, clear aperture, coating target, temperature, housing interface and expected quantity. Felix Glass will review material fit, CNC geometry, optical polishing and AR coating requirements.
