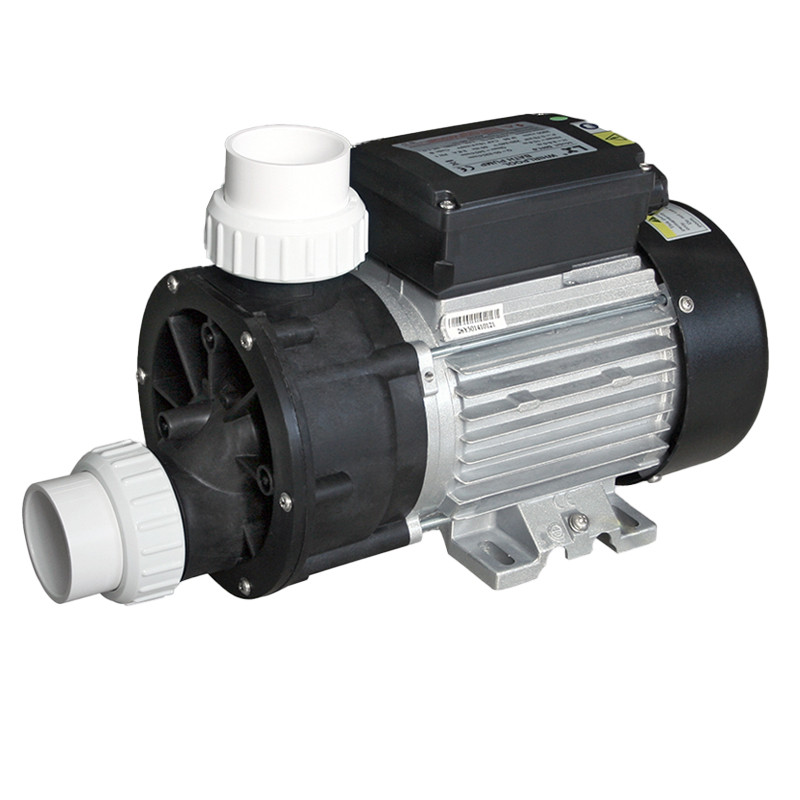

Bathtub Water Pump DH1.0 Wholesale | Whirlpool Water Circulation Pump Perfect for Massage Bathtub
group nameWater Pumps
-
Min Order50 piece
brand nameHydrorelax Bathroom industry manufacturer
modelDH1.0
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
-
update timeSun, 07 Dec 2025 01:38:53 GMT
Paramtents
Thermal protector: with thermal protector (single phase motor)
Insulation rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: 0.3MPa
Certification: CE
Packging & Delivery
Size380cm x175cm x260cm
Weight8.5kg / piece
Min Order50 piece
Briefing
0.55KW/0.75HP~1.1KW/1.5HP
280~360QMAX(L/MIN)
280~360QMAX(L/MIN)
Detailed
Bathtub Water Pump Parameter
|
Model
|
Qmax(l/min)
|
Hmax(m)
|
V/Hz
|
Power(P1) | (Amp) | Fitting size (mm) | G·W(kg) | Packing siaze (mm) | |
kW | HP | ||||||||
|
DH1.0
|
340
|
10.5
|
220-240/50
|
0.75 | 1.0 | 3.8 | 48.5or50 | 8.5 | 380*175*260 |
230V/60Hz, 110V/60Hz, 110v/50Hz models are available on request.
Bathtub Water Pump Performance Curve
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Cross Raised Head Screw Assembling | |||
5 | Pump Cover | |||
6 | O-Ring | |||
7 | Impeller | |||
8 | Mechanical seal | |||
9 | Pump Casing | |||
10 | Motor | |||
Bathtub Water Pump Applications
