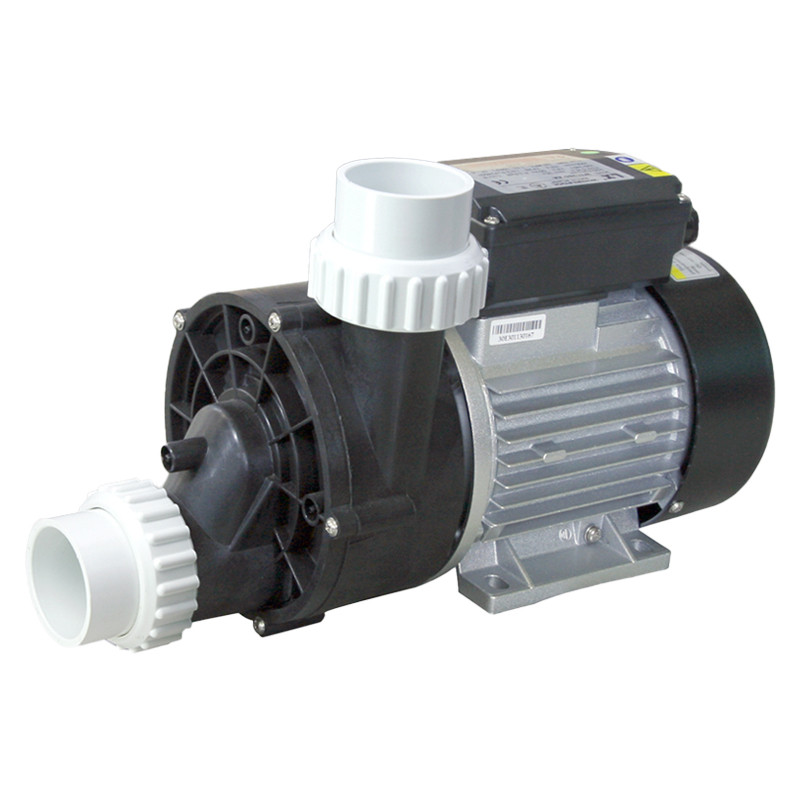

Bathtub Water Pump WTC Series | Certified High-flow and High-power Whirlpool Water Pump for Massage Bathtubs | Top Manufacturer and Supplier
group nameWater Pumps
-
Min Order50 piece
brand nameHydrorelax Bathroom industry manufacturer
modelWTC100, WTC120, WTC150, WTC200
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
-
update timeSat, 06 Dec 2025 22:08:36 GMT
Paramtents
Thermal protector: with thermal protector (single phase motor)
Insulation rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: 0.3MPa
Certification: CE ; TUV
Packging & Delivery
Min Order50 piece
Briefing
0.75KW/1.0HP~1.5KW/2.0HP
460~620 QMAX(L/MIN)
460~620 QMAX(L/MIN)
Detailed
Bathtub Water Pump Parameter
Bathtub Water Pump Performance Curves
Bathtub Water Pump Dimension
A variety of water inlet and outlet combinations are available.
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Cross Recessed Pan Head Screw and Washer Assembling | |||
5 | Pump Cover | |||
6 | Impeller | |||
7 | Mechanical seal | |||
8 | O-Ring | |||
9 | Pump Casing | |||
10 | Motor | |||
Bathtub Water Pump Applications
