MR688B Standalone Driver Monitoring System
group nameDMS (Driver Monitoring System)
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelDMS-MR688B
payment methodT/T, PayPal, Westem Union, Cash
-
update timeThu, 01 Oct 2026 02:27:32 GMT
Paramtents
Voltage 12/24V
Optional I/O or RS232
Size 91.5x42.5x127.5mm
Application Suitable for All Vehicles
Operating Temperature -10℃ ~ 50℃
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
Detailed

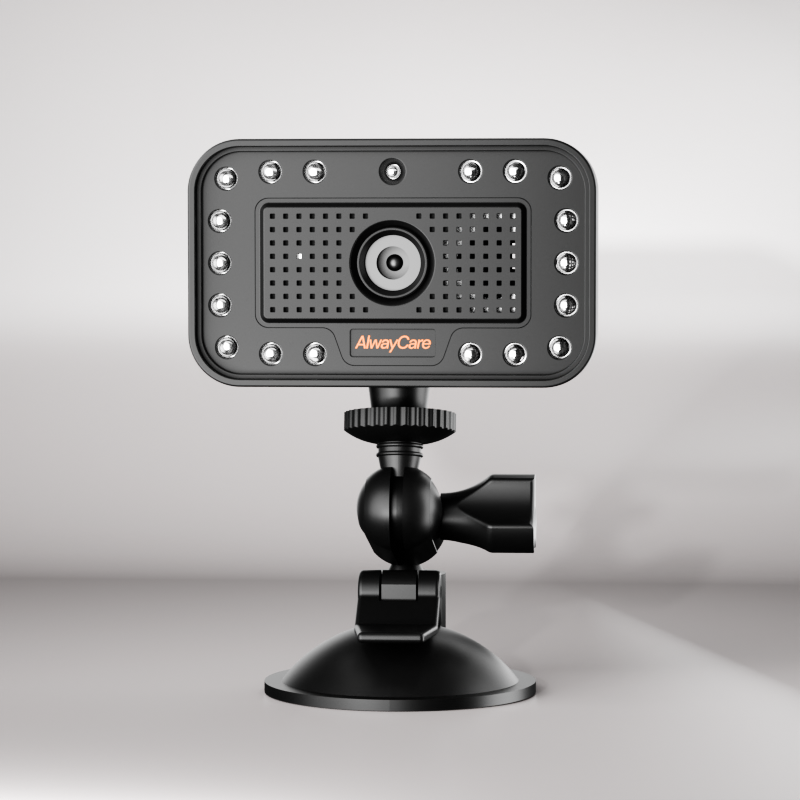

MR688B Standalone Driver Monitoring System
MR688B offline driver monitoring system provides real-time fatigue and unsafe-behavior alerts and can operate alone or integrate with MDVR systems.
Technical Specifications
Values follow the factory datasheet — your quotation confirms the exact configuration.
| Model Series | MR688B Series (MR688B-SV / MR688B-PV / MR688B-RS232 / MR688B-V4-PV / MR688B-V4-PV-RS232) |
|---|---|
| Detection Technology | Patented non-contact infrared pupil and facial recognition algorithm |
| Alert Triggers | Driver fatigue (micro-sleep, drowsy eye closure), driver distraction (looking away/down), no portrait detected (camera covered/off-seat), over-speed warning |
| Alert Methods | Built-in voice prompts / alert buzzer, visual LED indicator, optional vibration cushion |
| Operating Voltage | 12V / 24V DC (9V ~ 36V wide input range for commercial and passenger fleets) |
| Power Supply Options | Cigarette lighter adapter or 5-pin / 4-pin vehicle hardwire connection |
| Working Distance & Angle | 60 ~ 90 cm working distance; ±20° vertical and horizontal operational angles |
| Dimensions & Weight | 91.5 × 42.5 × 127.5 mm; approx. 190 g (main host unit) |
| Operating Temperature | -10°C ~ +50°C (Storage: -40°C ~ +85°C) |
| Supported Vehicles | Suitable for all commercial fleets, heavy trucks, mining vehicles, buses, and passenger cars |
| Quality Warranty | 15 Months factory warranty |
| Certifications | CE, FCC, RoHS, SGS IR Photobiological Eye Safety, Vibration & High/Low Temp Tested |
Version Matrix
| MR688B-SV Civil Standard | Standalone In-Cab Warning — Designed for passenger cars and light commercial vehicles not requiring telematics integration. Provides independent in-cab voice & LED alerts without external signal output. Powered via cigarette lighter adapter. | Standalone In-Cab Voice Alerts |
|---|---|---|
| MR688B-PV Commercial Pro | Telematics I/O Integration — Engineered for commercial fleets with existing GPS tracking or AVL systems. Outputs high/low level alarm signals (fatigue, distraction, no portrait) via 5-pin vehicle hardwire cable to telematics units. | DMS Voice Alerts + I/O Alarm Output |
| MR688B-RS232 Serial Telemetry | Serial Data & Event Photos — Integrates with advanced fleet telematics platforms. Transmits real-time fatigue telemetry alarm signals and captured event photo snapshots over RS232 serial communication protocol. | DMS Voice Alerts + RS232 Telemetry + Event Snapshots |
| MR688B-V4-PV Commercial Video | Mobile DVR Integration — Designed for vehicles equipped with Mobile DVR (MDVR) systems. Delivers 1-channel analog video stream via 4-pin aviation connector alongside I/O alarm signaling for central recording. | DMS Voice Alerts + 1-Ch Video Out (Aviation) + I/O |
| MR688B-V4-PV-RS232 Flagship Dual-Mode | Full-Function Video & Telemetry — Integrates with both MDVR and GPS tracking systems simultaneously. Provides 1-channel video output to MDVR, RS232 serial telemetry & photo capture to fleet platform, and I/O alarms. | DMS Alerts + 1-Ch Video Out + RS232 Data/Photos + I/O |
Compatible Peripherals & Accessories
| Hand Setting Instrument | Field calibration and parameter programmer. Allows fleet engineers to configure alarm sensitivity, alarm startup speed, volume, overspeed thresholds, test alarm indicators, simulate indoor vehicle speed, and upgrade firmware. |
|---|---|
| Vibration Warning Cushion | Driver seat tactile warning cushion. Vibrates synchronously when the MR688B triggers a fatigue alarm, providing an immediate physical wake-up reminder for drowsy drivers. |

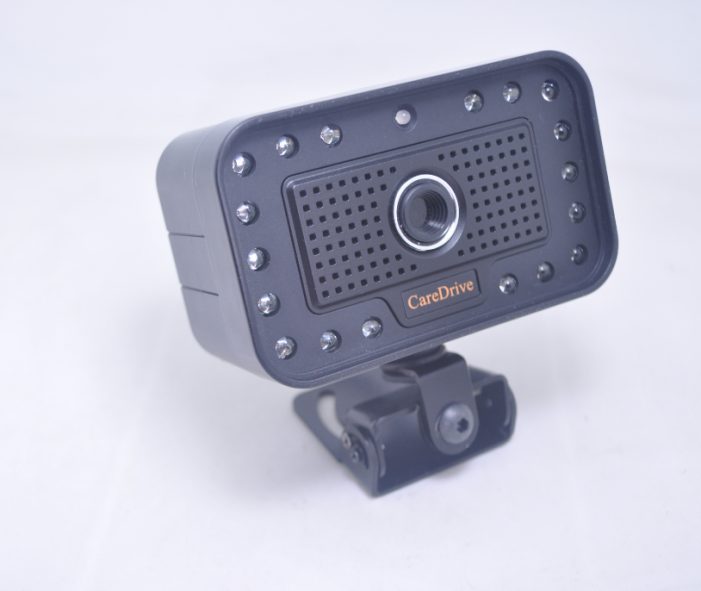

| CareDrive Metal Bracket | Heavy-duty reinforced metal mounting bracket (6.5 × 12.5 cm) engineered for rugged commercial vehicle dashboards, mining trucks, and heavy-duty fleet installations. |
| Dustproof Lens Protector | Protective optical shield designed to prevent airborne dust and grime from accumulating on the infrared sensor and optical lens in mining, construction, and harsh fleet environments. |
| USB-to-RS232 Debug Adapter | Engineering diagnostic cable for connecting RS232-enabled MR688B units directly to a computer for protocol verification, telemetry data validation, and factory testing. |
What MR688B Delivers
Key safety and fleet integration capabilities verified against factory engineering specifications.
Patented Infrared Pupil Tracking & Driver State Detection
Non-Contact Optical Algorithm
- All-light pupil recognition: Integrated infrared LED array ensures accurate pupil and facial feature tracking in total darkness, direct sunlight, and through standard glasses or sunglasses.
- Real-time fatigue detection: Continuous monitoring detects micro-sleep, abnormal blink rates, prolonged eye closure, and head nodding to warn drivers before critical incidents.
- Distraction & absence alerts: Promptly identifies when the driver looks away from the road, looks down at smartphones, or is not in the normal driving position.
Multi-Stage Alerts & Driver Intervention Reminders
Audible Warning & Tactile Wake-Up
- Clear in-cab voice warnings: High-volume audible buzzer and spoken alerts provide instant reminders to refocus driver attention (English standard; customizable languages supported).
- Optional vibration cushion: Synchronizes with fatigue alarm triggers to deliver physical seat vibration, effectively waking drowsy commercial drivers on long-haul routes.
- Configurable speed thresholds: Alarm activation speed and overspeed alerts can be tailored via DIP switches or hand programmer to eliminate nuisance warnings during parking or idling.
Fleet Telematics & Video System Integration
Standalone, I/O Level, RS232 & Video Output
- Versatile telematics interfaces: Choose standalone operation (SV), 5-pin I/O level signaling (PV) for GPS trackers, or RS232 serial telemetry and event snapshot transmission (RS232).
- Mobile DVR video stream: Dedicated video models (V4-PV / V4-PV-RS232) provide 4-pin aviation CVBS video output for direct recording on MDVRs and real-time remote CMS monitoring.
- Industrial vehicle design: Compact 91.5×42.5×127.5mm housing, 12V/24V wide voltage compatibility, rugged metal bracket option, and -10°C to +50°C operating range.
See MR688B in Context
The official AlwayCare MR688B product video showing the system in vehicle-operation use.
Verified Commercial Fleet Deployments
AlwayCare MR688 series driver monitoring systems are deployed across more than 10,000 commercial vehicles worldwide, operating in demanding long-haul, hazardous chemical, and heavy mining environments.

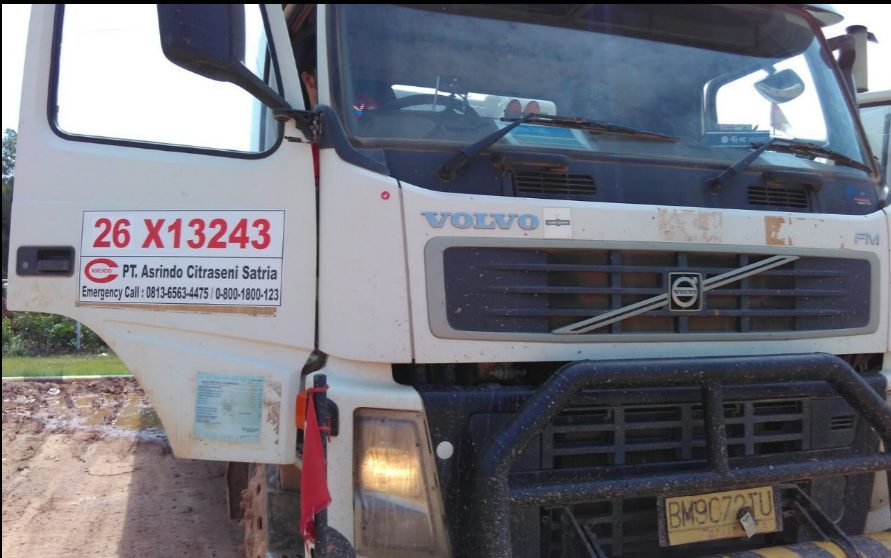

Indonesia Oil & Gas Road Tanker Fleet
Integrated MR688-PV fatigue sensors paired with haptic vibration seat cushions across 800 heavy tankers to alert drivers over noisy diesel cab routes.

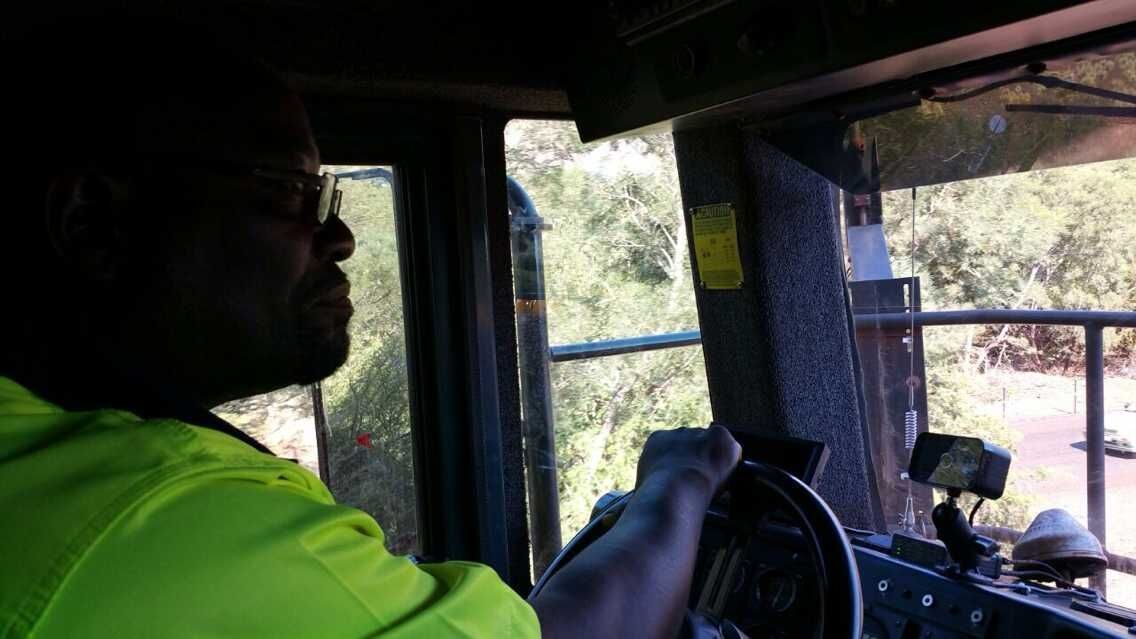

South Africa Mining Haul Truck Fleet
Over 2,500 ultra-heavy haulage dump trucks equipped with MR688 Professional units featuring in-cab CVBS video feeds and high-penetration acoustic alerts.
Japan Heavy Freight Logistics Fleet
1,200 Mitsubishi Fuso trucks outfitted with MR688-PV sensors and custom precision-stamped steel brackets meeting Japanese MLIT vehicle inspection standards.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right MR688B version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — download the official MR688B datasheet (PDF).
Download DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside MR688B in the same fleet stack.
MR810 Standalone Driver Monitoring System for Buses
Model MR810 — DMS (Driver Monitoring System) for commercial fleets.
MR830 All-in-One DMS with ADAS, BSD and Driver Fatig...
Model MR830 — DMS (Driver Monitoring System) for commercial fleets.
MR910-D DMS with 5-Channel Mobile DVR
Model MR910-D — DMS (Driver Monitoring System) for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety..........com or send an inquiry.
Which connectivity options are available?
MR688B supports vehicle-grade connectivity with I/O or RS232 options. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
MR688B ships with a 15 Months warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for All Vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
