Six-channel layout
The current body lists four 1080p around-view channels plus two BSD cameras.

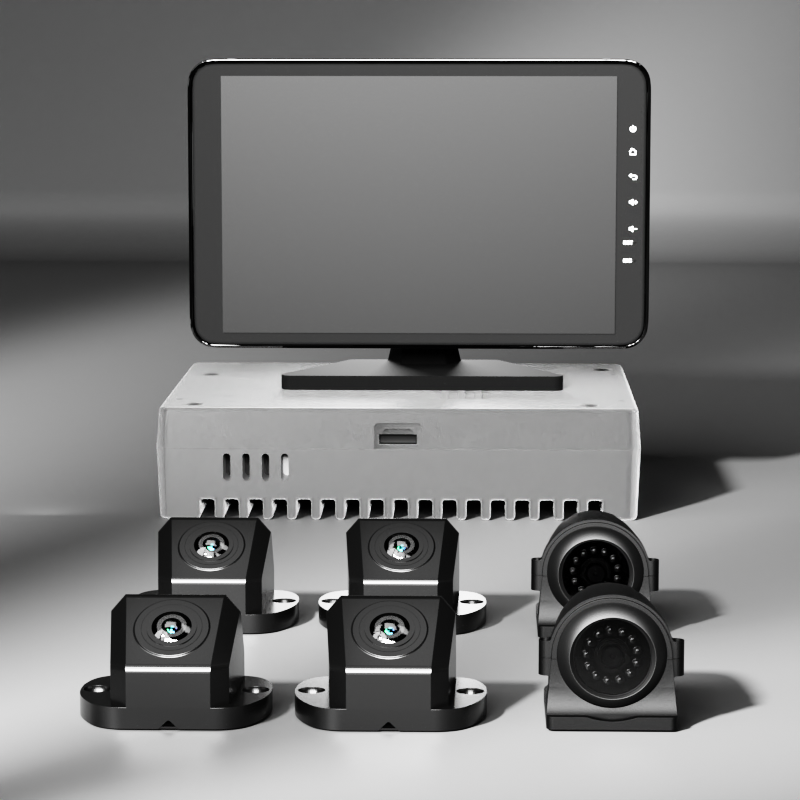

M360-2 6-Channel 360° Camera System with BSD
group nameAVM (360° Around View Monitor)
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelM360-2
payment methodT/T, PayPal, Westem Union, Cash
-
update timeSun, 16 Aug 2026 17:34:30 GMT
Paramtents
Voltage 12/24V
Video Record Resolution 1920x1080
Storage 512GB
Application Suitable for All Vehicles
Operating Temperature -30℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
M360-2 combines four 1080p around-view channels with two BSD camera channels for large-vehicle visibility.
Detailed
M360-2 · AVM system
What is M360-2?
M360-2 is a six-channel vehicle visibility system combining four 1080p around-view channels with two BSD camera channels. The current body lists 2D/3D display, AI pedestrian/vehicle detection and mobile-phone control; image stitching, detection zones and storage must be commissioned for the target vehicle.
Buyer overview
Four points to evaluate first
2D and 3D views
The body lists selectable 2D/3D display for maneuvering context.
AI detection listing
Pedestrian and vehicle detection is listed for configured camera zones.
Large-vehicle application
The body targets super-large vehicles and requires vehicle-specific camera calibration.
System fit
Plan cameras, warnings and receiving equipment together
Define vehicle zones, cameras, detection or stitching functions, display or recorder, alarms, power, storage, network and driver workflow before installation.
Detection and view decision
Map target zones, camera overlap, object types, warning thresholds, night conditions and possible obstructions.
Integration decision
Confirm channels, signal, connectors, alarm outputs, power protection, storage, calibration and platform scope.
Current structured record
Technical specifications
| Voltage | 12/24V |
|---|---|
| Video Record Resolution | 1920x1080 |
| Storage | 512GB |
| Application | Suitable for All Vehicles |
| Operating Temperature | -30℃ ~ 70℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page
Existing Product and Deployment Views
Existing product video
See the current system demonstration
Commissioning planning
Validate the system on the actual vehicle
Test camera coverage, calibration, object detection, stitched views, alert timing, night conditions, storage and driver response before fleet rollout.
Example applications
Where M360-2 may fit
Bus and coach maneuvering
Calibrate camera overlap, vehicle outline and alert zones for the actual body.
Large truck operations
Use stitched views and BSD inputs as assistance during low-speed maneuvering and turning.
Special-purpose vehicles
Validate mounting, cable lengths, environmental protection, storage and mobile-control workflow.
Safety and specification boundary
An around-view image is a stitched visualization and may contain seams, distortion, latency or blind areas. BSD and AI warnings do not replace mirrors, direct observation or a trained spotter. Structured power is 12/24V while the body says 10–36V; structured storage is 512GB while the body says 512GB–2TB. Confirm voltage range, total capacity, media type, mobile-control method and IP documentation.
Buyer questions
M360-2 FAQ
How are the six channels used?
The body lists four 1080p around-view channels plus two BSD camera channels.
Does M360-2 provide a true overhead camera image?
It creates a stitched around-view visualization from multiple cameras; it is not a physical overhead camera.
Which AI objects are listed?
The current body lists pedestrian and vehicle detection. Performance depends on camera placement, calibration and conditions.
What power range should be used?
Structured data says 12/24V while the body says 10–36V. Confirm the supplied unit specification before wiring.
How much storage is supported?
Structured data lists 512GB; the body lists 512GB–2TB. Confirm media type, slots and tested capacity.
What is required for installation?
Camera placement, overlap, vehicle dimensions, calibration, display, BSD zones, power, storage and driver training must be planned together.
Confirm the complete vehicle system
Share your vehicle, risk zones and required workflow
AlwayCare can review camera layout, detection or stitching functions, alarms, recorder or display, storage, network and installation requirements.
