UWB ranging role
The body describes low-power wireless ranging for tagged workers and vehicles.

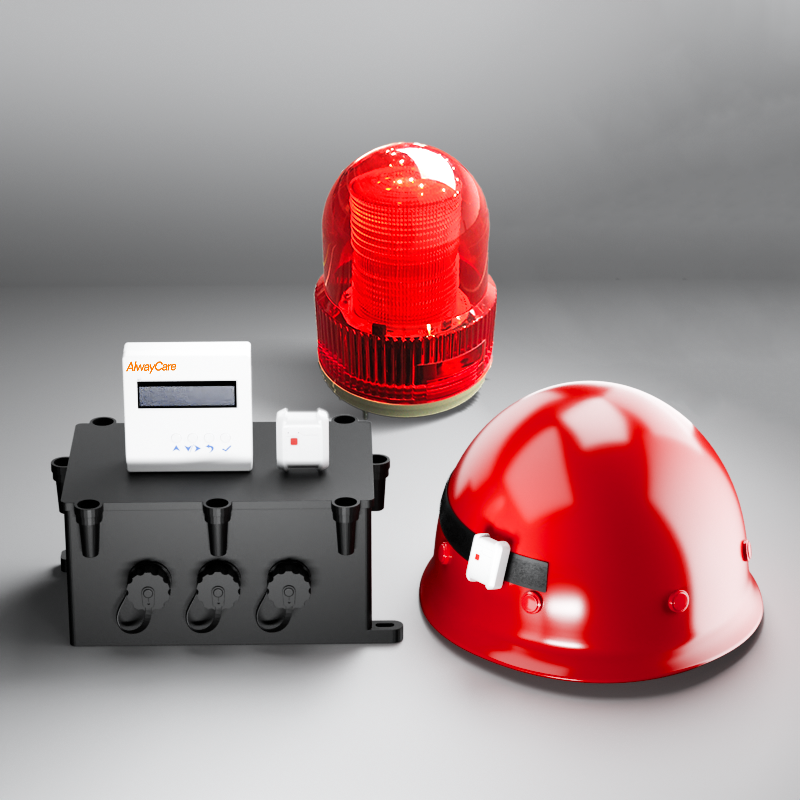

UA350 UWB Forklift Proximity Warning System
group nameUWB Proximity Warning System
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelUA350
payment methodT/T, PayPal, Westem Union, Cash
-
update timeTue, 18 Aug 2026 13:11:37 GMT
Paramtents
Voltage 12/24V
Size 200mm x 120mm x 75mm
Application Suitable for Forklifts
Alarm Distance 0-100m
Housing Material ABS
Operating Temperature -40℃ ~ 65℃
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
UA350 is a 12/24V UWB forklift proximity-warning system with configurable alarm and alarm-free zones.
Detailed
UA350 · UWB proximity warning system
What is UA350?
UA350 is a UWB proximity-warning system for forklift-to-worker, vehicle-to-vehicle and corner-risk scenarios. The structured record lists a configurable 0–100m alarm distance, while the body lists 10cm ranging accuracy, two alarm zones and optional wearable tags; real performance depends on site layout and tag deployment.
Buyer overview
Four points to evaluate first
Configurable zones
Alarm-free distance and two warning distances are listed.
Multiple alert modes
Buzzer, flashing light and tag vibration are listed.
Forklift deployment
Structured data lists 12/24V, ABS housing and -40°C to 65°C operation.
System fit
Define zones, interfaces and operating rules
Confirm vehicle or site layout, sensing or camera zones, alerts, power, interfaces, storage or network and operator response before installation.
Performance decision
Document target types, required zone, mounting, environment, test method and acceptable false-alert behavior.
Integration decision
Confirm power, connectors, I/O, display or controller, storage, network, calibration and maintenance scope.
Current structured record
Technical specifications
| Voltage | 12/24V |
|---|---|
| Size | 200mm x 120mm x 75mm |
| Application | Suitable for Forklifts |
| Alarm Distance | 0-100m |
| Housing Material | ABS |
| Operating Temperature | -40℃ ~ 65℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page

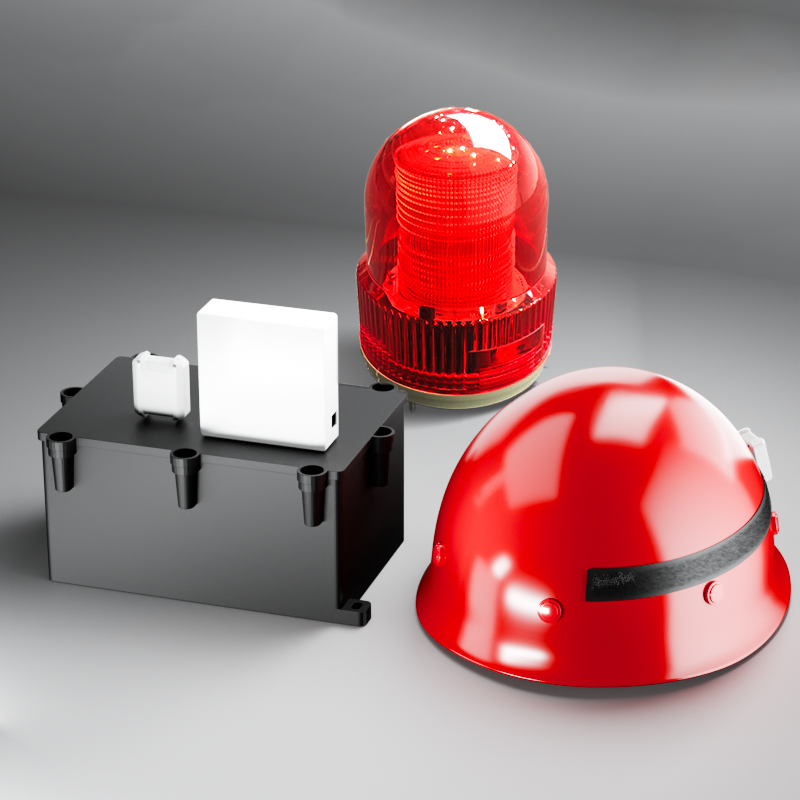

Existing Product and Deployment Views
Existing product video
See the current system demonstration
Commissioning planning
Validate the system in the real operating environment
Test zones, target response, alarm timing, nuisance alerts, visibility or ranging, storage/network workflow and operator response before rollout.
Example applications
Where UA350 may fit
Forklift-to-worker alerts
Define tag policy, warning distances and pedestrian response for each operating area.
Vehicle-to-vehicle zones
Tune alarms for intersections, loading zones and shared aisles.
Blind-corner projects
Use fixed or wearable tags only after site mapping, range testing and nuisance-alert review.
Safety, performance and data boundary
UA350 is a proximity-warning aid, not a collision-prevention guarantee. The body claims 99.99% wireless positioning accuracy and 10cm ranging accuracy without test conditions; these are different metrics and must not be combined. Structured alarm distance is 0–100m, but usable range depends on site geometry, tags, obstruction, radio conditions and configuration. IP65 appears in body copy only. The structured item type in the body table incorrectly says fatigue warning alarm device.
Buyer questions
UA350 FAQ
What alarm distance is listed?
Structured data lists 0–100m, but the usable zone must be validated in the actual site.
What accuracy is listed?
The body lists 10cm ranging accuracy and separately claims 99.99% positioning accuracy without test conditions; request supporting test data.
Which alert modes are supported?
The body lists buzzer, flashing lights and tag vibration.
Can an alarm-free zone be configured?
Yes, the body lists an alarm-free distance plus two warning distances.
Does every worker need a tag?
Worker-alert workflows typically depend on compatible tags. Confirm tag types, allocation, charging and policy.
What should commissioning include?
Site mapping, tag placement, vehicle installation, warning zones, radio testing, nuisance alerts, operator training and maintenance.
Confirm the complete project
Share your vehicle, site, risk zones and workflow
AlwayCare can review sensing or camera layout, alerts, interfaces, storage, network and commissioning requirements.
