2/4/8 display modes
The current body lists selectable multi-view layouts for vehicle camera monitoring.

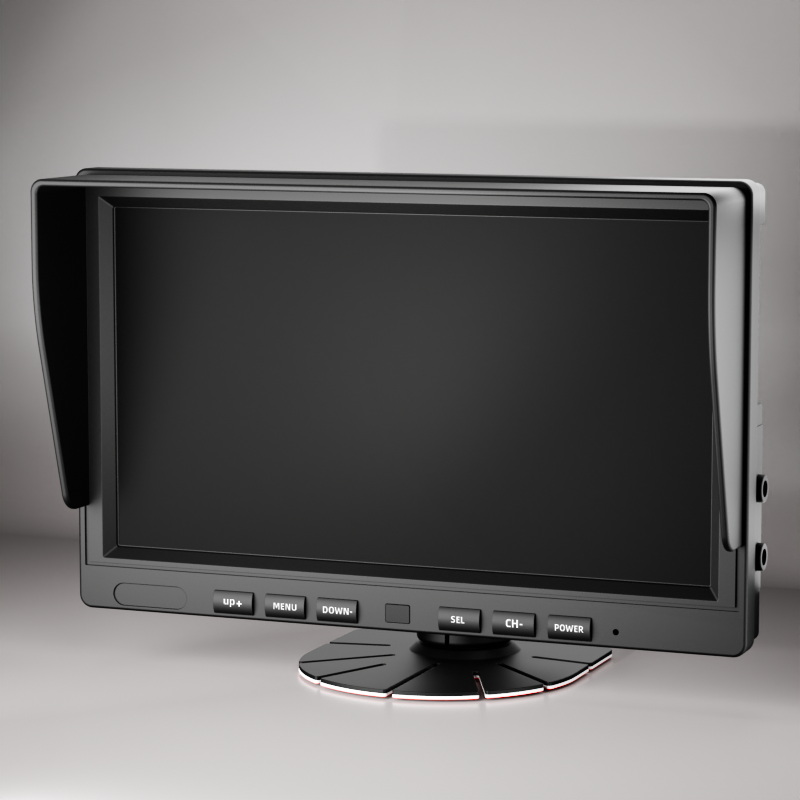

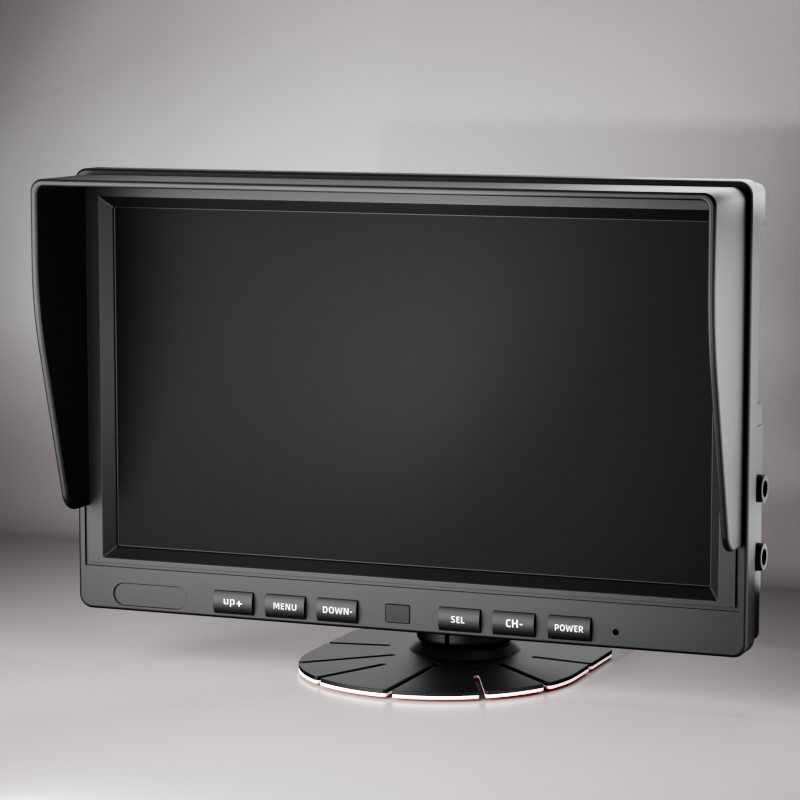

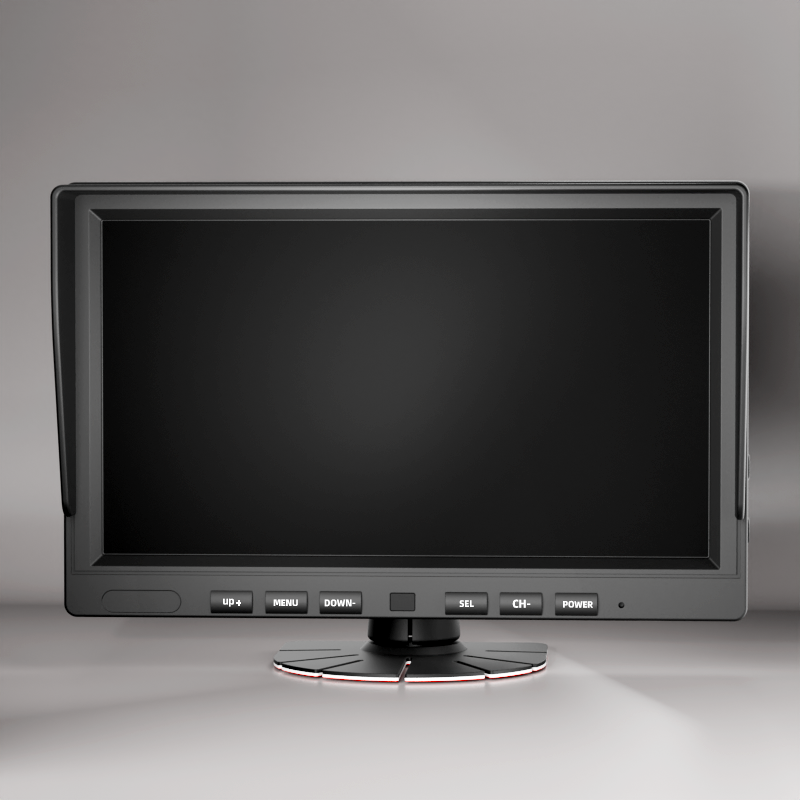

DP285 10.1-Inch Multi-View Vehicle Monitor
group nameVehicle Monitor
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelDP285
payment methodT/T, PayPal, Westem Union, Cash
-
update timeMon, 17 Aug 2026 14:35:26 GMT
Paramtents
Voltage 12-36V
Storage 256GB TF Card
Application Suitable for All Vehicles

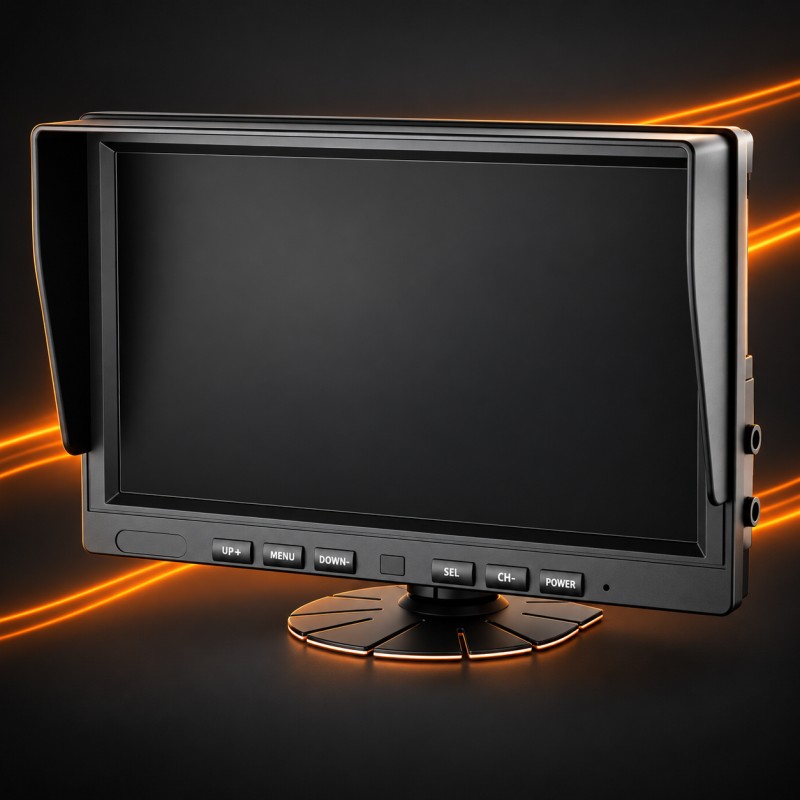

Operating Temperature -20℃ ~ 70℃

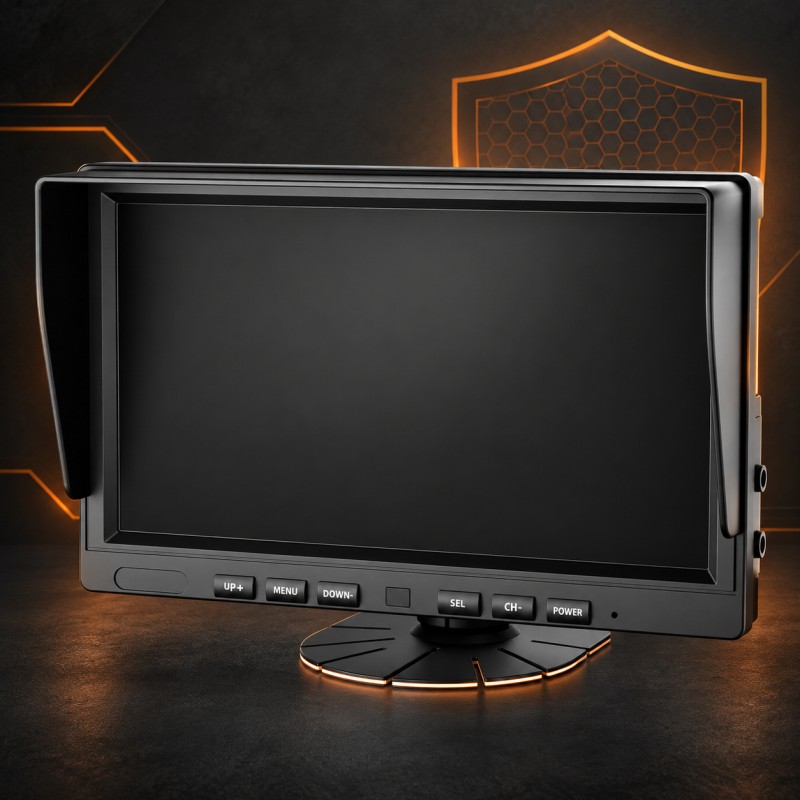

Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
DP285 is a 10.1-inch AHD multi-view monitor with 2/4/8 display modes, 12–36V input and up to 256GB TF storage.
Detailed
DP285 · Vehicle monitor
What is DP285?
DP285 is a 10.1-inch AHD multi-view vehicle monitor with selectable 2, 4 or 8-view display modes, wide-voltage input and listed TF-card storage.
Buyer overview
Four points to evaluate first
Independent image adjustment
Four channels are described as supporting independent horizontal and vertical mirror adjustments.
12–36V input
The structured record supports a wide vehicle input-voltage range.
Listed 256GB storage
Structured attributes list 256GB TF-card storage; recording behavior requires confirmation.
System fit
Match the display to cameras and recorder
A vehicle monitor must match the camera signal, definition, connector, channel layout, trigger behavior, power supply and mounting position. Confirm whether recording or AI functions are inside the monitor or supplied by another device.
Viewing decision
Define camera count, split-screen layout, screen size, viewing distance and automatic trigger views.
Integration decision
Confirm CVBS, AHD or HDMI compatibility, connector pinout, power range, storage and cable lengths.
Current structured record
Technical specifications
| Voltage | 12-36V |
|---|---|
| Storage | 256GB TF Card |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Duplicate attribute rows are displayed once. Current structured data is the baseline; older-body conflicts are disclosed below.
Preserved from the original page

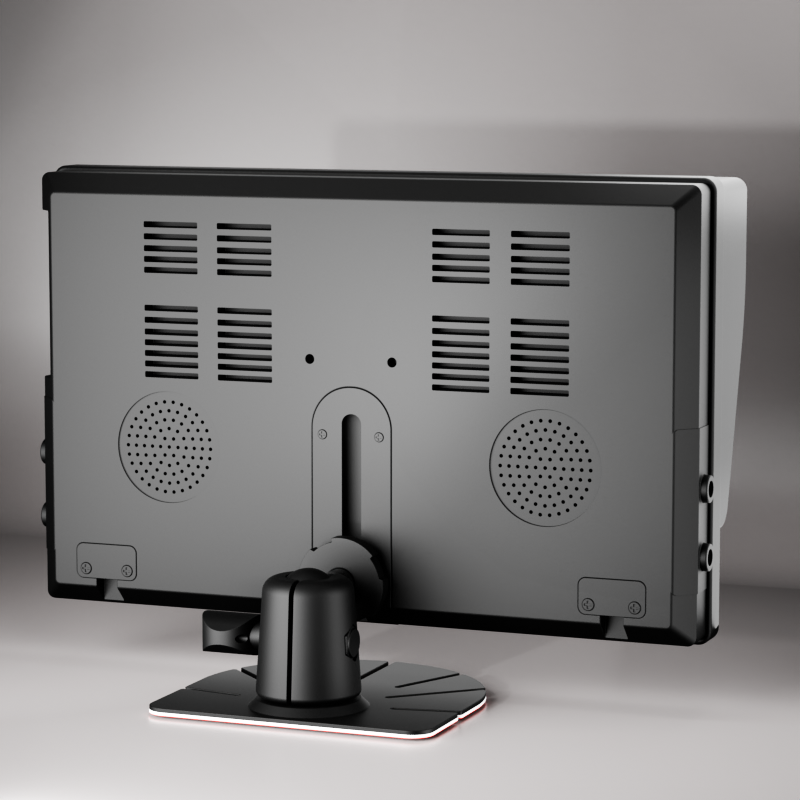

Existing Product and Application Views
Installation planning
Plan the driver view before installation
Check line of sight, glare, cab vibration, bracket clearance, cable routing and whether the display obstructs mirrors, controls or the road view.
Example applications
Where DP285 may fit
Multi-camera trucks
Arrange front, side, rear or cargo views in a compatible multi-view layout.
Buses and coaches
Display several operational zones on one in-cab monitor.
Industrial vehicles
Support operator visibility after camera count, signal and layout requirements are defined.
Specification and integration boundary
The phrase ‘2/4/8 Quad View’ describes display modes but does not confirm the exact physical input count. The body separately says four channels support independent mirror adjustment. Recording functions, storage format, input allocation, supported AHD definitions and optional safety-system integration must be confirmed.
Buyer questions
DP285 FAQ
What screen size is DP285?
The current body lists a 10.1-inch display with 1024×600 resolution.
Does it support 2, 4 and 8 camera inputs?
The source lists 2/4/8 display modes, but does not clearly define the physical input count for each version. Confirm the selected hardware configuration.
Can camera images be flipped?
The current body states that four channels can independently adjust horizontal and vertical mirror functions.

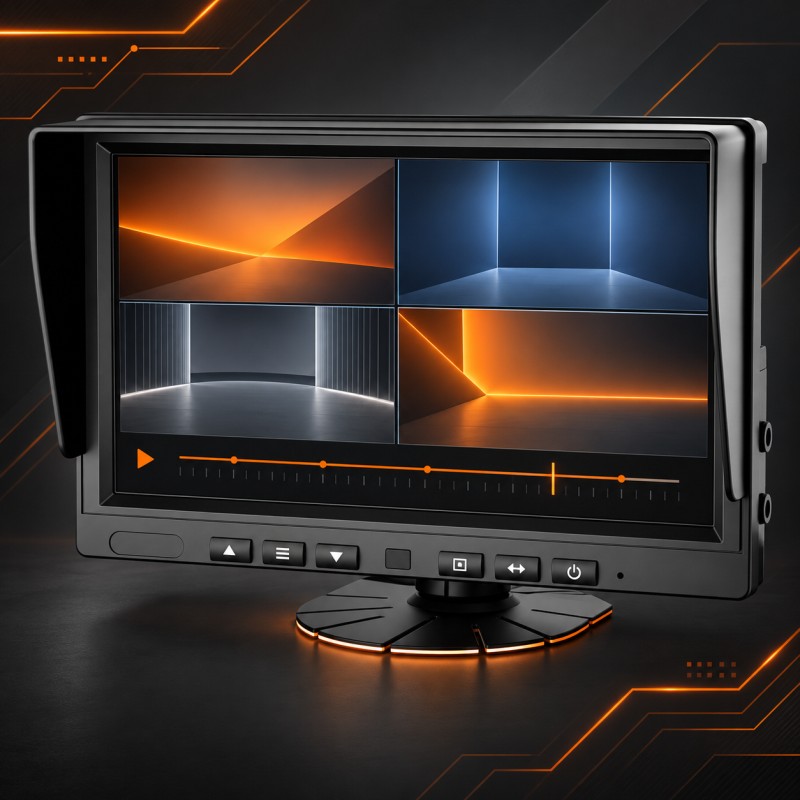

Does DP285 record video?
The structured attributes list 256GB TF-card storage, but the detailed body does not define recording modes. Confirm recording, playback and card requirements.
What input voltage is listed?
The current structured record lists 12–36V for commercial-vehicle integration.
What is needed for configuration?
Provide camera count, AHD signal and resolution, required split-screen layouts, recording need, vehicle voltage, trigger behavior and cable lengths.
Confirm the complete viewing system
Share your cameras, recorder and vehicle requirements
AlwayCare can review signal compatibility, channel layout, display placement, power, storage and cabling.
