Commercial reliability
Engineered for high vibration, wide voltage fluctuations, and continuous fleet duty.

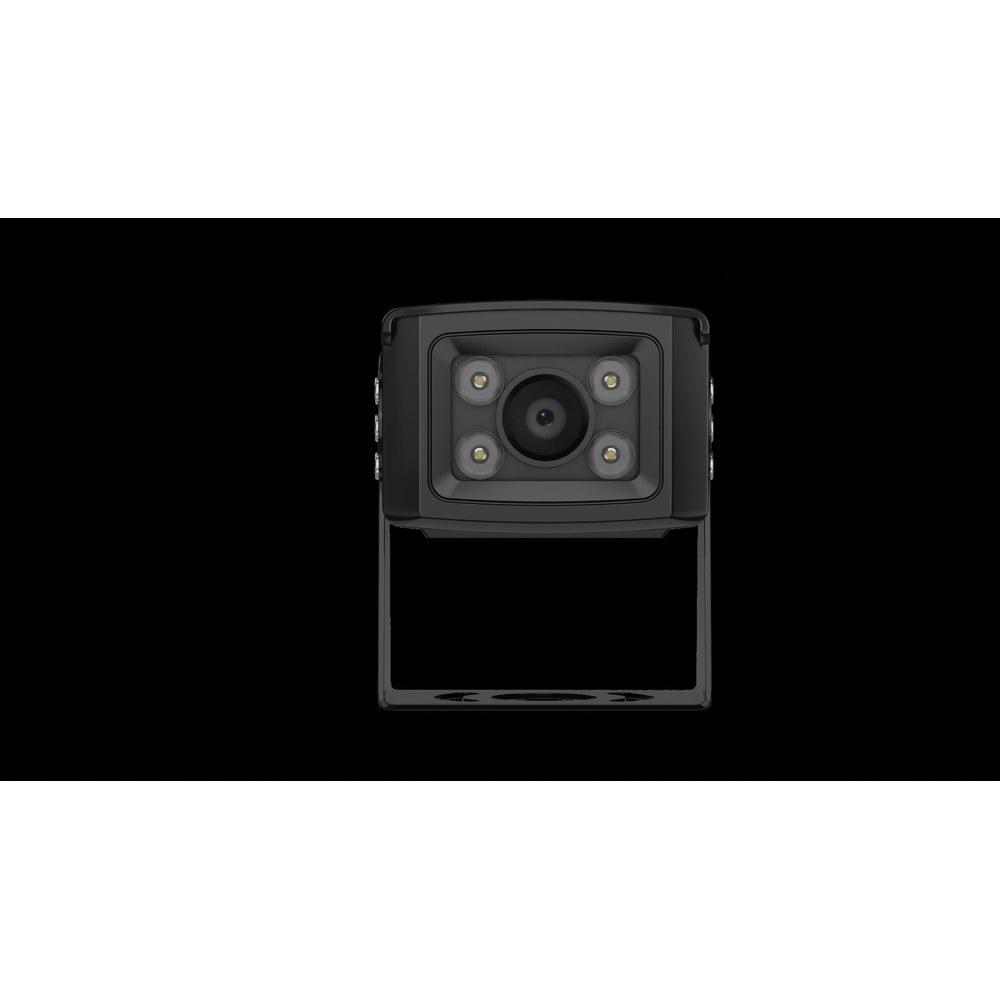

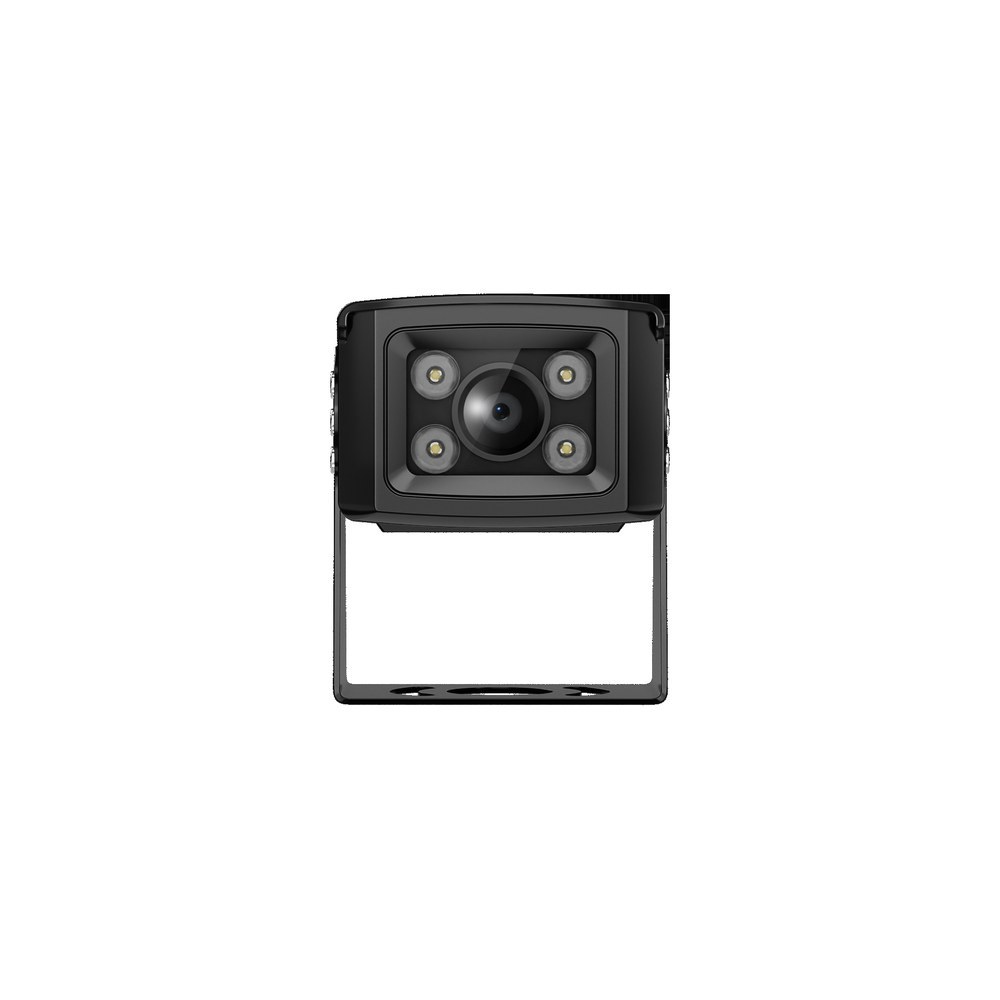

CC1002-BSD 1080P AI Blind Spot Detection Camera with Pedestrian Warning
group nameAI Camera
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelCC1002-BSD
payment methodT/T, PayPal, Westem Union, Cash
-
update timeFri, 28 Aug 2026 10:15:07 GMT
Paramtents
Resolution 1080P Full HD
AI Detection Engine Blind Spot Pedestrian / Cyclist Detection
Waterproof Rating IP69K High-Pressure Wash Proof
Connector Type 4-Pin Aviation Threaded Lock
Operating Voltage DC 12V ± 6%
Night Vision Integrated IR Night Vision
Operating Temperature -20℃ ~ +70℃
Packging & Delivery
Min Order1 piece
Briefing
CC1002-BSD vehicle safety hardware for commercial fleet monitoring and recording.
Detailed
CC1002-BSD · Commercial fleet safety
What is CC1002-BSD?
Embedded AI vision camera designed for side and rear blind spot detection. Recognizes pedestrians, cyclists, and vehicles in real-time with audible/visual alarm triggers.
Fast evaluation
Four points to confirm first
Clear visibility
Delivers crisp video clarity for in-cab reversing, multi-view surveillance, and blind spot awareness.
DC 9-36V wide voltage
Standardized vehicle electrical system compatibility with built-in surge protection.
Locking aviation connector
Threaded 4-pin aviation connection prevents signal dropouts during rugged road operations.
Verified capabilities
How CC1002-BSD supports fleet operations
Accident prevention
Provides critical real-time visual support to prevent maneuvering and backing collisions.
Easy in-cab fit
Compact and rugged form factor designed for straightforward dashboard or windshield mounting.
All-weather durability
Withstands severe heat, cold (-20°C to +70°C), and cabin dust without performance degradation.
Turnkey integration
Seamlessly pairs with AlwayCare cameras, MDVR recorders, and power harnesses.
Factory specifications
Technical specifications
| Model Designation | CC1002-BSD |
|---|---|
| Resolution / Sensor | 1080P Full HD / 2.9 Megapixel Sensor |
| AI Detection Engine | Blind Zone Pedestrian, Cyclist & Vehicle Detection |
| Waterproof Rating | IP69K High Pressure Wash Proof |
| Interface Connector | 4-Pin Aviation Threaded Lock Coupling |
| Operating Voltage | DC 12V ± 6% (or DC 9-36V via step-down) |
| Night Vision | Integrated Infrared IR LED / Low-Lux Starlight |
| Operating Temperature | -20℃ ~ +70℃ |
Specifications describe standard AlwayCare factory configurations. Custom connectors, cable lengths, and private-label OEM options are fully supported in volume quotations.
Complete product views
Mechanical Structure & Dimensional Drawings
Complete multi-angle views and physical dimensions for installation planning and bracket engineering.
Deployment examples
Where CC1002-BSD fits
Pedestrian & Cyclist BSD Zones
Deep-learning AI camera triggers audio-visual alarms when Vulnerable Road Users enter turning blind spots.
Driver State & Fatigue Coaching
In-cab DMS actively detects drowsiness, yawning, phone distraction, and unfastened seatbelts.
360° Panoramic AVM Bird-View
Stitches multi-camera feeds into a seamless top-down bird-view perspective for zero-blindness maneuvering.
Project planning
What should be confirmed before installation?
Use this checklist to align hardware options, interface types, and vehicle layout before deployment.
- 1
Confirm vehicle operating voltage (12V / 24V / 36V / 90V).
- 2
Select required camera channels and cable lengths (5M / 10M / 15M / 20M).
- 3
Determine mounting location (A-pillar, dashboard bracket, or windshield suction mount).
- 4
Calibrate camera viewing angles and verify reverse trigger line connections.
Safety and configuration boundary
CC1002-BSD provides driver visual assistance and active alerts; operators must maintain vigilance and follow standard commercial driving safety protocols.
Buyer questions
CC1002-BSD FAQ
Is CC1002-BSD compatible with existing fleet electrical systems?
Yes, it supports DC 9V to 36V wide voltage input with built-in surge protection, making it compatible with 12V vans, 24V trucks, and industrial equipment.
What connector type is used?
Standard versions utilize 4-Pin aviation screw-locking connectors for vibration resistance. RCA adapters and custom harnesses are available upon request.
Can I request custom branding or OEM packaging?
Yes. AlwayCare provides complete OEM/ODM solutions including customized startup logos, silkscreen housing branding, and tailored accessory packaging for volume orders.
Build the correct configuration
Share your vehicle and fleet requirements
Tell AlwayCare your vehicle model, fleet size, camera channel preferences, and custom project requirements for a competitive factory quote.
