Commercial reliability
Engineered for high vibration, wide voltage fluctuations, and continuous fleet duty.
DP230-C 7" Standard Definition In-Cab Fleet Monitor (DC 9-36V)
group nameVehicle Monitor
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelDP230-C
payment methodT/T, PayPal, Westem Union, Cash
-
update timeThu, 27 Aug 2026 01:38:32 GMT
Paramtents
Display size 7.0 inch
Display ratio 16:9 Widescreen
Resolution 800x480
Brightness 500 cd/m2 Anti-Glare
Operating Voltage DC 9V - 36V Wide Voltage
Video Inputs 1/2 Channels (Reversing Priority)
Video system PAL / NTSC Auto-Adaptation
Enclosure Material Flame-Retardant PC + ABS
Operating Temperature -20℃ ~ +70℃
Packging & Delivery
Min Order1 piece
Briefing
7-inch commercial vehicle monitor featuring 800x480 resolution, DC 9-36V wide voltage adaptation, and auto reversing wakeu...
Detailed
DP230-C · Commercial fleet safety
What is DP230-C?
7-inch commercial vehicle monitor featuring 800x480 resolution, DC 9-36V wide voltage adaptation, and auto reversing wakeup for commercial fleets.
Fast evaluation
Four points to confirm first
Clear visibility
Delivers crisp video clarity for in-cab reversing, multi-view surveillance, and blind spot awareness.
DC 9-36V wide voltage
Standardized vehicle electrical system compatibility with built-in surge protection.
Locking aviation connector
Threaded 4-pin aviation connection prevents signal dropouts during rugged road operations.
Verified capabilities
How DP230-C supports fleet operations
Accident prevention
Provides critical real-time visual support to prevent maneuvering and backing collisions.

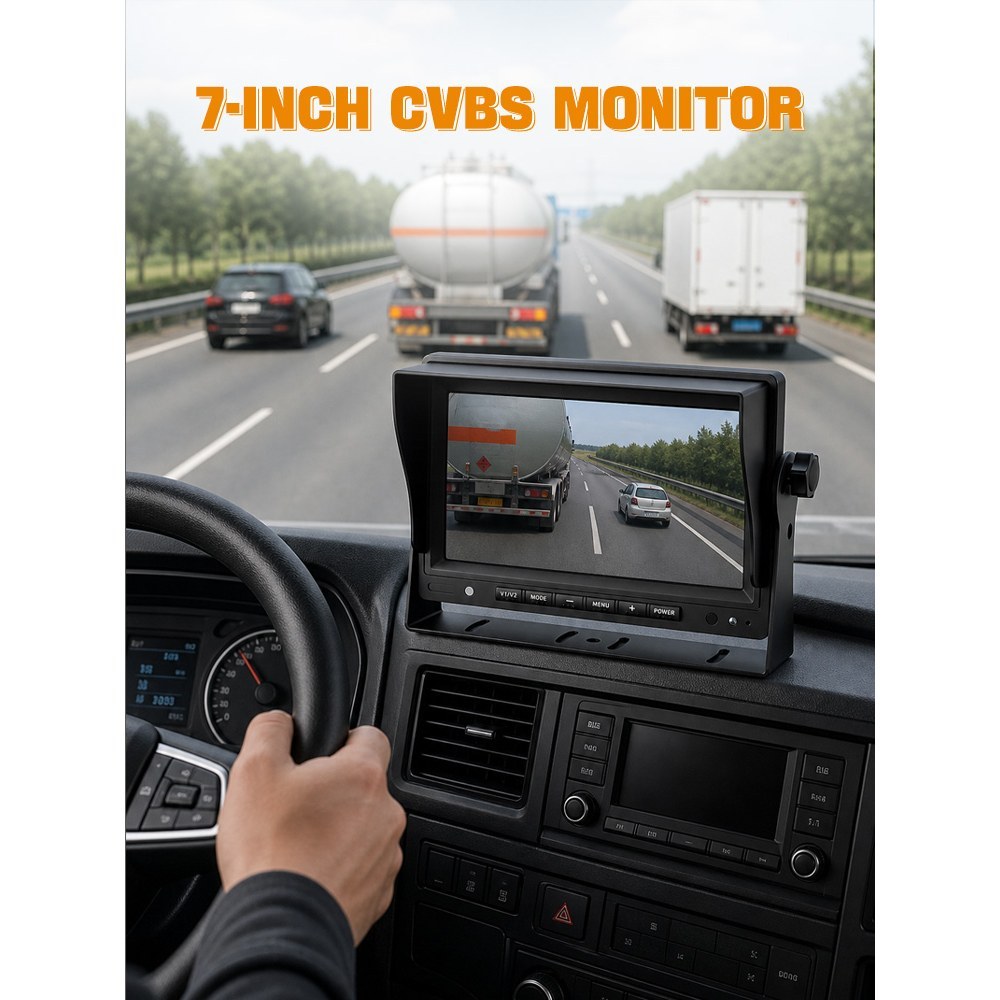

Easy in-cab fit
Compact and rugged form factor designed for straightforward dashboard or windshield mounting.
All-weather durability
Withstands severe heat, cold (-20°C to +70°C), and cabin dust without performance degradation.
Turnkey integration
Seamlessly pairs with AlwayCare cameras, MDVR recorders, and power harnesses.
Factory specifications
Technical specifications
| Model Designation | DP230-C |
|---|---|
| Screen Size & Aspect Ratio | 7.0 Inch Digital TFT-LCD | 16:9 |
| Native Resolution | 1024 × 600 HD |
| Luminance / Brightness | 500 cd/m² Anti-Glare |
| Operating Voltage | DC 9V – 36V Wide Voltage |
| Power Consumption | ≤ 6.0 Watts (Low Heat Build) |
| Video Input Channels | 1/2 Channels (Auto Reversing Priority) |
| Video Signal System | PAL / NTSC Auto-Detection |
| Enclosure & Protection | Flame-Retardant PC + ABS |
| Operating Temperature | -20℃ ~ +70℃ (-4°F ~ +158°F) |
| Warranty | 18 Months Manufacturer Warranty |
Specifications describe standard AlwayCare factory configurations. Custom connectors, cable lengths, and private-label OEM options are fully supported in volume quotations.
Complete product views
Mechanical Structure & Dimensional Drawings
Complete multi-angle views and physical dimensions for installation planning and bracket engineering.
Deployment examples
Where DP230-C fits
Last-Mile Delivery Vans
Compact 4.3" and 7" in-cab monitors deliver unobstructed reversing clarity in congested alleys.
Refrigerated Box Trucks
Monitor cargo temperature sensors and blind spot pedestrians during urban loading dock stops.
Commercial Utility Vehicles
Wide-angle backup cameras trigger instantly when shifting into reverse for rapid stop-and-go jobs.
Project planning
What should be confirmed before installation?
Use this checklist to align hardware options, interface types, and vehicle layout before deployment.
- 1
Confirm vehicle operating voltage (12V / 24V / 36V / 90V).
- 2
Select required camera channels and cable lengths (5M / 10M / 15M / 20M).
- 3
Determine mounting location (A-pillar, dashboard bracket, or windshield suction mount).
- 4
Calibrate camera viewing angles and verify reverse trigger line connections.
Safety and configuration boundary
DP230-C provides driver visual assistance and active alerts; operators must maintain vigilance and follow standard commercial driving safety protocols.
Buyer questions
DP230-C FAQ
Is DP230-C compatible with existing fleet electrical systems?
Yes, it supports DC 9V to 36V wide voltage input with built-in surge protection, making it compatible with 12V vans, 24V trucks, and industrial equipment.
What connector type is used?
Standard versions utilize 4-Pin aviation screw-locking connectors for vibration resistance. RCA adapters and custom harnesses are available upon request.
Can I request custom branding or OEM packaging?
Yes. AlwayCare provides complete OEM/ODM solutions including customized startup logos, silkscreen housing branding, and tailored accessory packaging for volume orders.
Build the correct configuration
Share your vehicle and fleet requirements
Tell AlwayCare your vehicle model, fleet size, camera channel preferences, and custom project requirements for a competitive factory quote.
