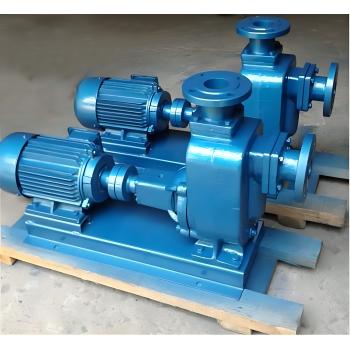

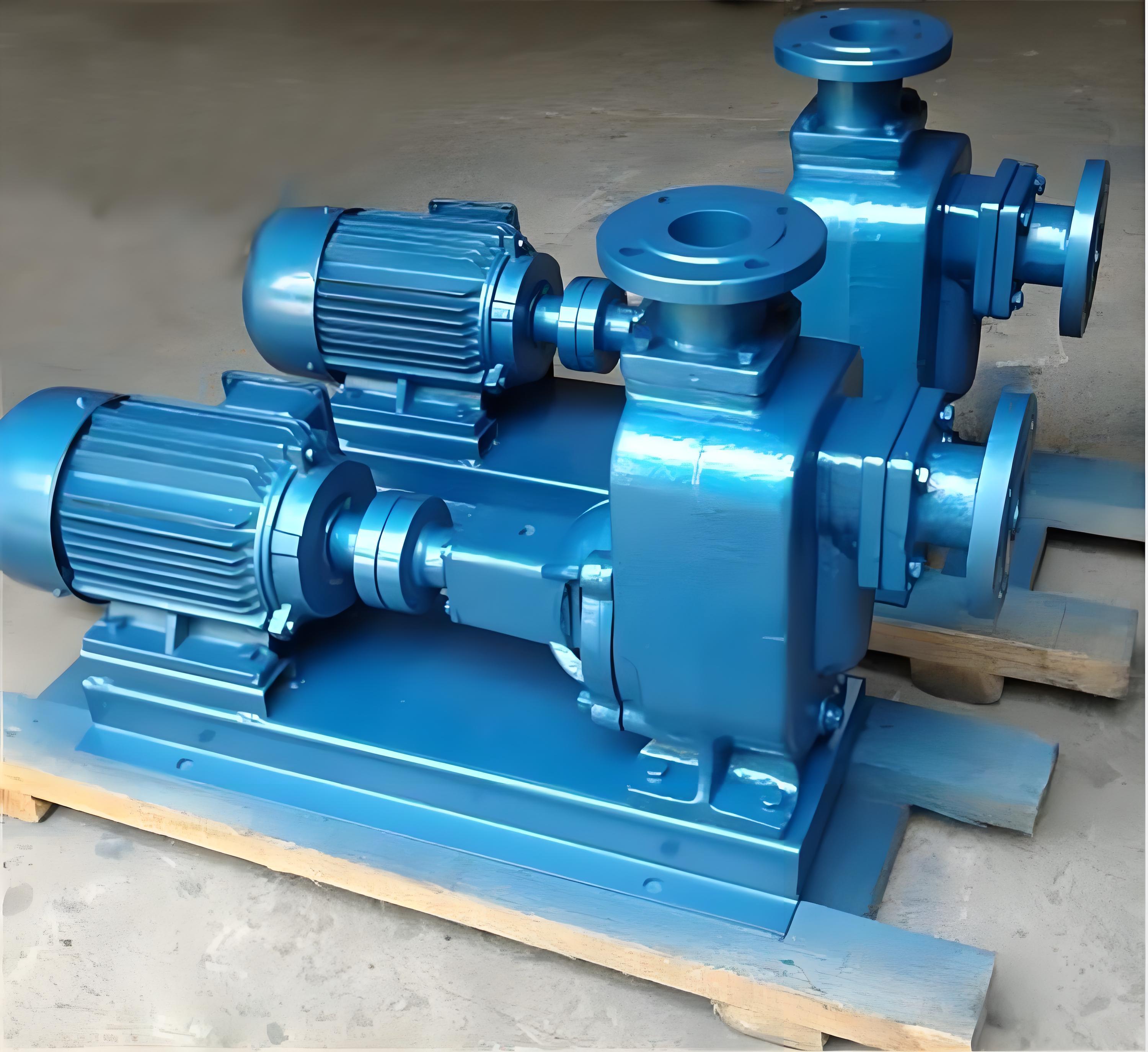

ZW Horizontal Self-priming clogging sewage pump | High Efficiency | It is suitable for conveying clear water and sewage
group nameSelf-priming Pump
-
Min Order1 piece
brand nameZHONGDA PUMPS
modelZW Self-priming Pump
payment methodL/C, T/T
-
update timeFri, 05 Dec 2025 19:59:05 GMT
Paramtents
Material Cast iron, cast steel, stainless steel
Capacity 5-800m3/h
Max Head 12-60m
Colour customizable
Packging & Delivery
Min Order1 piece
Briefing
High-Efficiency Horizontal ZW Self-priming Pump Centrifugal Pump | Stable, Low-Noise Operation | For building construction, industrial sewage environmental protection water treatment
Detailed
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction
The ZW type self-priming pump is a centrifugal pump with self-priming function, suitable for conveying clear water, sewage, oil and liquids containing solid particles. This pump features strong self-priming capacity, compact structure and stable operation. It is widely used in municipal engineering, sewage treatment, agricultural irrigation, industrial circulating water and other fields. Its temperature range is from -20℃ to 80℃.
Model Description:
Take ZW50-20-35 as an example:
- ZW: Self-priming pump type
- 50: Pump inlet diameter (mm)
- 20: Pump rated flow (m3/h)
- 35: Pump rated head (m)
Product Features:
- Strong self-priming ability: The unique impeller design enables a self-priming height of up to 5 meters and a short self-priming time.
- Compact structure: With a reasonable design, it occupies a small area and is easy to install.
- High efficiency and energy saving: Advanced hydraulic models are adopted, ensuring high efficiency and low energy consumption.
- Smooth operation: The impeller undergoes precise balance correction, resulting in low vibration and noise.
- Easy maintenance: The pump shaft and motor are on the same axis, making disassembly and assembly convenient and reducing maintenance costs.
- Reliable sealing: Mechanical seals or packing seals are used to ensure no leakage and reliable operation.
Scope of Application:
- Municipal engineering: for urban water supply, drainage and sewage treatment.
- Agricultural irrigation: for farmland irrigation and sprinkler systems.
- Industrial circulating water: for cooling systems, boiler feed water, condensate water transportation, etc.
- Sewage treatment: for transporting sewage containing solid particles, sludge, etc.
- Oil transportation: for transporting oil and oily liquids.
Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Motor Power | Speed | Efficiency | (NPSH)r | Suction Head | Suction Time | Weight |
ZW | m3/h | m | kW | rpm | % | m | m | min/5m | kg | |
1 | 25-8-15 | 8 | 15 | 2.2 | 2950 | 45 | 2.0 | 5.5 | 3 | 100 |
2 | 32-9-30 | 9 | 30 | 3 | 2950 | 48 | 2.5 | 5.5 | 3 | 100 |
3 | 40-15-30 | 15 | 30 | 3 | 2950 | 48 | 2.5 | 5.5 | 3 | 100 |
4 | 50-20-35 | 20 | 35 | 5.5 | 2950 | 48 | 2.5 | 5.5 | 3 | 150 |
5 | 65-25-40 | 25 | 40 | 7.5 | 2950 | 50 | 3.0 | 5.5 | 3 | 200 |
6 | 80-40-25 | 40 | 25 | 7.5 | 1450 | 50 | 3.0 | 5.5 | 2 | 200 |
7 | 80-65-25 | 65 | 25 | 11 | 2950 | 52 | 3.0 | 5.5 | 2 | 240 |
8 | 80-80-35 | 80 | 35 | 15 | 2950 | 45 | 3.0 | 5.5 | 3 | 285 |
9 | 100-100-15 | 100 | 15 | 7.5 | 1450 | 50 | 4.0 | 5.5 | 50 | 300 |
10 | 100-100-30 | 100 | 30 | 22 | 1450 | 53 | 4.0 | 5.5 | 2 | 510 |
11 | 150-180-20 | 180 | 20 | 22 | 1450 | 60 | 5.0 | 5.0 | 3 | 570 |
12 | 150-180-38 | 180 | 38 | 55 | 1450 | 45 | 5.0 | 6.0 | 3.5 | 800 |
13 | 200-280-14 | 280 | 14 | 22 | 1450 | 65 | 5.0 | 5.0 | 3 | 700 |
14 | 200-280-28 | 280 | 28 | 55 | 1450 | 55 | 4.8 | 5.2 | 3 | 940 |
15 | 250-420-20 | 420 | 20 | 55 | 1450 | 61 | 6.0 | 4.5 | 2.5 | 1150 |
16 | 300-800-14 | 800 | 14 | 55 | 1450 | 65 | 6.0 | 4.5 | 2.5 | 1400 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
*For more models, please download our catalogue or contact us.
Data Download:
ZW-type Self-priming Pump
Download Product PDF Brochure
