QW-Type Sewage pump | Mine drainage | for factory wastewater and sludge discharge
FOB Price
- US $800.0
1 - 5 piece
- US $600.0
6 - 10 piece
- US $400.0
11 - 15 piece
group nameSewage Pump
-
Min Order1 piece
brand nameZHONGDA PUMPS
modelQW Sewage Pump
payment methodL/C, T/T
-
update timeSat, 06 Dec 2025 11:07:45 GMT
Paramtents
Colour customizable
Capacity 3.75-840m3/h
Max Head 19-680m
Packging & Delivery
Min Order1 piece
Briefing
High-Efficiency Pipeline Pump Water Pump |Single stage single suction centrifugal pump | Ideal for Industrial and Urban Water Supply, agricultural irrigation
Detailed
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction

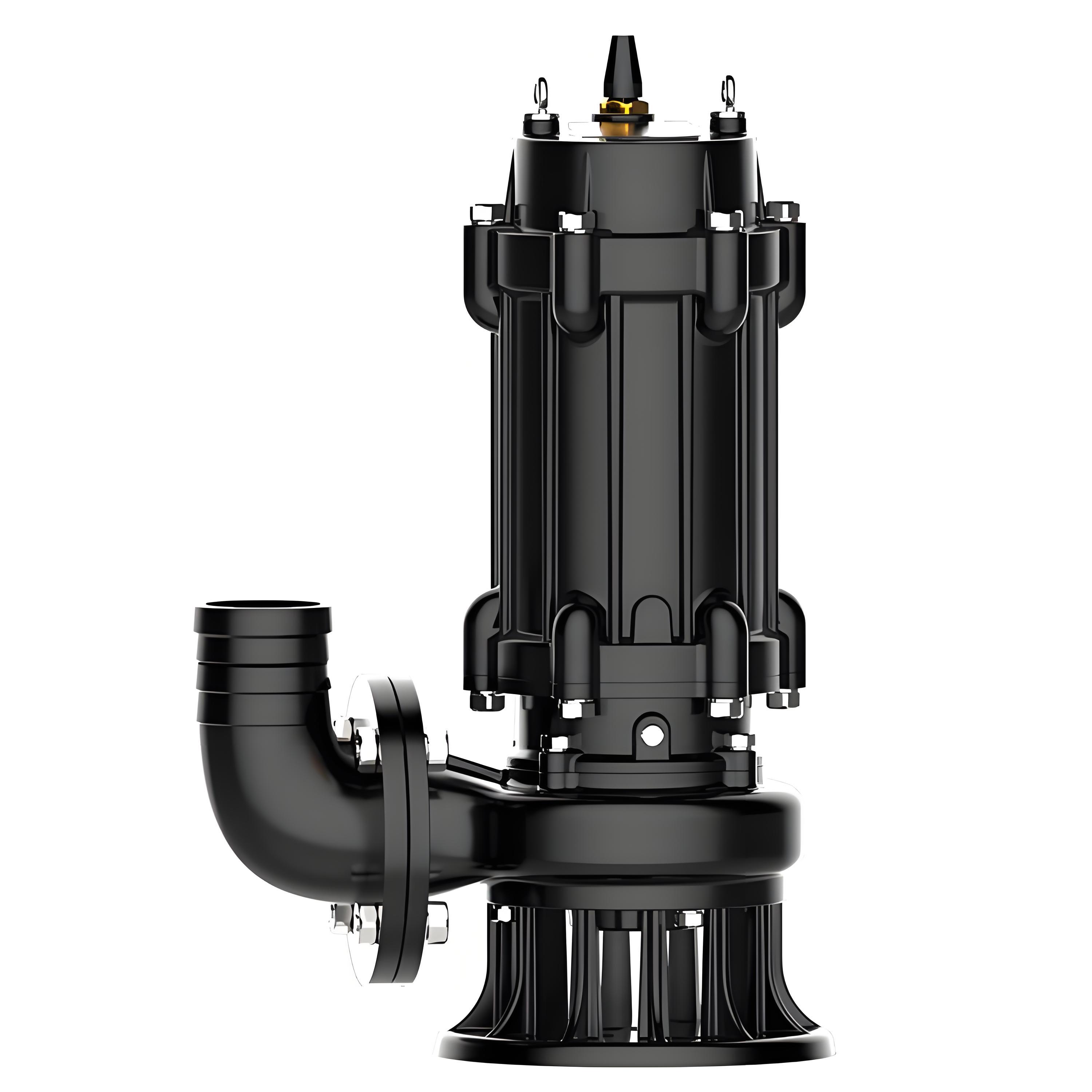

The WQ type sewage pump is a submersible centrifugal pump designed for transporting media such as sewage, sludge, and wastewater containing solid particles and fibers. This pump features high efficiency, wear resistance, and corrosion resistance, and is widely used in municipal engineering, sewage treatment, construction sites, mine drainage, agricultural irrigation, and other fields. Its operating temperature range is from -20℃ to 60℃.
Model Description:
Take 50QW20-15-1.5 as an example:
- QW: Sewage pump type
- 50: Pump outlet diameter (mm)
- 20: Rated flow (m³/h)
- 15: Rated Head (m)
- 1.5: Matching motor power (kW)
Product Features:
- Efficient sewage discharge: With a unique impeller design, it can effectively convey sewage containing solid particles and fibers.
- Wear-resistant and corrosion-resistant: The pump body and impeller are made of high-chromium alloy materials, featuring excellent wear resistance and corrosion resistance.
- Compact structure: The design is reasonable, with a small footprint and easy installation.
- Smooth operation: The impeller undergoes precise balance correction, resulting in low vibration and low noise.
- Easy maintenance: The pump shaft is coaxial with the motor, facilitating disassembly and assembly, and reducing maintenance costs.
- Reliable sealing: It adopts mechanical seals or packing seals to ensure no leakage and reliable operation.
Scope of Application:
- Municipal engineering: for urban drainage, sewage treatment and stormwater discharge.
- Construction sites: for foundation pit drainage and construction wastewater discharge.
- Mine drainage: for mine shaft drainage and ore sludge transportation.
- Agricultural irrigation: for farmland drainage and irrigation systems.
- Industrial wastewater: for factory wastewater and sludge discharge.
Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Speed | Efficiency | Motor Power | Outlet Diameter | Weight | |
m3/h | m | rpm | % | kW | mm | kg | |||
1 | 25QW8-22-1.1 | 8 | 22 | 2900 | 38 | 1.1 | 25 | 42 | |
2 | 40QW15-15-1.5 | 15 | 15 | 2950 | 45 | 1.5 | 40 | 52 | |
3 | 50QW15-25-2.2 | 15 | 25 | 2950 | 56 | 2.2 | 50 | 60 | |
4 | 65QW30-40-7.5 | 30 | 40 | 2950 | 56 | 7.5 | 65 | 110 | |
5 | 80QW65-25-7.5 | 65 | 25 | 2950 | 56 | 7.5 | 80 | 135 | |
6 | 100QW100-25-11 | 100 | 25 | 1450 | 65 | 11 | 100 | 270 | |
7 | 125QW130-20-15 | 130 | 20 | 1450 | 63 | 15 | 125 | 300 | |
8 | 150QW180-30-30 | 180 | 30 | 1450 | 73 | 30 | 150 | 500 | |
9 | 200QW400-30-55 | 400 | 30 | 1450 | 70 | 55 | 200 | 1000 | |
10 | 250QW600-25-75 | 600 | 25 | 1450 | 73 | 75 | 250 | 1300 | |
11 | 300QW950-20-90 | 950 | 20 | 980 | 80 | 90 | 300 | 1700 | |
12 | 350QW1100-28-132 | 1100 | 28 | 740 | 83 | 132 | 350 | 2520 | |
13 | 400QW1500-26-160 | 1500 | 26 | 740 | 83 | 160 | 400 | 2880 | |
14 | 500QW3000-15-200 | 3000 | 15 | 740 | 73 | 200 | 500 | 2250 | |
15 | 550QW-3000-16-220 | 3000 | 16 | 740 | 85 | 220 | 550 | 2500 | |
16 | 600QW3500-10-250 | 3500 | 10 | 740 | 85 | 250 | 600 | 2580 | |
17 | 700QW10000-6-280 | 10000 | 6 | 740 | 83 | 280 | 700 | 2800 | |
... | ... | ... | ... | ... | ... | ... | ... | ... | |
*For more models, please download our catalogue or contact us.
Data Download:
QW-type Sewage pump
Download Product PDF Brochure
