76 Series | CPV CNV PV Push-Pull ISO 7241 A Quick Couplings For Agriculture (Steel)
group nameISO 7241-A Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 16:25:43 GMT
Paramtents
Interchange STUCCHI I-IP SERIES
Interchange FASTER CPV SERIES
Interchange FASTER CNV SERIES
Interchange PARKER 4200 SERIES
Interchange PIONEER 2000 SERIES
Interchange DNP PPV1 SERIES
Interchange DIXON AG SERIES
Interchange VOSWINKEL HP SERIES
Interchange SAFEWAY S40 SERIES
Interchange FASTER PV SERIES
Interchange FASTER NV SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PARKER 4200 SERIES, PIONEER 2000 SERIES, DNP PPV1 SERIES, DIXON AG SERIES, VOSWINKEL HP SERIES, SAFEWAY S40 SERIES, FASTER PV SERIES, and FASTER NV SERIES. Steel Product. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
Detailed
76 Series
Hydraulic Push-Pull Coupling (Steel)
ISO-7241-A, Poppet Valve, ISO8434-1
This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PARKER 4200 SERIES, PIONEER 2000 SERIES, DNP PPV1 SERIES, DIXON AG SERIES, VOSWINKEL HP SERIES, SAFEWAY S40 SERIES, FASTER PV SERIES, and FASTER NV SERIES. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
Female
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSMC7612-M14X1.5-08L | 1/2'' | 72 | 10 | 8 | S27 | M14X1.5 |
| HFSMC7612-M16X1.5-10L | 1/2'' | 73 | 11 | 10 | S27 | M16X1.5 |
HFSMC7612-M18X1.5-12L | 1/2'' | 73 | 11 | 12 | S27 | M18X1.5 |
HFSMC7612-M22X1.5-15L | 1/2'' | 74 | 12 | 15 | S27 | M22X1.5 |
HFSMC7612-M26X1.5-18L | 1/2'' | 74 | 12 | 18 | S27 | M26X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSMC7612-M14X1.5-06S | 1/2'' | 74 | 12 | 6 | S27 | M14X1.5 |
| HFSMC7612-M16X1.5-08S | 1/2'' | 74 | 12 | 8 | S27 | M16X1.5 |
HFSMC7612-M18X1.5-10S | 1/2'' | 74 | 12 | 10 | S27 | M18X1.5 |
HFSMC7612-M20X1.5-12S | 1/2'' | 74 | 12 | 12 | S27 | M20X1.5 |
HFSMC7612-M24X1.5-16S | 1/2'' | 76 | 14 | 16 | S27 | M24X1.5 |
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSFC7612-1/2" | 1/2'' | 70 | 12 | 10 | S27 | 1/2''BSPP (NPT) |
| HFSFC7612-3/4"UNF | 1/2'' | 70 | 12 | 10 | S27 | 3/4''UNF |
| HFSFC7612-3/8"UNF | 1/2'' | 70 | 12 | 10 | S27 | 3/8''UNF |

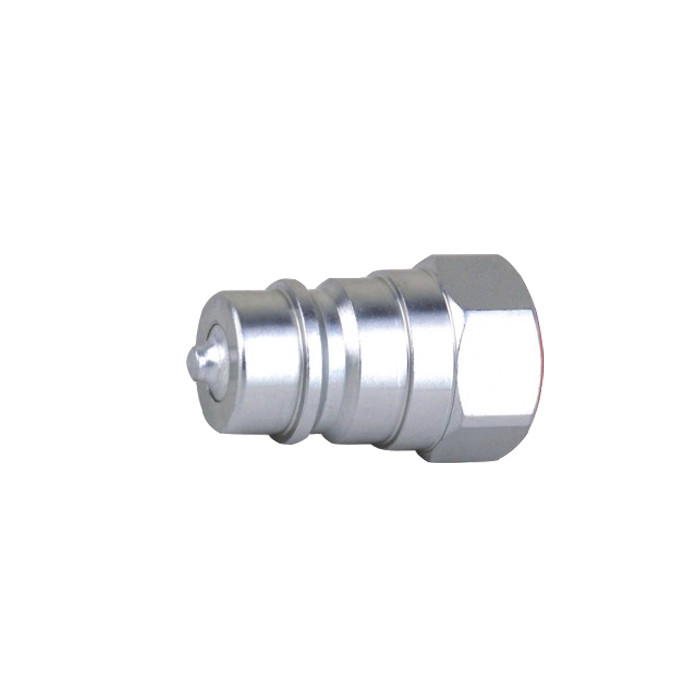

Male
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
| HFSMP7612-M14X1.5-08L | 1/2'' | 57 | 10 | 8 | S27 | M14X1.5 |
| HFSMP7612-M16X1.5-10L | 1/2'' | 58 | 11 | 10 | S27 | M16X1.5 |
HFSMP7612-M18X1.5-12L | 1/2'' | 58 | 11 | 12 | S27 | M18X1.5 |
HFSMP7612-M22X1.5-15L | 1/2'' | 59 | 12 | 15 | S27 | M22X1.5 |
HFSMP7612-M26X1.5-18L | 1/2'' | 59 | 12 | 18 | S27 | M26X1.5 |
S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request |
Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
HFSMP7612-M14X1.5-06S | 1/2'' | 74 | 12 | 6 | S27 | M14X1.5 |
HFSMP7612-M16X1.5-08S | 1/2'' | 74 | 12 | 8 | S27 | M16X1.5 |
HFSMP7612-M18X1.5-10S | 1/2'' | 74 | 12 | 10 | S27 | M18X1.5 |
HFSMP7612-M20X1.5-12S | 1/2'' | 74 | 12 | 12 | S27 | M20X1.5 |
HFSMP7612-M24X1.5-16S | 1/2'' | 76 | 14 | 16 | S27 | M24X1.5 |
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
| HFSFP7512-1/2" | 1/2'' | 44 | 12 | 10 | S27 | 1/2''BSPP (NPT) |
| HFSFP7512 -3/4" UNF | 1/2'' | 44 | 12 | 10 | S27 | 3/4''UNF |
| HFSFP7512 -3/8"UNF | 1/2'' | 44 | 12 | 10 | S27 | 3/8''UNF |
HFSFP6612-1/2" | 1/2'' | 44 | 12 | 10 | S27 | 1/2''BSPP (NPT) |
HFSFP6612 -3/4" UNF | 1/2'' | 44 | 12 | 10 | S27 | 3/4''UNF |
HFSFP6612 -3/8"UNF | 1/2'' | 44 | 12 | 10 | S27 | 3/8''UNF |
