EH 179 Series - 3NV 3CNV Female Couplings For Agriculture With Sleeve-Retraction Facilitator (Steel)
group nameISO 7241-A Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeSat, 06 Dec 2025 23:04:42 GMT
Paramtents
Interchange FASTER 3NV SERIES
Interchange FASTER 3CNV SERIES
Packging & Delivery
Min Order1 piece
Briefing

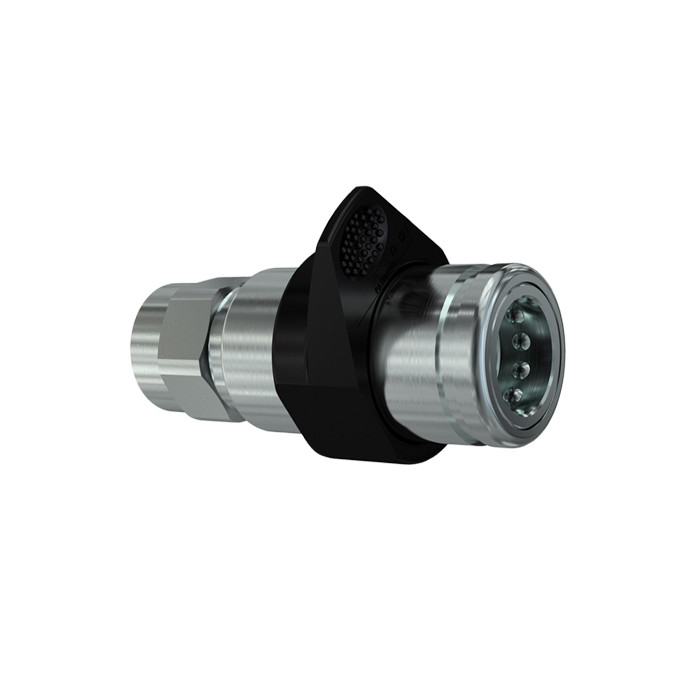

This EH series is interchangeable with the FASTER 3NV SERIES and FASTER 3CNV SERIES. Steel Product. Female couplings connectable with the male part under residual pressure. A sleeve retraction mechanism facilitates easier engagement and disconnection. They are interchangeable according to the ISO 7241-1A standard.
Detailed
179 Series
Female Coupling For Agriculture With Sleeve Retraction Facilitator (Steel)
ISO-7241-A, Poppet Valve
This EH series is interchangeable with the FASTER 3NV SERIES and FASTER 3CNV SERIES. Steel Product. Female couplings connectable with the male part under residual pressure. A sleeve retraction mechanism facilitates easier engagement and disconnection. They are interchangeable according to the ISO 7241-1A standard.
Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | LS(mm) | D(mm) | HS(mm) | T |
| HFSFC17912-3/4''-16UNF-ORB | 1/2'' | 100 | 48 | S27 | 3/4"-16 UNF FEMALE ORB |
| HFSMC17912-7/8''-14UNF | 1/2'' | 102.6 | 48 | S32 | 7/8"-14 UNF MALE |
HFSFC17912-M22X1.5 | 1/2'' | 89 | 48 | S27 | M22x1,5 MALE |
HFSFC17912-13/16''-16UN-BULKHEAD-ORFS | 1/2'' | 109 | 48 | S27 | 13/16"-16 UN MALE BULKHEAD ORFS |
HFSFC17912-M22X1.5-BULKHEAD-15L | 1/2'' | 100 | 48 | S27 | M22x1.5 MALE BULKHEAD SHORT 15L |
