136 Series | SNAP-TITE 71 Flat Face High Pressure Quick Coupler (Steel)
group name10,000 PSI+ High Pressure Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 19:20:49 GMT
Paramtents
Interchange SNAP-TITE 71 SERIES
Interchange DIXON ST SERIES
Interchange FASTER OGF SERIES
Interchange DNP PLS1 SERIES
Interchange PARKER 71 SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with SNAP-TITE 71 SERIES, DIXON ST SERIES, FASTER OGF SERIES, DNP PLS1 SERIES, and PARKER 71 SERIES. Steel Product. 136 couplings provide versatile performance across diverse hydraulic applications, combining advanced sealing technology with user-friendly operation. The flat-face design ensures zero fluid spillage while effectively preventing external contamination, making them ideal for clean and efficient systems. Featuring intuitive push-to-connect technology, these couplings simplify installation while the integrated locking ball mechanism secures connections and prevents accidental disengagement. 136 couplings are fully interchangeable with Snap-tite 71 series, ensuring broad compatibility and easy integration into existing systems.
Detailed

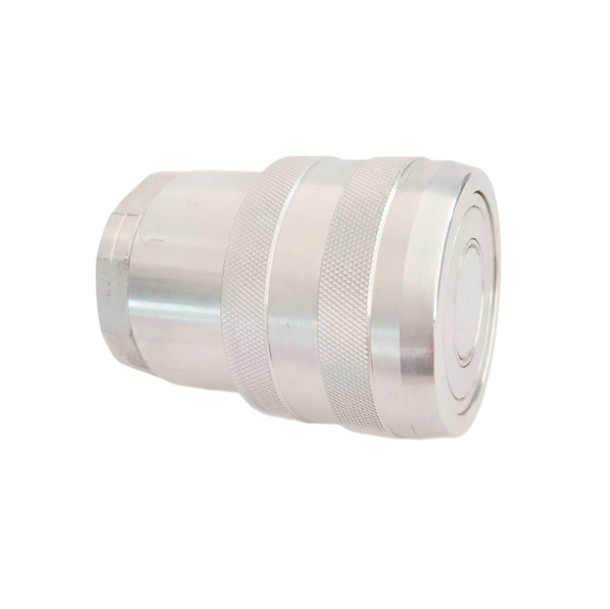

136 Series
Flat/Flush Face Coupling (Steel)-High Pressure
This EH series is interchangeable with SNAP-TITE 71 SERIES, DIXON ST SERIES, FASTER OGF SERIES, DNP PLS1 SERIES, and PARKER 71 SERIES. EH 136 couplings provide versatile performance across diverse hydraulic applications, combining advanced sealing technology with user-friendly operation. The flat-face design ensures zero fluid spillage while effectively preventing external contamination, making them ideal for clean and efficient systems. Featuring intuitive push-to-connect technology, these couplings simplify installation while the integrated locking ball mechanism secures connections and prevents accidental disengagement. EH 136 couplings are fully interchangeable with Snap-tite 71 series, ensuring broad compatibility and easy integration into existing systems.
Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC13614-1/4"NPT | 1/4'' | 51.7 | 30 | S24 | 1/4" NPT |
HFSFC13638-3/8"NPT | 3/8'' | 61.7 | 40 | S30 | 3/8"NPT |
HFSFC13638-1/2"NPT | 3/8'' | 70 | 32 | S30 | 1/2" NPT |
HFSFC13638 -9/16"UNF | 3/8'' | 70 | 32 | S30 | 9/16"UNF-18 |
HFSFC13612-1/2"NPT | 1/2'' | 71 | 48 | S38 | 1/2" NPT |
HFSFC13612-3/4"UNF | 1/2'' | 71 | 48 | S38 | 3/4-16UNF |
HFSFC13634-3/4"NPT | 3/4'' | 79 | 58 | S46 | 3/4" NPT |
HFSFC13634-1-1/16"UN | 3/4'' | 79 | 58 | S46 | 1-1/16"UN-12 |
HFSFC13610-1"NPT | 1'' | 87.8 | 68 | S50 | 1" NPT |
HFSFC13610-1-1/4"NPT | 1'' | 87.8 | 68 | S55 | 1-1/4" NPT |
HFSFC13610-1-5/16"UN | 1'' | 87.8 | 68 | S55 | 1-5/16" UN -12 |
HFSFC13610-1-5/8"UN | 1'' | 87.8 | 68 | S55 | 1-5/8" UN -12 |
HFSFC13620-1-1/2''NPT | 2'' | 157.5 | 112 | S86 | 1-1/2NPT |
HFSFC13620-1-2''NPT | 2'' | 157.5 | 112 | S86 | 2NPT |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP13614-1/4"NPT | 1/4'' | 54 | S22 | 1/4" NPT |
HFSFP13638-3/8"NPT | 3/8'' | 64 | S30 | 3/8"NPT |
HFSFP13638-1/2"NPT | 3/8'' | 64 | S30 | 1/2" NPT |
HFSFP13638-9/16"UNF | 3/8'' | 61 | S30 | 9/16"UNF-18 |
HFSFP13612-1/2"NPT | 1/2'' | 74 | S36 | 1/2" NPT |
HFSFP13612-3/4"UNF | 1/2'' | 70 | S36 | 3/4-16UNF |
HFSFP13634-3/4"NPT | 3/4'' | 87 | S41 | 3/4" NPT |
HFSFP13634-1-1/16"UN | 3/4'' | 87 | S41 | 1-1/16"UN-12 |
HFSFP13610-1"NPT | 1'' | 91.5 | S50 | 1" NPT |
HFSFP13610-1-1/4"NPT | 1'' | 93.5 | S55 | 1-1/4" NPT |
HFSFP13610-1-5/16"UN | 1'' | 91.5 | S50 | 1-5/16" UN -12 |
HFSFP13610-1-5/8"UN | 1'' | 93.5 | S55 | 1-5/8" UN -12 |
HFSFP13620-1-1/2''NPT | 2'' | 123.5 | S75 | 1-1/2NPT |
HFSFP13620-2''NPT | 2'' | 123.5 | S75 | 2NPT |
