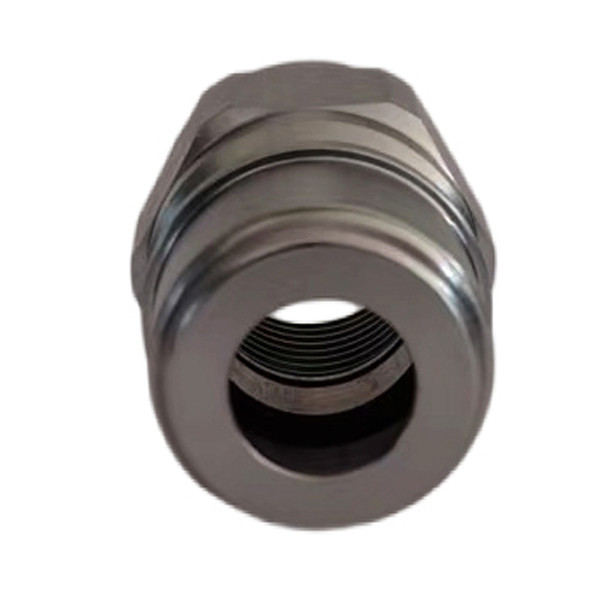

200/202 Series | Nordic TEMA Model Quick Coupler With Pressure Eliminator (Steel, Brass)
group namePoppet (Interchange) Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 21:05:05 GMT
Paramtents
Interchange CEJN 525 SERIES
Interchange STUCCHI IRC SERIES
Interchange TEMA T SERIES
Interchange DNP PTK1 SERIES
Interchange DNP PTO1 SERIES
Interchange DIXON TR SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with CEJN 525 SERIES, STUCCHI IRC SERIES, TEMA T SERIES, DNP PTK1 SERIES, DIXON TR SERIES, and DNP PTO1 SERIES. Steel Product. The 200 Series Interchange Coupler (Nordic-type) combines advanced safety and reliable sealing for demanding hydraulic applications. Its protective safety sleeve prevents accidental disconnection, while the elastomer-sealed poppet valve ensures leak-free performance when disconnected. The series offers dual poppet options—standard and pressure-eliminator variants—to meet diverse system requirements. Designed for flexible operation, these couplers allow connection under residual pressure (male or female side), provided the counterpart is pressure-free, ensuring safe and efficient maintenance in industrial environments. 100 is the standard version, 200 is the connection under pressure version. 202 is the version without any internal valve, so free flow.
Detailed
200 Series / 202 Series (Unvalved)
Manual Locking Ring Coupling (Carbon Steel, Brass)-Poppet Valve
This EH series is interchangeable with CEJN 525 SERIES, STUCCHI IRC SERIES, TEMA T SERIES, DNP PTK1 SERIES, DIXON TR SERIES, and DNP PTO1 SERIES. The 200 Series Interchange Coupler (Nordic-type) combines advanced safety and reliable sealing for demanding hydraulic applications. Its protective safety sleeve prevents accidental disconnection, while the elastomer-sealed poppet valve ensures leak-free performance when disconnected. The series offers dual poppet options—standard and pressure-eliminator variants—to meet diverse system requirements. Designed for flexible operation, these couplers allow connection under residual pressure (male or female side), provided the counterpart is pressure-free, ensuring safe and efficient maintenance in industrial environments. 100 is the standard version, 200 is the connection under pressure version. 202 is the version without any internal valve, so free flow.
Female
| 200 Series, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC20038-3/8" | 3/8'' | 62 | 34 | S24 | 3/8"BSPP |
HFSFC20012-1/2" | 1/2'' | 68 | 40 | S30 | 1/2" BSPP |
HFSFC20034-3/4" | 3/4'' | 79 | 52 | S38 | 3/4" BSPP |
HFSFC20010-1" | 1'' | 92 | 62 | S45 | 1" BSPP |
| 202 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC20238-3/8" | 3/8'' | 62 | 34 | S24 | 3/8"BSPP |
HFSFC20212-1/2" | 1/2'' | 68 | 40 | S30 | 1/2" BSPP |
HFSFC20234-3/4" | 3/4'' | 79 | 52 | S38 | 3/4" BSPP |
HFSFC20210-1" | 1'' | 92 | 62 | S45 | 1" BSPP |
Male
| 200 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP20038-3/8" | 3/8'' | 39 | S22 | 3/8"BSPP |
HFSFP20012-1/2" | 1/2'' | 43 | S27 | 1/2" BSPP |
HFSFP20034-3/4" | 3/4'' | 50 | S36 | 3/4" BSPP |
HFSFP20010-1" | 1'' | 56.5 | S45 | 1" BSPP |
| 202 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP20238-3/8" | 3/8'' | 39 | S22 | 3/8"BSPP |
HFSFP20212-1/2" | 1/2'' | 43 | S27 | 1/2" BSPP |
HFSFP20234-3/4" | 3/4'' | 50 | S36 | 3/4" BSPP |
HFSFP20210-1" | 1'' | 56.5 | S45 | 1" BSPP |
