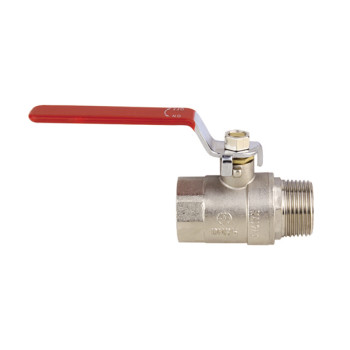

EH1001,1002 Series | Low Pressure Brass Ball Valve (Brass)
group nameWater & Gas Ball Valves
-
Min Order1 piece
brand nameEH
-
update timeSun, 07 Dec 2025 06:02:30 GMT
Paramtents
MOQ (Minimum Order Quantity) 1000 Pieces
Packging & Delivery
Min Order1 piece
Briefing
Brass Product. Suitable for industrial, pneumatic, domestic, and hydraulic installations. Steam, gasoline, fuel, oils, gas-oil, kerosene, acids, compressed air, etc. Minimum and maximum working temperature: -15°C-120°C. Available from 1/4'' to 2'' body sizes.
Detailed
EH1001 Series

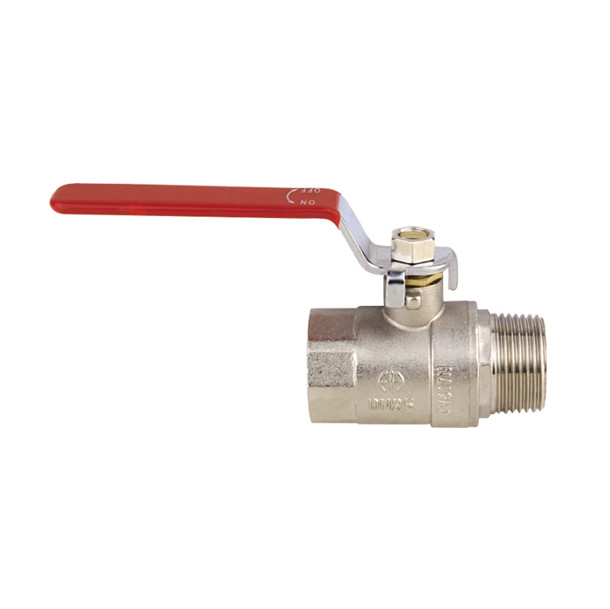

Low-pressure 2-way brass ball valve with red steel handle (brass)
Brass product. Suitable for industrial, pneumatic, domestic and hydraulic installations. Steam, gasoline, fuel, oils, diesel, kerosene, acids, compressed air, etc. Minimum and maximum operating temperatures: -15 °C to 120 °C. Available in diameters from 6.35 mm to 5.16 mm.
Dimensions
| Other threads/fitting ends are available upon request | |||||
Body size (inches) | Un(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
1/4'' | 41,8 | 8 | 21,5 | 65,5 | 41 |
3/8'' | 45 | 10 | 25 | 65,5 | 42 |
1/2'' | 53 | 14 | 29 | 91,5 | 47,2 |
3/4'' | 60,7 | 19 | 35,5 | 101 | 56 |
1'' | 69 | 23 | 42 | 118 | 61,5 |
1-1/4'' | 84 | 31 | 55,5 | 114,5 | 68 |
1-1/2'' | 98 | 39,5 | 68 | 176 | 81 |
2'' | 118 | 48 | 83 | 176 | 87,5 |
| Other threads/fitting ends are available upon request | |||||
Body size (inches) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
1/4'' | 52 | 8 | 21,5 | 65,5 | 41 |
3/8'' | 55 | 10 | 25 | 65,5 | 42 |
1/2'' | 59 | 14 | 29 | 91,5 | 47,2 |
3/4'' | 68,2 | 19 | 35,5 | 101 | 56 |
1'' | 76,2 | 23 | 42 | 118 | 61,5 |
1-1/4'' | 94,5 | 31 | 55,5 | 114,5 | 68 |
1-1/2'' | 104,5 | 39,5 | 68 | 176 | 81 |
2'' | 130 | 48 | 83 | 176 | 87,5 |
