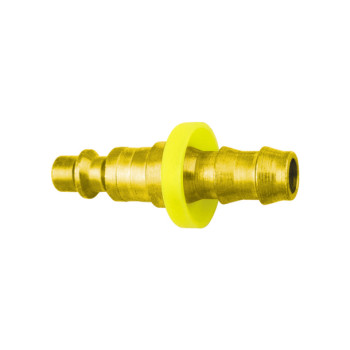

EH02,21 Series | RECTUS Pneumatic Quick Coupling (Brass, Steel)
group namePneumatic Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 19:20:38 GMT
Paramtents
Interchange Parker 20 Series
Interchange Parker 30 Series
Interchange HANSEN 1000 Series
Interchange HANSEN 3000 Series
Interchange RECTUS 23KA Series
Interchange RECTUS 24 Series
Interchange RECTUS 1400 Series
Interchange RECTUS 1423 Series
Interchange CEJN 310 Series
Interchange TEMA 1400 Series
Interchange FOSTER 3/4/5/6 SERIES
Interchange GROMELLE 600 Series
Interchange JWL 521 Series
Interchange JWL 531 Series
Interchange EATON 43 Series
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with Parker 20 series, Parker 30 series, Hansen 1000 series, Hansen 3000 series, Rectus 23KA series, Rectus 24 series, Rectus 1400 series, Rectus 1423 series, CEJN 310 series, TEMA 1400 series, FOSTER 3/4/5/6 SERIES, GROMELLE 600 series, JWL 521 series, JWL 531 series, and Eaton 43 series pneumatic quick couplers.
Brass / Steel Product. This sleeve-type coupler accepts industrial interchange. It is widely used to connect air lines and low-pressure fluids. Its compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple. The sliding spring-loaded sleeve on the coupler must be manually retracted to connect or disconnect the nipple. Common applications include compressed air, water, grease, paint, limited vacuum, and limited gases.
Brass / Steel Product. This sleeve-type coupler accepts industrial interchange. It is widely used to connect air lines and low-pressure fluids. Its compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple. The sliding spring-loaded sleeve on the coupler must be manually retracted to connect or disconnect the nipple. Common applications include compressed air, water, grease, paint, limited vacuum, and limited gases.
Detailed
02, 21 Series
Pneumatic Quick Coupling (Brass, Steel), ISO-6150-B Standard, Industrial Interchange Coupling, 1/4'', 3/8'', 1/2'' Body
This EH series is interchangeable with Parker 20 series, Parker 30 series, Hansen 1000 series, Hansen 3000 series, Rectus 23KA series, Rectus 24 series, Rectus 1400 series, Rectus 1423 series, CEJN 310 series, TEMA 1400 series, FOSTER 3/4/5/6 series, GROMELLE 600 series, JWL 521 series, JWL 531 series, and Eaton 43 series pneumatic quick couplers.
This sleeve-type coupler accepts industrial interchange. It is widely used to connect air lines and low-pressure fluids. Its compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple. The sliding spring-loaded sleeve on the coupler must be manually retracted to connect or disconnect the nipple. Common applications include compressed air, water, grease, paint, limited vacuum, and limited gases.
Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Size | Ls(mm) | D(mm) | Hs(mm) | A(mm) | T | Dn(mm) |
| PFBMC0214 -1/4'' | 1/4'' | 04SM | 51.5 | 22.7 | S19 | 11 | 1/4"NPTF | 7.5 |
| PFBMC0214 -3/8'' | 1/4'' | 06SM | 52.5 | 22.7 | S19 | 12 | 3/8"NPTF | 8.5 |
PFBMC0214 -1/2'' | 1/4'' | 08SM | 55.5 | 22.7 | S22 | 15 | 1/2"NPTF | 8.5 |
PFBMC0238 -3/8'' | 3/8'' | 06SM | 66 | 27 | S22 | 14 | 3/8"NPTF | 11 |
PFBMC0212 -1/2'' | 1/2'' | 08SM | 78 | 32 | S25 | 16 | 1/2"NPTF | 13 |
PFBFC0214-1/4" | 1/4'' | 04SM | 48.5 | 22.7 | S19 | 11 | 1/4"NPTF | 7.5 |
PFBFC0214-3/8" | 1/4'' | 06SM | 49.5 | 22.7 | S20.5 | 12 | 3/8"NPTF | 8.5 |
PFBFC0214-1/2" | 1/4'' | 08SM | 52.5 | 22.7 | S24 | 15 | 1/2"NPTF | 8.5 |
PFBFC0238-3/8" | 3/8'' | 06SM | 60 | 27 | S22 | 14 | 3/8"NPTF | 11 |
PFBFC0212-1/2" | 1/2'' | 08SM | 74 | 32 | S25 | 16 | 1/2"NPTF | 13 |
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Size | Ls(mm) | D(mm) | Hs(mm) | A(mm) | T | Dn(mm) |
| PFBHC0214 -1/4'' | 1/4'' | 04SH | 60.7 | 22.7 | S19 | 24.7 | 1/4" | 4 |
| PFBHC0214 -3/8'' | 1/4'' | 06SH | 60.7 | 22.7 | S20.5 | 24.7 | 3/8" | 6 |
PFBHC0238 -3/8'' | 3/8'' | 06SH | 76 | 27 | S22 | 30 | 3/8" | 11 |
PFSHC0214 -1/4'' | 1/4'' | 04SH | 60.7 | 22.7 | S19 | 24.7 | 1/4" | 4 |
PFSHC0214 -3/8'' | 1/4'' | 06SH | 60.7 | 22.7 | S19 | 24.7 | 3/8" | 6 |
PFSHC0238 -3/8'' | 3/8'' | 06SH | 76 | 27 | S22 | 30 | 3/8" | 11 |
PFBHC2114 -1/4" | 1/4'' | 04SH | 56.5 | 22.7 | S19 | 20.5 | 1/4"H | 4 |
PFBHC2114 -3/8" | 1/4'' | 06SH | 60 | 22.7 | S20.5 | 24 | 3/8"H | 6 |
PFBHC2138 -3/8" | 3/8'' | 06SH | 70 | 27 | S22 | 30 | 3/8"H | 11 |
PFSHC2114 -1/4" | 1/4'' | 04SH | 56.5 | 22.7 | S19 | 20.5 | 1/4"H | 4 |
PFSHC2114 -3/8" | 1/4'' | 06SH | 60 | 22.7 | S19 | 24 | 3/8"H | 6 |
PFSHC2138 -3/8" | 3/8'' | 06SH | 70 | 27 | S22 | 30 | 3/8"H | 11 |

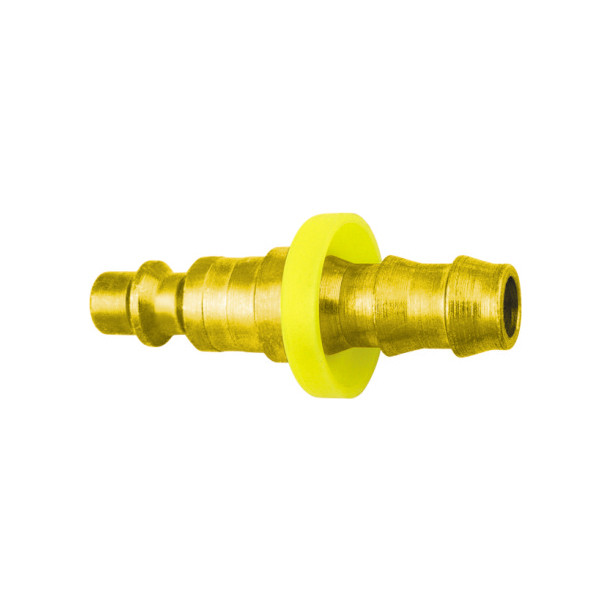

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Size | Lp(mm) | Hp(mm) | A(mm) | C(mm) | T | Dn(mm) |
| PFSMP0214 -1/4'' | 1/4'' | 04PM | 43.5 | S14 | 11 | 23.8 | 1/4"NPTF | 4.7 |
| PFSMP0214 -3/8'' | 1/4'' | 06PM | 44.5 | S19 | 12 | 23.8 | 3/8"NPTF | 4.7 |
PFSMP0214 -1/2'' | 1/4'' | 08PM | 47.5 | S22 | 15 | 23.8 | 1/2"NPTF | 4.7 |
PFSMP0238 -3/8'' | 3/8'' | 06PM | 45 | S17 | 12 | 26.5 | 3/8"NPTF | 7 |
PFSMP0212 -1/2'' | 1/2'' | 08PM | 58 | S21 | 16 | 33 | 1/2"NPTF | 10 |
PFSFP0214-1/4" | 1/4'' | 04PF | 40.5 | S16 | 11 | 23.8 | 1/4"NPTF | 4.7 |
PFSFP0214-3/8" | 1/4'' | 06PF | 41.5 | S20.5 | 12 | 23.8 | 3/8"NPTF | 4.7 |
PFSFP0214-1/2" | 1/4'' | 08PF | 44.5 | S24 | 15 | 23.8 | 1/2"NPTF | 4.7 |
PFSFP0238-3/8" | 3/8'' | 06PF | 46 | S22 | 14 | 26.5 | 3/8"NPTF | 7 |
PFSFP0212-1/2" | 1/2'' | 08PF | 52.5 | S25 | 16 | 33 | 1/2"NPTF | 10 |
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Size | Lp(mm) | Hp(mm) | A(mm) | C(mm) | T | Dn(mm) |
| PFBHP0214 -1/4'' | 1/4'' | 04PH | 52.7 | 14 | 24.7 | 23.8 | 1/4" | 4.7 |
| PFBHP0214 -3/8'' | 1/4'' | 06PH | 52.7 | 14 | 24.7 | 23.8 | 3/8" | 4.7 |
PFBHP0238 -3/8'' | 3/8'' | 06PH | 60.5 | 14 | 30 | 26.5 | 3/8" | 7 |
PFSHP0214 -1/4'' | 1/4'' | 04PH | 52.7 | 14 | 24.7 | 23.8 | 1/4" | 4.7 |
PFSHP0214 -3/8'' | 1/4'' | 06PH | 52.7 | 14 | 24.7 | 23.8 | 3/8" | 4.7 |
PFSHP0238 -3/8'' | 3/8'' | 06PH | 60.5 | 14 | 30 | 26.5 | 3/8" | 7 |
PFBHP2114 -1/4" | 1/4'' | 04PH | 48.5 | 14 | 20.5 | 23.8 | 1/4"H | 4.7 |
PFBHP2114 -3/8" | 1/4'' | 06PH | 52 | 14 | 24 | 23.8 | 3/8"H | 4.7 |
PFBHP2138 -3/8" | 3/8'' | 06PH | 55 | 14 | 24.5 | 26.5 | 3/8" | 7 |
PFSHP2114 -1/4" | 1/4'' | 04PH | 48.5 | 14 | 20.5 | 23.8 | 1/4"H | 4.7 |
PFSHP2114 -3/8" | 1/4'' | 06PH | 52 | 14 | 24 | 23.8 | 3/8"H | 4.7 |
PFSHP2138 -3/8" | 3/8'' | 06PH | 55 | 14 | 24.5 | 26.5 | 3/8" | 7 |
