82 Series | ISO 7241 B Quick Disconnect Steel Versions (Steel)
group nameCAT Replacement Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 19:30:17 GMT
Paramtents
Interchange PARKER 60 SERIES
Interchange DIXON H SERIES
Interchange EATON AEROQUIP FD45 SERIES
Interchange FASTER HNV SERIES
Interchange DNP PBV1 SERIES
Interchange STUCCHI IRB SERIES
Interchange HANSEN HK SERIES
Interchange SAFEWAY S10 SERIES
Interchange VOSWINKEL IB SERIES
Interchange GROMELLE 635-A SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBV1 SERIES, STUCCHI IRB SERIES, HANSEN HK SERIES, SAFEWAY S10 SERIES, VOSWINKEL IB SERIES, and GROMELLE 635-A SERIES. Steel Product. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8" to 2" with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
Detailed
82 Series
Hydraulic Quick Coupling (Steel)
ISO-7241-B, Poppet Valve
This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBV1 SERIES, STUCCHI IRB SERIES, HANSEN HK SERIES, SAFEWAY S10 SERIES, VOSWINKEL IB SERIES, and GROMELLE 635-A SERIES. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8" to 2" with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.

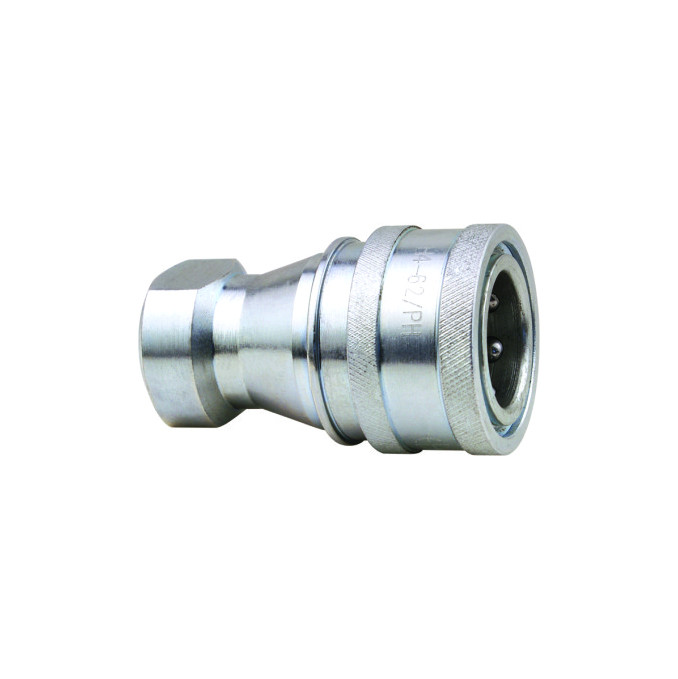

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC8218-1/8" | 1/8'' | 48 | 24 | S14 | 1/8"NPT(BSPP) |
| HFSFC8214-1/4" | 1/4'' | 58 | 28 | S19 | 1/4"NPT(BSPP) |
HFSFC8238-3/8" | 3/8'' | 65 | 35 | S21 | 3/8"NPT(BSPP) |
HFSFC8212-1/2" | 1/2'' | 72 | 44.5 | S29 | 1/2"NPT(BSPP) |
HFSFC8234-3/4" | 3/4'' | 88 | 55 | S35 | 3/4"NPT(BSPP) |
HFSFC8210-1" | 1'' | 102 | 65 | S41 | 1"NPT(BSPP) |
HFSFC82112-1-1/2" | 1-1/2'' | 124 | 79 | S63 | 1-1/2"NPT(BSPP) |
HFSFC8220-2" | 2'' | 132 | 109 | S77 | 2"NPT(BSPP) |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP8218-1/8" | 1/8'' | 30 | S14 | 1/8"NPT(BSPP) |
| HFSFP8214-1/4" | 1/4'' | 36.5 | S17 | 1/4"NPT(BSPP) |
HFSFP8238-3/8" | 3/8'' | 40 | S21 | 3/8"NPT(BSPP) |
HFSFP8212-1/2" | 1/2'' | 44 | S29 | 1/2"NPT(BSPP) |
HFSFP8234-3/4" | 3/4'' | 52.5 | S35 | 3/4"NPT(BSPP) |
HFSFP8210-1" | 1'' | 62 | S42 | 1"NPT(BSPP) |
HFSFP82112-1-1/2" | 1-1/2'' | 75 | S63 | 1-1/2"NPT(BSPP) |
HFSFP8220-2" | 2'' | 80 | S77 | 2"NPT(BSPP) |
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-B-1/4-P-P | ISO-B-1/4-C-P | PVC |
| 06 | 10 | ISO-B-3/8-P-P | ISO-B-3/8-C-P | PVC |
08 | 12.5 | ISO-B-1/2-P-P | ISO-B-1/2-C-P | PVC |
12 | 20 | ISO-B-3/4-P-P | ISO-B-3/4-C-P | PVC |
| 16 | 25 | ISO-B-1-P-P | ISO-B-1-C-P | PVC |
