75 Series | ANV AGRI ISO 7241 A Quick Coupling With Poppet Valve (Steel)
group nameCAT Replacement Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 21:20:10 GMT
Paramtents
Interchange HANSEN HA15000 SERIES
Interchange PARKER 6600 SERIES
Interchange EATON AEROQUIP 5600 SERIES
Interchange DNP PAV1 SERIES
Interchange STUCCHI BIR SERIES
Interchange STUCCHI IRV SERIES
Interchange DIXON K SERIES
Interchange VOSWINKEL IA SERIES
Interchange SAFEWAY S56 SERIES
Interchange FASTER ANV SERIES
Interchange FASTER AGRI SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with HANSEN HA15000 SERIES, PARKER 6600 SERIES, EATON AEROQUIP 5600 SERIES, FASTER ANV SERIES, FASTER AGRI SERIES, DNP PAV1 SERIES, STUCCHI BIR SERIES, STUCCHI IRV SERIES, DIXON K SERIES, VOSWINKEL IA SERIES, and SAFEWAY S56 SERIES. Steel Product. The 75 series is a poppet-type quick coupler compatible with ISO 7241-1 -A standards. Constructed from carbon steel with zinc plating, it ensures global interchangeability and is available in sizes from ¼'' to 2''. Due to its versatility, the 75 series is widely used in hydraulic systems, particularly in agricultural and industrial applications.
Detailed
75 Series
Hydraulic Quick Coupling (Steel)
ISO-7241-A, Poppet Valve
This EH series is interchangeable with HANSEN HA15000 SERIES, PARKER 6600 SERIES, EATON AEROQUIP 5600 SERIES, FASTER ANV SERIES, DNP PAV1 SERIES, STUCCHI BIR SERIES, STUCCHI IRV SERIES, DIXON K SERIES, VOSWINKEL IA SERIES, and SAFEWAY S56 SERIES. The 75 series is a poppet-type quick coupler compatible with ISO 7241-1 "A" standards. Constructed from carbon steel with zinc plating, it ensures global interchangeability and is available in sizes from ¼'' to 2''. Due to its versatility, the 75 series is widely used in hydraulic systems, particularly in agricultural and industrial applications.
Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC7514-1/4" | 1/4'' | 47 | 25 | S19 | 1/4"BSPP(NPT) |
| HFSFC7538-3/8" | 3/8'' | 57 | 31 | S22 | 3/8"BSPP(NPT) |
HFSFC7512-1/2" | 1/2'' | 66 | 38 | S27 | 1/2"BSPP(NPT) |
HFSFC7534-3/4" | 3/4'' | 82.5 | 48 | S34 | 3/4"BSPP(NPT) |
HFSFC7510-1" | 1'' | 97 | 54 | S41 | 1"BSPP(NPT) |
HFSFC75114-1-1/4" | 1-1/4'' | 117 | 70 | S50 | 1-1/4"BSPP(NPT) |
HFSFC75112-1-1/2" | 1-1/2'' | 133.5 | 84 | S60 | 1-1/2"BSPP(NPT) |
HFSFC7520-2" | 2'' | 160 | 100 | S75 | 2"BSPP(NPT) |

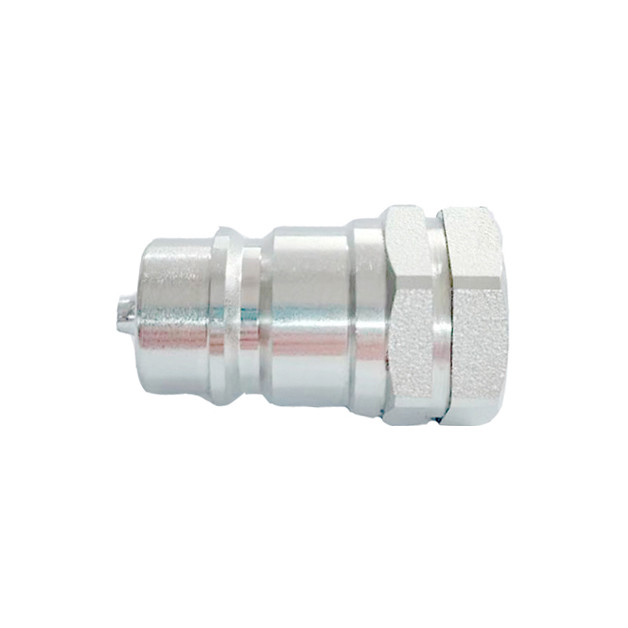

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP7514-1/4" | 1/4'' | 35 | S19 | 1/4"BSPP(NPT) |
| HFSFP7538-3/8" | 3/8'' | 39 | S22 | 3/8"BSPP(NPT) |
HFSFP7512-1/2" | 1/2'' | 46 | S27 | 1/2"BSPP(NPT) |
HFSFP7534-3/4" | 3/4'' | 55 | S34 | 3/4"BSPP(NPT) |
HFSFP7510-1" | 1'' | 63 | S41 | 1"BSPP(NPT) |
HFSFP75114-1-1/4" | 1-1/4'' | 75 | S50 | 1-1/4"BSPP(NPT) |
HFSFP75112-1-1/2" | 1-1/2'' | 83 | S60 | 1-1/2"BSPP(NPT) |
HFSFP7520-2" | 2'' | 100 | S75 | 2"BSPP(NPT) |
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-A-1/4-P-P | ISO-A-1/4-C-P | PVC |
| 06 | 10 | ISO-A-3/8-P-P | ISO-A-3/8-C-P | PVC |
08 | 12.5 | ISO-A-1/2-P-P | ISO-A-1/2-C-P | PVC |
12 | 20 | ISO-A-3/4-P-P | ISO-A-3/4-C-P | PVC |
| 16 | 25 | ISO-A-1-P-P | ISO-A-1-C-P | PVC |
