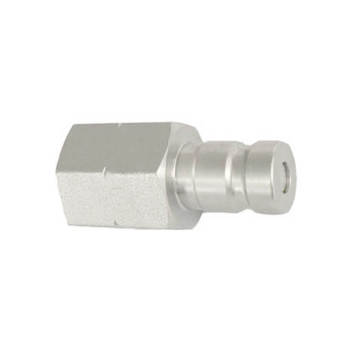

94 Series | PD Diagnostic Quick Coupling, ISO 15171-1 (Steel)
group nameCAT Replacement Couplers
-
Min Order1 piece
brand nameEH
-
update timeSat, 06 Dec 2025 08:34:45 GMT
Paramtents
Interchange PARKER PD SERIES
Interchange DIXON PD SERIES
Interchange DNP PLD3 SERIES
Interchange FASTER DF SERIES
Interchange EATON AEROQUIP FD90 SERIES
Interchange BRAZIL DYNAMIC DIAGOSTICO SERIES
Interchange HOLMBURY DTP SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER PD SERIES, DIXON PD SERIES, DNP PLD3 SERIES, FASTER DF SERIES, EATON AEROQUIP FD90 SERIES, BRAZIL DYNAMIC DIAGOSTICO SERIES, and HOLMBURY DTP SERIES. Steel Product. Hydraulic pressure measurement couplings featuring ISO 15171-1 compliant flat-face connections. The male component installs directly on hydraulic lines while the female interface connects to gauge instrumentation, enabling precise system pressure monitoring without fluid loss during connection/disconnection.
Detailed
94 Series
Hydraulic Diagnostic Quick Coupling (Steel)
Flat/Flush Face, ISO-15171-1 STANDARD
This EH series is interchangeable with PARKER PD SERIES, DIXON PD SERIES, DNP PLD3 SERIES, FASTER DF SERIES, EATON AEROQUIP FD90 SERIES, BRAZIL DYNAMIC DIAGOSTICO SERIES, and HOLMBURY DTP SERIES. Hydraulic pressure measurement couplings featuring ISO 15171-1 compliant flat-face connections. The male component installs directly on hydraulic lines while the female interface connects to gauge instrumentation, enabling precise system pressure monitoring without fluid loss during connection/disconnection.
Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC9418-1/8"NPT | 1/8'' | 44 | 24 | S21 | 1/8" NPT FEMALE |
HFSFC9418-1/4"NPT | 1/8'' | 50 | 24 | S21 | 1/4" NPT FEMALE |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9418-1/8"NPT | 1/8'' | 37.5 | S14 | 1/8" NPT FEMALE |
HFSFP9418-1/4"NPT | 1/8'' | 40 | S19 | 1/4" NPT FEMALE |
HFSMP9418-1/4"NPT | 1/8'' | 37.5 | S19 | 1/4" NPT MALE |
HFSMP9418-M14X1.5 | 1/8'' | 37.5 | S19 | M14X1.5 MALE O-RING |
