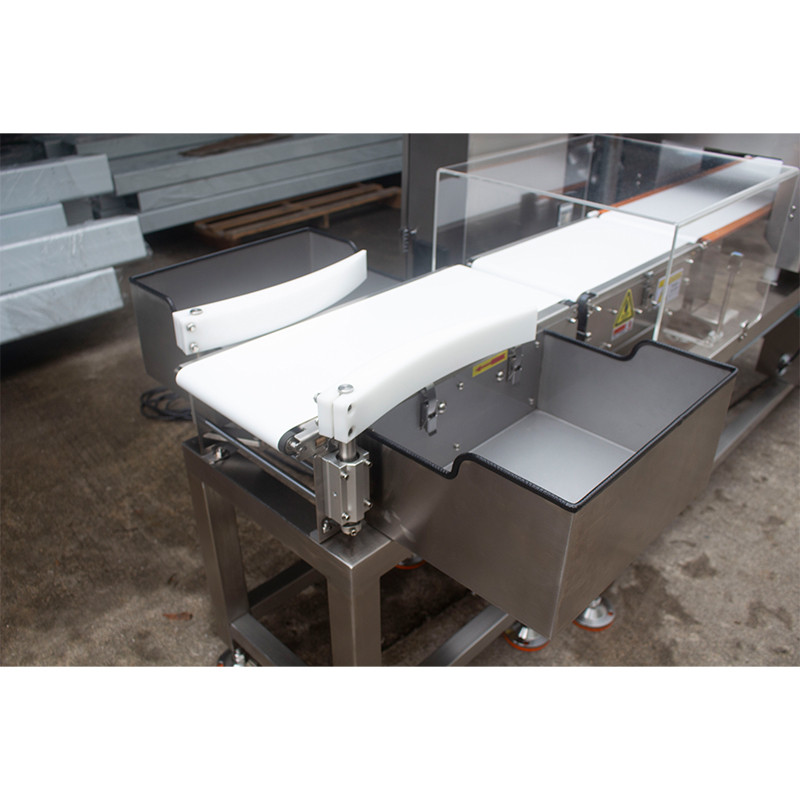

Checkweigher Metal Detector Combination System SCM-4530L2
group nameCheckweigher Combination System
-
Min Order1 piece
brand nameSameGram
modelSCM-4530L2
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeFri, 05 Dec 2025 19:40:19 GMT
Paramtents
Weighting range 1-2000g
Belt speed 5-28m/min
Weighting accuracy ±0.3-1g
Size of goden inspection H 120mm*W 300mm
Size of weighing section L≤200mm; W≤120mm；H≤100mm
Sise of inspection section L 450mm*W 230mm
Sensitivity of metal detection empty machine Fe:0.6-1.2mm，Not Fe：0.8-1.5mm、Sus：1.2-2.0mm
Rejection mode Push rod type、sliding type optional
Packging & Delivery
Min Order1 piece
Briefing
checkweigher & metal detector combo machines ensures food safety, detects contaminants, and controls weight in a compact unit.
Detailed
Detail Information
Checkweigher Metal Detector Combination System SCM-4530L2
Introduction
The SCM-4530L2 Checkweigher Metal Detector Combination is an all-in-one solution for food and pharmaceutical production lines, integrating weight verification and metal contamination detection in a single, compact system. Its space-saving design simplifies installation and minimizes footprint, while real-time monitoring, automated rejection of defective products, and smart self-diagnostics ensure efficient, reliable operation. Built-in reporting allows Excel export via USB for easy quality tracking, and safety features like hazard alerts, emergency stop, and protective covers help maintain a secure production environment, making it ideal for manufacturers seeking precise, automated quality control.
Checkweigher with Metal Detector Combination System SCM-4530L2 Features
Checkweigher with Metal Detector Combination System SCM-4530L2
Technical Parameters
| Product model | SCM-4530L2 | |
| Weighting range | 1-2000g | |
Size of goden inspection | H 120mm*W 300mm | |
Belt speed | 5-28m/min | |
Display division | 0.1g | |
| Weighting accuracy | ±0.3-1g | |
| Size of weighing section | L≤200mm; W≤120mm；H≤100mm | |
Storage formula | 100 types | |
| Power supply | AC220V±10% | |
Case material | 304 stainless steel | |
Data transmission | USB data export | |
Sise of inspection section | L 450mm*W 230mm | |
Detection method | Electromagnetic induction/digital weighing sensor | |
Rejection mode | Push rod type、sliding type optional | |
Sensitivity of metal detection empty machine | Fe:0.6-1.2mm，Not Fe：0.8-1.5mm、Sus：1.2-2.0mm | |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
Checkweigher with Metal Detector Applications
