Roller Dynamic Checkweigher for Large Packages | SC3-10060L30
group nameCheckweigher
-
Min Order1 piece
brand nameSameGram
modelSC3-10060L30
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeSat, 06 Dec 2025 03:50:58 GMT
Paramtents
Weighting range 1-30kg
Belt speed 5-60m/min
Weighting accuracy ±15-30g
Weighting section size L 1000mm*W 600mm
Applicable product size L≤750mm; W≤600mm
Rejection mode Customized
Packging & Delivery
Min Order1 piece
Briefing
SC3-10060L30 is an Dynamic Roller Checkweigher for large packages, economical and widely used in various outer box products
Detailed
Detail Information

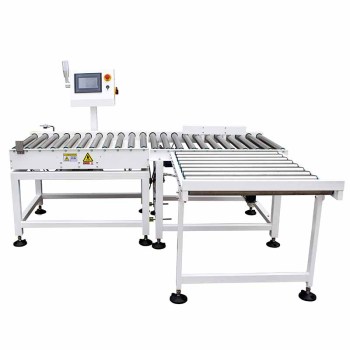

Roller Dynamic Checkweigher for Large Packages | SC3-10060L30
Introduction
The SC3-10060L30 Roller Dynamic Checkweigher is an automatic checkweigher machine designed for medium-weight cartons and large packages. Its fully roller-based weighing and conveying sections make it durable, easy to clean, and ideal for high-volume production lines where precision requirements are moderate.
This inline conveyor scale ensures smooth and efficient weight inspection, helping operators quickly identify missing items or underweight packages. The roller design offers long-lasting performance at a reasonable cost while supporting a variety of industries, including food, pharmaceuticals, electronics, and daily chemicals. With seamless integration into existing checkweigher systems, SC3-10060L30 provides reliable real-time monitoring and can be connected to ERP/MES systems for streamlined operations.
Compact, robust, and easy to maintain, it is a practical solution for companies seeking an efficient checkweigher for large packages without overcomplicating their production line.
Roller Dynamic Checkweigher for Large Packages | SC3-10060L30 Features
Roller Dynamic Checkweigher for Large Packages | SC3-10060L30
Technical Parameters
| Product model | SC3-10060L30 | |
| Weighting range | 1-30kg | |
Weighting section size | L 1000mm*W 600mm | |
Belt speed | 5-60m/min | |
Air pressure interface | Φ8mm | |
| Case material | Spray painting on carbon steel | |
Conveying direction | Facing the machine, left in and right out | |
Display division | 10g | |
| Weighting accuracy | ±15-30g | |
| Applicable product size | L≤750mm; W≤600mm | |
Storage formula | 100 types | |
| Power supply | AC220V±10% | |
| Air source | 0.5-0.8MPa | |
Data transmission | USB data export | |
Alarm mode | Sound and light alarm and automatic rejection | |
Rejection mode | Push rod type, swing wheel type, jacking transplanting are optional | |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling | |

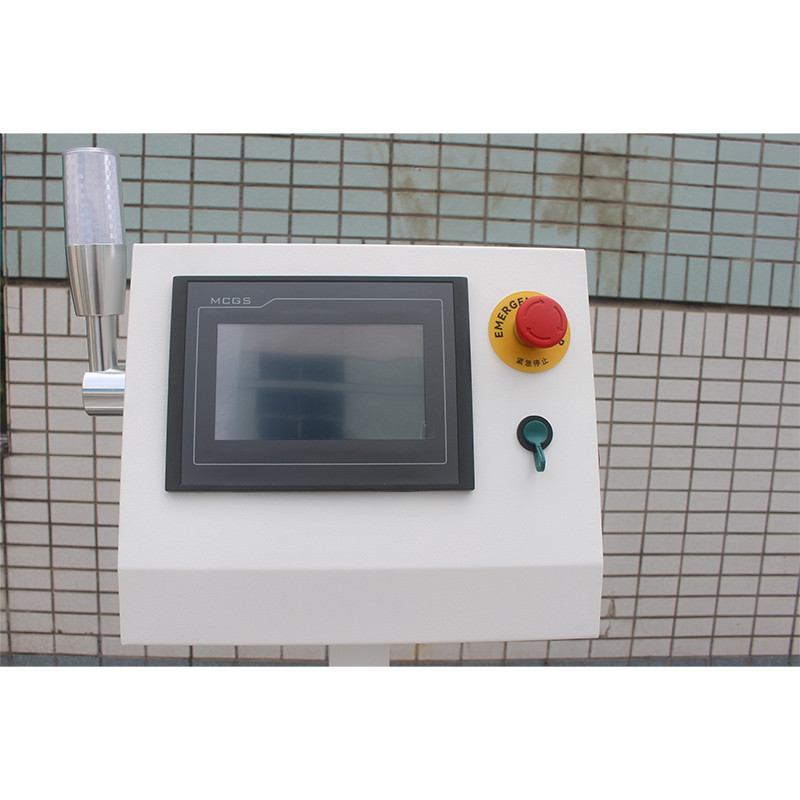

Operation screen | 7-inch Kunlun Tongtai color touch screen | |
Control system | Samegram online weighing control system V1.0.5 | |
| Other configurations | Mean Well power supply, Jingyan motor, stainless steel roller, AVIC electrical sensor | |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
