S4SC-4 Inch Solar Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT Controller
group nameDC Solar Water Pump
-
Min Order1 set
modelS4SC
payment methodT/T, L/C, D/P D/A, MoneyGram
-
update timeFri, 05 Dec 2025 21:51:41 GMT
Paramtents
Categories DC Solar Submersible Pump
Brand ZRI
Model S4PC
Pump Type Impeller Type Solar Submersible Pump
Outlet 1.25 /1.5 /2.0 inch
Pump Diameter 4 inch / 95 mm
Application Domestic water supply, small area irrigation
Certificate CE, ISO9001, GS, RoHS
Warranty 2 years
Package type Wooden Case
Packging & Delivery
Min Order1 set
Briefing
S4SC-4 Solar-Powered Centrifugal Submersible Borehole Pump with stainless steel impeller. OEM/ODM available for reliable, efficient water solutions.
Detailed

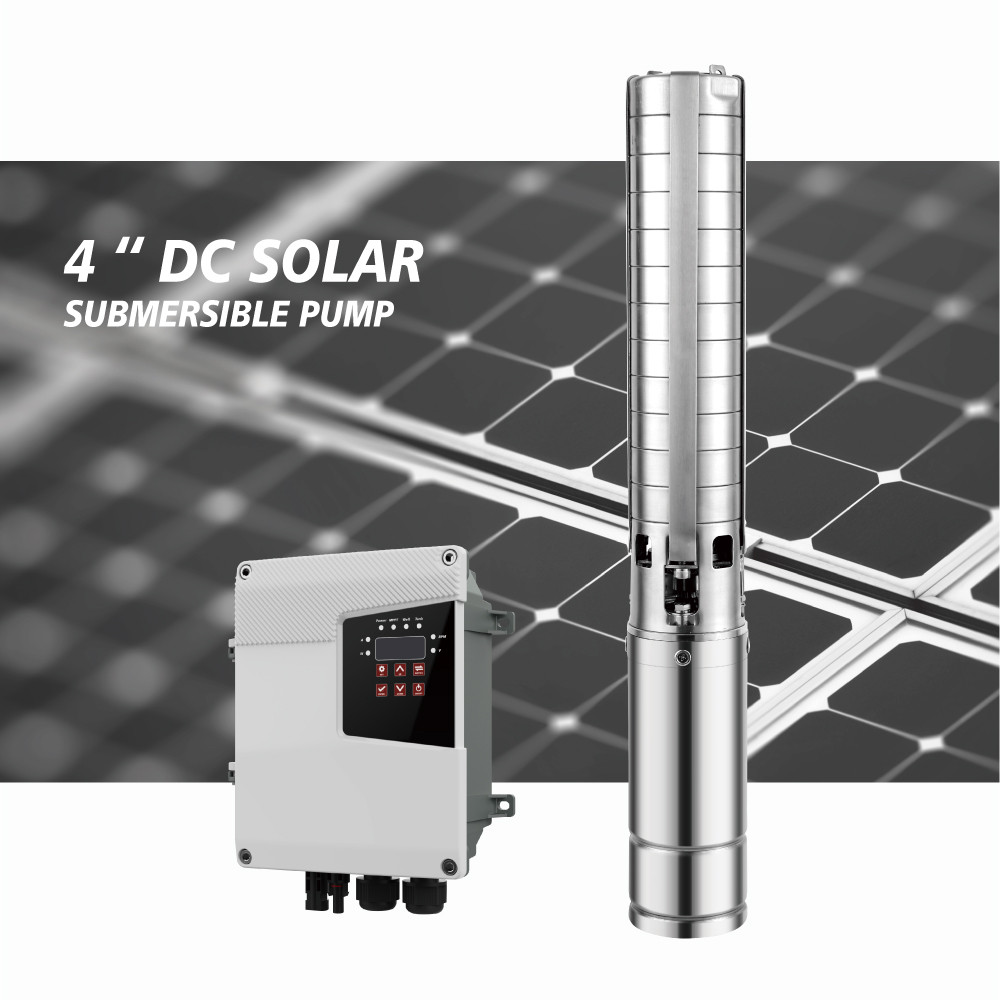

4 INCH DC CENTRIFUGAL SOLAR PUMP
The 4-inch Solar-Powered Centrifugal Water Pump is designed for reliable water
pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.
Equipped with an MPPT controller and a brushless DC motor, this solar DC submersible water pump ensures maximum energy efficiency and stable operation. Its centrifugal design enables it to deliver stable water flow efficiently even in deep wells or low-yield water sources, minimizing maintenance requirements.
This durable and versatile DC pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.
|
No.
|
Item
|
Rated Voltage
|
Optimum input voltage(DC)
|
Rated Power
|
Optimum input Power(W)
|
Max. Flow
|
Max. Head
|
Outlet
|
Cable
|
Controller
|
Solar panel
Open circuit voltage (VOC)
|
A | S4SC5.2-45-48-500D | 48V | 30-110V | 500W | 200-900W | 5.2m³/h | 45m | 1.25 " | 2m | SSCO | ＜150V |
B | S4SC5.2-67-96-750D | 96V | 60-220V | 750W | 400-1600W | 5.2m³/h | 67m | 1.25 " | 2m | SSCO | ＜250V |
C | S4SC5.2-101-110-1100D | 110V | 60-220V | 1100W | 400-1600W | 5.2m³/h | 101m | 1.25 " | 2m | SSCO | ＜250V |
D | S4SC5.2-146-110-1300D | 110V | 60-220V | 1300W | 600-1800W | 5.2m³/h | 146m | 1.25 " | 2m | SSCO | ＜250V |
E | S4SC5.2-198-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 5.2m³/h | 198m | 1.25 " | 2m | SSCO | ＜250V |
F | S4SC5.2-101-150-1100D | 150V | 80-260V | 1100W | 400-1600W | 5.2m³/h | 101m | 1.25 " | 2m | SSCO | ＜450V |
G | S4SC5.2-146-180-1300D | 200V | 120-300V | 1300W | 600-1800W | 5.2m³/h | 146m | 1.25 " | 2m | SSCO | ＜450V |
H | S4SC5.2-198-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 5.2m³/h | 198m | 1.25 " | 2m | SSCO | ＜450V |
I | S4SC5.2-255-300-2200D | 300V | 80-400V | 2200W | 1200-2800W | 5.2m³/h | 255m | 1.25 " | 2m | SSCO | ＜450V |
J | S4SC7.5-80-110-1300D | 110V | 60-220V | 1300W | 600-1800W | 7.5m³/h | 80m | 1.25 " | 2m | SSCO | ＜250V |
K | S4SC7.5-100-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 7.5m³/h | 100m | 1.25 " | 2m | SSCO | ＜250V |
L | S4SC7.5-80-180-1300D | 200V | 120-300V | 1300W | 600-1800W | 7.5m³/h | 80m | 1.25 " | 2m | SSCO | ＜450V |
M | S4SC7.5-100-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 7.5m³/h | 100m | 1.25 " | 2m | SSCO | ＜450V |
N | S4SC7.5-150-300-2200D | 300V | 80-400V | 2200W | 1200-2800W | 7.5m³/h | 150m | 1.25 " | 2m | SSCO | ＜450V |
O | S4SC11-60-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 11m³/h | 60m | 2.0 " | 2m | SSCO | ＜250V |
P | S4SC11-60-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 11m³/h | 60m | 2.0 " | 2m | SSCO | ＜450V |
Q | S4SC19-35-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 19m³/h | 35m | 2.0 " | 2m | SSCO | ＜250V |
R | S4SC19-35-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 19m³/h | 35m | 2.0 " | 2m | SSCO | ＜450V |
S | S4SC25-26-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 25m³/h | 26m | 2.0 " | 2m | SSCO | ＜250V |
T | S4SC25-26-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 25m³/h | 26m | 2.0 " | 2m | SSCO | ＜450V |
Application
● Application of deep well pump to irrigation | ● Garden watering
| |||||||
● Village and town water supply |
● Enviroment friendly
| |||||||
● Clean drinking water |
● Pumping and drip irrigation | |||||||

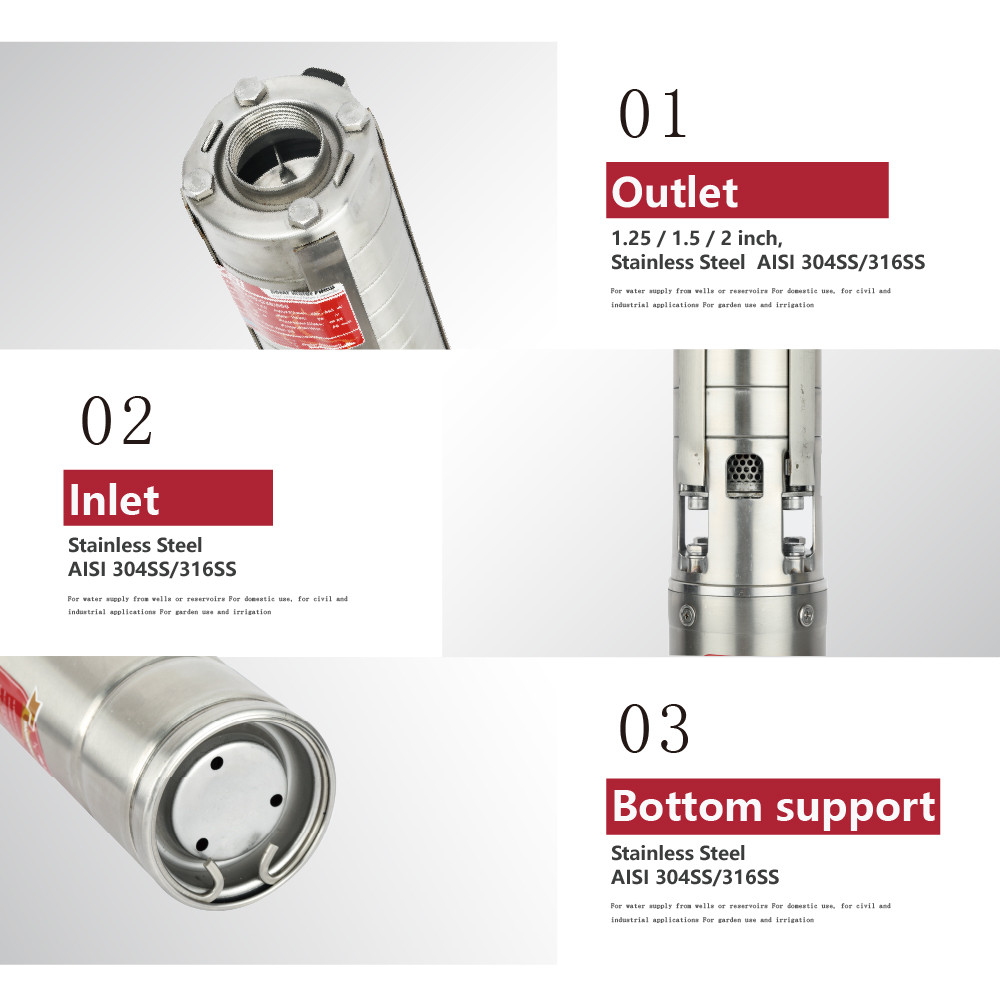

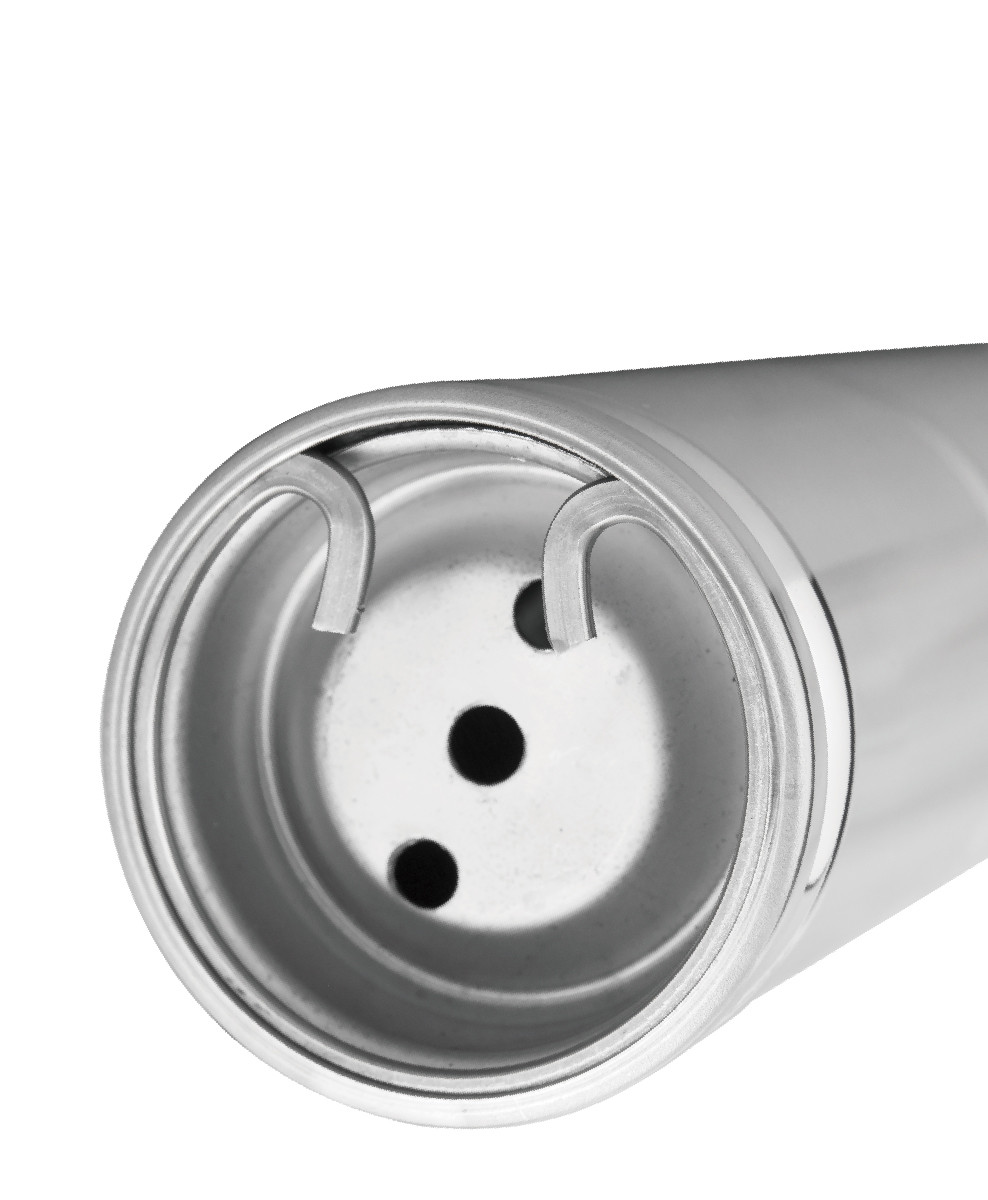

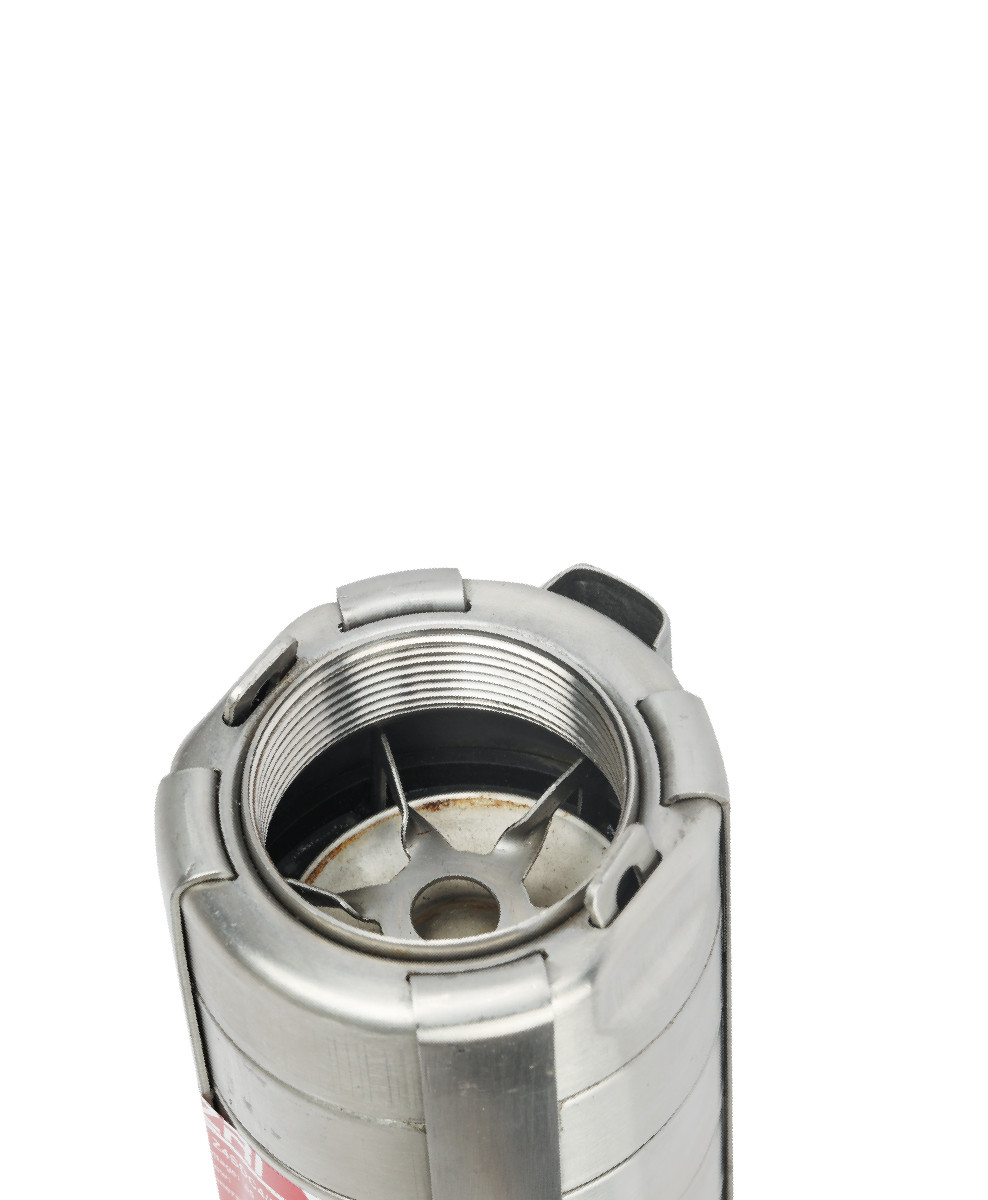

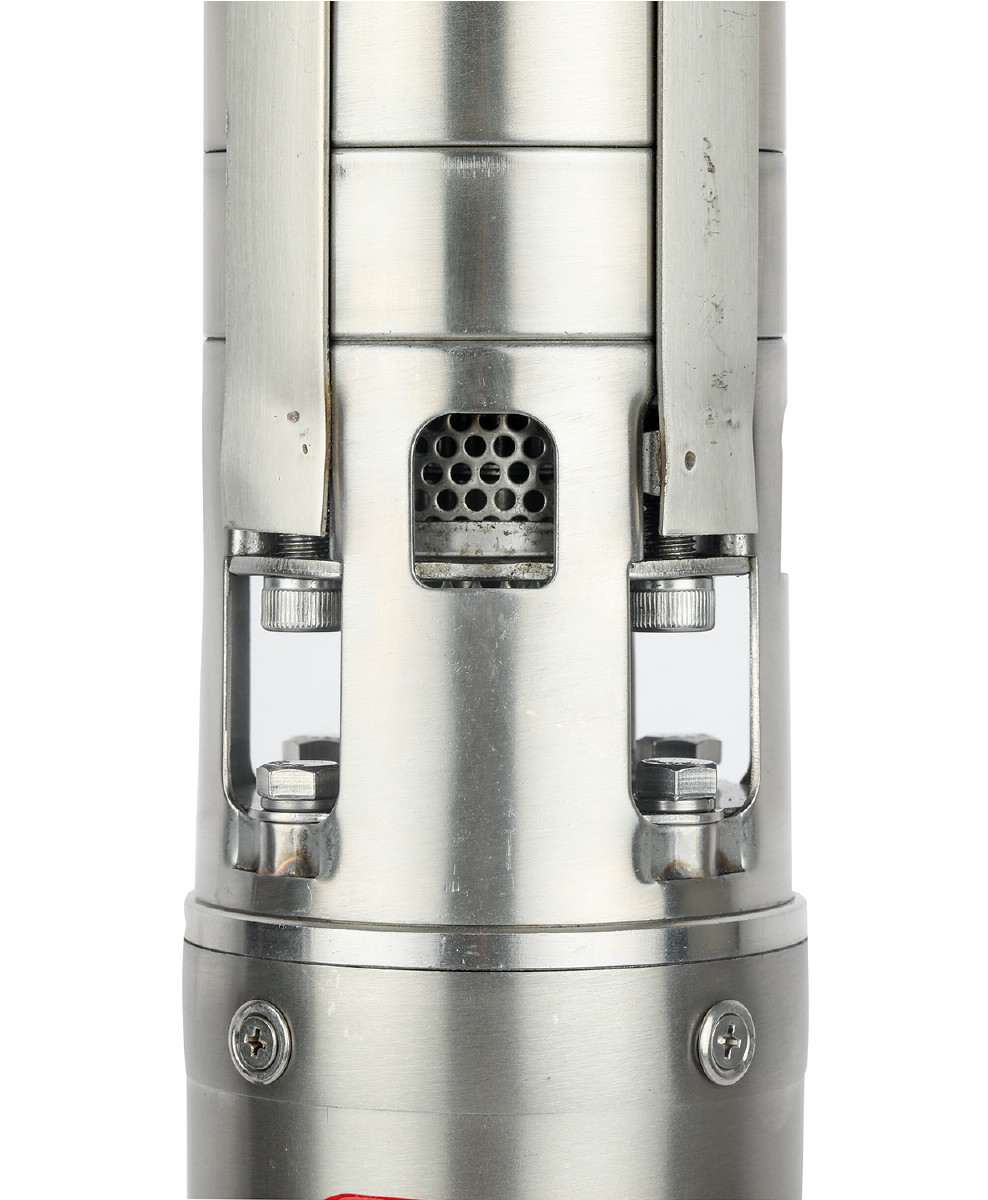

Pump Details
Trusted Manufacturer:
We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.
High Efficiency & Innovation:
Equipped with an MPPT controller and brushless DC motor, our DC centrifugal solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.
Versatile Applications:
Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.
Fully Customizable:
Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.

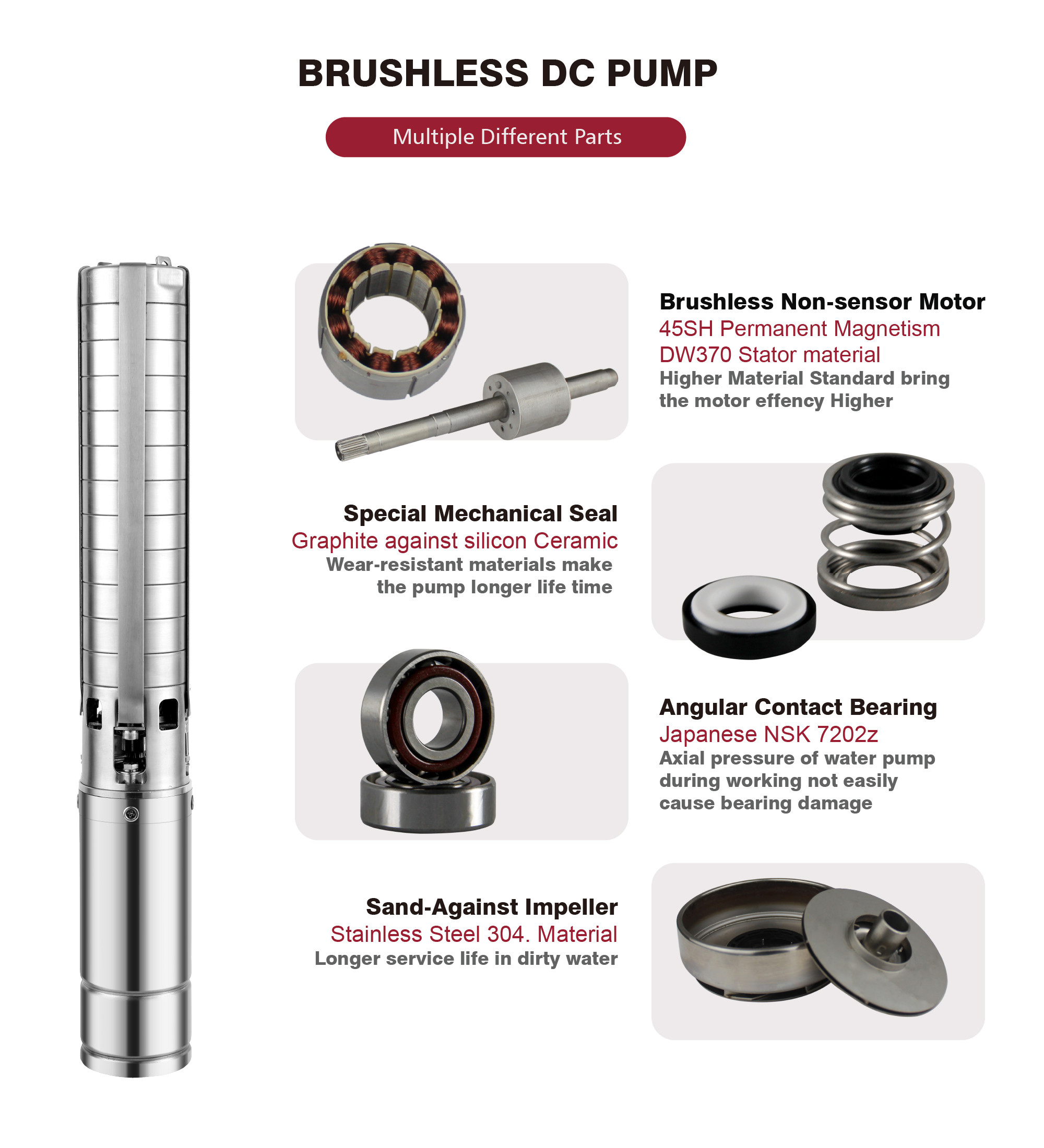

● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%
● Oil filled motors for reliability and to avoid oil contamination
● Alloy mechanical seal ,longer working life and high reliability
● NSK Angular Contact Bearing

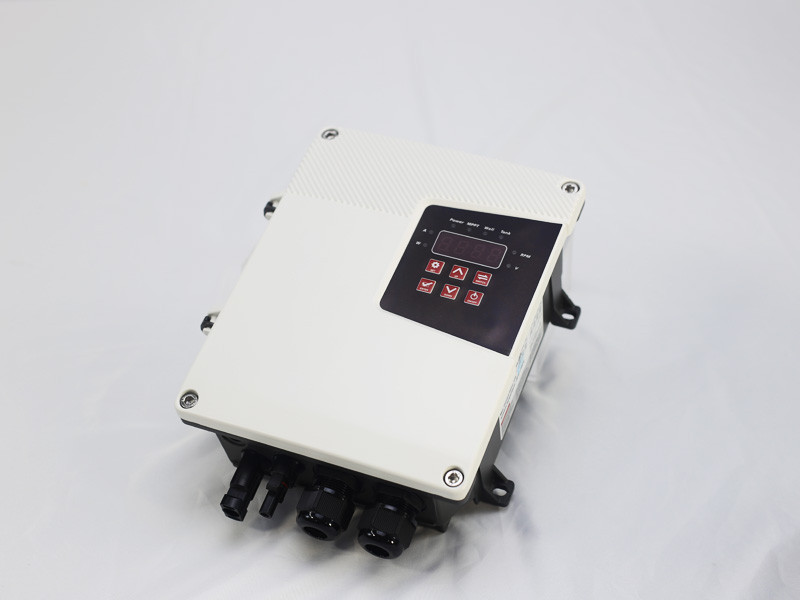

Controller Details
- MPPT: Maximum Power Point Tracking
- Running Speed Control: stepless speed regulation
- Timing function: Set pump running time
- Over current protection: Motor stops automatically when stucked
- Soft starting protection:Protect the motor & bearing
- Lack of water protection: Restart Automatically upon the Water Level
- Low-voltage / Over-voltage protection: Protect the motor & controller
- Reverse voltage protection: Circuit breaking automatically when reverse connection
- Short-circuit protection: Automatically stops when Short wiring of motor

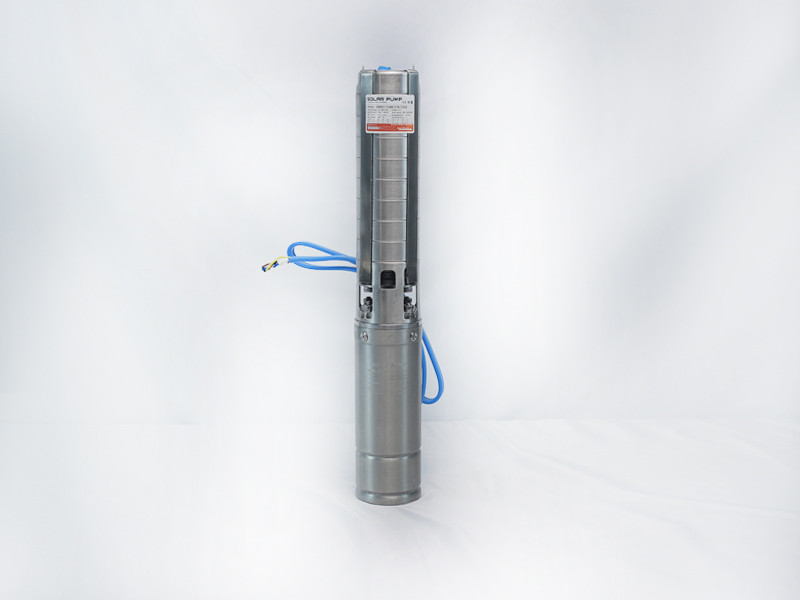

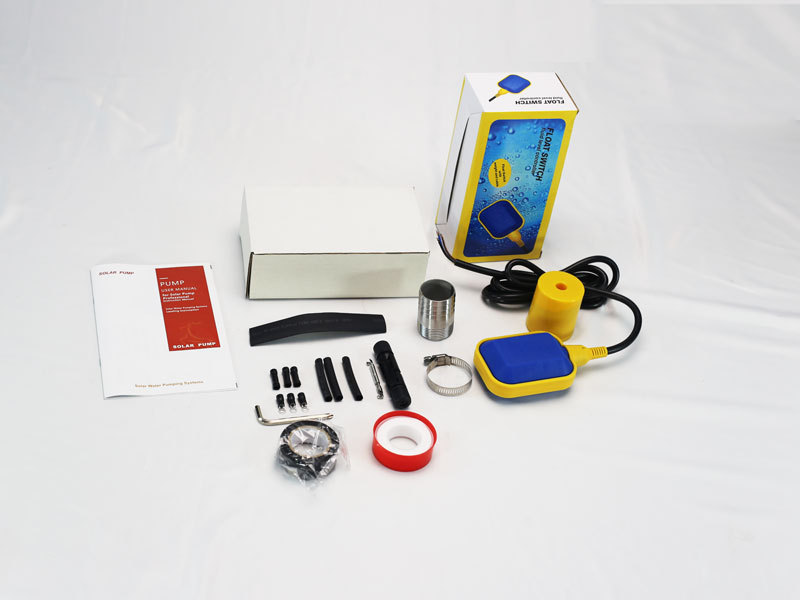

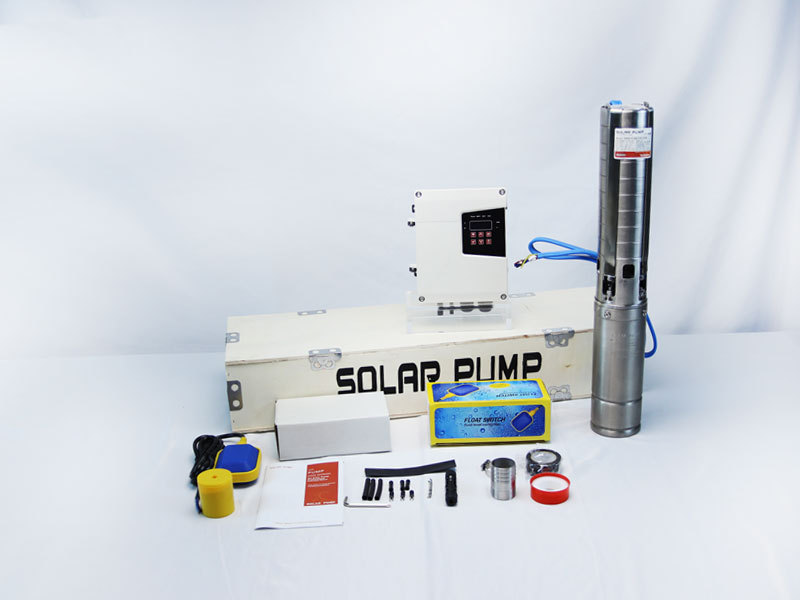

Test Report
