ZSQB-ADHY AC/DC Hybrid Solar-Powered Peripheral Surface Pump Solar Water Pump with MPPT Controller for Drinking Water
group nameDC Solar Water Pump
-
Min Order1 set
modelZSQB-ADHY
payment methodT/T, L/C, D/P D/A, MoneyGram
-
update timeFri, 05 Dec 2025 19:58:36 GMT
Paramtents
Categories AC/DC Solar Surface Pump
Brand ZRI
Model ZSQB-ADHY
Pump Type AC/DC Solar Surface Pump
Outlet 1 inch x 1 inch
Application Domestic water supply, small area irrigation
Certificate CE, ISO9001, GS, RoHS
Warranty 2 years
Package type Wooden Case
Packging & Delivery
Min Order1 set
Briefing
ZSQB Solar Water Pump with MPPT Controller: OEM/ODM solutions for reliable drinking water. Perfect for dealers and wholesalers.
Detailed
The Peripheral Type Solar Surface Pump
The Peripheral Type Solar Surface Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar water pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.
Equipped with an MPPT controller and a brushless DC motor, this solar ac/dc surface water pump ensures maximum energy efficiency and stable operation. Maintain consistent water flow even in lake ,river,shallow water sources or variable water supply conditions, significantly reducing maintenance requirements.
This durable and versatile ac/dc pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.
|
No.
|
Item
|
Rated AC Voltage
|
Rated DC Voltage
|
Rated Power
|
Optimum input Power(W)
|
Max. Flow
|
Max. Head
|
Outlet
|
Cable
|
Controller
|
Solar panel
Open circuit voltage (VOC)
|
A | ZSQB3-50-72-550-AD | 80-285V | 80-430V | 550W | 300-1200W | 3.0m³/h | 50m | 1.0×1.0 " | 1m | SSCO | ＜200V |
B | ZSQB3-65-96-750-AD | 80-285V | 80-430V | 750W | 400-1600W | 3.0m³/h | 65m | 1.0×1.0 " | 1m | SSCO | ＜250V |
Application
● Application of lake or river to irrigation | ● Garden watering
| |||||||
● Village and town water supply |
● Enviroment friendly
| |||||||
● Clean drinking water |
● Pumping and drip irrigation | |||||||

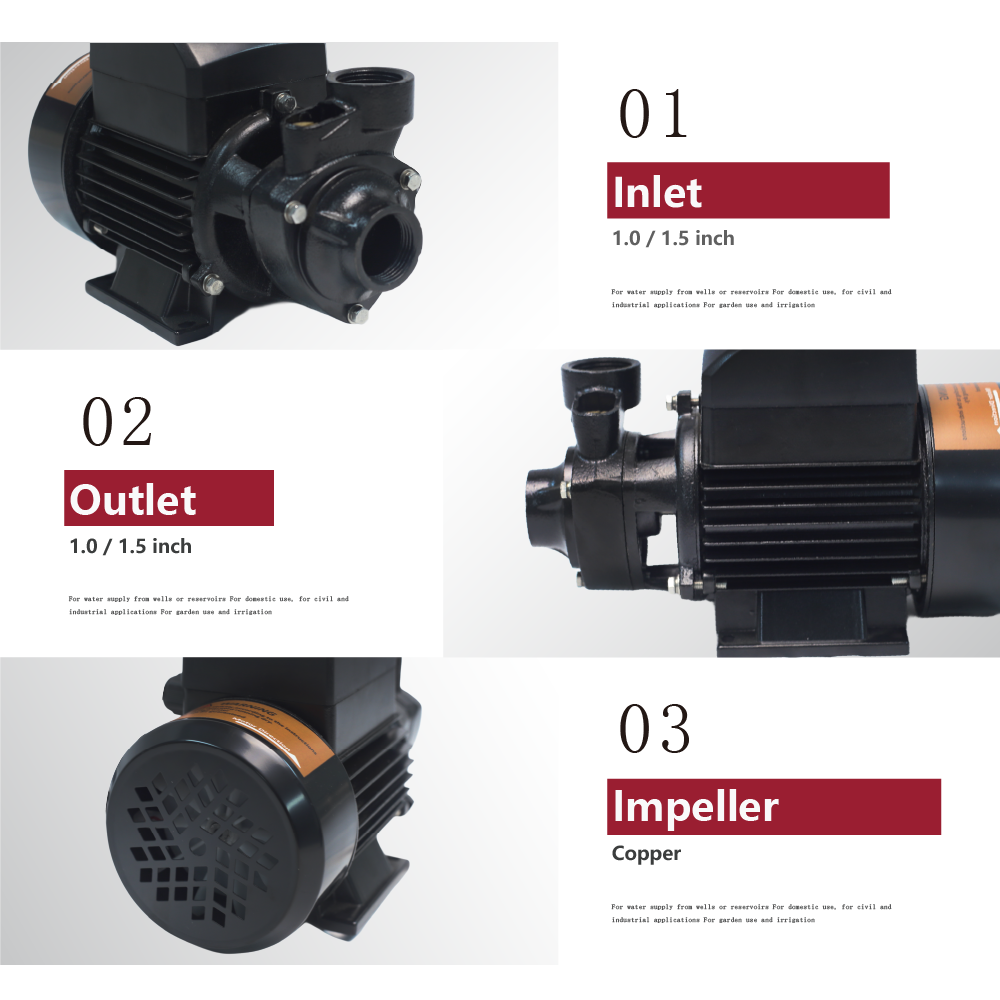

Pump Details
Trusted Manufacturer
We specialize in solar-powered pumps with years of OEM/ODM experience, boasting reliable quality and a robust global supply chain to support your business needs.
High Efficiency & Innovation
Equipped with an MPPT controller and a brushless DC motor, our solar surface water pump maximizes energy efficiency and delivers stable water flow – even with shallow water sources or variable supply conditions.
Versatile Applications
Ideal for agricultural irrigation, livestock watering, and rural water supply projects, it provides a sustainable solution for off-grid or remote water needs.
Fully Customizable
We offer flexible options for pump size, flow rate, voltage, and branding – perfect for private labeling or tailored solutions to match your specific project requirements.
● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%
● Oil filled motors for reliability and to avoid oil contamination
● Alloy mechanical seal ,longer working life and high reliability
● NSK Angular Contact Bearing

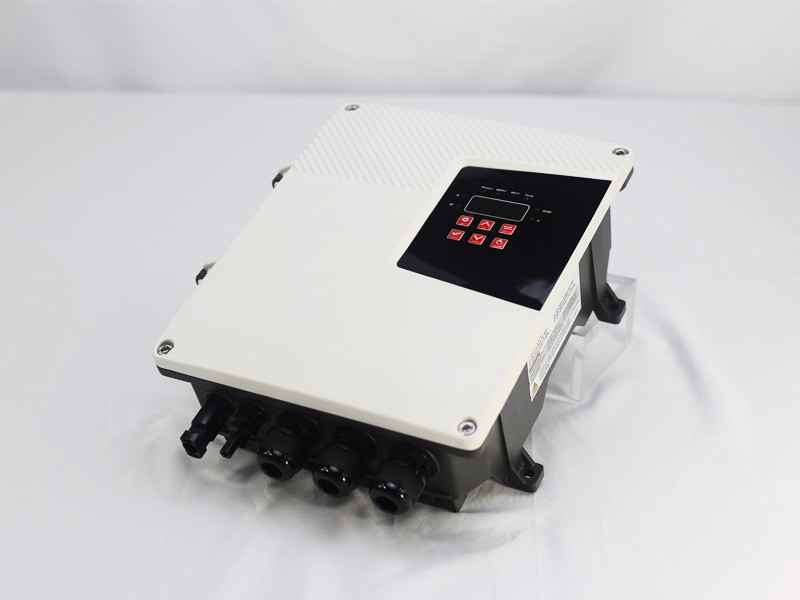

Controller Details
- MPPT: Maximum Power Point Tracking
- Running Speed Control: stepless speed regulation
- Timing function: Set pump running time
- Over current protection: Motor stops automatically when stucked
- Soft starting protection:Protect the motor & bearing
- Lack of water protection: Restart Automatically upon the Water Level
- Low-voltage / Over-voltage protection: Protect the motor & controller
- Reverse voltage protection: Circuit breaking automatically when reverse connection
- Short-circuit protection: Automatically stops when Short wiring of motor
Test Report
