Z4PC-4 inch AC/DC Hybrid Centrifugal PUMP Submersible Borehole Solar Pump
Z4PC-4 inch AC/DC Hybrid Centrifugal PUMP Submersible Borehole Solar PumpZ4PC-4 inch AC/DC Hybrid Centrifugal PUMP Submersible Borehole Solar PumpZ4PC-4 inch AC/DC Hybrid Centrifugal PUMP Submersible Borehole Solar PumpZ4PC-4 inch AC/DC Hybrid Centrifugal PUMP Submersible Borehole Solar PumpZ4PC-4 inch AC/DC Hybrid Centrifugal PUMP Submersible Borehole Solar Pump

Z4PC-4 inch AC/DC Hybrid Centrifugal PUMP Submersible Borehole Solar Pump

  • group nameAC/DC Hybrid Solar Water Pump

  • Min Order1 set

  • modelZ4PC

  • payment methodT/T, L/C, D/P D/A, MoneyGram

  • update timeFri, 05 Dec 2025 15:16:37 GMT

contact supplier

Paramtents

  • Categories AC/DC Solar Submersible Pump

  • Brand ZRI

  • Model S4PC

  • Pump Type Impeller Type Solar Submersible Pump

  • Outlet 1.25/2.0 inch

  • Pump Diameter 4 inch / 95 mm

  • Application Domestic water supply, small area irrigation

  • Certificate CE, ISO9001, GS, RoHS

  • Warranty 2 years

  • Package type Wooden Case

Packging & Delivery

  • Min Order1 set

Briefing

Quality Plastic Impeller Pumps with Efficient AC/DC MPPT Control-Premium OEM/ODM Solutions for Trade & Wholesale

Detailed

Product Details
Packaging Information
Installation Guide

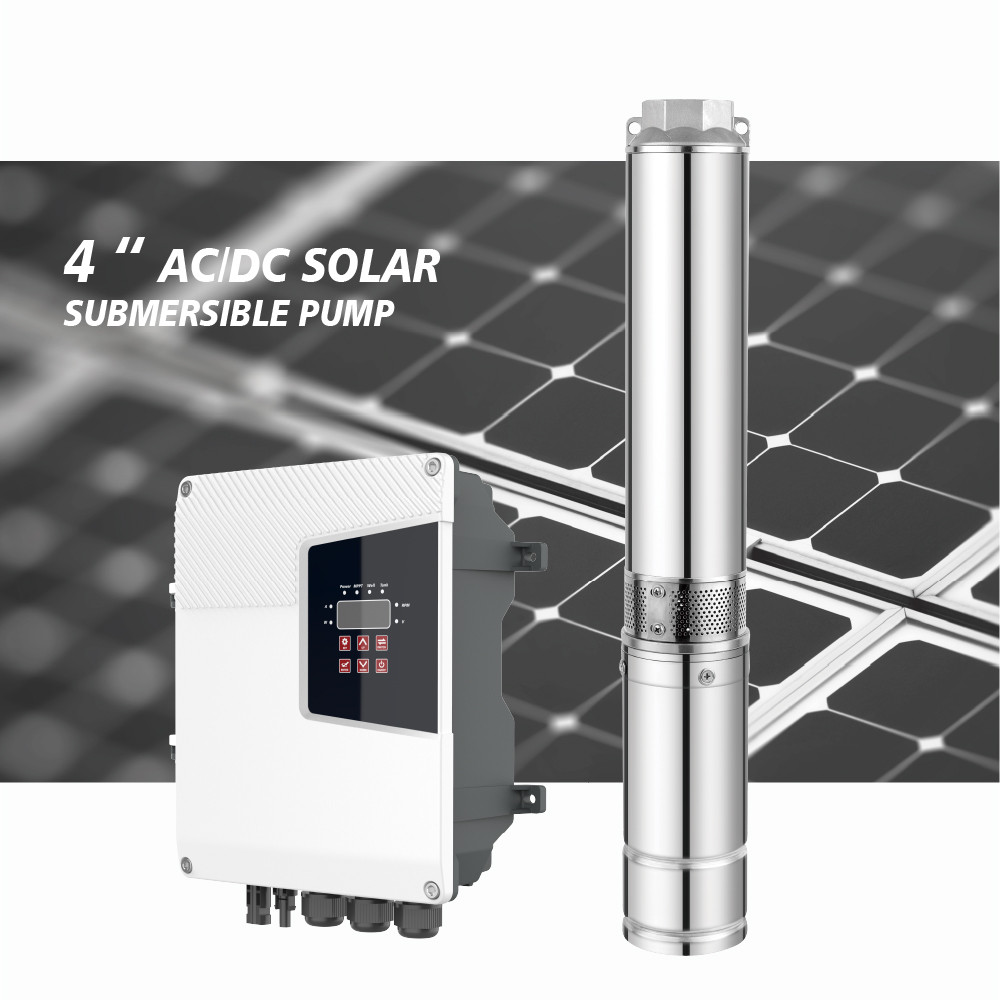

4 INCH AC/DC CENTRIFUGAL  SOLAR PUMP
introduce
The 4 inch AC/DC Hybrid Centrifugal Pump,Solar Impeller Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller and a brushless DC motor, this solar dc submersible water pump ensures maximum energy efficiency and stable operation. Its DC Impeller type design allows it to maintain consistent water flow even in deep wells or low-yield water sources, reducing maintenance needs.

This durable and versatile DC pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.
No.
Item
Rated Voltage
Optimum input voltage(DC)
Rated Power
Optimum input Power(W)
Max. Flow
Max. Head
Outlet
Cable
Controller
Solar panel Open circuit voltage (VOC)
A
Z4PC6-56-96-750D-A/DHY
80-285V
80-430V
750W
400-1200W
6m³/h
56m
1.25 "
2m
ADHY
＜450V
B
Z4PC6-84-150-1100D-A/DHY
80-285V
80-430V
1100W
600-1500W
6m³/h
84m
1.25 "
2m
ADHY
＜450V
C
Z4PC6-112-180-1300D-A/DHY
80-285V
80-430V
1300W
600-1600W
6m³/h
112m
1.25 "
2m
ADHY
＜450V
D
Z4PC6-135-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
6m³/h
135m
1.25 "
2m
ADHY
＜450V
E
Z4PC6-175-300-2200D-A/DHY
80-285V
80-430V
2200W
600-2500W
6m³/h
175m
1.25 "
2m
ADHY
＜450V
F
Z4PC6-192-300-2500D-A/DHY
80-285V
80-430V
2500W
600-2800W
6m³/h
192m
1.25 "
2m
ADHY
＜450V
G
Z4PC9-45-96-750D-A/DHY
80-285V
80-430V
750W
400-1200W
9.0m³/h
45m
2.0 "
2m
ADHY
＜450V
H
Z4PC9-58-150-1100D-A/DHY
80-285V
80-430V
1100W
600-1500W
9.0m³/h
58m
2.0 "
2m
ADHY
＜450V
I
Z4PC9-71-180-1300D-A/DHY
80-285V
80-430V
1300W
600-1600W
9.0m³/h
71m
2.0 "
2m
ADHY
＜450V
J
Z4PC9-85-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
9.0m³/h
85m
2.0 "
2m
ADHY
＜450V
K
Z4PC9-125-300-2200D-A/DHY
80-285V
80-430V
2200W
600-2500W
9.0m³/h
125m
2.0 "
2m
ADHY
＜450V
L
Z4PC9-148-300-2500D-A/DHY
80-285V
80-430V
2500W
600-2800W
9.0m³/h
148m
2.0 "
2m
ADHY
＜450V
M
Z4PC13-36-96-750D-A/DHY
80-285V
80-430V
750W
400-1200W
13m³/h
36m
2.0 "
2m
ADHY
＜450V
N
Z4PC13-49-150-1100D-A/DHY
80-285V
80-430V
1100W
600-1500W
13m³/h
49m
2.0 "
2m
ADHY
＜450V
O
Z4PC13-54-180-1300D-A/DHY
80-285V
80-430V
1300W
600-1600W
13m³/h
54m
2.0 "
2m
ADHY
＜450V
P
Z4PC13-63-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
13m³/h
63m
2.0 "
2m
ADHY
＜450V
Q
Z4PC13-110-300-2200D-A/DHY
80-285V
80-430V
2200W
600-2500W
13m³/h
110m
2.0 "
2m
ADHY
＜450V
R
Z4PC13-130-300-2500D-A/DHY
80-285V
80-430V
2500W
600-2800W
13m³/h
130m
2.0 "
2m
ADHY
＜450V
S
Z4PC17-48-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
17m³/h
48m
2.0 "
2m
ADHY
＜450V
T
Z4PC17-72-300-2200D-A/DHY
80-285V
80-430V
2200W
600-2500W
17m³/h
72m
2.0 "
2m
ADHY
＜450V
U
Z4PC17-80-300-2500D-A/DHY
80-285V
80-430V
2500W
600-2800W
17m³/h
80m
2.0 "
2m
ADHY
＜450V
Application
● Application of deep well pump to irrigation
● Garden watering
● Village and town water supply
● Enviroment friendly
● Clean drinking water
● Pumping and drip irrigation
Pump Details

Trusted Manufacturer:

We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.

High Efficiency & Innovation:

Equipped with an MPPT controller and brushless DC motor, our DC  centrifugal solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.

Versatile Applications:

Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.

Fully Customizable:

Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.

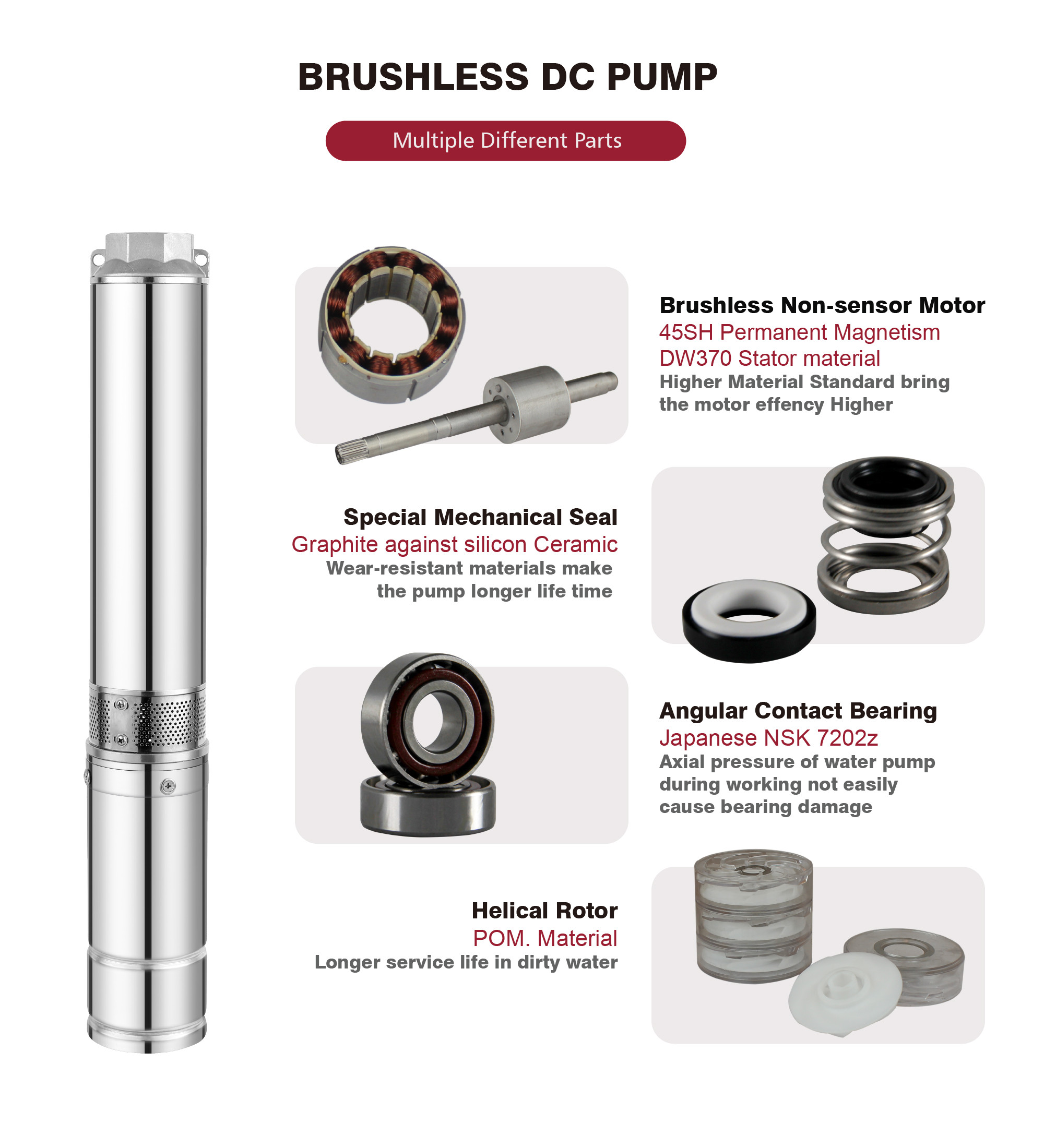

why choose us

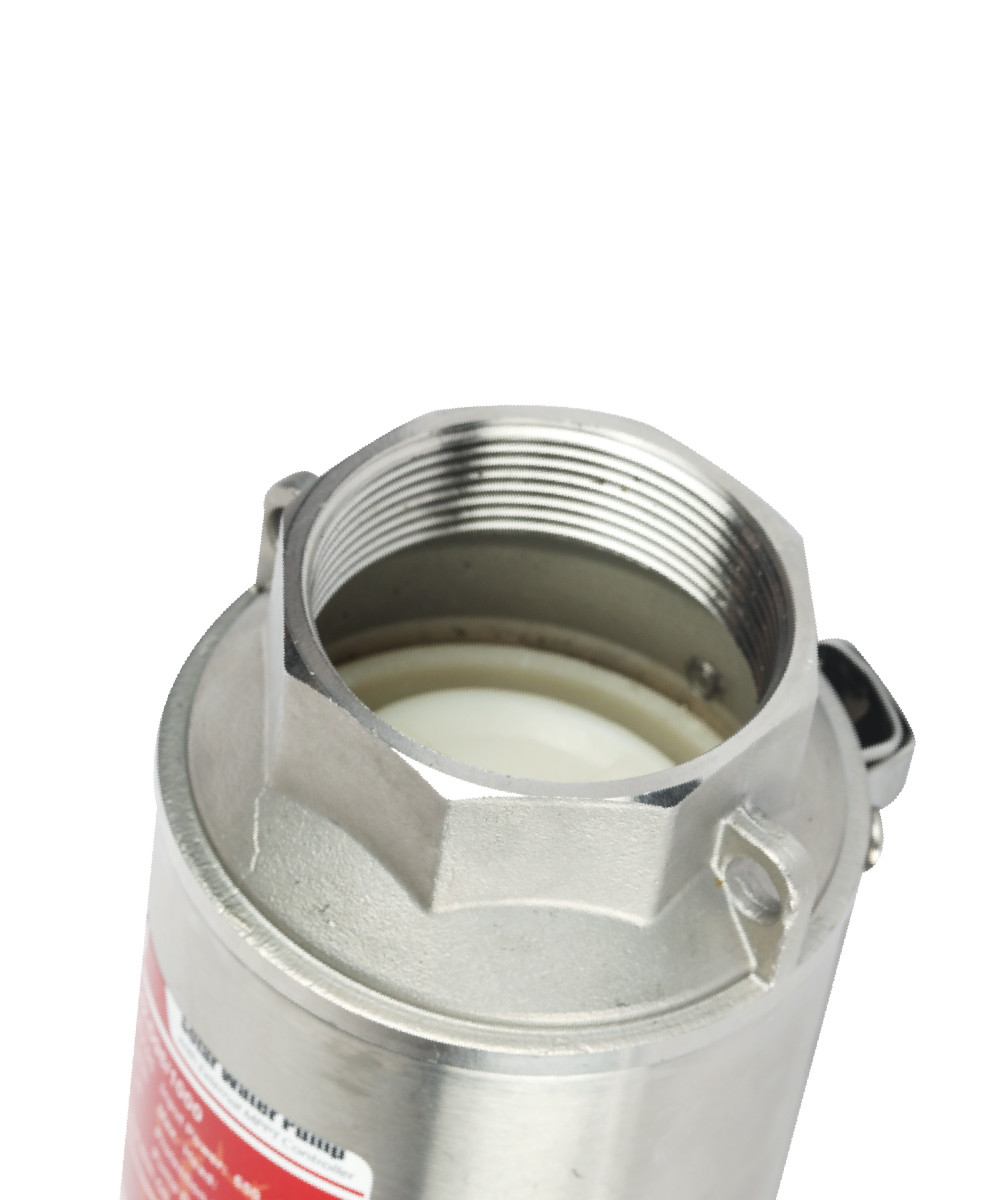

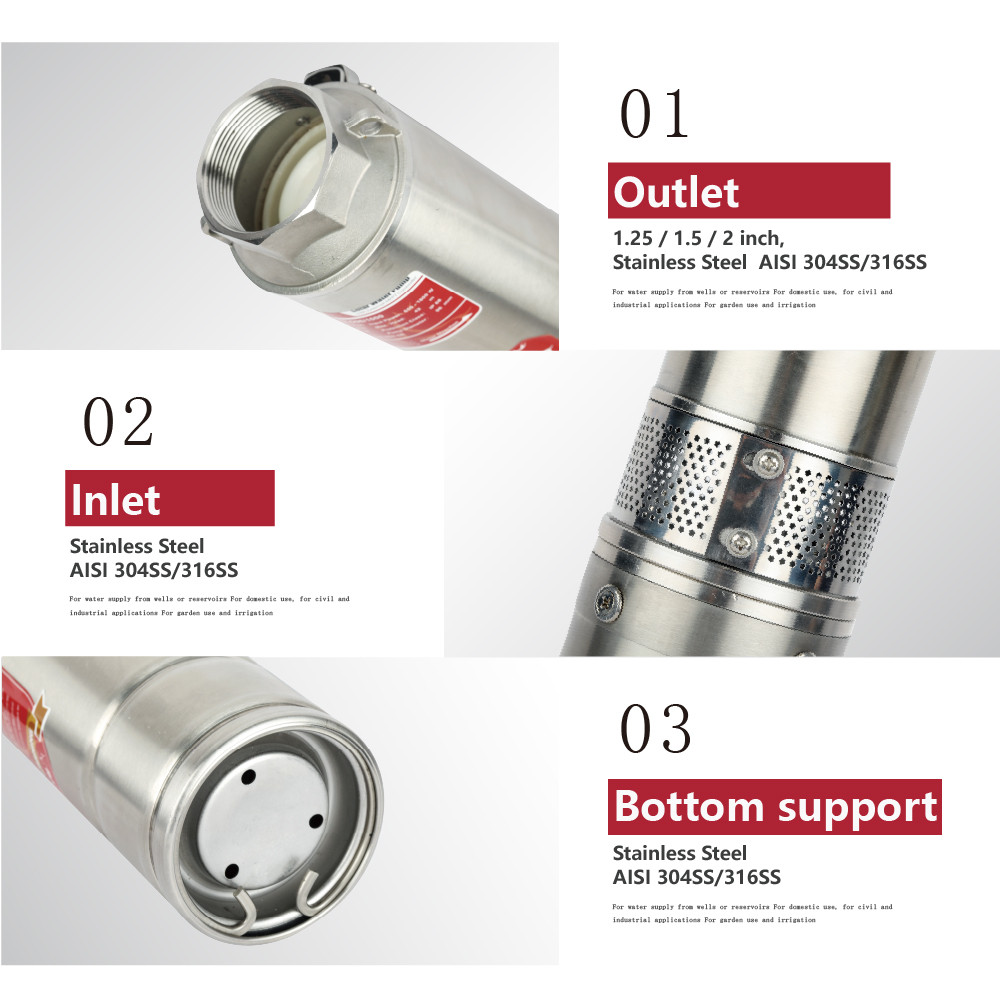

水泵细节
水泵细节
水泵细节

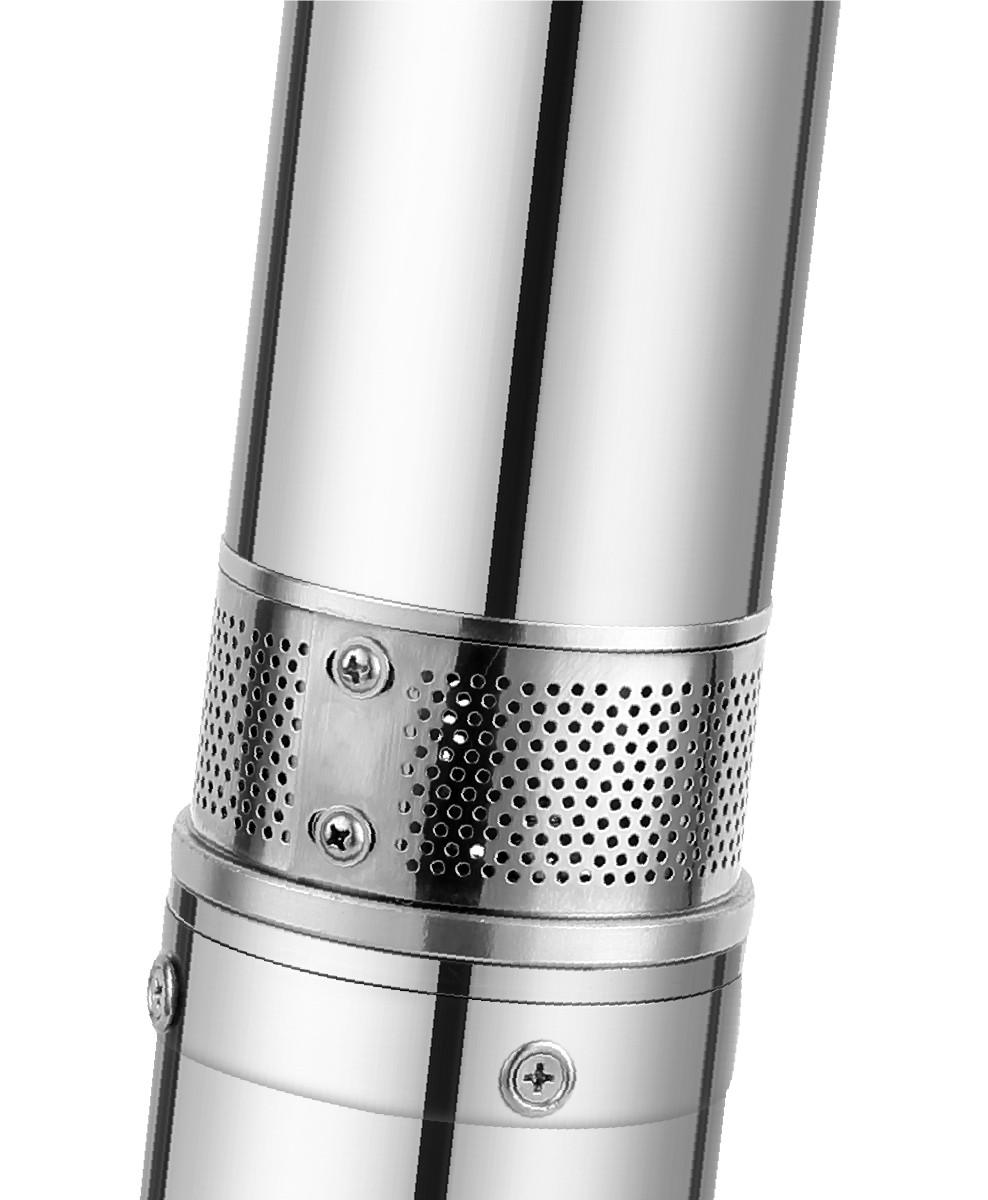

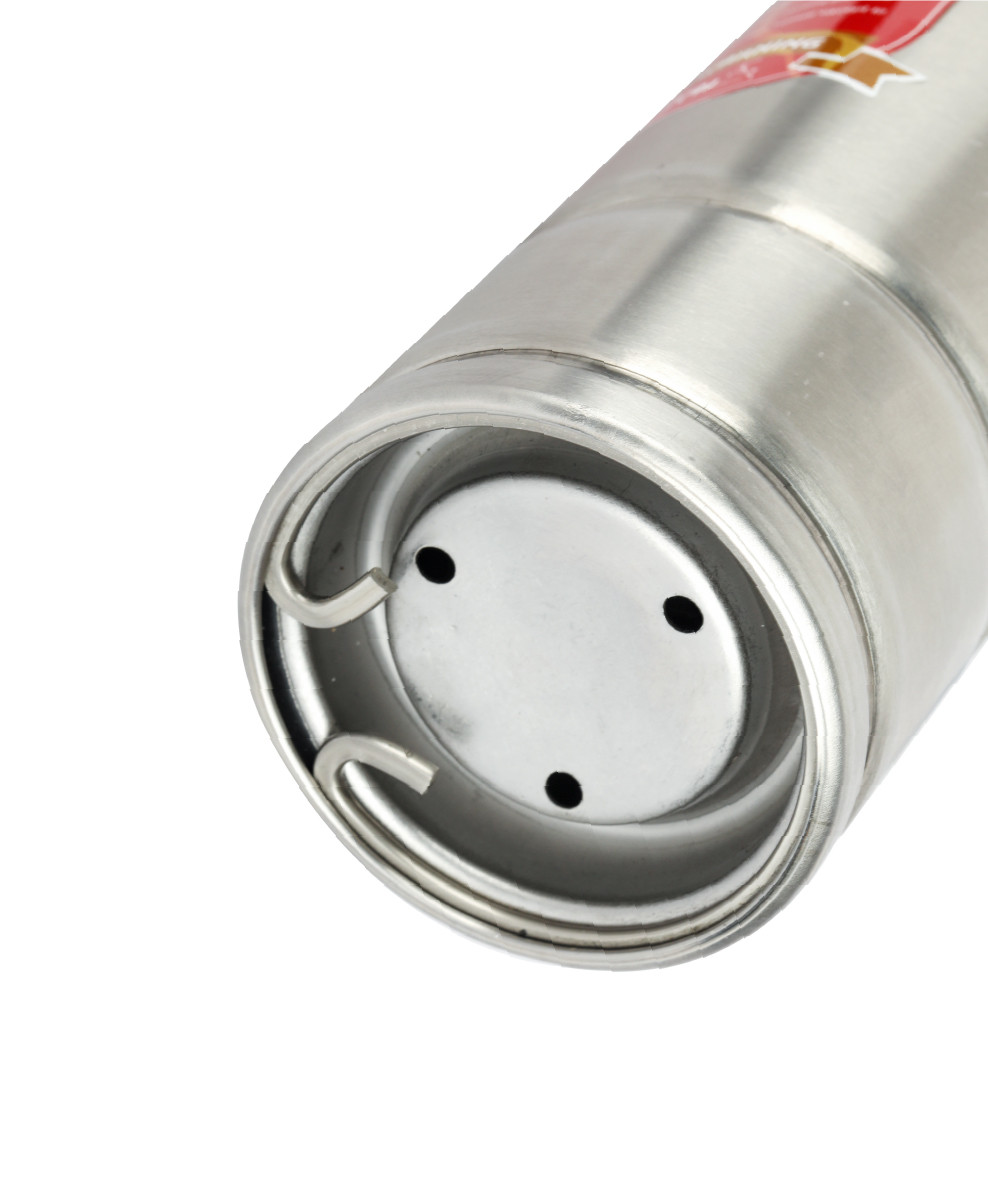

● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%
● Oil filled motors for reliability and to avoid oil contamination
● Alloy mechanical seal ,longer working life and high reliability
● NSK Angular Contact Bearing

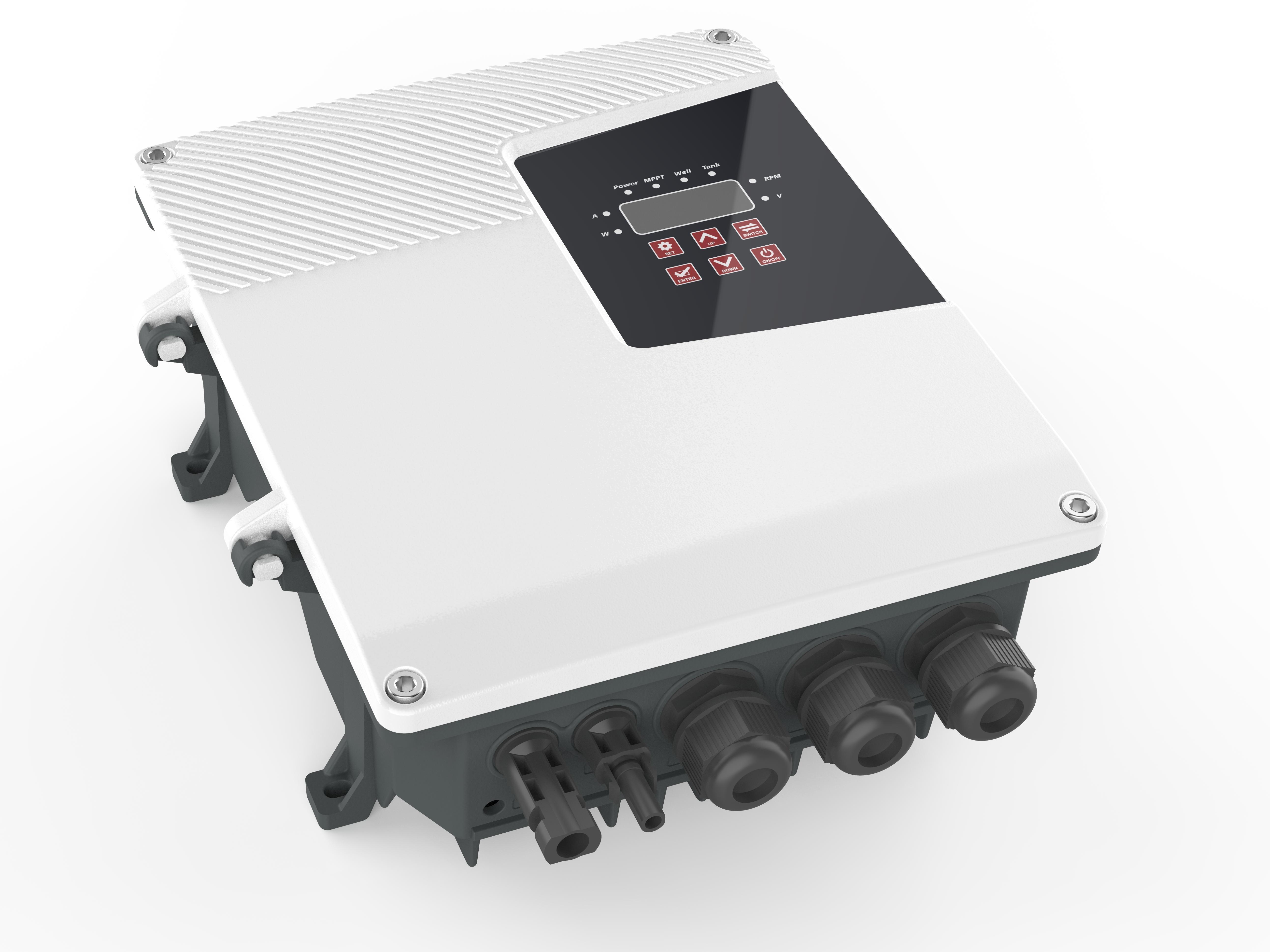

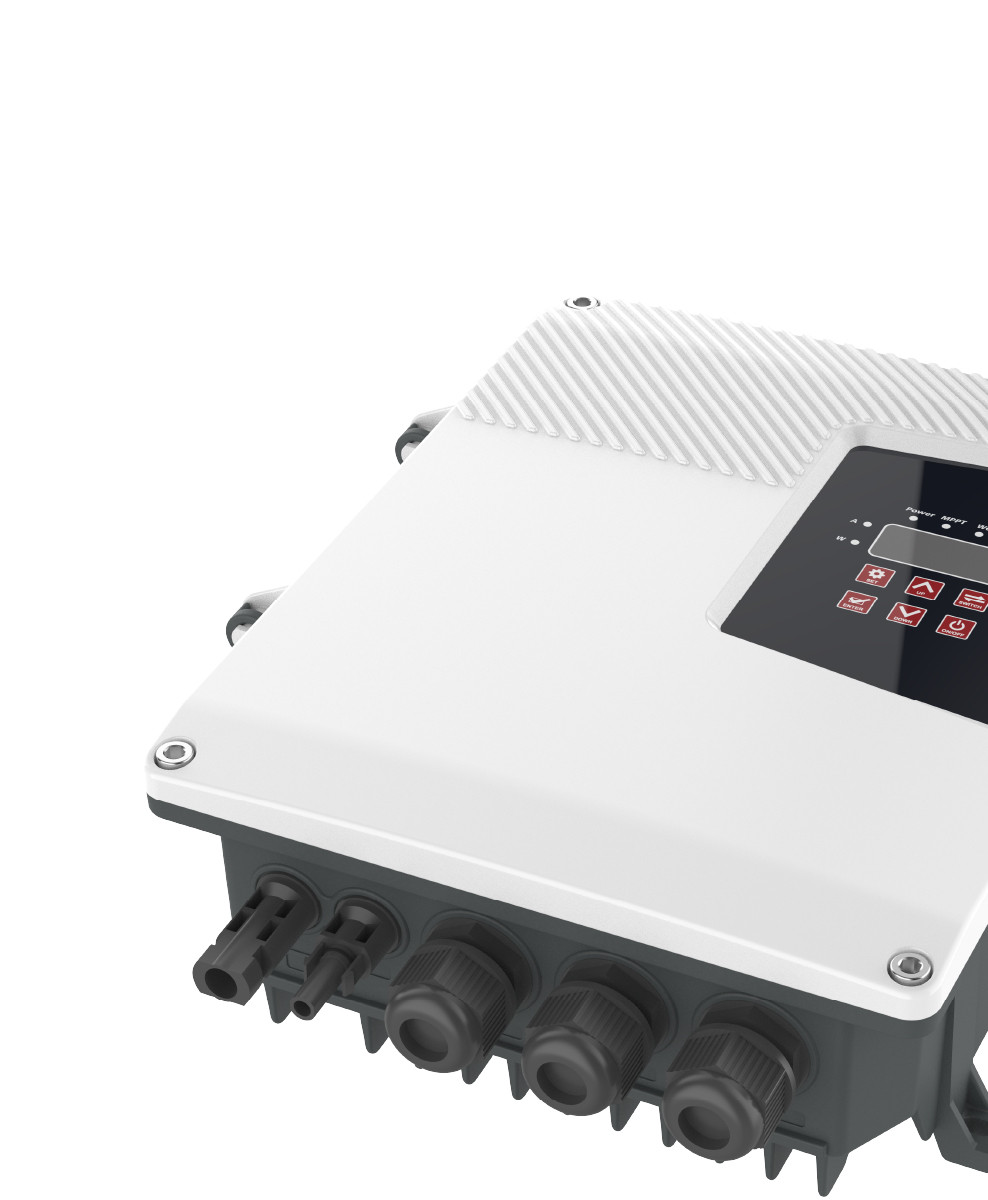

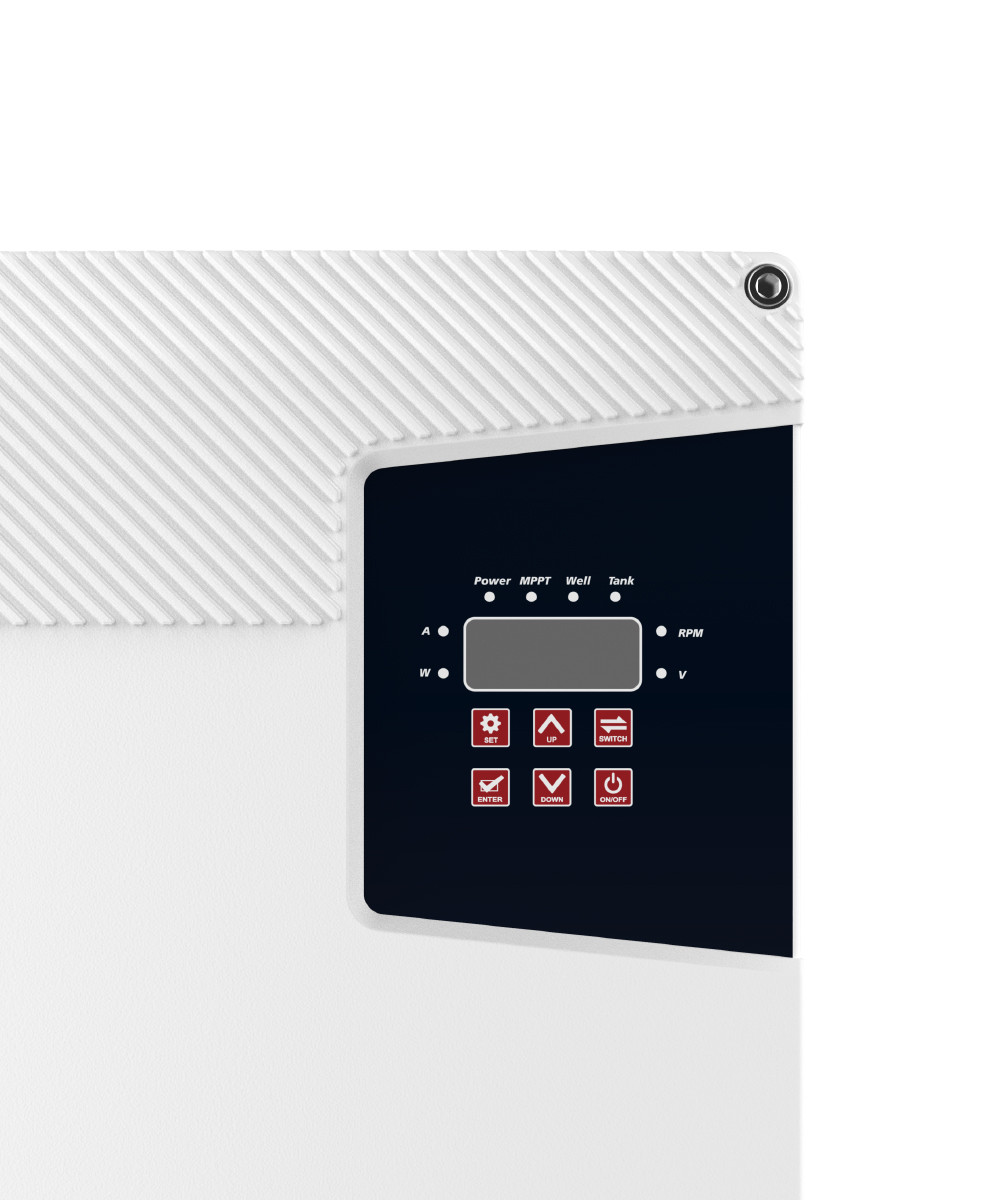

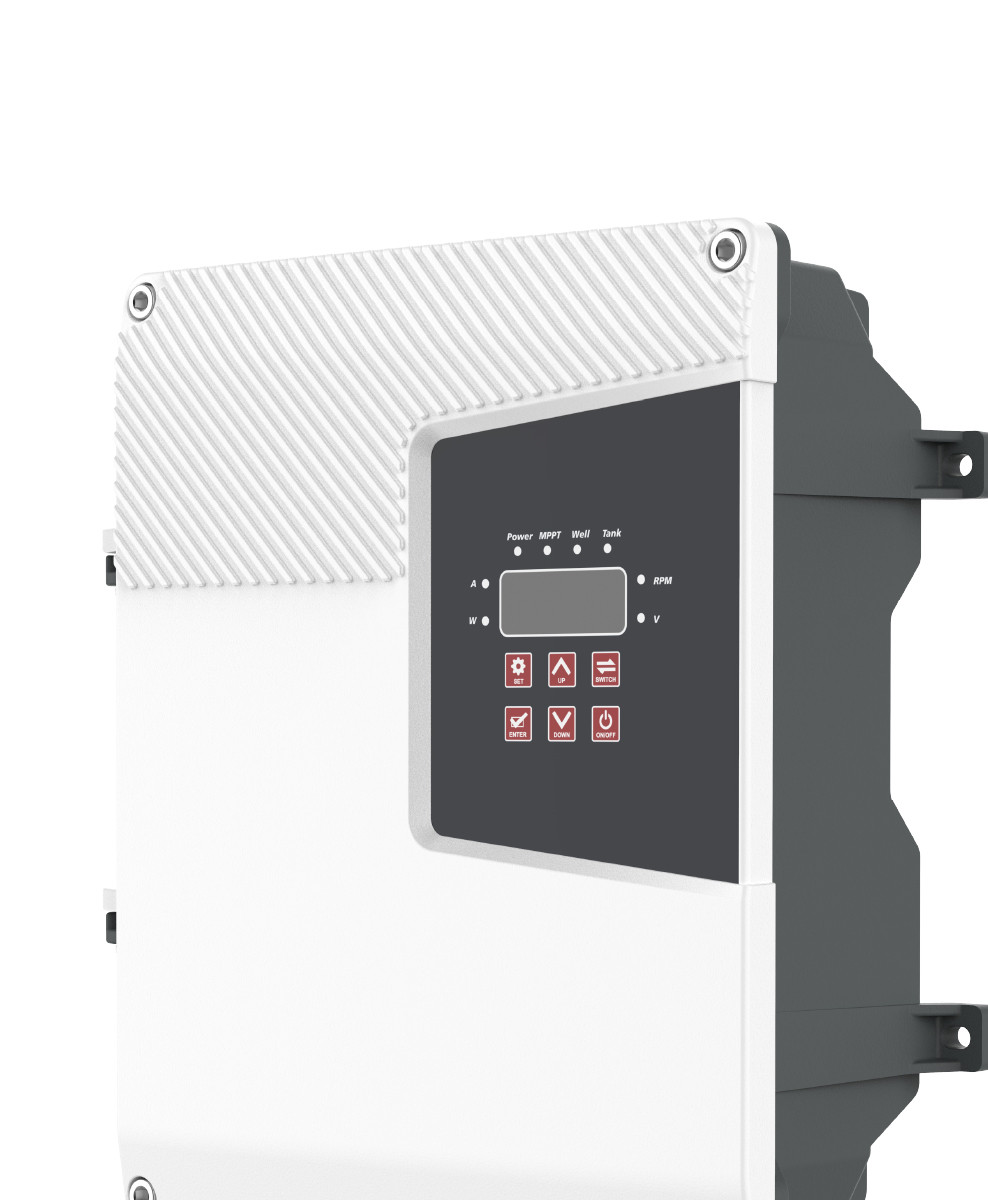

Controller Details
水泵细节

- MPPT: Maximum Power Point Tracking

- DSP: Digital Signal Processing - Running Speed Control: stepless
   speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when
   reverse connection

- Short-circuit protection: Automatically stops when Short wiring of
   motor
控制器细节
控制器细节
控制器细节
Test Report
Z4PC6-56-96-750D-A/DHY

Z4PC6-84-150-1100D-A/DHY

Z4PC6-112-180-1300D-A/DHY

Z4PC6-135-200-1500D-A/DHY

Z4PC6-175-300-2200D-A/DHY

Z4PC6-192-300-2500D-A/DHY

Z4PC9-45-96-750D-A/DHY

Z4PC9-58-150-1100D-A/DHY

Z4PC9-71-180-1300D-A/DHY

Z4PC9-85-200-1500D-A/DHY

Z4PC9-125-300-2200D-A/DHY

Z4PC9-148-300-2500D-A/DHY

Z4PC13-36-96-750D-A/DHY

Z4PC13-49-150-1100D-A/DHY

Z4PC13-54-180-1300D-A/DHY

Z4PC13-63-200-1500D-A/DHY

Z4PC13-110-300-2200D-A/DHY

Z4PC13-130-300-2500D-A/DHY

Z4PC17-48-200-1500D-A/DHY

Z4PC17-72-300-2200D-A/DHY

Z4PC17-80-300-2500D-A/DHY

Packaging Information

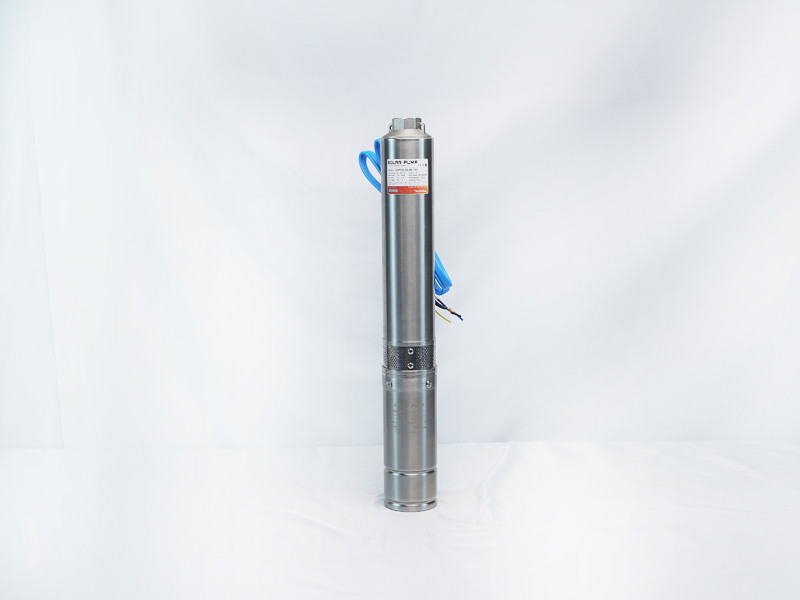

test
test
test
test

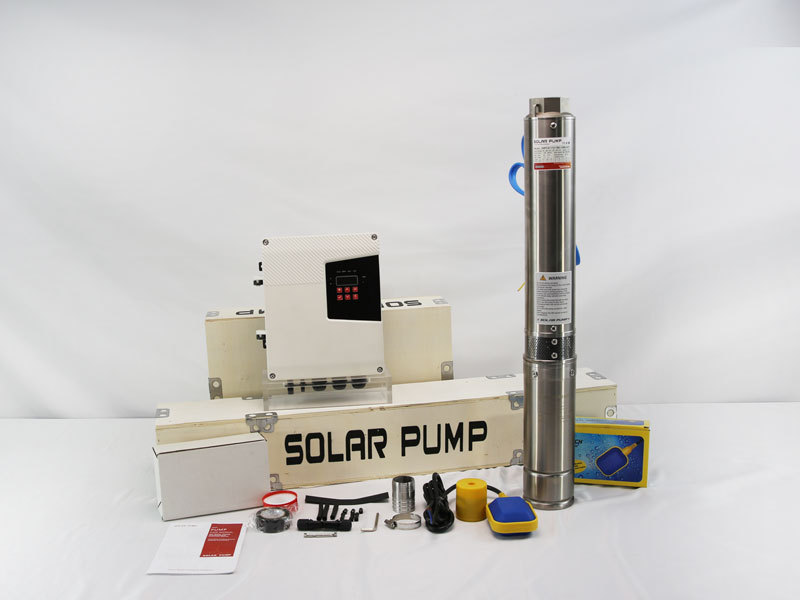

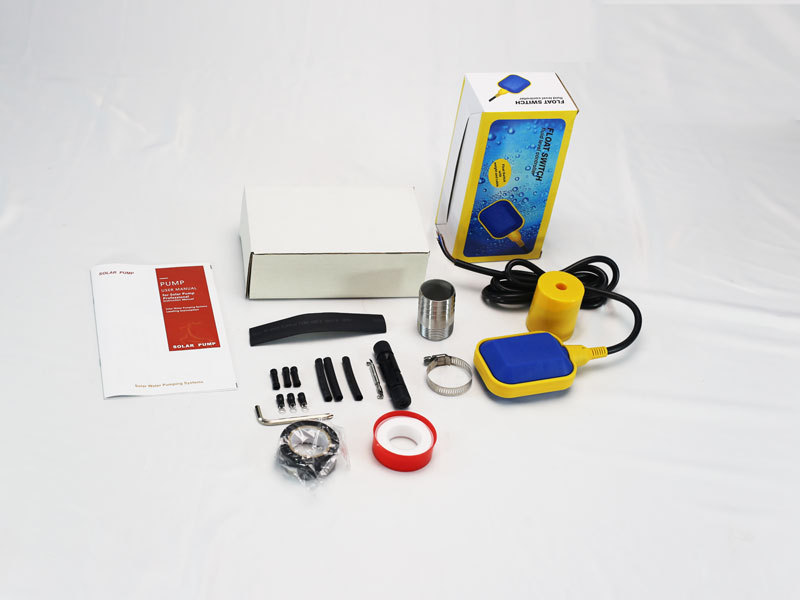

Package Include:                                                               Additional materials need to be prepared:
● 1 x 4 inch Brushless solar centrifugal pump with one 2m cable

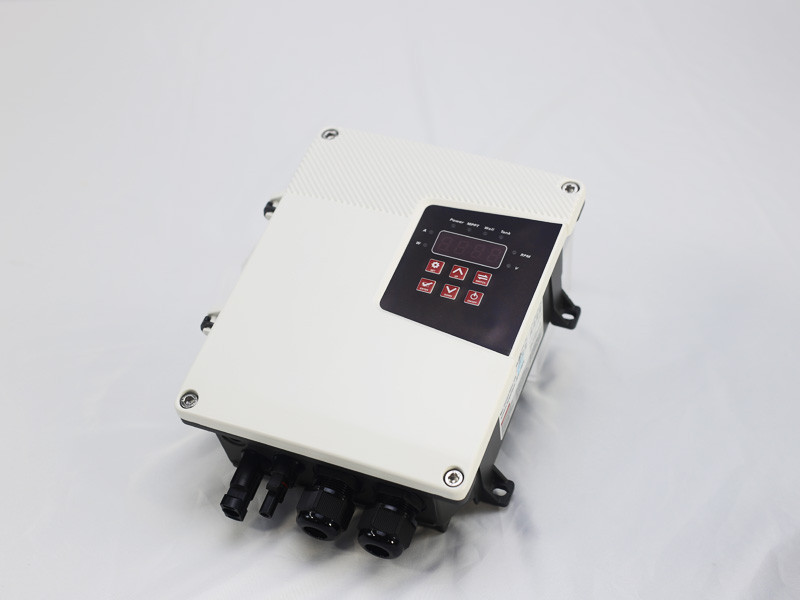

● 1 x AC/DC Hybrid Pump controler with MPPT function
● 1 x Plastic Water Float swith (sensor for tank)
● 1 x Pump outlet joint connector
● 1 x Splice kit for cable join
● 1 x Splice kit for waterproof
● Suitable solar panels. Refer to the suggestions provided in the instruction book.
● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker than the original cable in the pump.
● PV cable (for connecting solar panels to the controller).
● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.
● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.
Packaged Data
No.
Item
Water pump Packaging
Controller Packaging
Packaging materials
Length
(CM）
Width(CM)
Height
(CM)
Volume
(m³)
Weight(KG)
Length
(CM）
Width
(CM)
Height
(CM)
Volume
(m³)
Weight
(KG)
A
Z4PC6-56-96-750D-A/DHY
2
16
15
0
9
52
30
15
0.023
6.2
Wooden Case
B
Z4PC6-84-150-1100D-A/DHY
2
16
15
0
9
52
30
15
0.023
6.2
Wooden Case
C
Z4PC6-112-180-1300D-A/DHY
2
16
15
0
9.5
52
30
15
0.023
6.2
Wooden Case
D
Z4PC6-135-200-1500D-A/DHY
2
16
15
0
10
52
30
15
0.023
6.2
Wooden Case
E
Z4PC6-175-300-2200D-A/DHY
2
16
15
0
10
52
30
15
0.023
6.2
Wooden Case
F
Z4PC6-192-300-2500D-A/DHY
2
16
15
0
11
52
30
15
0.023
6.2
Wooden Case
G
Z4PC9-45-96-750D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
H
Z4PC9-58-150-1100D-A/DHY
2
16
15
0
12
52
30
15
0.023
6.2
Wooden Case
I
Z4PC9-71-180-1300D-A/DHY
2
16
15
0
11
52
30
15
0.023
6.2
Wooden Case
J
Z4PC9-85-200-1500D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
K
Z4PC9-125-300-2200D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
L
Z4PC9-148-300-2500D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
M
Z4PC13-36-96-750D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
N
Z4PC13-49-150-1100D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
O
Z4PC13-54-180-1300D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
P
Z4PC13-63-200-1500D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
Q
Z4PC13-110-300-2200D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
R
Z4PC13-130-300-2500D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
S
Z4PC17-48-200-1500D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
T
Z4PC17-72-300-2200D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
U
Z4PC17-80-300-2500D-A/DHY
2
16
15
0
11.5
52
30
15
0.023
6.2
Wooden Case
System Wiring Instruction
tag3-1
tag3-1
How to configure solar panels
● Connect the solar panels accurately according to the product manual, as excessively high VOC voltage may cause irreversible damage to the controller.
● It is generally recommended to calculate the required solar panel power based on 1.3 to 1.5 times the rated power of the water pump.
● When connecting the solar panels, ensure that the VOC voltage of the solar panels does not exceed the maximum VOC voltage limit of the controller.
No.
Model
Controller Voc
Solar Panel Connection
A
Z4PC6-56-96-750D-A/DHY
SAD-4C96-430VOC
Solar Panel A Connection
B
Z4PC6-84-150-1100D-A/DHY
SAD-4C15-430VOC
Solar Panel A Connection
C
Z4PC6-112-180-1300D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection
D
Z4PC6-135-200-1500D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection
E
Z4PC6-175-300-2200D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection
F
Z4PC6-192-300-2500D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection
G
Z4PC9-45-96-750D-A/DHY
SAD-4C96-430VOC
Solar Panel A Connection
H
Z4PC9-58-150-1100D-A/DHY
SAD-4C15-430VOC
Solar Panel A Connection
I
Z4PC9-71-180-1300D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection
J
Z4PC9-85-200-1500D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection
K
Z4PC9-125-300-2200D-A/DHY
SAD-4C30-220VOC
Solar Panel A Connection
L
Z4PC9-148-300-2500D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection
M
Z4PC13-36-96-750D-A/DHY
SAD-4C96-220VOC
Solar Panel A Connection
N
Z4PC13-49-150-1100D-A/DHY
SAD-4C15-430VOC
Solar Panel A Connection
O
Z4PC13-54-180-1300D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection
P
Z4PC13-63-200-1500D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection
Q
Z4PC13-110-300-2200D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection
R
Z4PC13-130-300-2500D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection
S
Z4PC17-48-200-1500D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection
T
Z4PC17-72-300-2200D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection
U
Z4PC17-80-300-2500D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection

You need a product

Related Searches

You May Like

6YRS Vodloon New Energy Co., Ltd

Nearest port for product export
NINGBO, SHANGHAI, GUANGZHOU, SHENZHEN
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram
Contact Suppliers

Follow this Suppliers

About Us

Buyer Services

Seller Services

Links

Private Police Terms And Conditions Terms of Agreement login

网络文化经营许可证：浙ICP备14006100号-11 2007-2025 Tradevv.com. All rights reserved.
