S4PC(b)-4 Inch Solar Submersible Borehole Pump Plastic Impeller Pump with MPPT Controller

S4PC(b)-4 Inch Solar Submersible Borehole Pump Plastic Impeller Pump with MPPT Controller

group nameDC Solar Water Pump
Min Order1 set
modelS4PC(b)
payment methodT/T, L/C, D/P D/A, MoneyGram
update timeFri, 05 Dec 2025 16:21:45 GMT

contact supplier

Paramtents

Categories DC Solar Submersible Pump
Brand ZRI
Model S4PC(b)
Pump Type Impeller Type Solar Submersible Pump
Outlet 1.25/2.0 inch
Pump Diameter 4 inch / 95 mm
Application Domestic water supply, small area irrigation
Certificate CE, ISO9001, GS, RoHS
Warranty 2 years
Package type Wooden Case

Packging & Delivery

Min Order1 set

Briefing

S4PC(b) 4 inch Solar Submersible Pump: High-efficiency plastic impeller with MPPT control for optimal performance. OEM, ODM, and wholesale available.

Detailed

Product Details

Packaging Information

Installation Guide

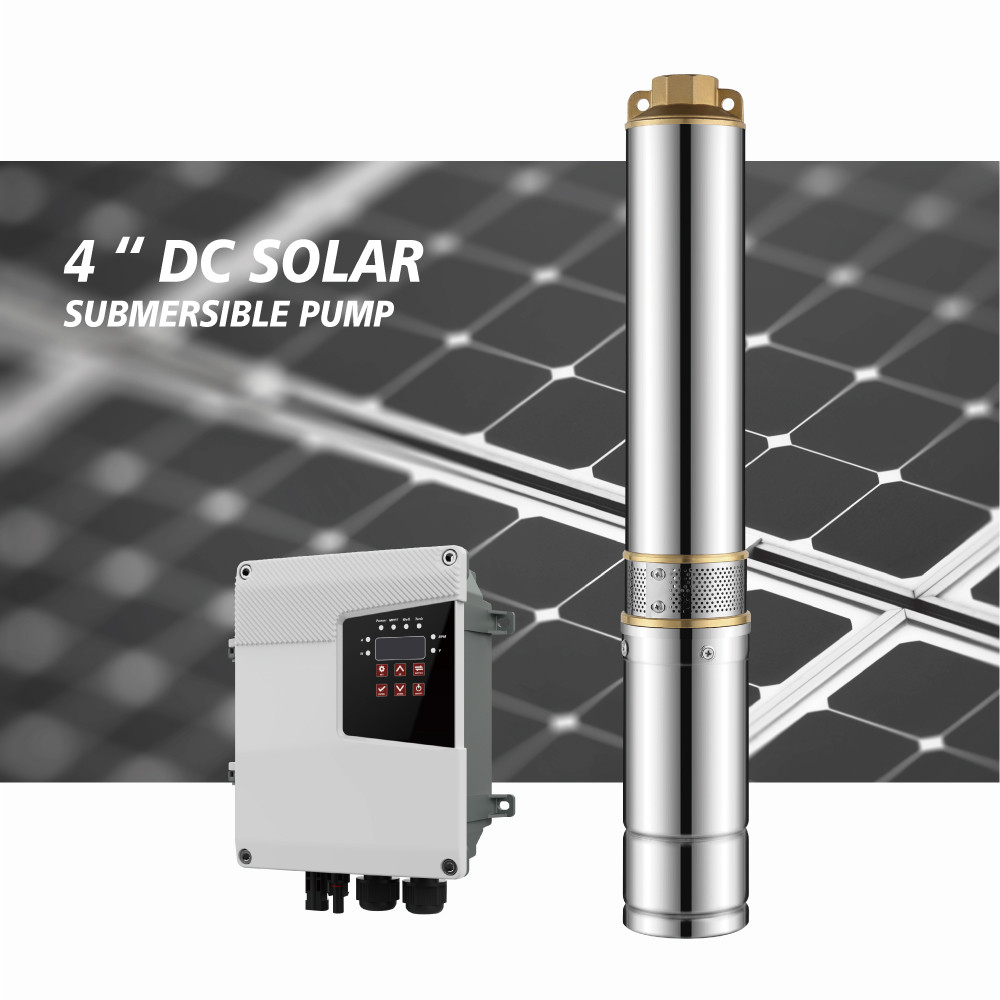

4 INCH DC CENTRIFUGAL SOLAR PUMP

The 4-inch Solar-Powered DC Centrifugal Submersible Borehole Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fossil fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller and a brushless DC motor, this solar DC submersible water pump ensures maximum energy efficiency and stable operation. Its centrifugal design enables it to deliver stable water flow efficiently even in deep wells or low-yield water sources, minimizing maintenance requirements.

This durable and versatile DC pump is ideal for agricultural irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the Brushless DC Solar Water Pump provides a sustainable and reliable water pumping solution.

No.	Item	Rated Voltage	Optimum input voltage(DC)	Rated Power	Optimum input Power(W)	Max. Flow	Max. Head	Outlet	Cable	Controller	Solar panel Open circuit voltage (VOC)
A	S4PC3.5-50-48-400B	48V	30-110V	400W	200-900W	3.5m³/h	50m	1.25 "	2m	SSCO	＜150V
B	S4PC3.5-65-72-600B	72V	50-170V	600W	300-1200W	3.5m³/h	65m	1.25 "	2m	SSCO	＜200V
C	S4PC3.5-95-96-750B	96V	60-220V	750W	400-1600W	3.5m³/h	95m	1.25 "	2m	SSCO	＜250V
D	S4PC3.5-95-120-900B	110V	60-220V	900W	400-1500W	3.5m³/h	95m	1.25 "	2m	SSCO	＜250V
E	S4PC3.5-110-110-1100B	110V	60-220V	1100W	400-1600W	3.5m³/h	110m	1.25 "	2m	SSCO	＜250V
F	S4PC3.5-110-150-1100B	150V	80-260V	1100W	400-1600W	3.5m³/h	110m	1.25 "	2m	SSCO	＜450V
G	S4PC4.0-35-48-400B	48V	30-110V	400W	200-900W	4.0m³/h	35m	1.25 "	2m	SSCO	＜150V
H	S4PC4.0-50-72-600B	72V	50-170V	400W	300-1200W	4.0m³/h	50m	1.25 "	2m	SSCO	＜200V
I	S4PC4.0-70-96-750B	96V	60-220V	600W	400-1600W	4.0m³/h	70m	1.25 "	2m	SSCO	＜250V
J	S4PC4.0-80-120-900B	110V	60-220V	750W	400-1500W	4.0m³/h	80m	1.25 "	2m	SSCO	＜250V
K	S4PC4.0-95-110-1100B	110V	60-220V	1100W	400-1600W	4.0m³/h	95m	1.25 "	2m	SSCO	＜250V
L	S4PC4.0-95-150-1100B	150V	80-260V	1100W	400-1600W	4.0m³/h	95m	1.25 "	2m	SSCO	＜450V
M	S4PC4.5-130-110-1500B	110V	60-220V	1500W	600-1800W	4.5m³/h	130m	1.25 "	2m	SSCO	＜250V
N	S4PC4.5-130-200-1500B	200V	120-300V	1500W	600-1800W	4.5m³/h	130m	1.25 "	2m	SSCO	＜450V
O	S4PC4.5-190-300-2200B	300V	80-400V	2200W	1200-2800W	4.5m³/h	190m	1.25 "	2m	SSCO	＜450V
P	S4PC6-32-48-400B	48V	30-110V	400W	200-900W	6.0m³/h	32m	1.25 "	2m	SSCO	＜150V
Q	S4PC6-42-72-600B	72V	50-170V	600W	300-1200W	6.0m³/h	42m	1.25 "	2m	SSCO	＜200V
R	S4PC6-56-96-750B	96V	60-220V	750W	400-1600W	6.0m³/h	56m	1.25 "	2m	SSCO	＜250V
S	S4PC6-84-110-1100B	110V	60-220V	1100W	400-1600W	6.0m³/h	84m	1.25 "	2m	SSCO	＜250V
T	S4PC6-112-110-1300B	110V	60-200V	1300W	600-1800W	6.0m³/h	112m	1.25 "	2m	SSCO	＜250V
U	S4PC6-135-110-1500B	110V	60-220V	1500W	600-1800W	6.0m³/h	135m	1.25 "	2m	SSCO	＜250V
V	S4PC6-84-150-1100B	150V	80-260V	1100W	400-1600W	6.0m³/h	84m	1.25 "	2m	SSCO	＜450V
W	S4PC6-112-180-1300B	200V	120-300V	1300W	600-1800W	6.0m³/h	112m	1.25 "	2m	SSCO	＜450V
X	S4PC6-135-200-1500B	200V	120-300V	1500W	600-1800W	6.0m³/h	135m	1.25 "	2m	SSCO	＜450V
Y	S4PC6-175-300-2200B	300V	80-400V	2200W	1200-2800W	6.0m³/h	175m	1.25 "	2m	SSCO	＜450V
Z	S4PC9-45-96-750B	96V	60-220V	750W	400-1600W	9.0m³/h	45m	2.0 "	2m	SSCO	＜250V
AA	S4PC9-58-110-1100B	110V	60-220V	1100W	400-1600W	9.0m³/h	58m	2.0 "	2m	SSCO	＜250V
AB	S4PC9-71-110-1300B	110V	60-220V	1300W	600-1800W	9.0m³/h	71m	2.0 "	2m	SSCO	＜250V
AC	S4PC9-85-110-1500B	110V	60-220V	1500W	600-1800W	9.0m³/h	85m	2.0 "	2m	SSCO	＜250V
AD	S4PC9-58-150-1100B	150V	80-260V	1100W	400-1600W	9.0m³/h	58m	2.0 "	2m	SSCO	＜450V
AE	S4PC9-71-180-1300B	200V	120-300V	1300W	600-1800W	9.0m³/h	71m	2.0 "	2m	SSCO	＜450V
AF	S4PC9-85-200-1500B	200V	120-300V	1500W	600-1800W	9.0m³/h	85m	2.0 "	2m	SSCO	＜450V
AG	S4PC9-125-300-2200B	300V	80-400V	2200W	1200-2800W	9.0m³/h	125m	2.0 "	2m	SSCO	＜450V
AH	S4PC13-36-96-750B	96V	60-220V	750W	400-1600W	13m³/h	36m	2.0 "	2m	SSCO	＜250V
AI	S4PC13-49-110-1100B	110V	60-220V	1100W	400-1600W	13m³/h	49m	2.0 "	2m	SSCO	＜250V
AJ	S4PC13-54-110-1300B	110V	60-220V	1300W	600-1800W	13m³/h	54m	2.0 "	2m	SSCO	＜250V
AK	S4PC13-60-110-1500B	110V	60-220V	1500W	600-1800W	13m³/h	60m	2.0 "	2m	SSCO	＜250V
AL	S4PC13-49-150-1100B	150V	80-260V	1100W	400-1600W	13m³/h	49m	2.0 "	2m	SSCO	＜450V
AM	S4PC13-54-180-1300B	200V	120-300V	1300W	600-1800W	13m³/h	54m	2.0 "	2m	SSCO	＜450V
AN	S4PC13-60-200-1500B	200V	120-300V	1500W	600-1800W	13m³/h	60m	2.0 "	2m	SSCO	＜450V
AO	S4PC13-110-300-2200B	300V	80-400V	2200W	1200-2800W	13m³/h	110m	2.0 "	2m	SSCO	＜450V
AP	S4PC17-48-110-1500B	110V	60-220V	1500W	600-1800W	17m³/h	48m	2.0 "	2m	SSCO	＜250V
AQ	S4PC17-48-200-1500B	200V	120-300V	1500W	600-1800W	17m³/h	48m	2.0 "	2m	SSCO	＜450V

Application

● Application of deep well pump to irrigation	● Garden watering
● Village and town water supply	● Enviroment friendly
● Clean drinking water	● Pumping and drip irrigation

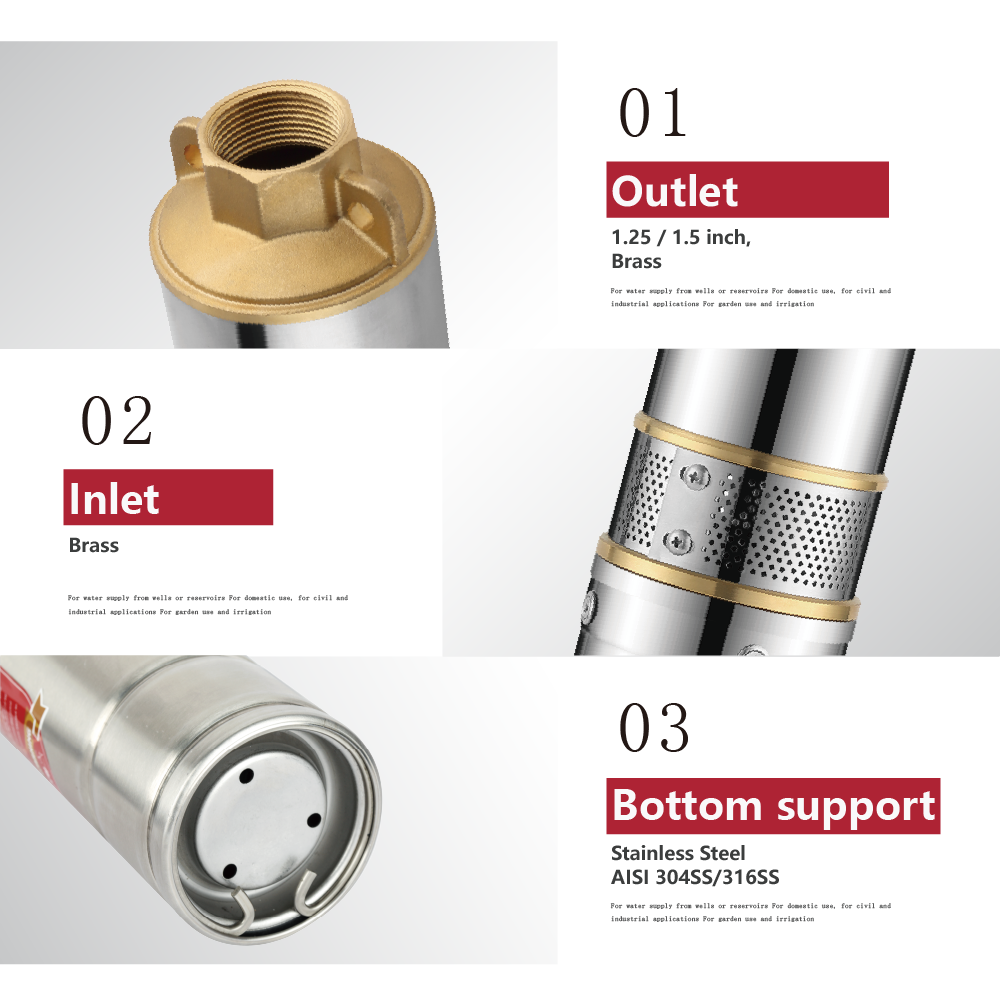

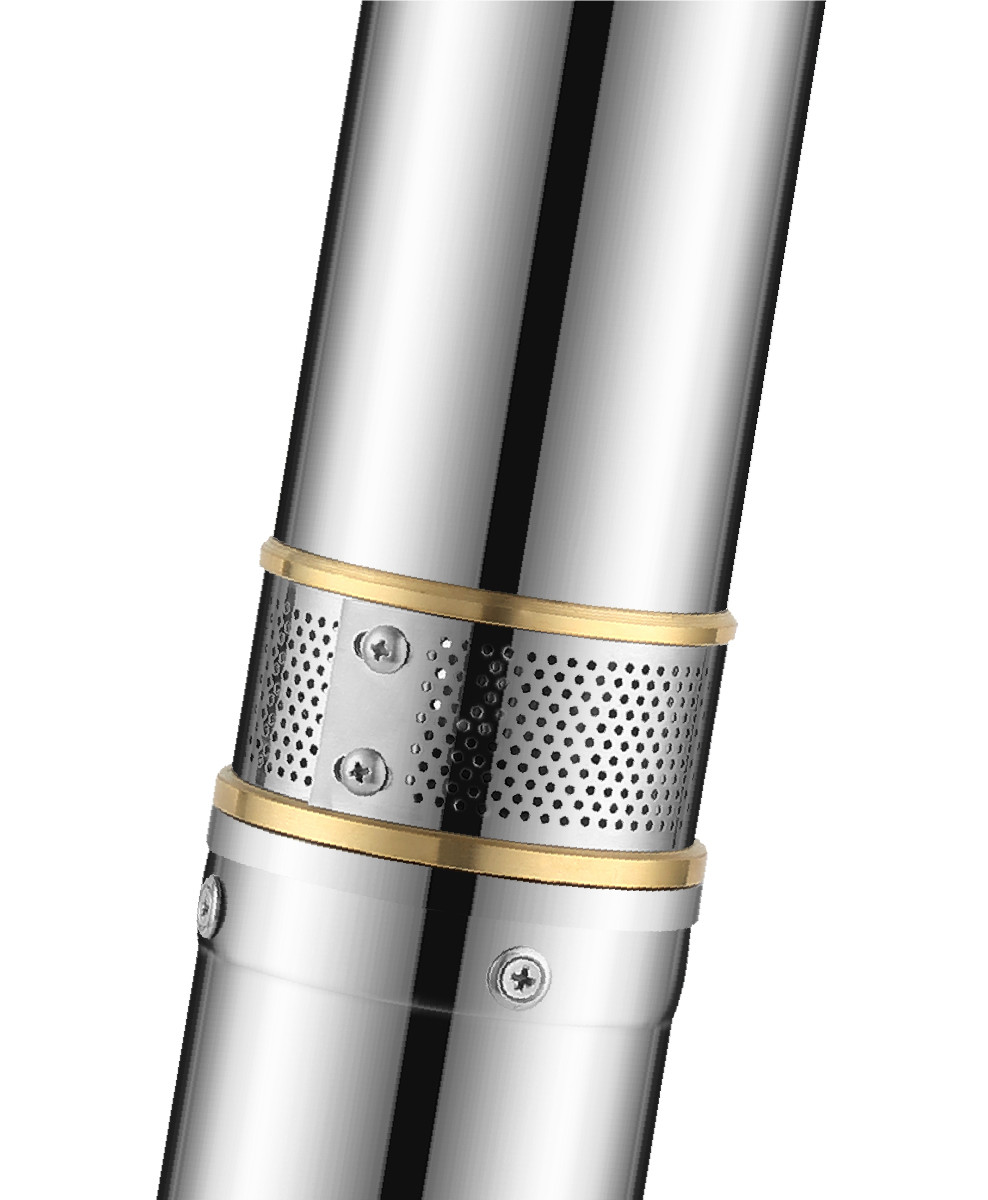

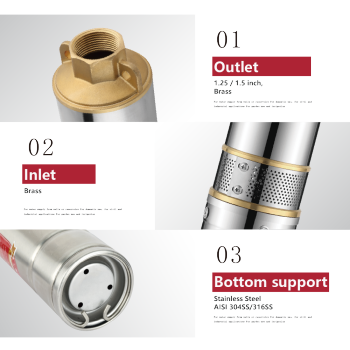

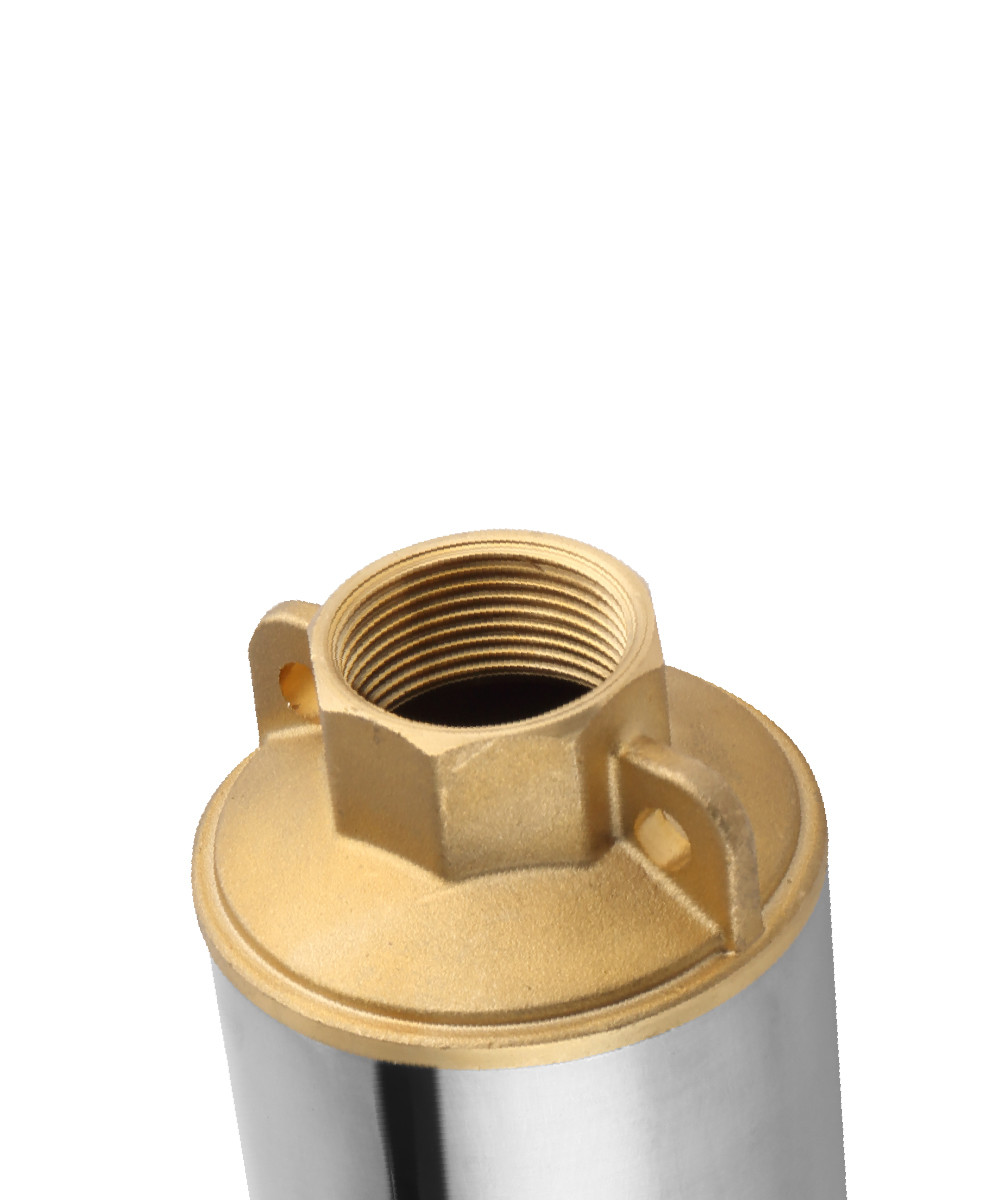

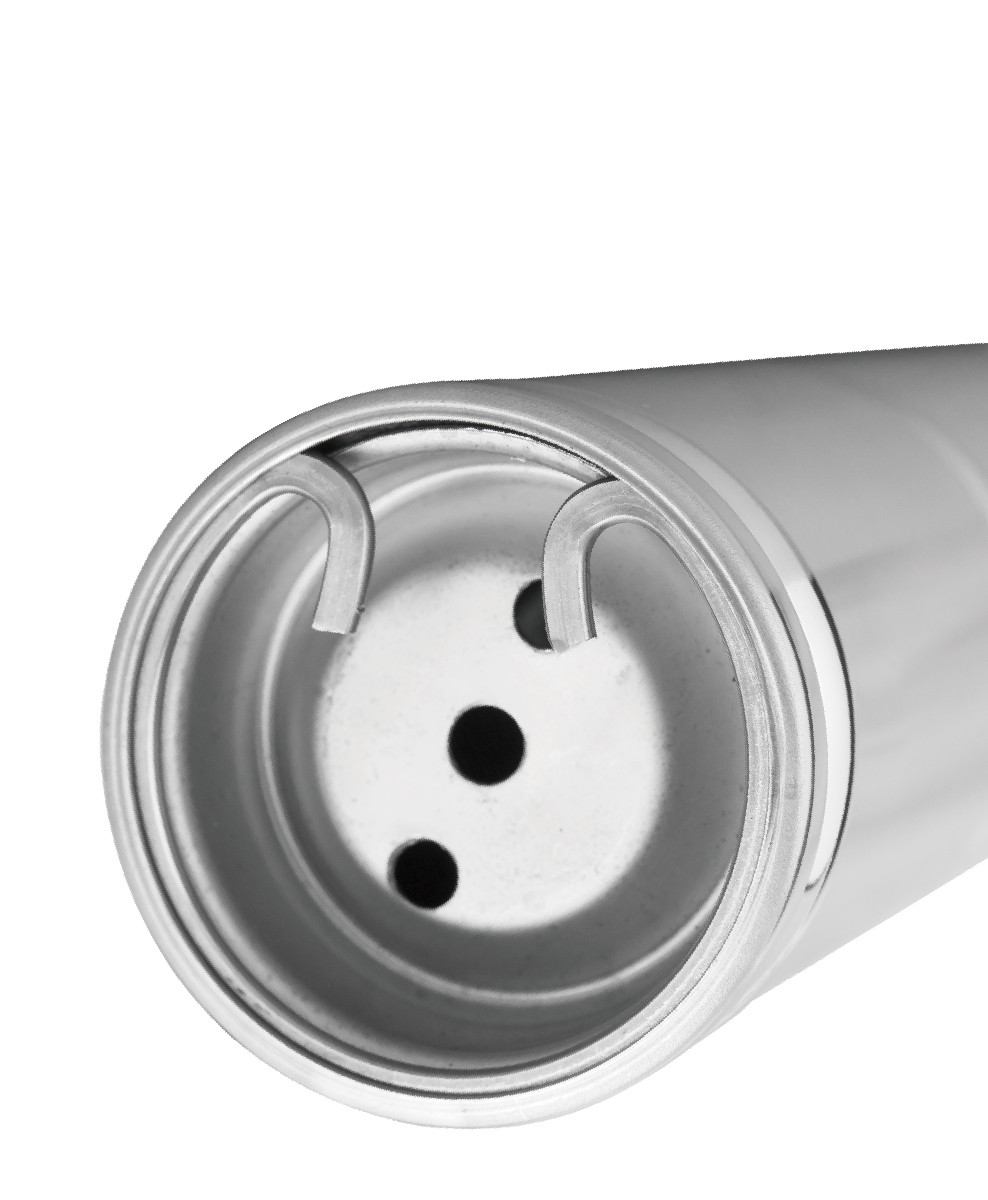

Pump Details

Trusted Manufacturer:

We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.

High Efficiency & Innovation:

Equipped with an MPPT controller and brushless DC motor, our DC centrifugal solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.

Versatile Applications:

Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.

Fully Customizable:

Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.

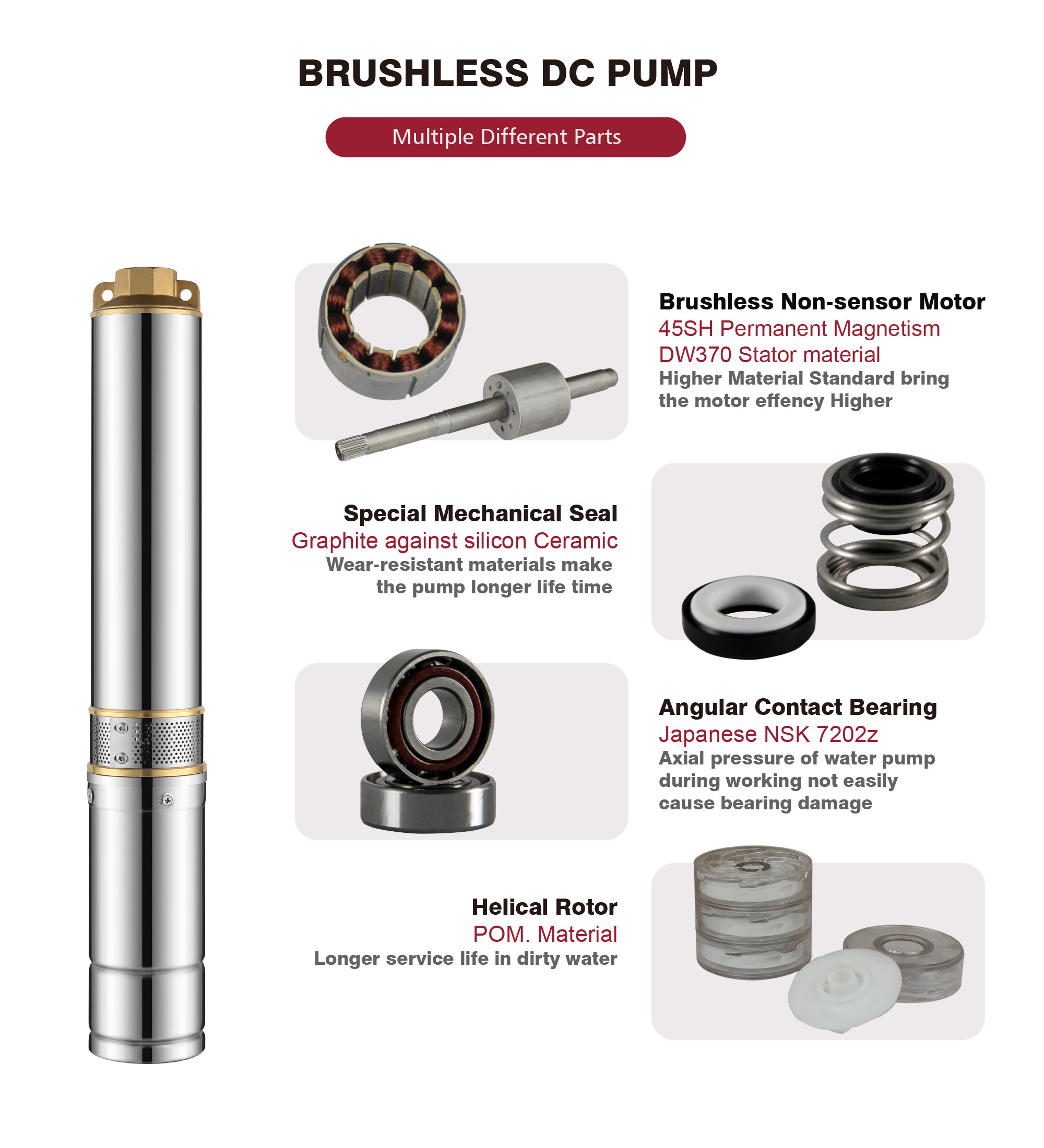

● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%

● Oil filled motors for reliability and to avoid oil contamination

● Alloy mechanical seal ,longer working life and high reliability

● NSK Angular Contact Bearing

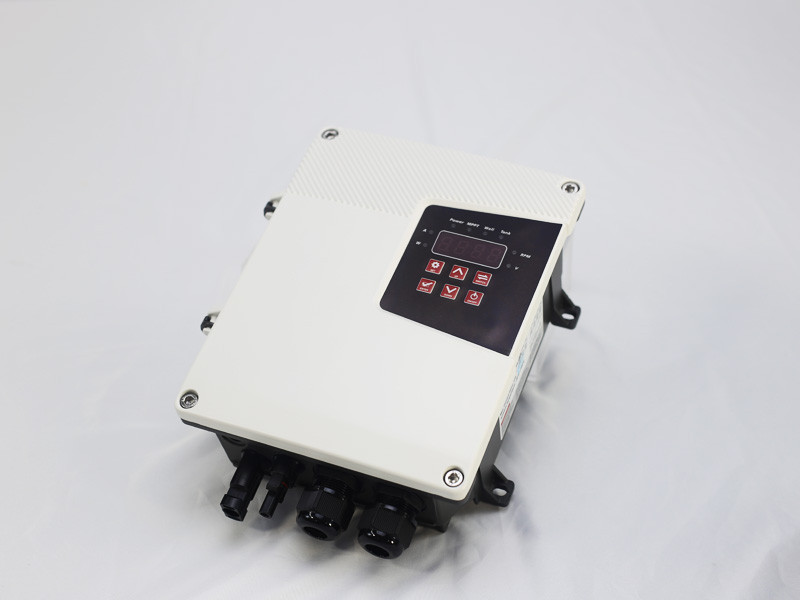

Controller Details

- MPPT: Maximum Power Point Tracking

- Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor

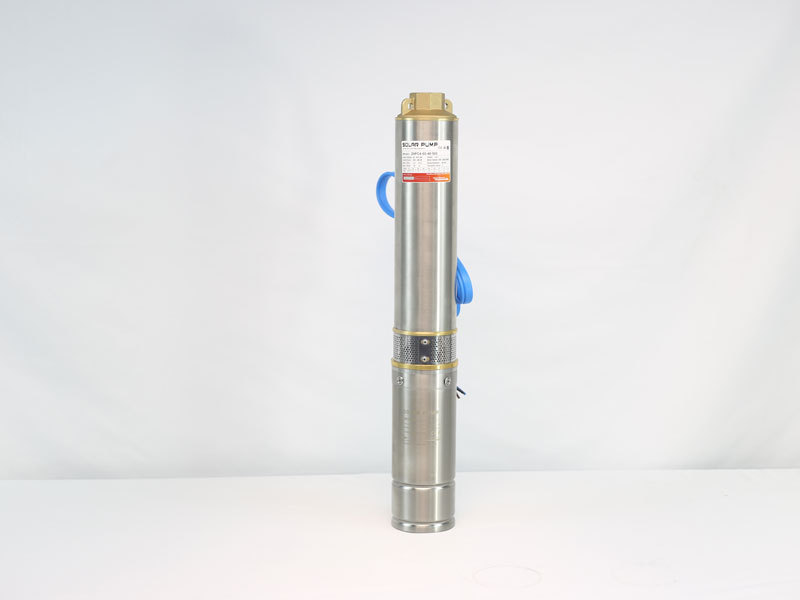

Test Report

S4PC3.5-50-48-400B

S4PC3.5-65-72-600B

S4PC3.5-95-96-750B

S4PC3.5-95-120-900B

S4PC3.5-110-110-1100B

S4PC3.5-110-150-1100B

S4PC4.0-35-48-400B

S4PC4.0-50-72-600B

S4PC4.0-70-96-750B

S4PC4.0-80-120-900B

S4PC4.0-95-110-1100B

S4PC4.0-95-150-1100B

S4PC4.5-130-110-1500B

S4PC4.5-130-200-1500B

S4PC4.5-190-300-2200B

S4PC6-32-48-400B

S4PC6-42-72-600B

S4PC6-56-96-750B

S4PC6-84-110-1100B

S4PC6-112-110-1300B

S4PC6-135-110-1500B

S4PC6-84-150-1100B

S4PC6-112-180-1300B

S4PC6-135-200-1500B

S4PC6-175-300-2200B

S4PC9-45-96-750B

S4PC9-58-110-1100B

S4PC9-71-110-1300B

S4PC9-85-110-1500B

S4PC9-58-150-1100B

S4PC9-71-180-1300B

S4PC9-85-200-1500B

S4PC9-125-300-2200B

S4PC13-36-96-750B

S4PC13-49-110-1100B

S4PC13-54-110-1300B

S4PC13-60-110-1500B

S4PC13-49-150-1100B

S4PC13-54-180-1300B

S4PC13-60-200-1500B

S4PC13-110-300-2200B

S4PC17-48-110-1500B

S4PC17-48-200-1500B

Packaging Information

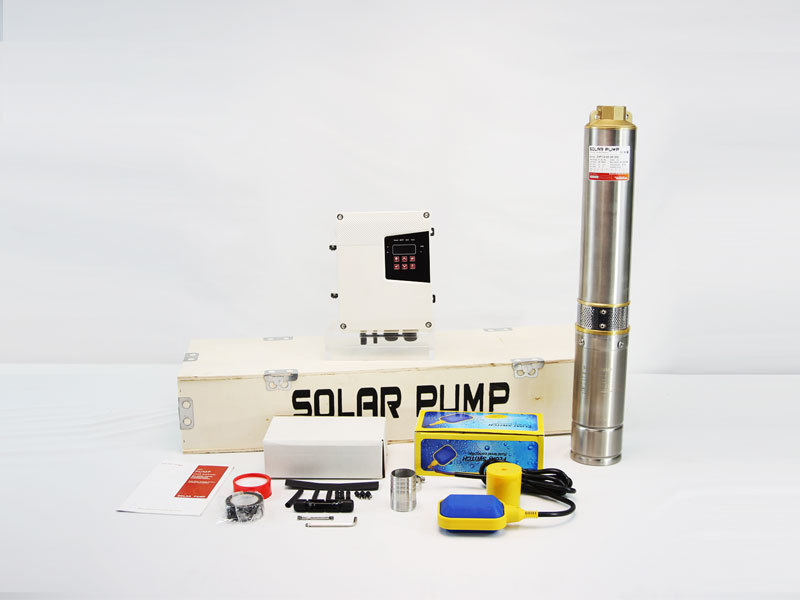

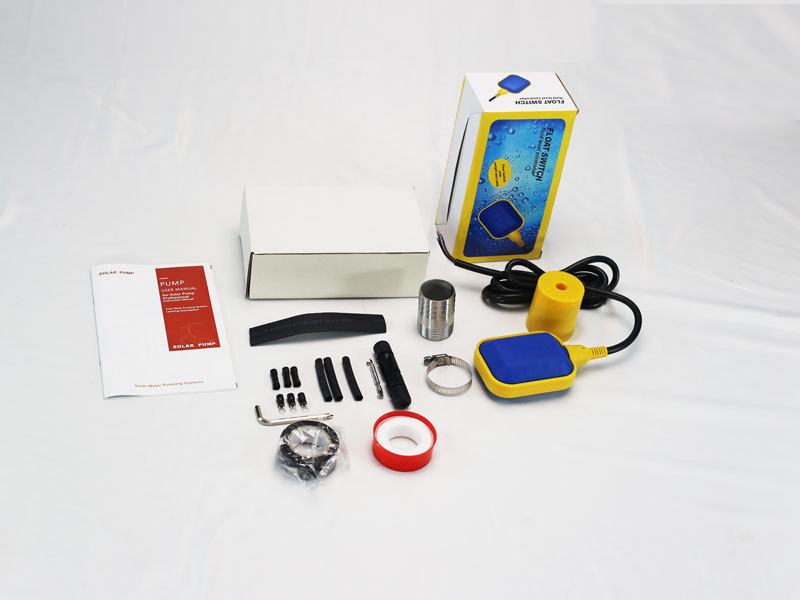

Package Include: Additional materials need to be prepared:

● 1 x 4 inch DC solar centrifugal pump with one 2m cable

● 1 x Pump controler with MPPT function

● 1 x Stainless steel float swith (sensor for tank)

● 1 x Pump outlet joint connector

● 1 x Splice kit for cable join

● 1 x Splice kit for waterproof

● Suitable solar panels. Refer to the suggestions provided in the instruction book.

● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker than the original cable in the pump.

● PV cable (for connecting solar panels to the controller).

● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.

● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.

Packaged Data

No.	Item	Length （CM）	Width （CM）	Height （CM）	Volume （M³）	Weight （KG）	Packaging materials
A	S4PC3.5-50-48-400B	90.89	25	15	0.034	14	Wooden Case
B	S4PC3.5-65-72-600B	93.06	25	15	0.035	14.5	Wooden Case
C	S4PC3.5-95-96-750B	96.74	25	15	0.036	15	Wooden Case
D	S4PC3.5-95-120-900B	99	25	15	0.037	16	Wooden Case
E	S4PC3.5-110-110-1100B	100.41	25	15	0.038	16.5	Wooden Case
F	S4PC3.5-110-150-1100B	98.91	25	15	0.037	17	Wooden Case
G	S4PC4.0-35-48-400B	90.23	25	15	0.034	14	Wooden Case
H	S4PC4.0-50-72-600B	92.71	25	15	0.035	14.5	Wooden Case
I	S4PC4.0-70-96-750B	96.69	25	15	0.036	14.5	Wooden Case
J	S4PC4.0-80-120-900B	100.67	25	15	0.038	16	Wooden Case
K	S4PC4.0-95-110-1100B	103.15	25	15	0.039	16.5	Wooden Case
L	S4PC4.0-95-150-1100B	101.65	25	15	0.038	16	Wooden Case
M	S4PC4.5-130-110-1500B	111.39	25	15	0.042	17	Wooden Case
N	S4PC4.5-130-200-1500B	111.39	25	15	0.042	17	Wooden Case
O	S4PC4.5-190-300-2200B	120.33	25	15	0.045	17	Wooden Case
P	S4PC6-32-48-400B	85.65	25	15	0.032	14	Wooden Case
Q	S4PC6-42-72-600B	85.65	25	15	0.032	14.5	Wooden Case
R	S4PC6-56-96-750B	89.76	25	15	0.034	14.5	Wooden Case
S	S4PC6-84-110-1100B	94.97	25	15	0.036	16	Wooden Case
T	S4PC6-112-110-1300B	101.68	25	15	0.038	16.5	Wooden Case
U	S4PC6-135-110-1500B	110.17	25	15	0.041	17	Wooden Case
V	S4PC6-84-150-1100B	94.97	25	15	0.036	16	Wooden Case
W	S4PC6-112-180-1300B	101.68	25	15	0.038	16.5	Wooden Case
X	S4PC6-135-200-1500B	110.17	25	15	0.041	17	Wooden Case
Y	S4PC6-175-300-2200B	116.88	25	15	0.044	20	Wooden Case
Z	S4PC9-45-96-750B	88.03	25	15	0.033	14.5	Wooden Case
AA	S4PC9-58-110-1100B	90.93	25	15	0.034	16	Wooden Case
AB	S4PC9-71-110-1300B	95.33	25	15	0.036	16.5	Wooden Case
AC	S4PC9-85-110-1500B	98.23	25	15	0.037	17	Wooden Case
AD	S4PC9-58-150-1100B	90.93	25	15	0.034	16	Wooden Case
AE	S4PC9-71-180-1300B	95.33	25	15	0.036	16.5	Wooden Case
AF	S4PC9-85-200-1500B	98.23	25	15	0.037	17	Wooden Case
AG	S4PC9-125-300-2200B	111.71	25	15	0.042	20	Wooden Case
AH	S4PC13-36-96-750B	91.6	25	15	0.034	14.5	Wooden Case
AI	S4PC13-49-110-1100B	91.6	25	15	0.034	16	Wooden Case
AJ	S4PC13-54-110-1300B	96.16	25	15	0.036	16.5	Wooden Case
AK	S4PC13-60-110-1500B	99.23	25	15	0.037	17	Wooden Case
AL	S4PC13-49-150-1100B	91.6	25	15	0.034	16	Wooden Case
AM	S4PC13-54-180-1300B	96.16	25	15	0.036	16.5	Wooden Case
AN	S4PC13-60-200-1500B	99.23	25	15	0.037	17	Wooden Case
AO	S4PC13-110-300-2200B	113.21	25	15	0.042	20	Wooden Case
AP	S4PC17-48-110-1500B	96.08	25	15	0.036	17	Wooden Case
AQ	S4PC17-48-200-1500B	96.08	25	15	0.036	17	Wooden Case

System Wiring Instruction

How to configure solar panels

● Connect the solar panels accurately according to the product manual, as excessively high VOC voltage may cause irreversible damage to the controller.

● It is generally recommended to calculate the required solar panel power based on 1.3 to 1.5 times the rated power of the water pump.

● When connecting the solar panels, ensure that the VOC voltage of the solar panels does not exceed the maximum VOC voltage limit of the controller.

No.	Model	Controller Voc	Solar Panel Connection
A	S4PC3.5-50-48-400D	SSL-4C48-110VOC
B	S4PC3.5-65-72-600D	SSL-4C72-170VOC
C	S4PC3.5-95-96-750D	SSL-4C96-220VOC
D	S4PC3.5-95-120-900D	SSL-4C96-220VOC
E	S4PC3.5-110-110-1100D	SSL-4C11-220VOC
F	S4PC3.5-110-150-1100D	SSL-4C15-430VOC
G	S4PC4.0-35-48-400D	SSL-4C48-110VOC
H	S4PC4.0-50-72-600D	SSL-4C72-170VOC
I	S4PC4.0-70-96-750D	SSL-4C96-220VOC
J	S4PC4.0-80-120-900D	SSL-4C96-220VOC
K	S4PC4.0-95-110-1100D	SSL-4C11-220VOC
L	S4PC4.0-95-150-1100D	SSL-4C15-430VOC
M	S4PC4.5-130-110-1500D	SSL-4C11-220VOC
N	S4PC4.5-130-200-1500D	SSL-4C20-430VOC
O	S4PC4.5-190-300-2200D	SSL-4C30-430VOC
P	S4PC6-32-48-400D	SSL-4C48-110VOC
Q	S4PC6-42-72-600D	SSL-4C72-170VOC
R	S4PC6-56-96-750D	SSL-4C96-220VOC
S	S4PC6-84-110-1100D	SSL-4C96-220VOC
T	S4PC6-112-110-1300D	SSL-4C11-220VOC
U	S4PC6-135-110-1500D	SSL-4C11-220VOC
V	S4PC6-84-150-1100D	SSL-4C15-430VOC
W	S4PC6-112-180-1300D	SSL-4C20-430VOC
X	S4PC6-135-200-1500D	SSL-4C20-430VOC
Y	S4PC6-175-300-2200D	SSL-4C30-430VOC
Z	S4PC9-45-96-750D	SSL-4C96-220VOC
AA	S4PC9-58-110-1100D	SSL-4C11-220VOC
AB	S4PC9-71-110-1300D	SSL-4C11-220VOC
AC	S4PC9-85-110-1500D	SSL-4C11-220VOC
AD	S4PC9-58-150-1100D	SSL-4C15-430VOC
AE	S4PC9-71-180-1300D	SSL-4C20-430VOC
AF	S4PC9-85-200-1500D	SSL-4C20-430VOC
AG	S4PC9-125-300-2200D	SSL-4C30-430VOC
AH	S4PC13-36-96-750D	SSL-4C96-220VOC
AI	S4PC13-49-110-1100D	SSL-4C96-220VOC
AJ	S4PC13-54-110-1300D	SSL-4C11-220VOC
AK	S4PC13-60-110-1500D	SSL-4C11-220VOC
AL	S4PC13-49-150-1100D	SSL-4C15-430VOC
AM	S4PC13-54-180-1300D	SSL-4C20-430VOC
AN	S4PC13-60-200-1500D	SSL-4C20-430VOC
AO	S4PC13-110-300-2200D	SSL-4C30-430VOC
AP	S4PC17-48-110-1500D	SSL-4C11-220VOC
AQ	S4PC17-48-200-1500D	SSL-4C20-430VOC
