SDPO Off Grid Hybrid Inverter(EU Model) Solar Inverter for Energy Storage System
group nameSolar Inverter
-
Min Order1 set
brand nameVodloon Solar Energy Storage System Manufacturer
modelSDPO
payment methodT/T, L/C, D/P D/A, MoneyGram
-
update timeWed, 17 Dec 2025 20:07:25 GMT
Paramtents
Standard EU Model
Waveform Pure sine wave
Rated input voltage 220/230/240VAC
Output voltage 220/230/240VAC±5%
Battery type Lithium ion batteries/lead-acid batteries/user-def
PV charging method MPPT
Communication interface USB/RS485 (optional WiFi)/dry connector
Warranty 3 Years
Certificate CE/ROHS/FCC
Packging & Delivery
Min Order1 set
Briefing
High Efficiency MPPT tracking, Three output modes, 3 Years Warranty, With USB/RS485 (optional WiFi)/dry connector Communication
Detailed

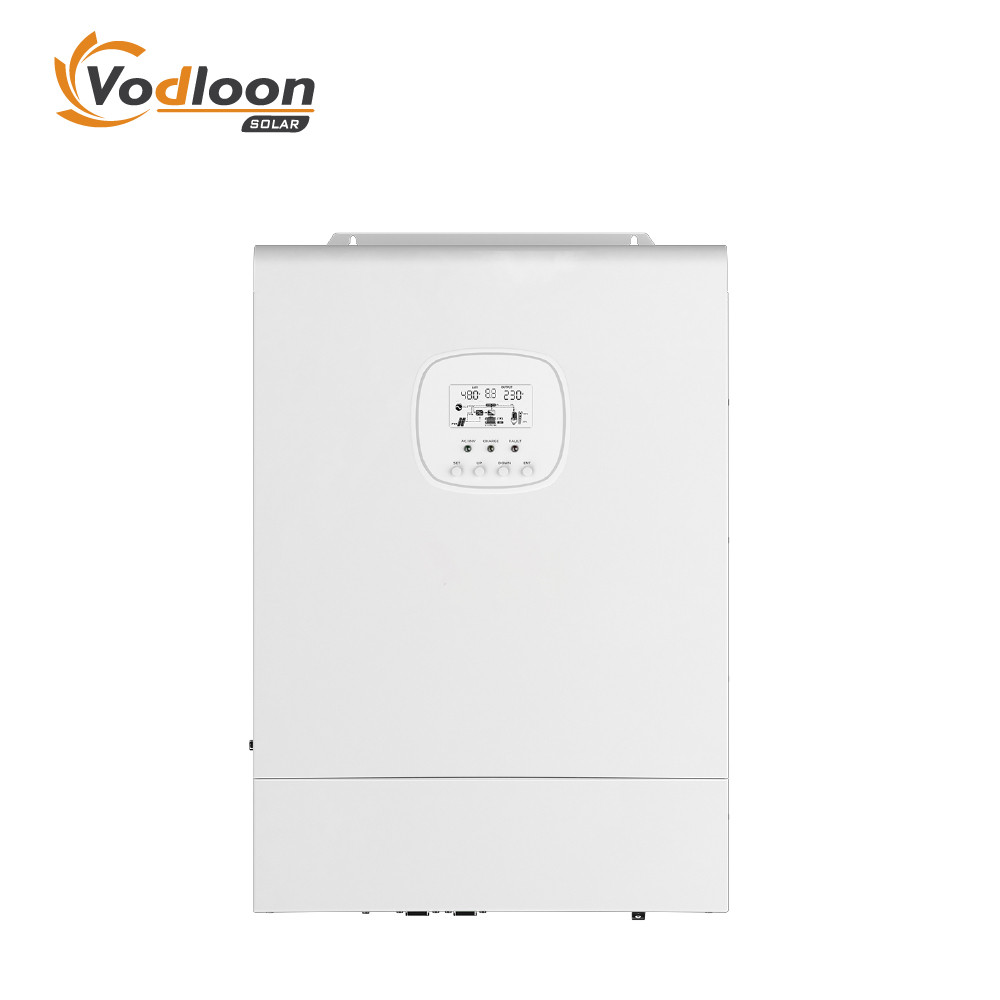

SDPO Off Grid Hybrid Inverter(EU Model)
SDPO Off Grid Hybrid Inverter
(EU Model)
MPPT
Solar Hybrid Inverter
Pure Sinewave Output
Lithium Communication
Photovoltaic+ Mains Charging
Eight Major Protection Functions
Product Parameters
Model | SPW-B-48100 | SPW-B-48200 | SPW-B-48300 | SPW-B-512100 | SPW-B-51.2200 | SPW-B-512300 |
Standard voltage | 48V | 48V | 48V | 51.2V | 51.2V | 51.2V |
Standard capacity | 100Ah | 200Ah | 300Ah | 100Ah | 200Ah | 300Ah |
Rated capacity | 4.8KWh | 9.6kWh | 14.4kWh | 5.12kWh | 10.24kWh | 15.36kWh |
Working woltage | 40.5-54V | 40.5-54V | 40.5-54V | 432-57.6V | 432-57.6V | 432-57.6V |
Standard charging current | 50A | 100A | 150A | 50A | 100A | 150A |
Standard discharging current | 100A | 100A | 200A | 100A | 100A | 200A |
Suggested DOD | 80% | 80% | 80% | 80% | 80% | 80% |
Cycle Life | >6000 cycles | >6000 cycles | >6000 cycles | >6000 cycles | >6000 cycles | >6000 cycles |
IP Rating | IP21(IP65optional) | IP21(IP65optional) | IP21(IP65optional) | IP21(IP65optional) | IP21(IP65optional) | IP21(IP65optional) |
Discharge operating temperature | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ |
Charging operating temperature | 0℃-45℃ | 0℃-45℃ | 0℃-45℃ | 0℃-45℃ | 0℃-45℃ | 0℃-45℃ |
Maximum parallel | 15PCS | 15PCS | 15PCS | 15PCS | 15PCS | 15PCS |
Communication | RS232/CAN/RS485 (WIFI/BT optional) | RS232/CAN/RS485 (WIFI/BT optional) | RS232/CAN/RS485 (WIFI/BT optional) | RS232/CAN/RS485 (WIFI/BT optional) | RS232/CAN/RS485 (WIFI/BT optional) | RS232/CAN/RS485 (WIFI/BT optional) |
Display | LCD touch screen | LCD touch screen | LCD touch screen | LCD touch screen | LCD touch screen | LCD touch screen |
Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
Certificate | UN38.3/MSDS/CE/ROHS/FCC | UN38.3/MSDS/CE/ROHS/FCC | UN38.3/MSDS/CE/ROHS/FCC | UN38.3/MSDS/CE/ROHS/FCC | UN38.3/MSDS/CE/ROHS/FCC | UN38.3/MSDS/CE/ROHS/FCC |
NW. (kg) | 47.2 | 87 | 115 | 48 | 91 | 120 |
GW(kg) | 51.4 | 105 | 133 | 55 | 109 | 138 |
Product size(mm) | 545*460*200 | 790*530*200 | 790*530*240 | 545*460*200 | 790*530*200 | 790*530*240 |
Package size(mm) | 625*540*300 | 870*610*410 | 850*590*300 | 625*540*300 | 870*610*410 | 850*590*300 |
Product Introduction
The SDPO off grid hybrid inverter combines photovoltaic and mains charging and discharging, UPS bypass, and battery inversion functions. It can intelligently adjust the work priority, communicate with home lithium batteries, and can also increase output power through multiple sets of parallel machines. It can be applied in different application scenarios such as homes, RV,agriculture, and industry.
Product Features
1. Advanced SPWM technology, pure sine wave output
2. Automatic activation of lithium batteries
3. Four charging modes including photovoltaic, mains, photovoltaic priority, and hybrid charging
4. Advanced MPPT technology with an efficiency of up to 99.9%
5. Three output modes: photovoltaic,inverter, and mains bypass
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
