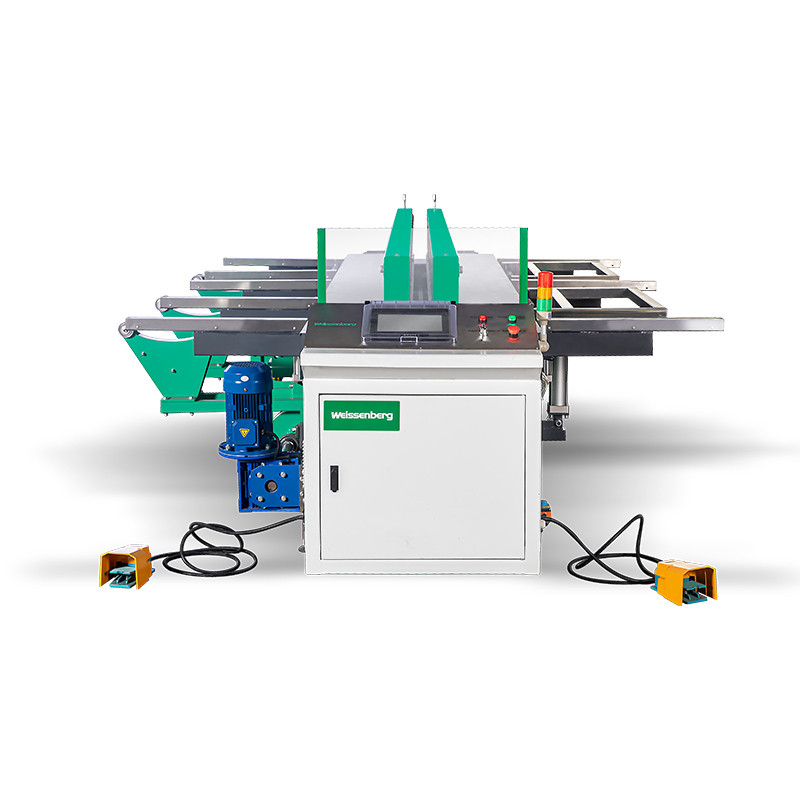

Plastic Sheet Butt Welder WeiBond 3000
group namePlastic Sheet Butt Welder
-
Min Order1 piece
brand nameWeissenberg
modelWeiBond 3000
payment methodT/T, L/C, PayPal, Cash
-
update timeFri, 05 Dec 2025 14:23:31 GMT
Paramtents
Maximum Welding Width 3000 mm
Maximum Welding Thickness 40 mm
Standard Applied DVS2207
Weldable Materials PE, PP, PVDF, PVC, ABS etc
Welding Type Plastic Sheet Butt Welding
Certificate CE
Packging & Delivery
Min Order1 piece
Briefing
Weissenberg WeiBond 3000 is built for 3–40mm plastic sheet welding, ideal for aquaculture tanks, PP scrubber towers, and water treatment units.
Detailed
Detail Information
Plastic Sheet Butt Welder WeiBond 3000 Introduction
The Weissenberg WeiBond 3000 is a high-capacity butt welding machine designed for joining thermoplastic sheets from 3 to 40 mm in thickness, with a maximum welding width of 3000 mm. Engineered for demanding industrial environments such as aquaculture, PP scrubber tower fabrication, and water treatment plants, it ensures reliable performance even on large-format sheets.
Plastic Sheet Butt Welder WeiBond 3000 Features
Plastic Sheet Butt Welder WeiBond 3000 Technical Parameters
| Product model | WeiBond 3000 |
| Maximum Working width | 3,000mm |
Machine Length | 4,750mm |
Machine width | 2,500mm |
Machine height | 1,200mm |
PE (0.15 N/mm²) | 3-40 |
PP (0.10 N/mm²) | 3-40 |
| PVDF (0.10 N/mm²) | 3-40 |
| Power supply | 230/400V 3/N/PE,50/60 Hz |
| Power consumption | 7.2KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
| Optional Auxiliary Tools | 90° degree angle device Rolling auxiliary device |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
